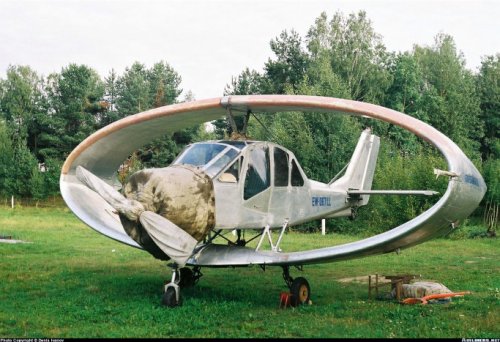

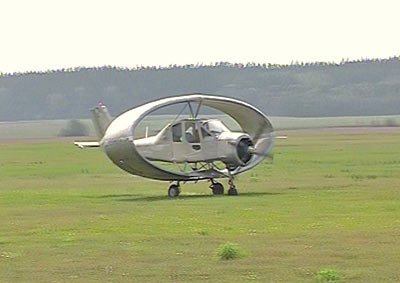

I always thought that the ring-wing concept was tested only at RC sized-down models until I found this:

Borovaya UMMB from Belarus (picture from Airliners.net)


Attachments

  • UMMB.JPG
    115.7 KB · Views: 215

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,206
Maybe it's a bit subtle, but wasn't the Bell X-22 in fact a ring wing,
even a canard ring wing ? ;)

And, if this is too misleading, the SNECMA 450 Coléoptère certainly
was. There are few ideas in aviation too weird, to be tested at least
twice, I think !


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
167
Website
www.hitechweb.genezis.eu
Well, X-22A was a ducted fan aircraft and the rear thing was certainly the wing, only interrupted by ducted fan.

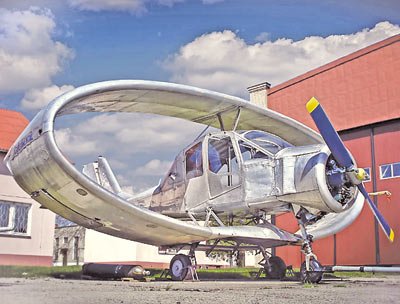

But you are right with Coléoptére, I totaly forgot that it was also ring wing concept. In my first post I had in mind aircrafts that have it mounted horizontally, not verticaly like C450, Convair Model 49, Hanneton, Scarabée or Bruche designs. Something like this:


Attachments

  • 02a02a2006120624AM.jpg
    95.2 KB · Views: 203
  • image024.jpg
    17.3 KB · Views: 218
  • image025.jpg
    8.6 KB · Views: 215

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,122
Reaction score
2,993
Aparently the coleoptere wing concept come from a German scientist named Von Zborowski. There's some pages dedicated to the Coleoptere in "les avions de combat francais" by Jean Cuny... maybe some details about the wingh and Zborowski (not easy to write) I have to check...


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,206
There was another frenchman (Zborowski became french citizen, AFAIK), who
designed ring wings : I. Labat with his "Aeroblics", which he credited with
exceptional short field performance.
(from Luftfahrttechnik 7/58)


Attachments

  • Aeroblic  .JPG
    Aeroblic .JPG
    176 KB · Views: 223

Andreas Parsch

ACCESS: Secret
Joined
Mar 2, 2006
Messages
246
Reaction score
16
Archibald said:
Aparently the coleoptere wing concept come from a German scientist named Von Zborowski. There's some pages dedicated to the Coleoptere in "les avions de combat francais" by Jean Cuny... maybe some details about the wingh and Zborowski (not easy to write) I have to check...

There is a section (about 10 pages long) about Zborowski's designs, including the Coléoptère, in the "Flying Saucer" book which I described in the "New books" thread.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,635
Reaction score
4,594
My dears,

there is a drawing for Lockheed to SSBJ concept has
a ring wing.


ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
187
Reaction score
18
Hi Everyone!

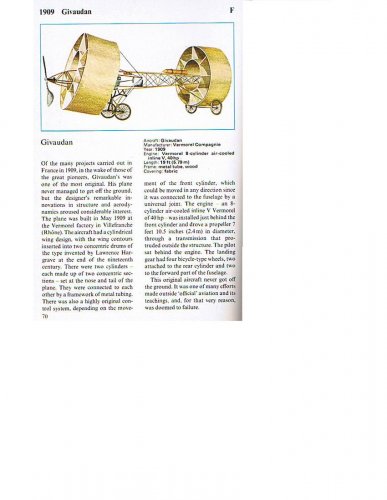

Could this early aircraft from France also be classed as a ring wing?


Chuck


Attachments

  • Givaudan_.JPG
    97.2 KB · Views: 164

ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
187
Reaction score
18
ChuckAnderson said:
Hi Everyone!

Could this early aircraft from France also be classed as a ring wing?


Chuck

Hi!

You'll have to enlarge this a bit on your view!
Sorry!!


Chuck


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,206
It's quite clearly a ring wing, I think !

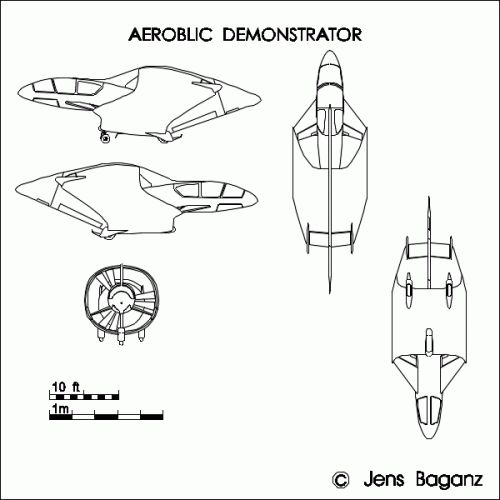

Here's one more Aeroblic, this time a planned
demonstrator, the layout is more easily recognisable
here .


Attachments

  • Aeroblic-demonstrator.GIF
    25.4 KB · Views: 198

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,122
Reaction score
2,993
In the may 2009 edition of Le Fana de l'aviation there's a bunch of annular wing concepts. Zborowski was a prolific designer.


RanulfC

ACCESS: Top Secret
Joined
Mar 6, 2009
Messages
934
Reaction score
393
Ring Wings, also known as "Annular Wings" seem to have a long, if checkered history:

http://www.flightglobal.com/pdfarchive/view/1955/1955%20-%200863.html

http://www.flightglobal.com/pdfarchive/view/1957/1957%20-%200786.html

http://www.ufologie.net/aircraft/coleoptere.htm

Additional planned designs for Aircraft from BTZ:
http://www.aiaa.org/tc/vstol/unbuilt/btz/index.html

Build your own!
http://jetex.org/models/plans/plans-misc/article-plan-coccinellida-am-5611.html

Documents:
http://www.dtic.mil/cgi-bin/GetTRDoc?AD=AD297809&Location=U2&doc=GetTRDoc.pdf

http://www.dtic.mil/cgi-bin/GetTRDoc?Location=U2&doc=GetTRDoc.pdf&AD=AD0452725

Randy


mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
11

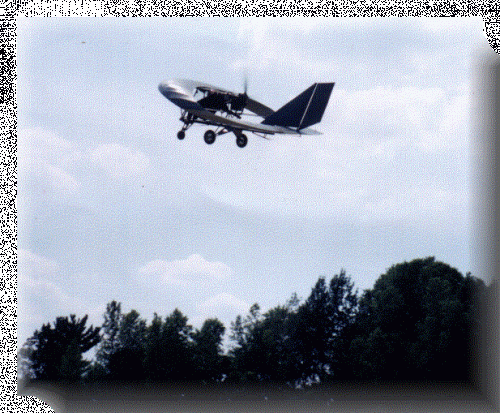

There have been ultralight versions. One with the front of the ring wing high and the aft low, has flown in 1997:

http://www.ultralightflyer.com/orbit_air_ultralight/index.html
http://www.ultralightnews.com/airventure99/orbitair.htm

Keywords: Orbitair, David Myers, Oshkosh 1988, Patented 1990, Flown 1997.


Attachments

  • orbitair99b.gif
    104.4 KB · Views: 76

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,282
Reaction score
1,206
Looks like a mixture of ring wing, box wing and disc wing.
Honestly, I still can see no benefit in the ring wing, apart for
an application as in some Coléoptère designs, where the wing
doubled as ram jet. For a tail sitter, ok, it gives a robust structure,
but where are real aerodynamic benefits for, say, a ring wing airliner ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,635
Reaction score
4,594

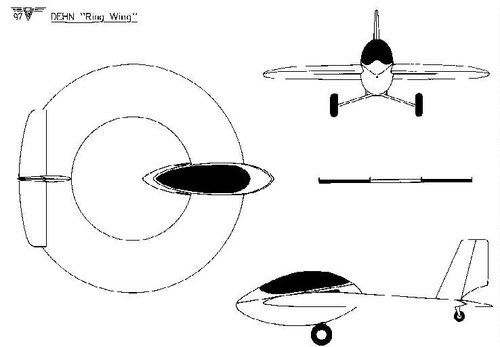

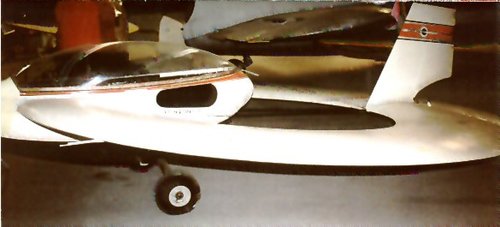

Here is a ring-wing airplane,designed by Mr. Karl Dehn,



Attachments

  • 1.jpg
    27.9 KB · Views: 23
  • 2.jpg
    36 KB · Views: 22

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,328
Reaction score
735
The primary goal of ring wings is eliminating wing tip vortexes by eliminating wing tips.


Zoo Tycoon

ACCESS: Top Secret
Senior Member
Joined
May 27, 2008
Messages
506
Reaction score
637
Ah no, they can’t do that. The tip vortex is created where the high pressure on the lower surface can flow towards the lower pressure on the upper surface. That’s still going to occur on a ring wing at the LH & RH extent of span.
