Rikugun Ki-93

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
199
One of my favorite Japanese WWII designs...
I'm sure it would have been a formidable opponent if it had had the time to prove itself.
Thanks for sharing!


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,945
Reaction score
1,739
You made my day,


very interesting my dear Blackkite.


T-50

CLEARANCE: Secret
Joined
Nov 20, 2008
Messages
324
Reaction score
0
Hi Blackkite san you have deliver very interesting stuff again,it is a plesure to read this very new info!
thanks for it!


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,507
Reaction score
1,315
Hi! My dear friends, I am very happy to know that you enjoyed my posts.
Ed! We are waiting for your next works very much.


windswords

CLEARANCE: Secret
Joined
May 20, 2009
Messages
314
Reaction score
20
I have always been fascinated by this project for a number of reasons:

  • It was the first (and maybe only) design of the firm Rikugun
  • The canopy green house looks very German to me
  • 2400 hp engines driving 6 blade propellers - what's not to like?
  • Armament of 2 x 20 mm + a 57mm or 75mm cannon depending on mission role
Does anyone have pictures/drawings of the cockpit layout?


Attachments

windswords

CLEARANCE: Secret
Joined
May 20, 2009
Messages
314
Reaction score
20
Hi ,

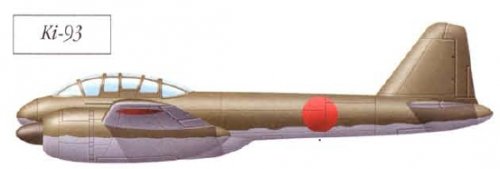

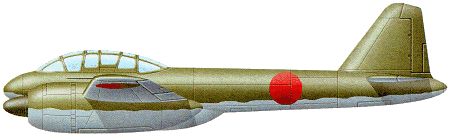

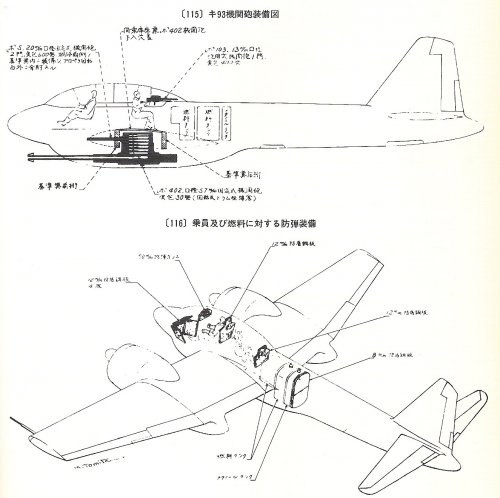

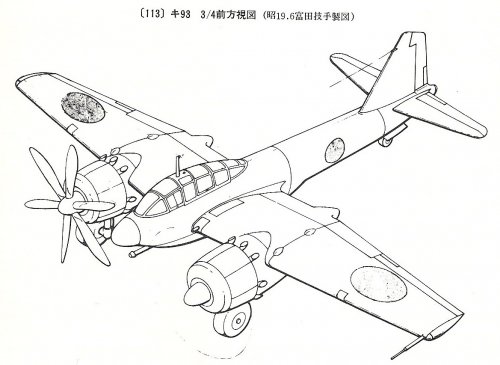

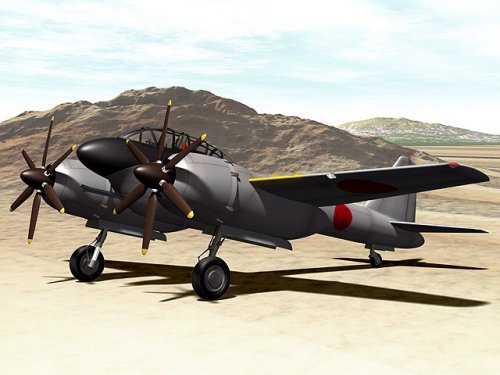

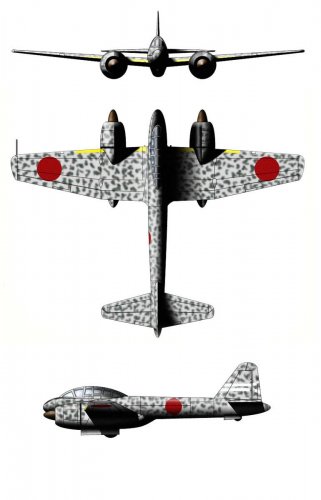

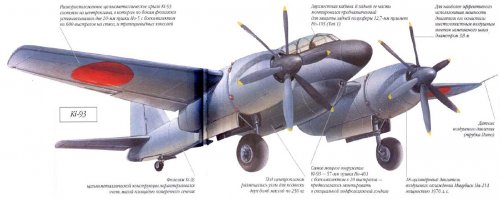

blackkite's first pic shows the 75mm cannon installation. The second pic is of a model kit. Do you know what kit it is? I would love to make a model of this plane if the kit wasn't too expensive. Stargazer's 3/4 view color plate is new to me.

thanks


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
199
I don't think this was from a model kit, but I could be wrong. Some parts such as the engine cowlings, for instance, just seem unnecessarily broken down into small pieces.

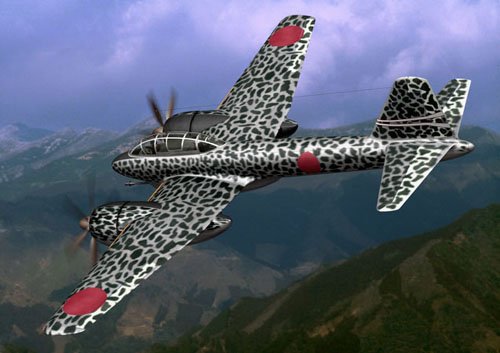

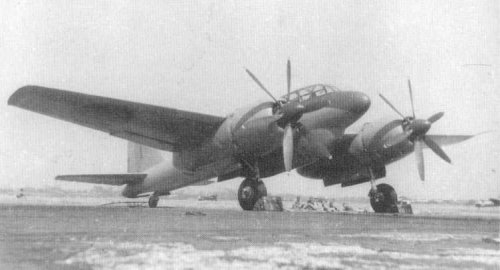

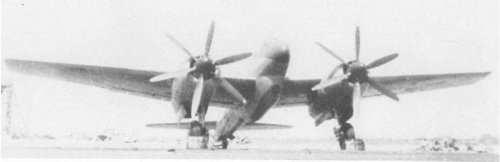

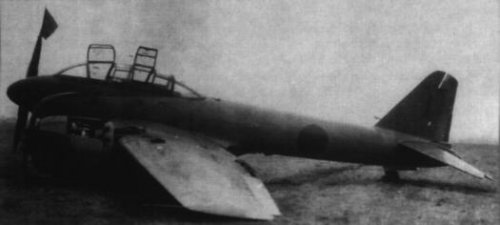

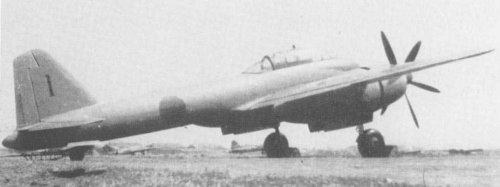

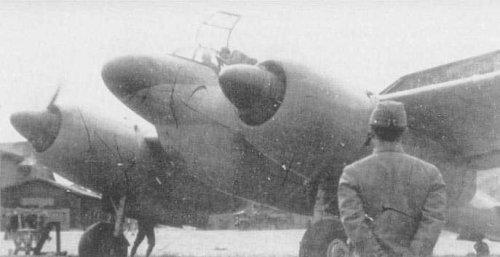

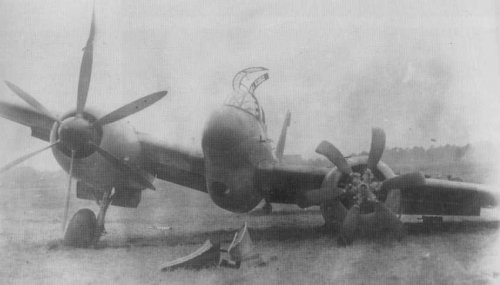

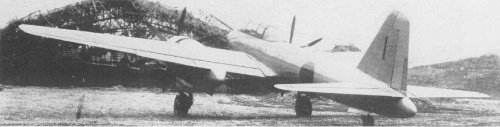

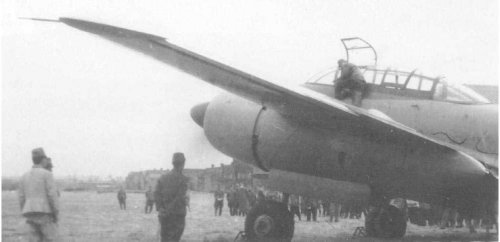

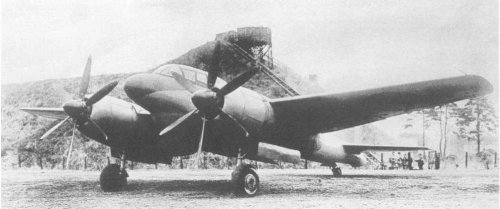

Anyway, glad you enjoyed the pics. Here is a series of photos, most of which you probably know...


Attachments

windswords

CLEARANCE: Secret
Joined
May 20, 2009
Messages
314
Reaction score
20
Hi Stargazer,

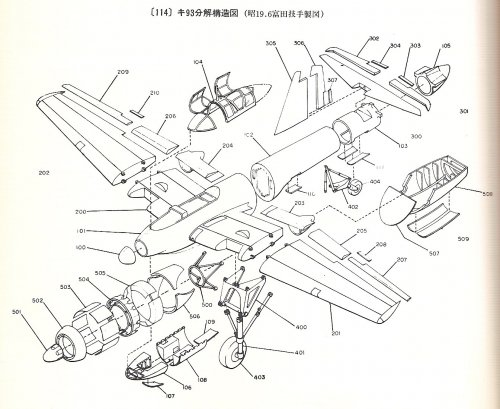

My guess about the pic that looks like it's from a model is that it is a resin, not plastic, kit. There do seem to be a lot of parts, but they are numbered similar to what you would see for a scale model.

You are correct Rikugun did design other aircraft. I misspoke. What I meant to say was that it was the only aircraft that they actually built and flew.


Artie Bob

CLEARANCE: Confidential
Joined
Jan 6, 2008
Messages
161
Reaction score
10
IMHO you are looking at an actual subassembly breakdown for the real aircraft. For example, look at the structural connection points. I am no expert but have taken apart a few real airplanes.
Best Regards,

Artie Bob


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
199
Topics split/merged and separated from other Rikugun projects.


SatinWings

CLEARANCE: Restricted
Joined
Jun 12, 2019
Messages
5
Reaction score
12

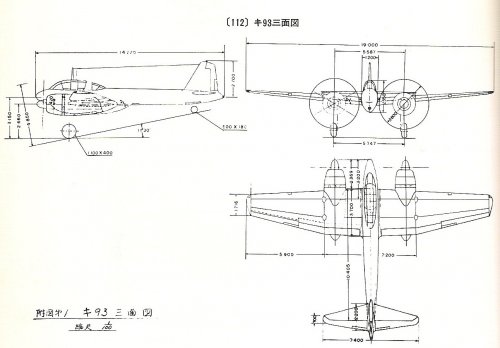

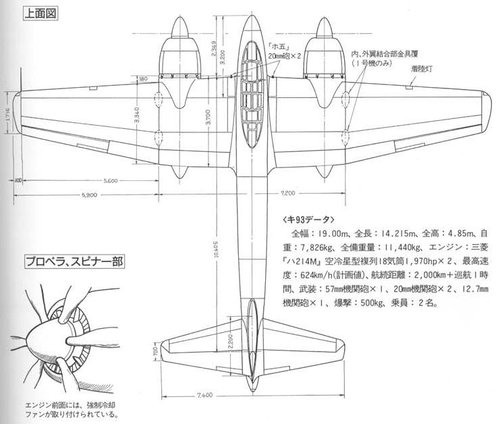

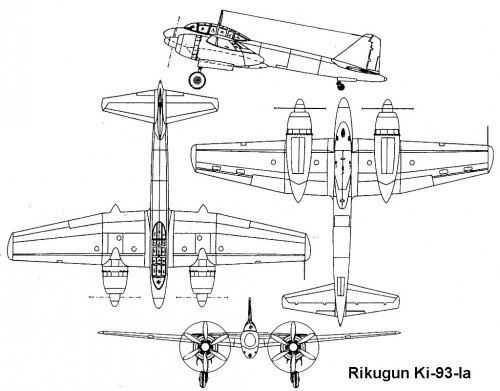

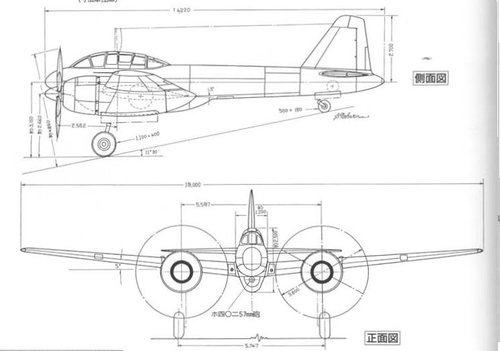

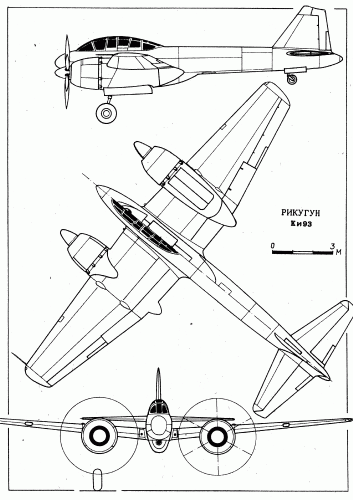

From an archived version of alternatehistory.org.ua. Lists only a single source, but the source is in English so I do not know from where these drawings originate sadly. Especially sad is that this source (or collection of sources) often has redraws of original engineering drawings and appears to be pretty reliably based on primary sources.


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,507
Reaction score
1,315
Hi!

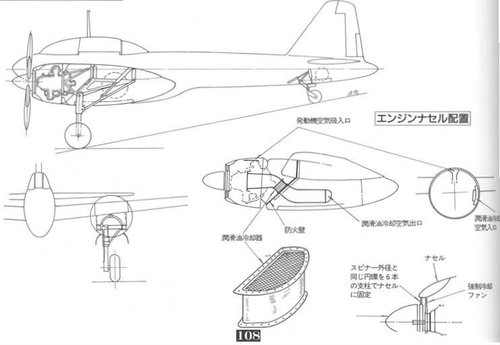

強制冷却ファン : forced cooling fan,  発動機空気吸入口 : engine air intake, 潤滑油冷却器 : oli cooler,  空気入口 : air intake, 防火壁 : Fire wall
Engine ram air intake is located behind the force cooling fan, inside of the engine nacelle same as Raiden.

https://www.youtube.com/watch?v=OrzpuZS23OY
