Retractable Heatshield

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
937
Reaction score
153

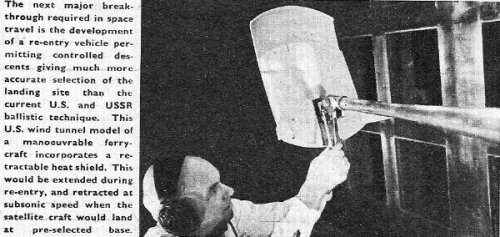

From Flying Review December 1960.

Anybody know anything more about this one?


Attachments

  • scan0023 (2).jpg
    scan0023 (2).jpg
    56.2 KB · Views: 118

Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,053
Reaction score
1,512
I never heard or see until now, from this Project ! :eek:

look more a lifting body with variable surface

Thanks for posting Barrington Bond


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
605
Reaction score
143
Heij,

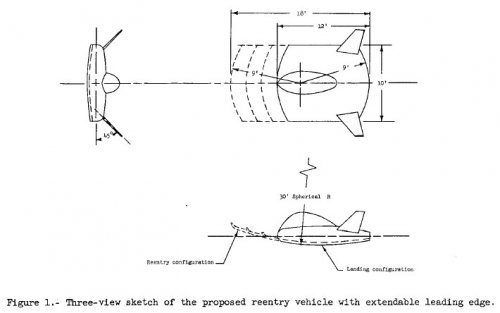

The concept has been studied by NASA in the early 60s:

Tecnical report NASA TM-X-893, dated Oct. 1963:
"Longitudinal stability and aerodynamic characteristics of a reentry vehicle configuration having an extendable leading edge at a Mach number of 10.03 and angles of attack from 50 deg to 90 deg"

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19720065666_1972065666.pdf

Cheers,
Philippe


Attachments

  • Reentry vehicle with extendable leading edge.jpg
    Reentry vehicle with extendable leading edge.jpg
    37.9 KB · Views: 46

blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,825
Reaction score
291
That's interesting. But there were also other heat shield concepts being floated around even in the late 1950s. I saw a document at the Smithsonian a few years back which I believe was an AVCO proposal for an inflatable heat shield. I forget the name, but it was essentially a very high drag, low mass system. Sort of like a big umbrella that would inflate in front of the craft. I suspect that materials would have been a major problem, then much more so than now.


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
605
Reaction score
143
Heij, Blackstar,

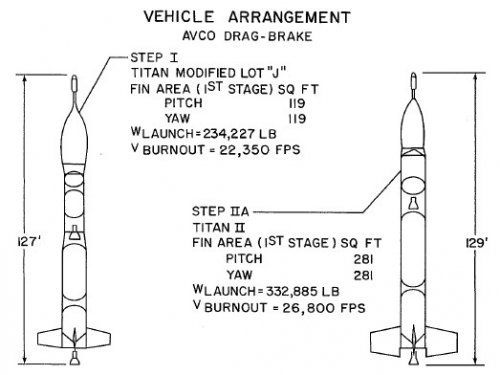

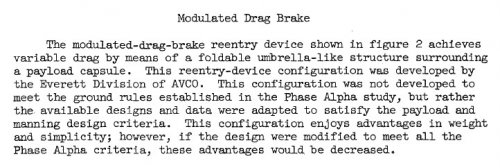

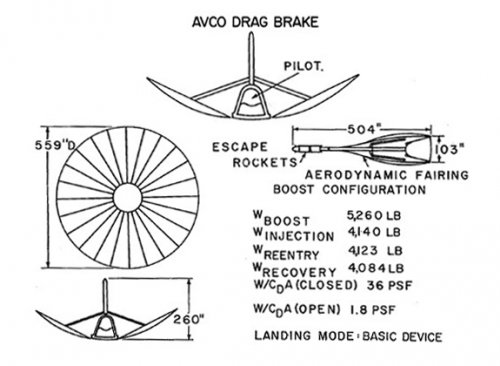

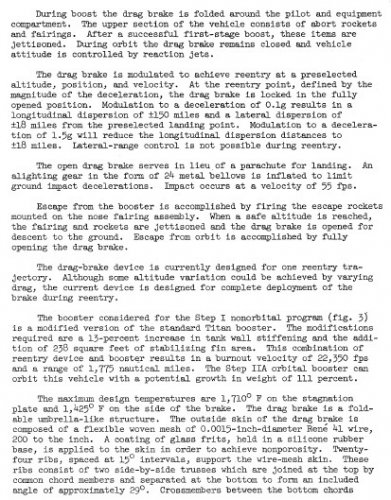

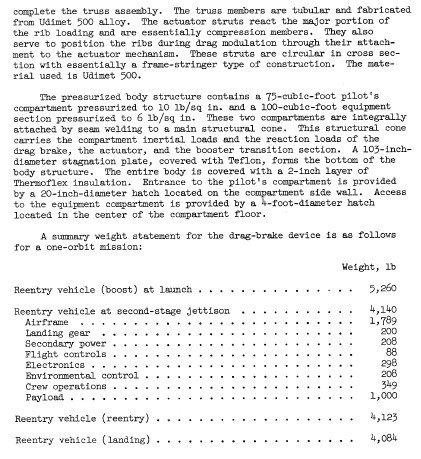

AVCO made the following "umbrella-like" proposal for the Dyna-Soar program, under the concept name "Drag-Brake". (Source: NASA TMX-67562)


Attachments

  • AVCO.jpg
    98.5 KB · Views: 33
  • AVCO1.jpg
    42.1 KB · Views: 26
  • AVCO2.jpg
    71.7 KB · Views: 22
  • AVCO3.jpg
    114.7 KB · Views: 8
  • AVCO4.jpg
    83.7 KB · Views: 10

blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,825
Reaction score
291
That's it. I knew that it had an odd name, and "drag brake" is it. However, the proposal I saw predated Dyna Soar. It might even have predated Mercury--maybe 1956 or 57. I was struck by the fact that it was an alternative capsule reentry technology than what they went with for Mercury.

Thank you.


mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
12
there's a NASA history interview (I think it was just a transscribed tape) with Max Faget and some others and they talk about, among other things, the diversity of pre-Mercury re-entry ideas. One was a steel parachute (IIRC an idea by some professor or some company) that Faget said he showed that would melt. I can't find it anymore. IIRC he also tested the oscillations of re-entry shapes in a water tank and iterated the shapes that way, and used jet engines to test heat shields.
