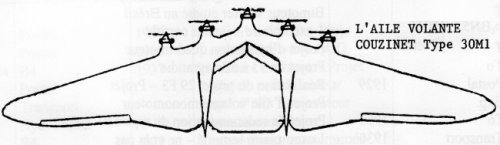

Rene Couzine had designed a several aircraft and projects for transatlantic,
such as RC-10,RC-11,RC-21,RC-22 RC-27 RC-28 GR,RC-29T,RC-40,RC-60,RC-61,RC-70,RC-71,RC-72,RC-73,RC-100 TO 103,RC-110 TO 113,RC-120,RC-130,RC-140,RC246 THREE ENGINED AIRCRAF,
AND RC-80 TWO ENGINED AIRCRAFT


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,638
Reaction score
6,493
I will complete about Rene Couzinet,


RC-63 and RC-90 MULTI ENGINED AIRCRAFT.
RC-1000 SINGLE ENGINED AIRCRAFT.

The more intersting is the Couzinet RC-150 single engined aircraft which designed in 1934
and it was look like Hughes H-1 racer aircraft.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,638
Reaction score
6,493
Hi,

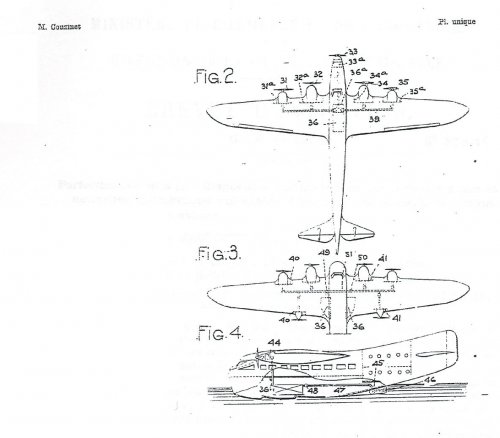

two projects to Rene Couzinet,the RC.261 Normandie four engined
flying boat and a twin boom seaplane powered by two engined for
transatlantic mission.


Attachments

  • Couzinet 261.jpg
    Couzinet 261.jpg
    8 KB · Views: 1,276
  • HYDRO.jpg
    6.6 KB · Views: 1,238

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,638
Reaction score
6,493
Hi,

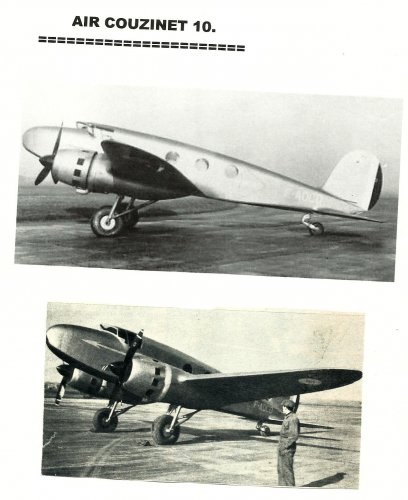

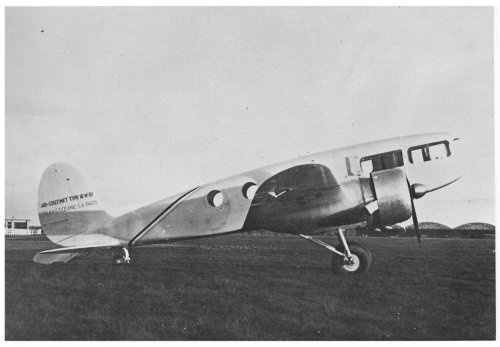

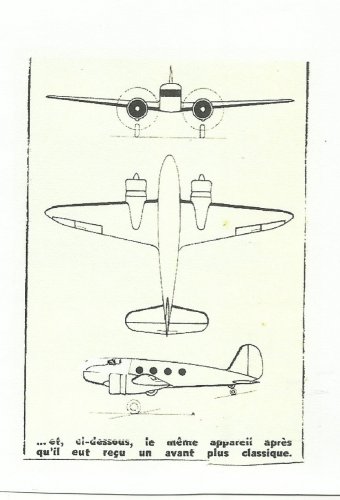

I spoke before about Couzinet projects,and here is AC-10 second
configuration,AC-20 and the Elan,unknow project.
http://pagesperso-orange.fr/aircollection/couzinet.htm


Attachments

  • arc10p.jpg
    7 KB · Views: 2,129
  • ac20p.jpg
    7 KB · Views: 2,109
  • ELAN.jpg
    10.2 KB · Views: 2,128

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,376
Reaction score
1,655
As an addition to Heshams last post and an attempt, to split the very large, in
fact too large thread :

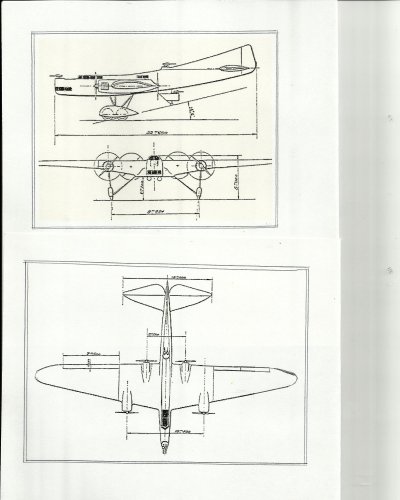

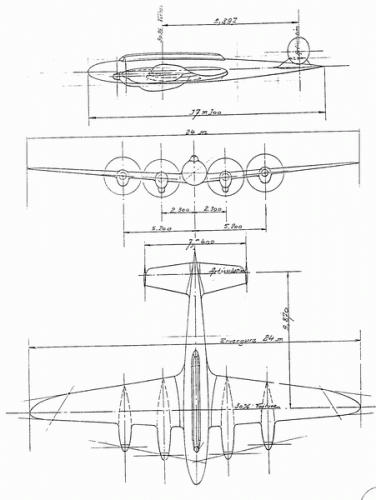

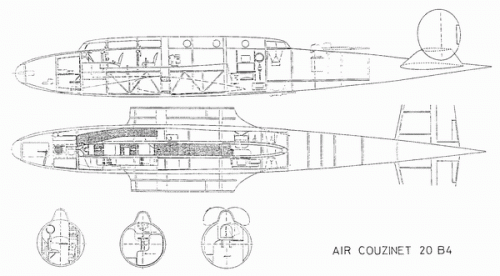

3-view and internal arrangement of the Air Couzinet 20B4 bomber project :
(from Le Trait d'Union 3/4 93 via lark )


Attachments

  • Air-Couzinet-20B4_01.gif
    57.5 KB · Views: 1,181
  • Air-Couzinet-20B4_02.gif
    59.8 KB · Views: 1,183

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
126
A lot about René Couzinet and some of his projects
can be found on
http://www.hydroretro.net/etudegh/index.php

scroll down and choose:Quand les Arc-en-Ciel traversaient l' Atlantique.


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,042
Reaction score
258
Dear Boys and Girls, if you like Couzinet and if any of you are interested we/F-RSIN have just released a 1/144 resin & metal kit of the Air Couzinet 10 Arc-en-Ciel transatlantic record breaker & mailplane from the 1930s.

http://www.f-rsin.com/pages/collection/14080.html

You know, BIG wheel spats and a fish-tailed banana fuselage......

Terry (Caravellarella).


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,376
Reaction score
1,655
"You know, BIG wheel spats and a fish-tailed banana fuselage....."

And exactly this typical "Couzinet style" even found its way into
Donal Duck comics .. ;D


Attachments

  • D-Duck.JPG
    91.2 KB · Views: 1,009

burunduk

I love the history of airplanes
Joined
Jan 2, 2007
Messages
90
Reaction score
53
Jemiba, thank you for interesting sketches.

Haven't you any data of 20B4?
And when this project was made?


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,376
Reaction score
1,655

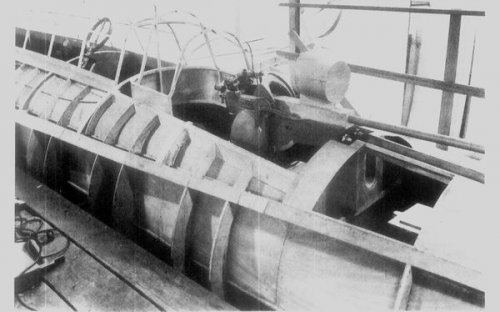

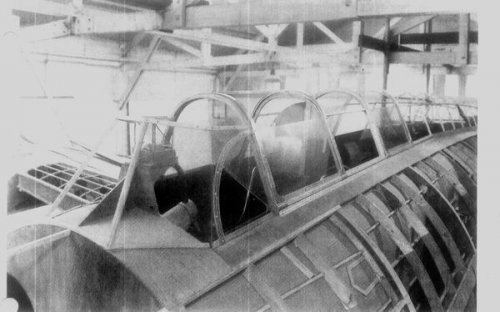

A prototype was ordered in 1939 and a mock-up was built during this
year (see attached photos from Le Trai d'Union March/April 1993)
The prototype was to have been powered by four Hispano 12Xcrs, other
versions of the Hispano 12 and the GR 14R were envisaged, too.
At a weight of 12.000 kg it should have been able to reach a speed
of 550 km/h at 5400m altitude. Length 17,3m, span 24m,
bomb load would have been 1200 kg, defensive armament 2 x 7.5mm
machine guns and a 20mm Hispano gun.


Attachments

  • 20B4_1.JPG
    38.5 KB · Views: 319
  • 20B4_2.JPG
    36.8 KB · Views: 322

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,236
Reaction score
784
In a way the Air Couzinet 20B4 bomber project reminds me of a Messerschmitt Bf-110 on steroids with four engines!

Regards
Pioneer


swallow

ACCESS: Confidential
Joined
Jan 20, 2008
Messages
61
Reaction score
7
Hi all


Searching information and a 3-view (?) of the
Couzinet 150 racer aircraft (project ).


Swallow.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
156
hI Swallow
This is a never build projects........
look at :
http://www.hydroretro.net/etudegh/arc-en-ciel_atlantique_vol2.pdf
Quand les arc en cieltraversaient l'atlantique-1927-un projet
just a drawing page 47
Bye


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,638
Reaction score
6,493

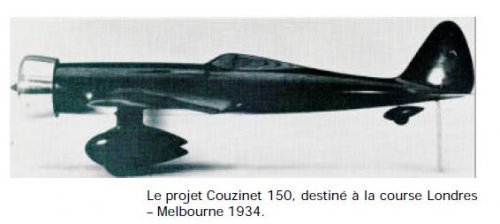

Also from the same source.


Attachments

  • C.150.JPG
    18.2 KB · Views: 771
  • Couzinet.JPG
    47.9 KB · Views: 744

Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
689
Reaction score
236
Hi!

Did you already seen this page on Couzinet' aircraft?
http://alain.vassel.pagesperso-orange.fr/arc.htm
Unfortunately, only one picture of Project 150 :cool:


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
55
Website
cmeunier.chez-alice.fr

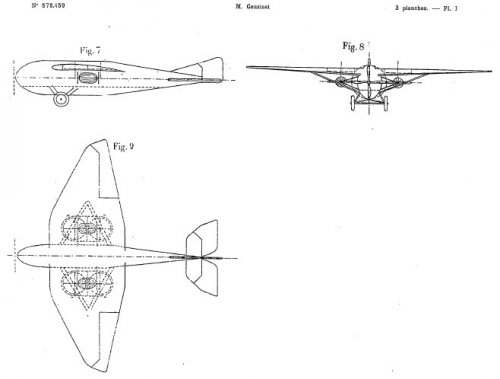

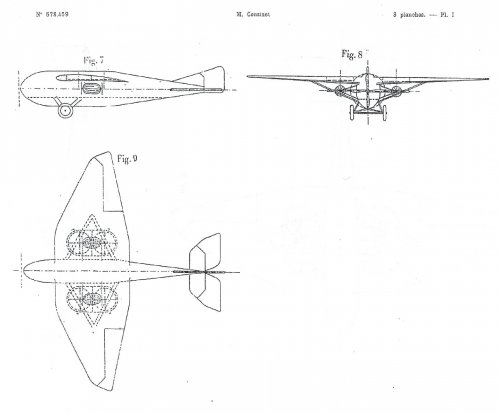

A Couzinet VTOL patent of 1924!
http://v3.espacenet.com/publicationDetails/mosaics?CC=FR&NR=578459A&KC=A&FT=D&date=19240926&DB=EPODOC&locale=fr_fr


Attachments

  • CouzinetVTOL.JPG
    34.4 KB · Views: 622

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
55
Website
cmeunier.chez-alice.fr

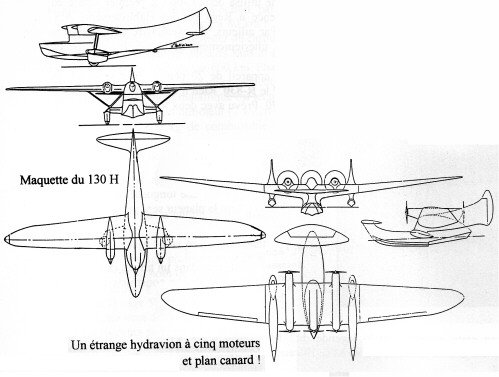

In the Trait d'Union #186 (Jul-Aug 1999) is a surprising 5-engined canard Couzinet flying boat, and the 130H flying boat amphibian.
In the Trait d'Union #184 (Mar-Apr 1999) was described the 130, I translate: "At the end of 1933, René Couzinet had imagined a multi-use derivative of the Couzinet 40: Couzinet 130, with the same 28m-span wing of the 40 associated to fuselages of length 19.15m adapted to different uses and different engines. Derivatives were Couzinet 131, 132, 133, 140. There was also a 130H amphibian version. None went further than model status."


Attachments

  • r_tu186.JPG
    40.9 KB · Views: 575

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,638
Reaction score
6,493
Hi,

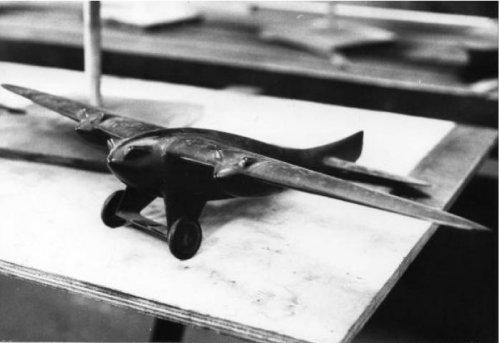

and from Hydroretro site,here is the Model of Couzinet three engined shoulder
high wing bomber project of 1925,may be that aircraft submitted to B.3 competition
of 1924.


Attachments

  • Couziner bomber.JPG
    Couziner bomber.JPG
    34 KB · Views: 91

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,638
Reaction score
6,493
Hi,

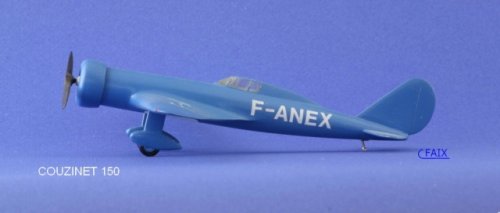

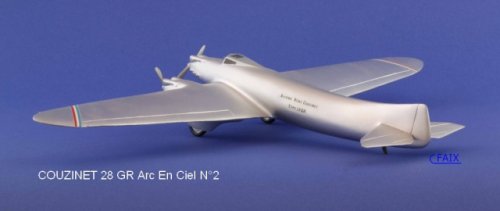

here is two models for Couzinet RC.28 GR and RC.150 racer,may be the RC.160 project
was developed from RC.150.


Attachments

  • Couzinet 28 GR.jpg
    Couzinet 28 GR.jpg
    37 KB · Views: 128
  • Couzinet 150.jpg
    Couzinet 150.jpg
    38.5 KB · Views: 155

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
156
here the Couzinet 90 bn 5
4 Hispano 12 nbr 650 hp
but, sorry, nothing more !!


Attachments

  • test.jpg
    283.1 KB · Views: 860

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,078
Reaction score
4,392
Beautiful plane. Especially tail horizontal stabilizer is very artistic and beautiful. But I can't find any vertical tail stabilize in front view. ???


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,638
Reaction score
6,493
toura said:
here the Couzinet 90 bn 5
4 Hispano 12 nbr 650 hp
but, sorry, nothing more !!


My dear Toura,


this project appeared in 1930,and in responsible for 1932 program for five seat
night bomber BN.5 competition,please see;


http://www.secretprojects.co.uk/forum/index.php/topic,7993.msg135944.html#msg135944


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
890

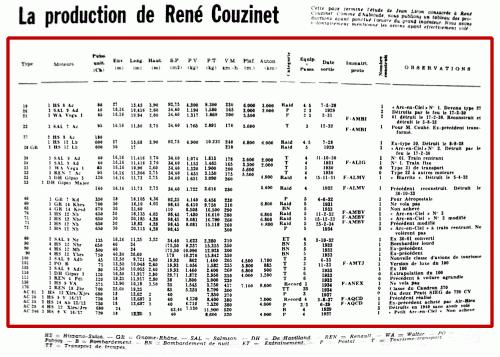

Here is a recap from Aviation Magazine of all built René Couzinet projects:


Attachments

  • Couzinet production.gif
    Couzinet production.gif
    356.5 KB · Views: 665

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,638
Reaction score
6,493

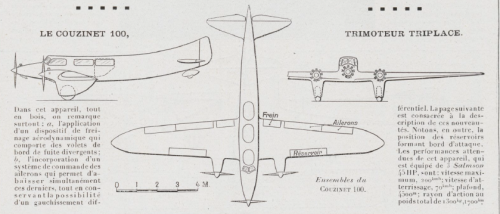

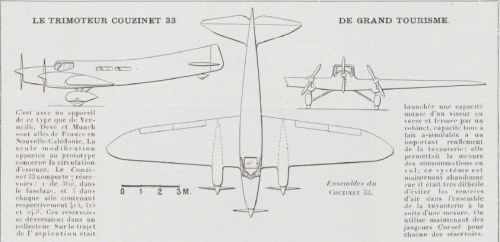

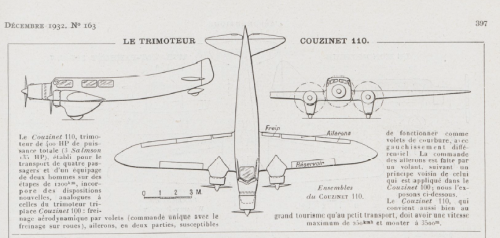

From l'Aeronautique 1932,


a rare 3-view to Couzinet 33,100 & 110.


Attachments

  • 33.png
    467.6 KB · Views: 537
  • 100.png
    422.9 KB · Views: 468
  • 110.png
    479.2 KB · Views: 136

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,638
Reaction score
6,493
Hi,

the Couzinet-170 was a twin engined military transport aircraft project,intended to
compete in 1934 competition,powered by two 700 hp Renault 18 Jbr or Gnome-
Rhone 14 Kbr engines.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,638
Reaction score
6,493
Hi,

the Couzinet-160 was a single seat racer flaotplane project,a version of Couzinet-150
which was appeared in 1934.


Attachments

  • C.150.JPG
    18.2 KB · Views: 105

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,638
Reaction score
6,493
Hi,

the Couzinet-180 was a twin engined civil transport aircraft project of 1935.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,638
Reaction score
6,493
hesham said:
the Couzinet-180 was a twin engined civil transport aircraft project of 1935.

The Couzinet-181 was a float seaplane Project version of Type-180.
