Hi,

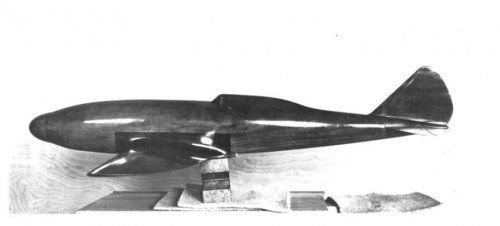

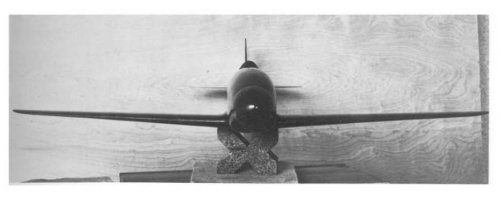

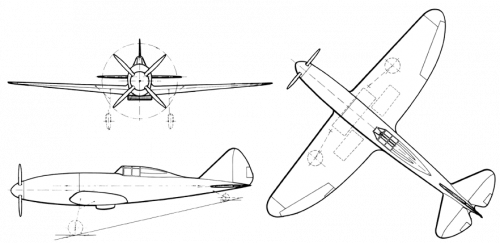

here is a drawings and pictures to a Models for Reggiane Re.2006 or Re.2006C,Re.2006 P and
Re.2006 PP.


Attachments

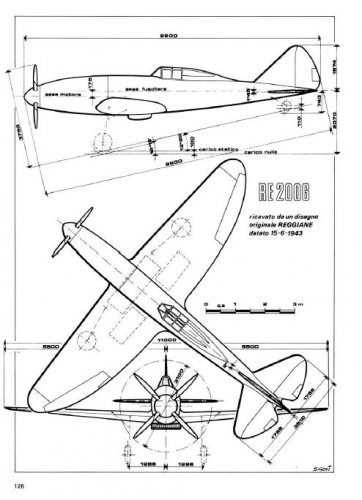

  • Re.2006.JPG
    52.8 KB · Views: 642
  • Re.2006 PP  II.JPG
    Re.2006 PP II.JPG
    61.9 KB · Views: 96

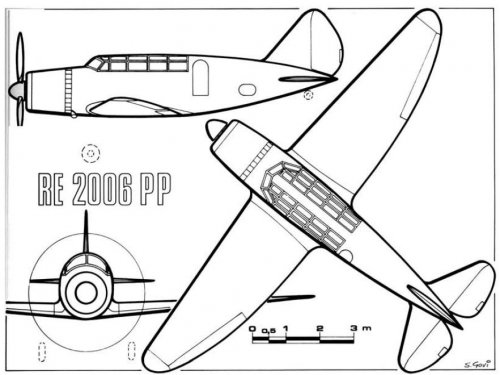

  • Re.2006 PP 3-view.JPG
    Re.2006 PP 3-view.JPG
    69.5 KB · Views: 105

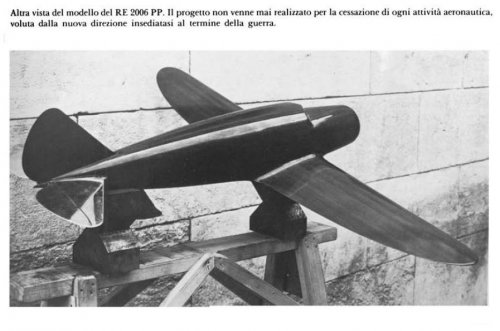

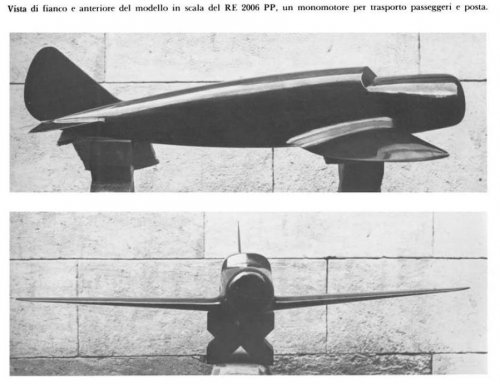

  • Re.2006 PP.JPG
    Re.2006 PP.JPG
    68.5 KB · Views: 93

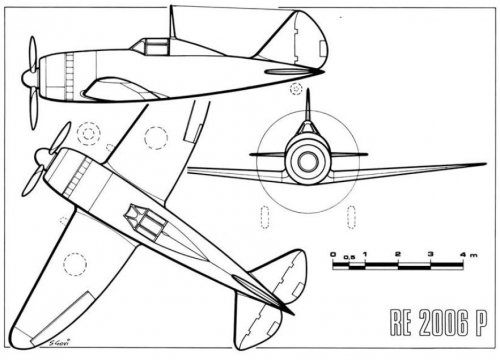

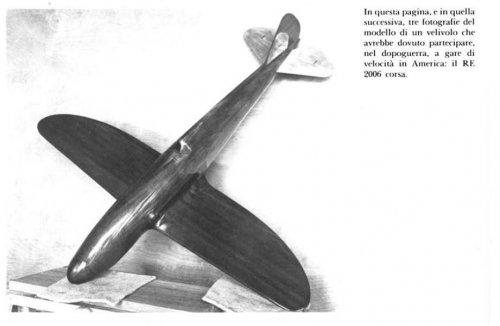

  • Re.2006 P.JPG
    Re.2006 P.JPG
    60.8 KB · Views: 571
  • Re.2006  III.JPG
    Re.2006 III.JPG
    28.2 KB · Views: 583
  • Re.2006  II.JPG
    Re.2006 II.JPG
    41.6 KB · Views: 594
  • Re.2006  I.JPG
    Re.2006 I.JPG
    26.2 KB · Views: 615

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,809
Reaction score
91
These illustrations are from : I 'Reggiane' dall A alla Z - Sergio Govi
under the editorship of the great Giorgio Apstolo.

Not quite 'The real Re.2007' story I'm afraid.....


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,681
Reaction score
3,190
Hi!

http://www.stormomagazine.com/ModelArticles/Re2006/CBusbridge/Re2006_CB.html

http://digilander.libero.it/air10/f104/re2006.htm

Technical Data:
Aircraft: Caproni-Reggiane Re. 2006
Manufacturer: Officine Meccaniche 'Reggiane' S.p.A. (Caproni)
Type: Fighter
Year: 1944
Engine: Daimler Benz DB 603A, 12-cylinder V, liquid cooled, 1,750hp
Wingspan: 36 ft 1 in (11.00 m)
Length: 31 ft 8 in (9.73 m)
Height: 10 ft 4 in (3.15 m)
Weight: 8,000lb+ (4,000kg+)
Maximum Speed: 450+ mph (750+ km/h)
Ceiling: 40,000 ft+ (8,000 m+)
Range: 800 miles+ (1,250 km+)
Armament: 2 x 12.7 mm SAFAT machine guns ; 3 x 20mm cannons
Crew: 1


Attachments

  • Re_2006.png
    102.3 KB · Views: 106
  • copertina_back_big.jpg
    31.9 KB · Views: 106

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,612
Reaction score
4,576

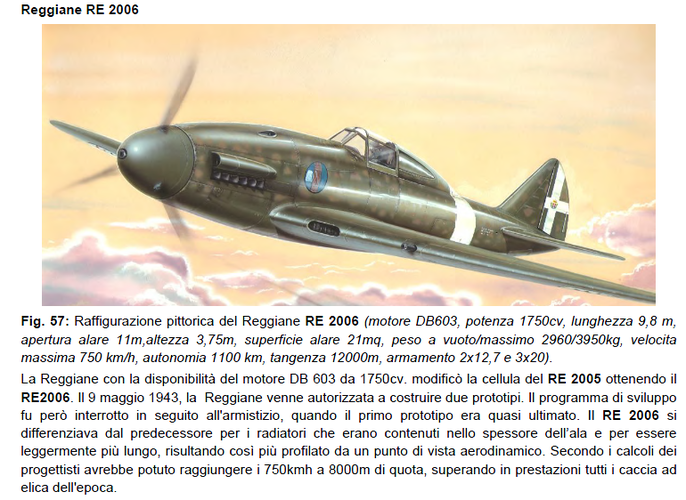

Artist drawing to Re.2006.


Attachments

  • 3.png
    431.3 KB · Views: 44
  • 4.png
    1.5 MB · Views: 42
