Reggiane Profile Drawings Aircraft

brontolino

ACCESS: Restricted
Joined
Nov 19, 2007
Messages
36
Reaction score
15

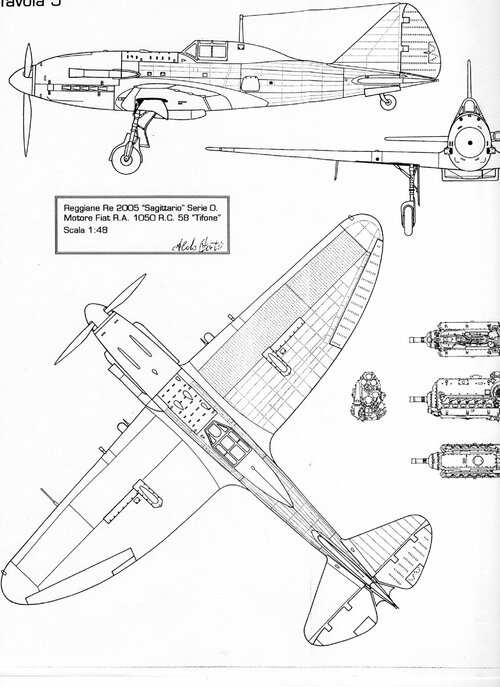

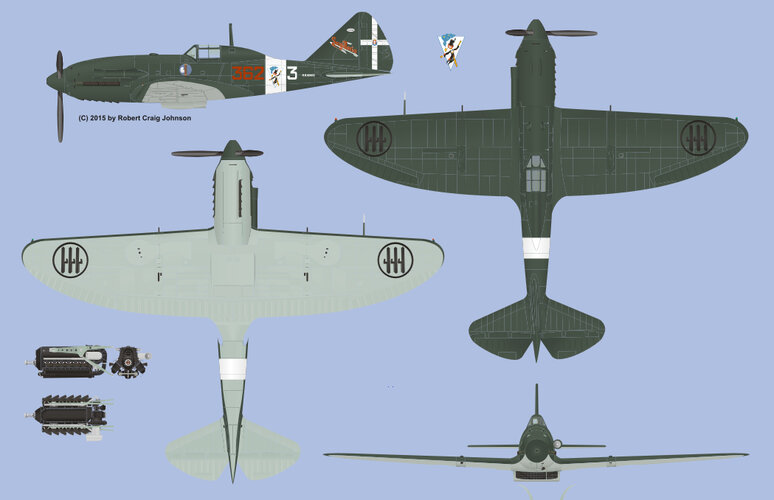

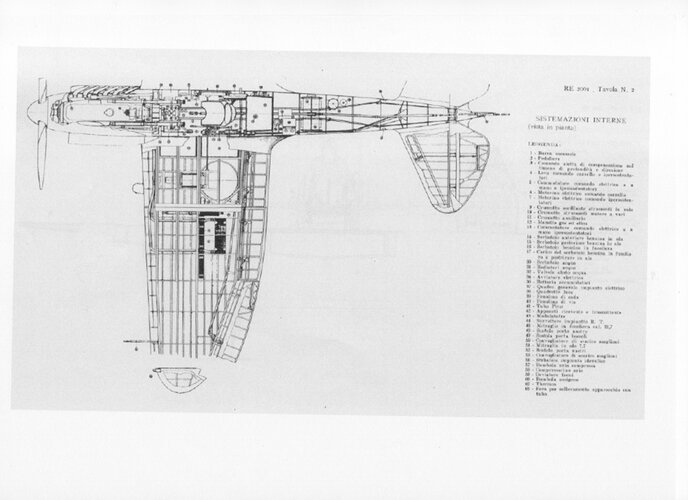

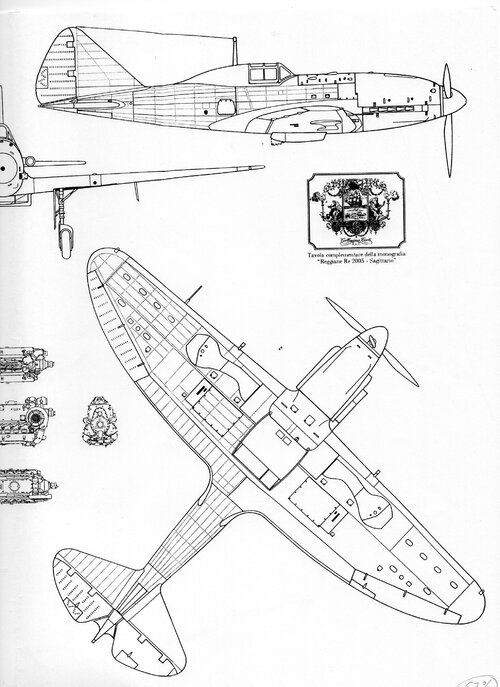

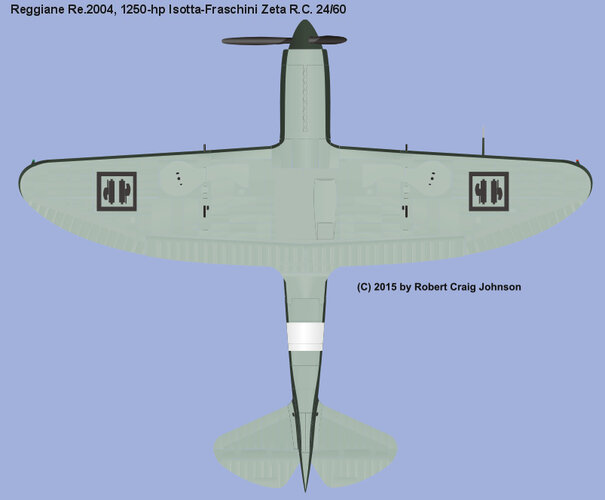

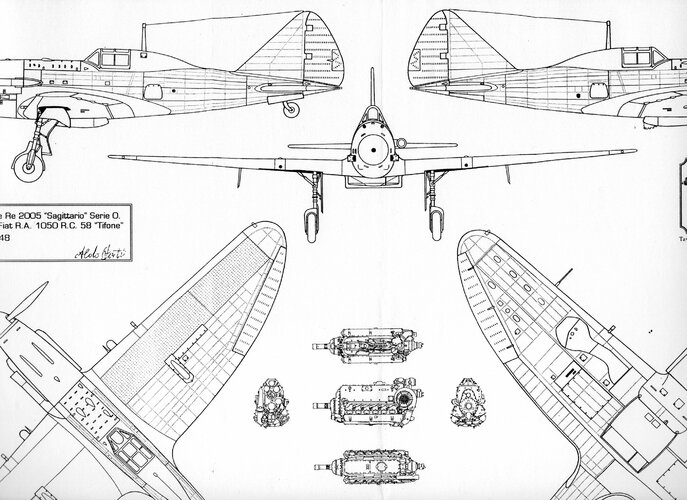

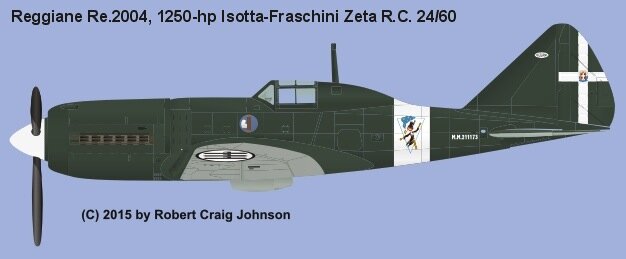

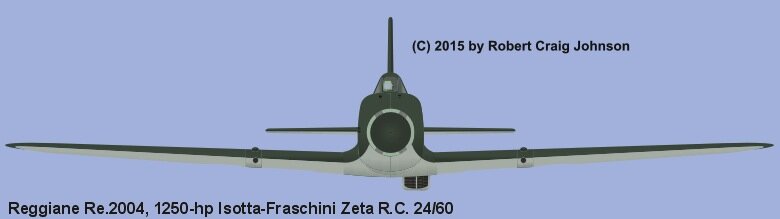

These drawings are mistaken especially for the Re.2005 and Re.2004 (the rear fuselage is too short for Re.2005 and).


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,705
Reaction score
3,177
Website
www.amazon.com

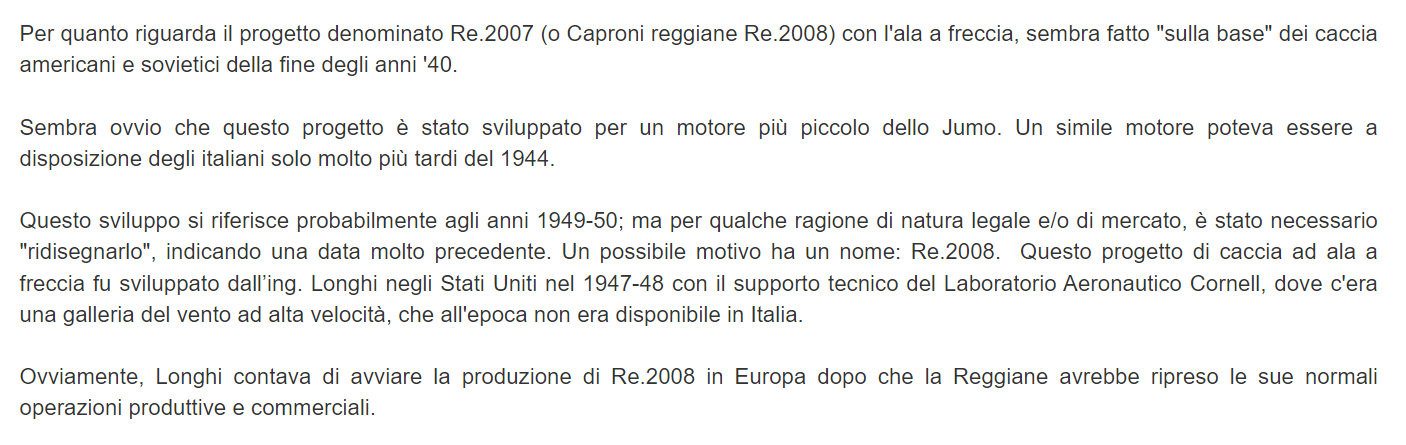

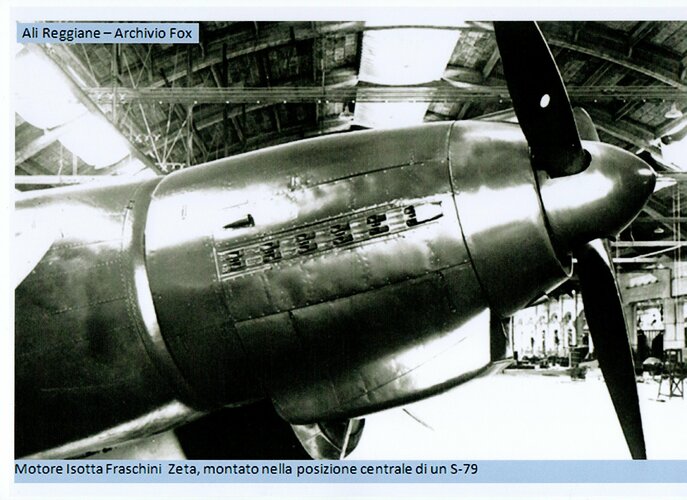

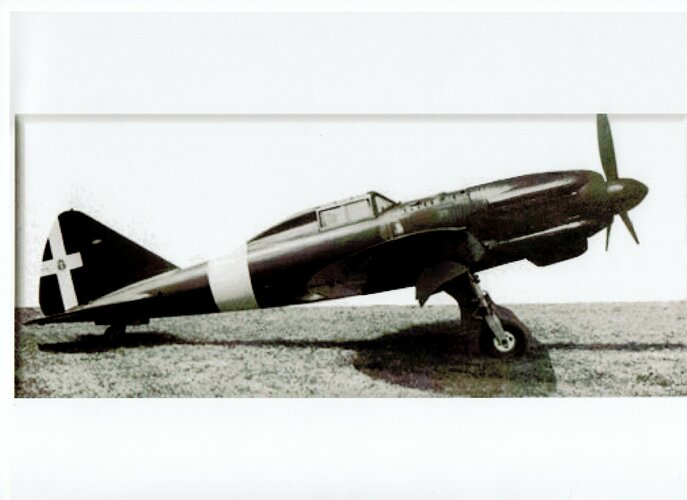

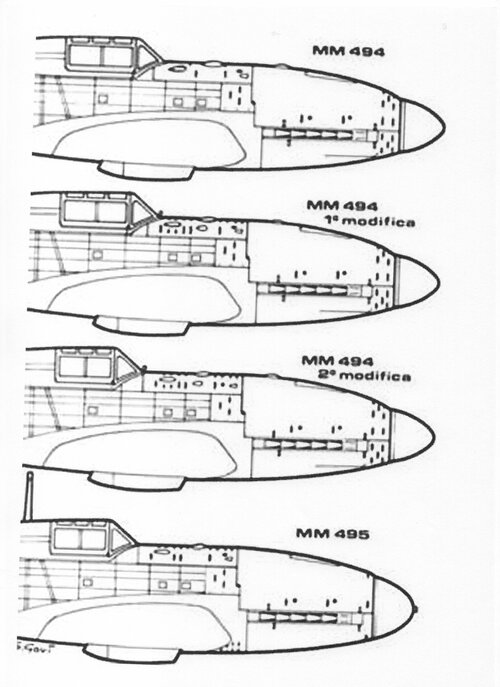

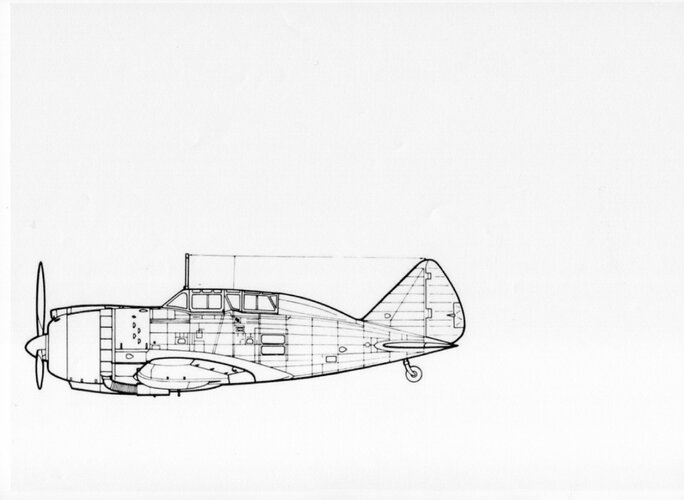

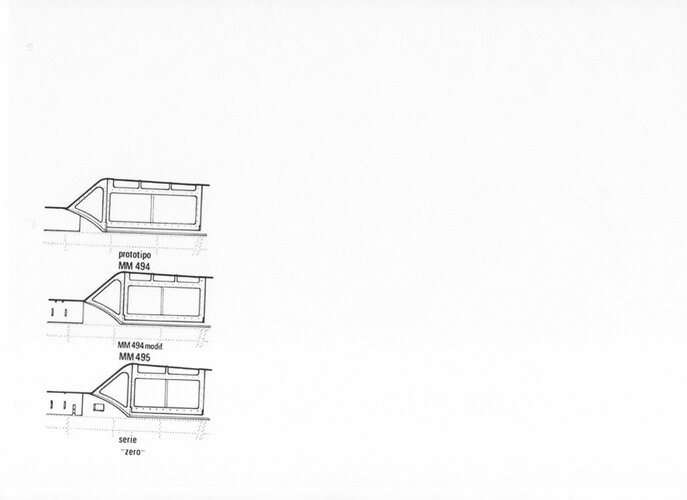

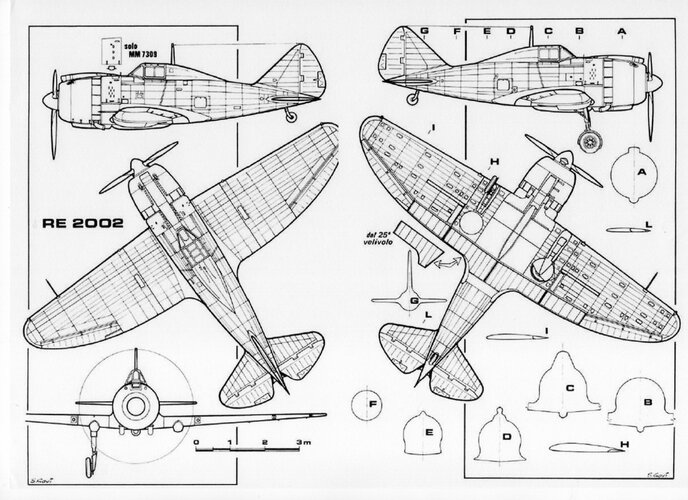

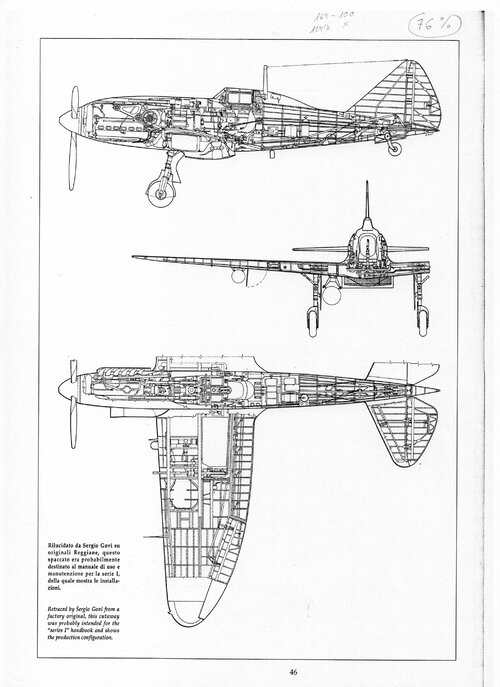

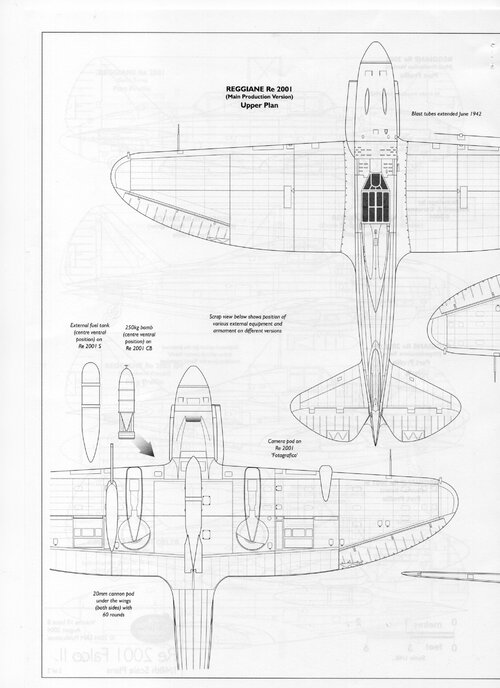

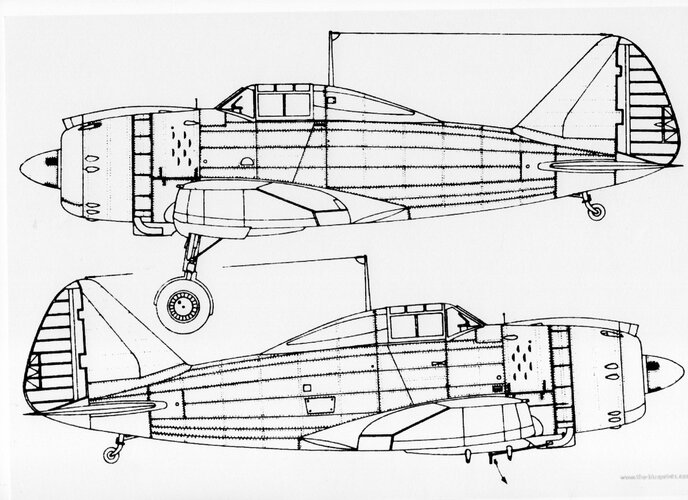

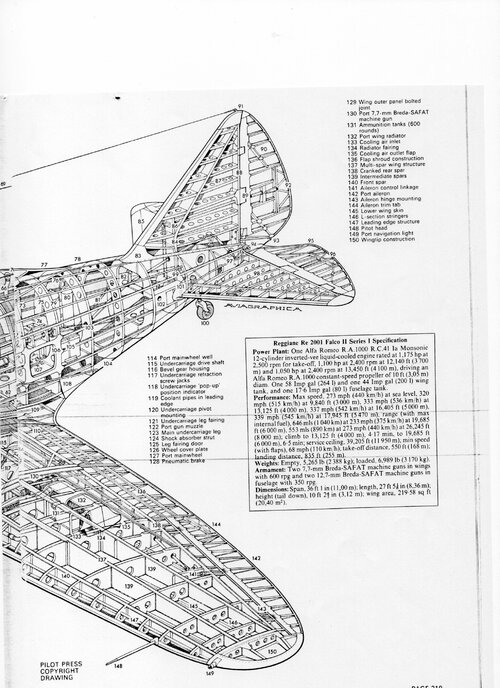

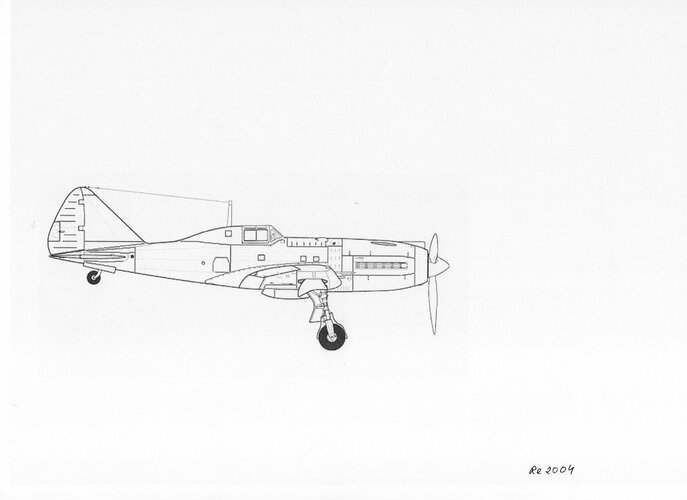

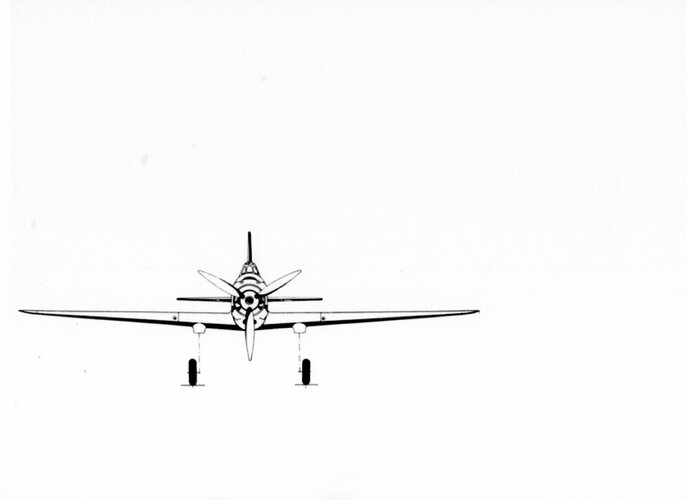

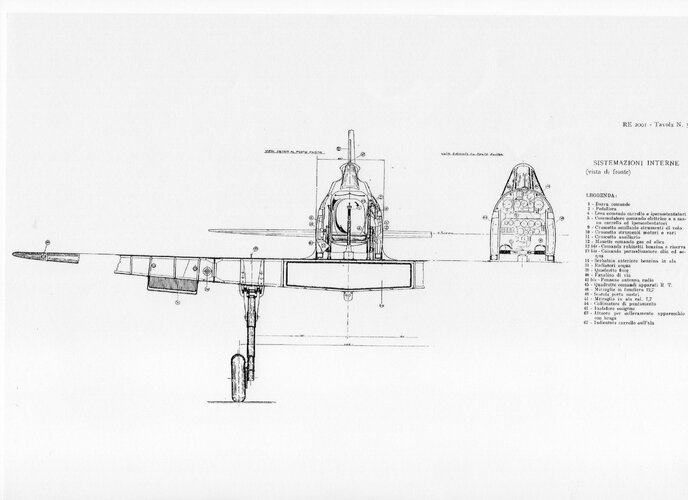

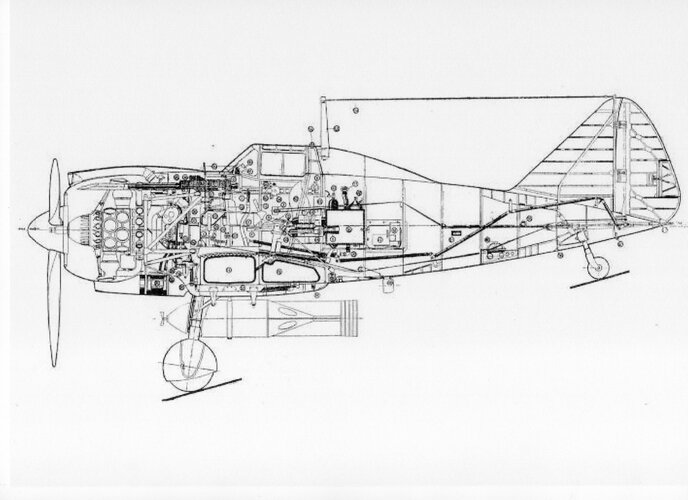

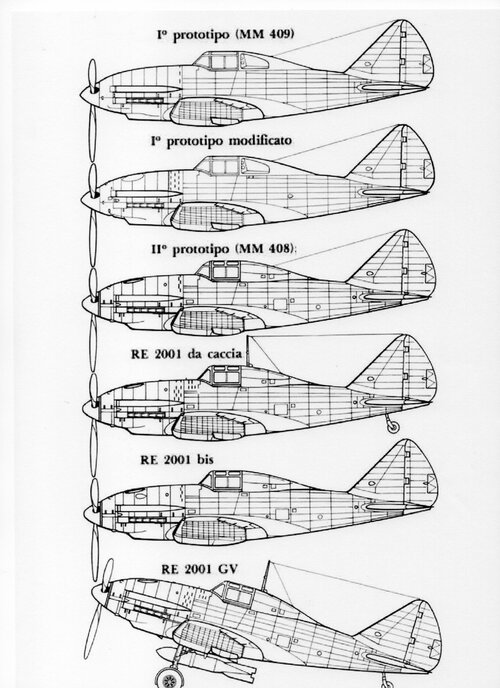

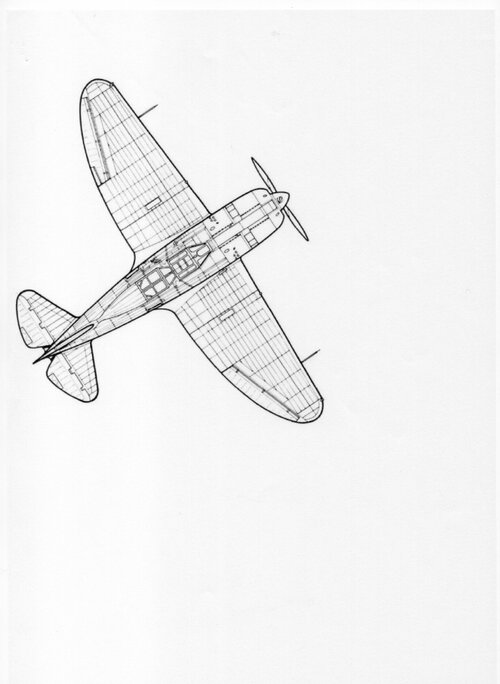

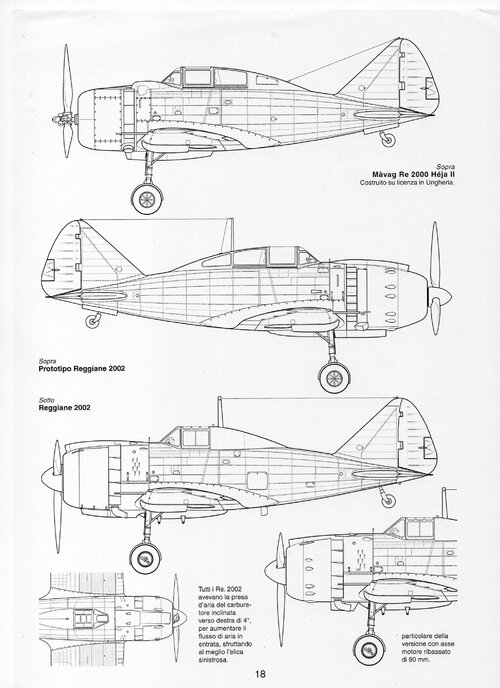

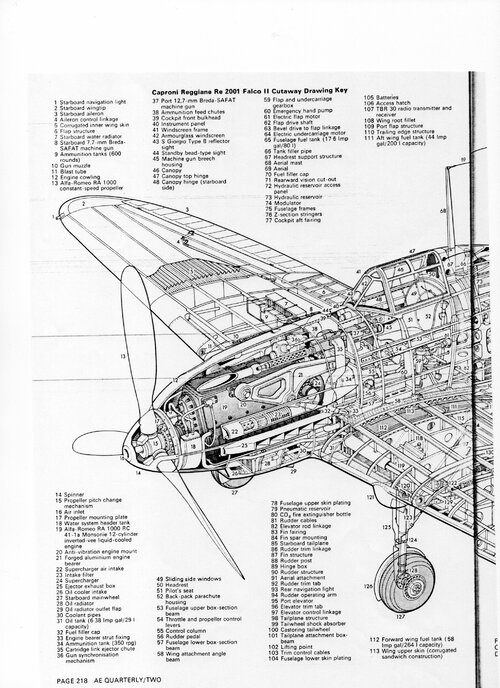

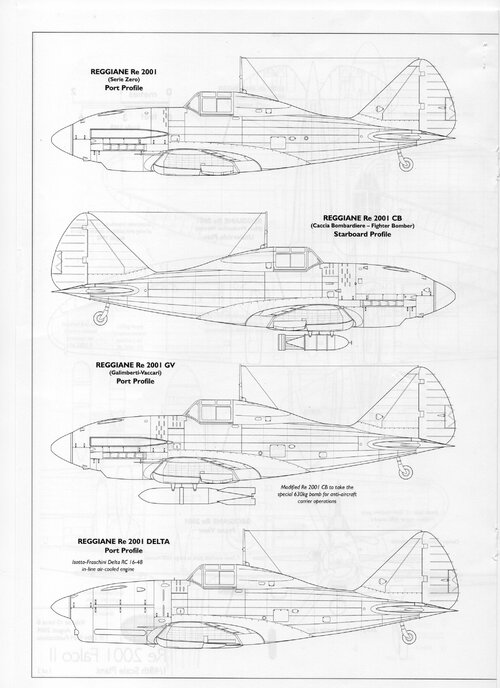

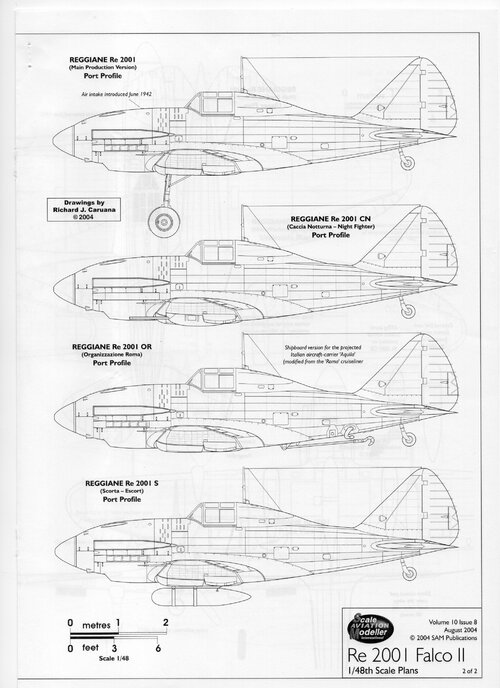

Re.2001


Attachments

  • 019.jpg
    664.6 KB · Views: 53
  • 021.jpg
    996.5 KB · Views: 35
  • 025.jpg
    819.8 KB · Views: 36
  • 026.jpg
    666.9 KB · Views: 35
  • 027.jpg
    782.7 KB · Views: 35
  • 028.jpg
    774 KB · Views: 30
  • 029.jpg
    806.2 KB · Views: 31
  • 030.jpg
    859.4 KB · Views: 32
  • 055.jpg
    1.2 MB · Views: 29
  • 056.jpg
    1.2 MB · Views: 27

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,705
Reaction score
3,177
Website
www.amazon.com

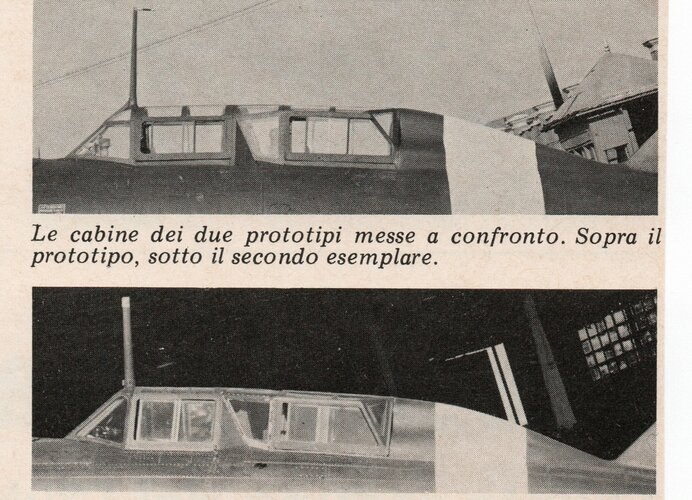

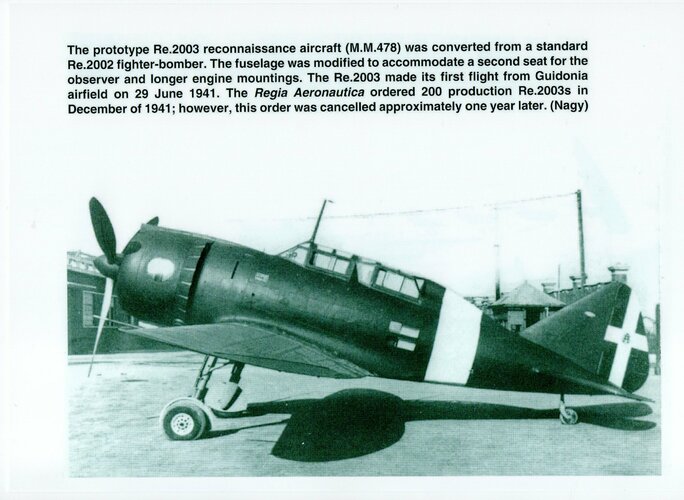

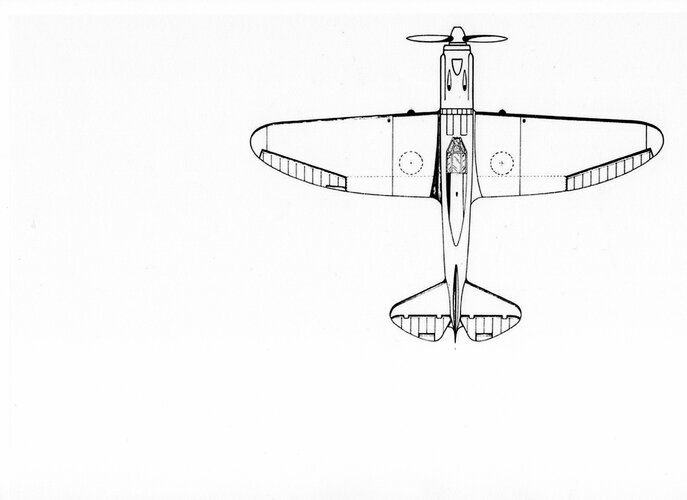

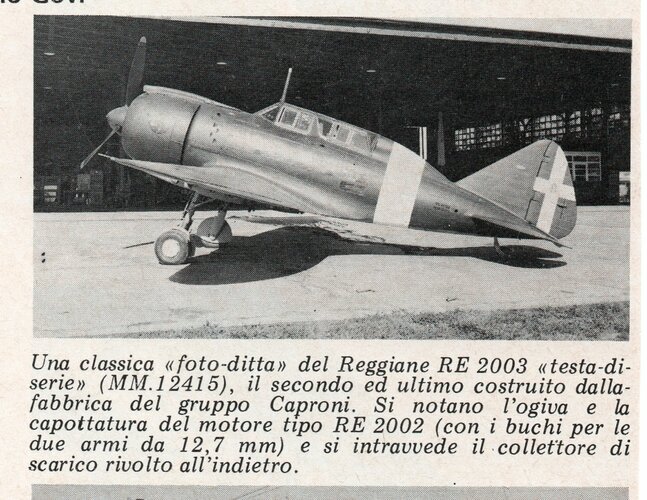

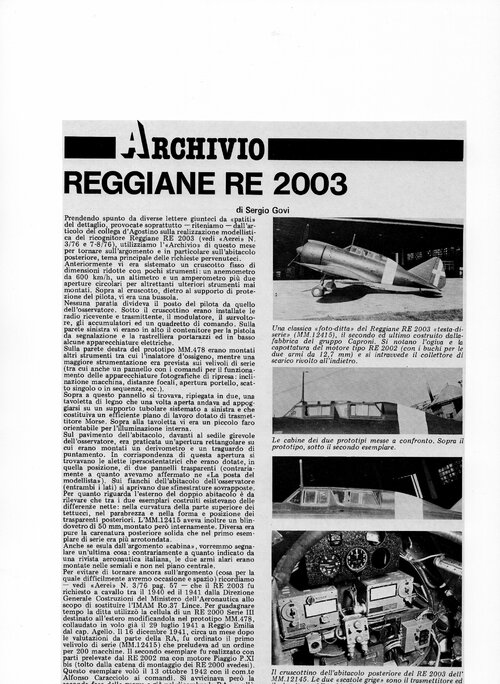

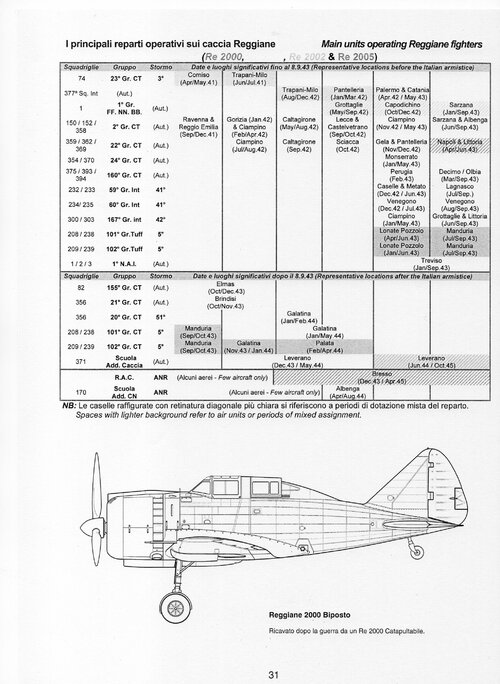

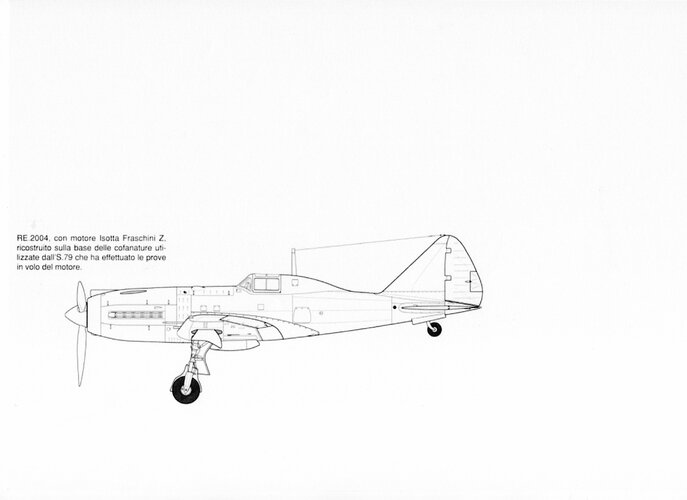

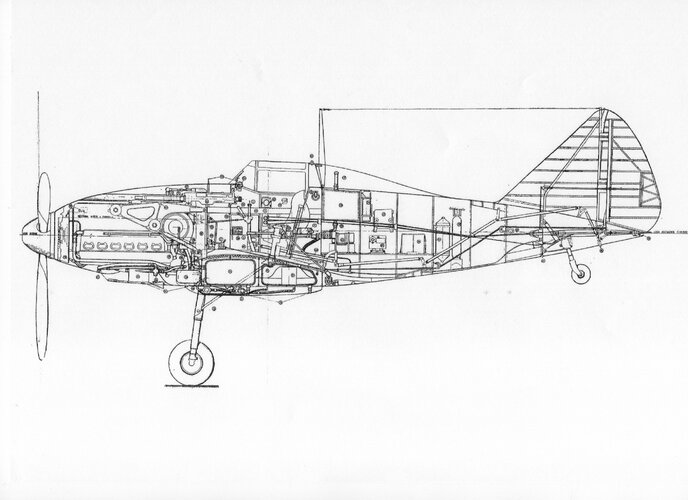

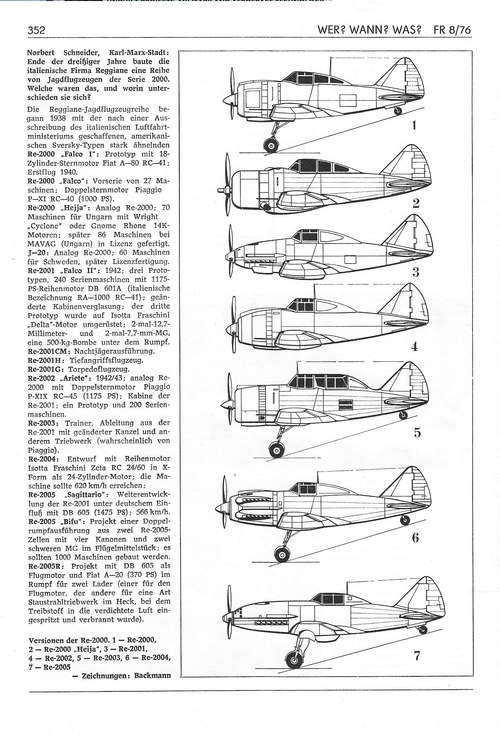

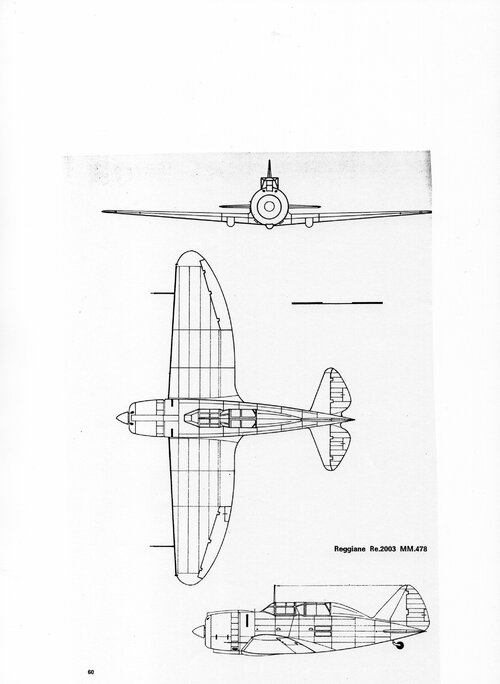

Re.2003


Attachments

  • 103.jpg
    524.5 KB · Views: 27
  • 106.jpg
    1.3 MB · Views: 27
  • 108.jpg
    651.3 KB · Views: 24
  • 109.jpg
    547.7 KB · Views: 24
  • 110.jpg
    1,005.5 KB · Views: 28
  • 112.jpg
    956.7 KB · Views: 27
  • 113.jpg
    513.9 KB · Views: 24
  • 114.jpg
    498.9 KB · Views: 22
