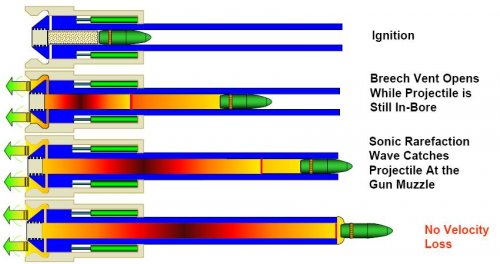

Rarefaction Wave Gun (RAVEN)

Whatever happened to this project? Seems like a fancy recoilless gun.

http://www.dtic.mil/ndia/2007gun_missile/GMTueAM2/MinerPresentation.pdf


Attachments

  • ravengun1.jpg
    58.1 KB · Views: 464
  • ravengun2.jpg
    68.5 KB · Views: 474
  • ravengun3.jpg
    60.4 KB · Views: 467

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,084
Reaction score
5,693
For lighter weight vehicles, recoil limitations are overcome by incorporating the larger caliber rarefaction wave gun
technology while providing guided, stabilized LOS, course-corrected LOS, and beyond LOS accuracy"

Excellent overview of competing recoil management techniques from Dr. Eric Kathe, US Army RDECOM ARDEC’s Benet Labs, presentation at Armaments 2015.

Fire-out-of-battery always struck me as the most readily realizable.



snark

But Dad, don't we EAT the antelopes?
Joined
Dec 2, 2007
Messages
85
Reaction score
57
From the National Interest Blog November 4, 2017 by Charlie Gao

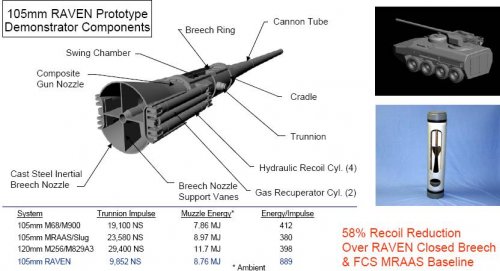

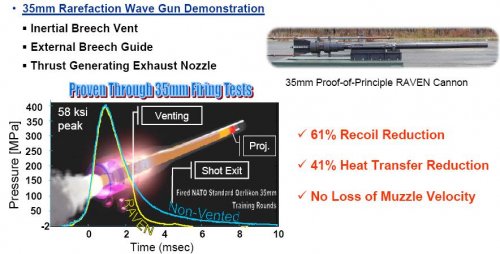

"Several demonstrators have been made and tested. On the thirty-five-millimeter RAVEN demonstrator, muzzle velocity was maintained, while barrel heating was reduced by 41 percent relative to a conventional test gun, and momentum was reduced by 61 percent. In a larger forty-five-millimeter test cannon, muzzle velocity ended up being reduced by 22 percent, but greater decreases in barrel heating and recoil were observed. A 105-millimeter testbed was also built that incorporated a six-round autoloader. Contracts have been awarded to develop ammunition for RAVEN guns."
