prototypes, concepts & first generation of U.S. jet fighters.

I want to build the first 6 jets fighters in 1/72nd scale.

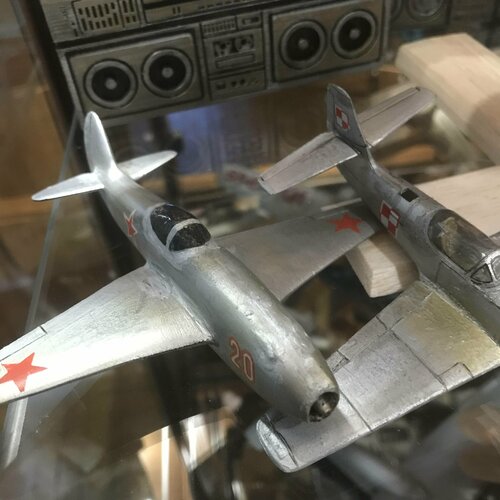

I bought these russian planes on ebay as a loose kit collection and learned a lot by researching them.
like how they took a prop fighter and grafted a german jet engine on the front to start.
It would be nice to have the USAF counterparts.

Any links or info would be welcome. I found this forum looking for 3 views of the xp80

here is my list so far:

List of first 6 American jet fighter planes and prototypes

Bell XP-59 Airacomet October 1, 1942
Lockheed f94 A Model number 2 prototype 1948
XP 80 F-80 Shooting Star November 8, 1950-1944 (same? Navy F9F Panther Nov. 8, 1950)
North American XP-86 Sabre 1 October 1947 -June 20, 1945 14 October 1947: this was made eariler than I would have thought.
I like the design story and how they solved problems.

What else is out there? any input would be welcome. Thanks!


Attachments

  • IMG_4260.jpg
    533.8 KB · Views: 20

Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,093
Reaction score
468
I don't understand. You want only the 6 first american jet fighters ?

Probably Wikipedia can help you better than us. I don't know if it's exhaustive, but, in my own files, I have :

-Bell XP-59, 01.10.42
-Lockheed XP-80, 08.01.44
-McDonnell FH-1, 26.01.45
-Northrop XP-79, 12.09.45 (only prototype, crash during the first flight)
-Republic XP-84A, 28.02.46
-North American XFJ-1, 11.09.46

Otherwise, there are too the :

-Ryan FR-1 Fireball, 25.06.44, mixed jet-propeller fighter
-Northrop JB-1, 07.12.44 (crash), unmanned Cruise missile
-Bell XP-81, 11.02.45, mixed jet-propeller fighter
-Curtiss XF-15C, 27.02.45, mixed jet-propeller fighter
-Douglas XB-43, 17.06.46, bomber


bartenational

ACCESS: Restricted
Joined
Jan 20, 2021
Messages
5
Reaction score
0
I don't understand. You want only the 6 first american jet fighters ?

Probably Wikipedia can help you better than us. I don't know if it's exhaustive, but, in my own files, I have :

-Bell XP-59, 01.10.42
-Lockheed XP-80, 08.01.44
-McDonnell FH-1, 26.01.45
-Northrop XP-79, 12.09.45 (only prototype, crash during the first flight)
-Republic XP-84A, 28.02.46
-North American XFJ-1, 11.09.46

Otherwise, there are too the :

-Ryan FR-1 Fireball, 25.06.44, mixed jet-propeller fighter
-Northrop JB-1, 07.12.44 (crash), unmanned Cruise missile
-Bell XP-81, 11.02.45, mixed jet-propeller fighter
-Curtiss XF-15C, 27.02.45, mixed jet-propeller fighter
-Douglas XB-43, 17.06.46, bomber
I am going to look those up and create a file for each. I am interested to see what they tried in the beginning. There are tons of videos about the nazi jets on youtube, but almost nothing about the design and development of the usaf jet program. From what I have read, the german jet program was moments of inspiration applied in an unpractical way just to impress Hitler. Were I think (don't know) the americans were more cautious and methodical in their approach, but I would like to study it more before I have that opinion.


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,292
Reaction score
687
P-80 design was definitely conservative. They probably designed it to tolerate piston-engine levels of vibration and fatigue, but because it was over-built, the T-33 trainer version served into the 21 st century.
I did a bit of work on Canadian Armed Forces CT-133 trainers back in 1979, but they flew until after the turn of the century. By then, CT-133 were mainly used to tow targets and spoof radars to train anti-aircraft gunners on Canadian Navy vessels. They sometimes also flew EW missions to confuse NORAD and test reaction times for interceptors guarding North America.


Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,093
Reaction score
468
There have been some interesting developments for some (not exhaustive) :

-Republic XP-84A --> F-84 Thunderjet --> F-84F Thunderstreak --> RF-84F Thunderflash

-North American XFJ-1 --> FJ-1 Fury --> F-86 --> FJ-2 and 3 --> F-86 D --> YF-93 and others

-McDonnell FH-1 Phantom --> FH-2 Banshee

-Lockheed XP-80 --> F-80 --> T-33 --> F-94

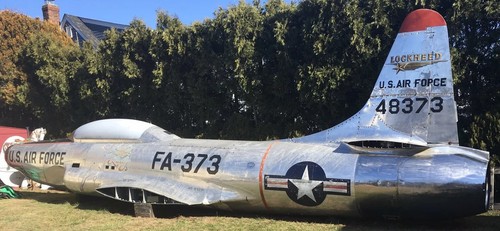

The two first prototypes of the F-94 were modified TF-80C. The one of your photo is the second (373). We can see it in the Wikipedia page of the F-94

Lockheed F-94 Starfire - Wikipedia


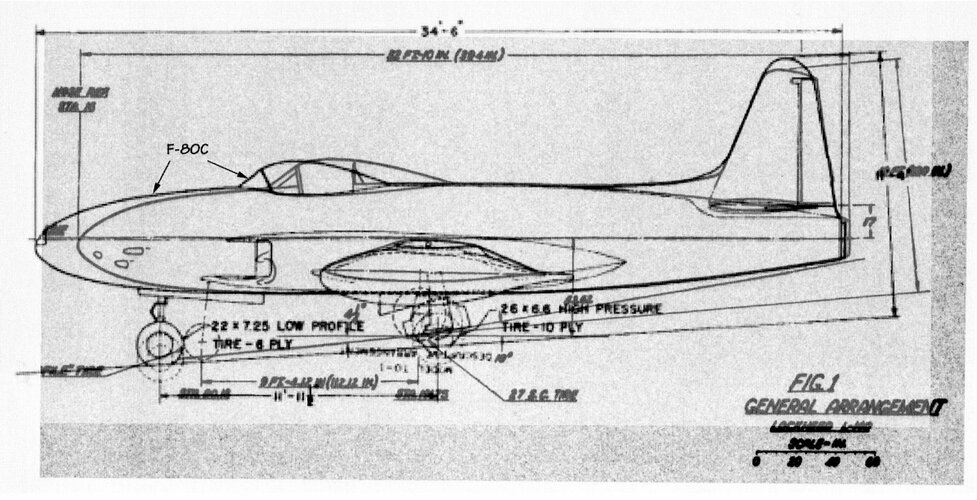

But I think that for "what they tried in the beginning", the most interesting is what made Lockheed before the XP-80 : The L-133 from 1939.

Lockheed L-133 A & B | Secret Projects Forum

Last edited:

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,622
Reaction score
2,893
Website
www.amazon.com

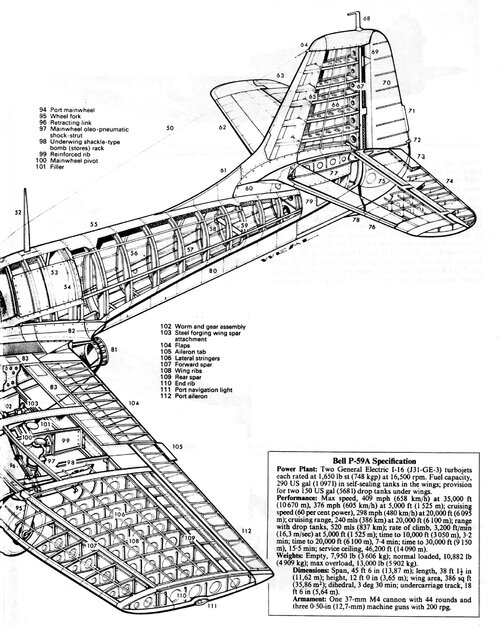

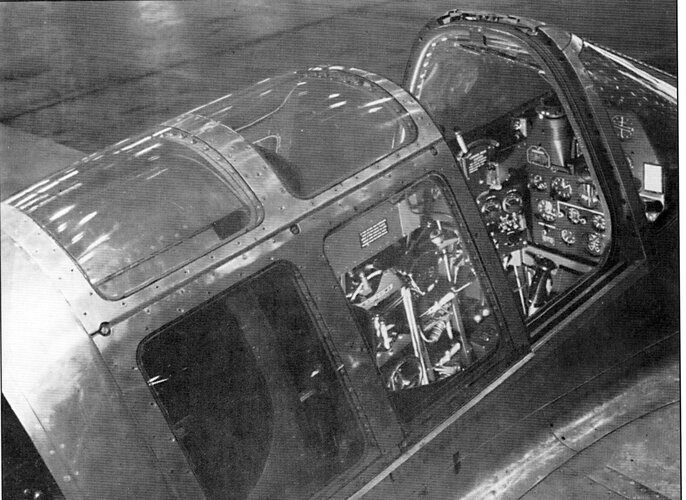

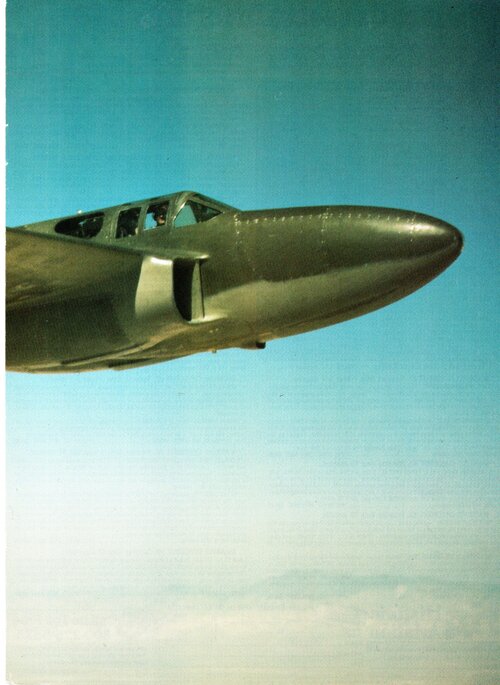

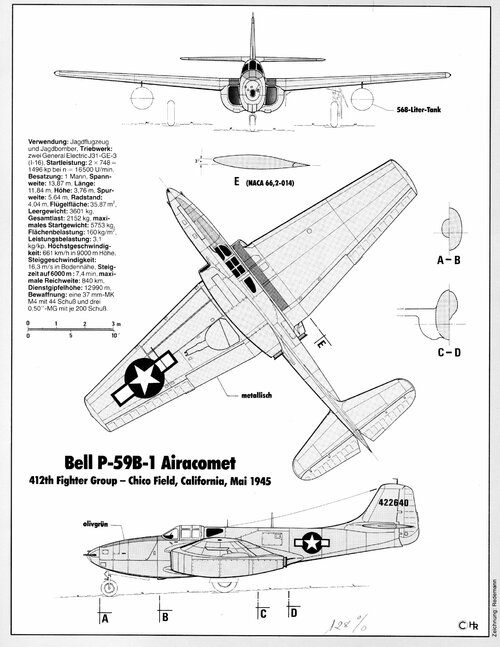

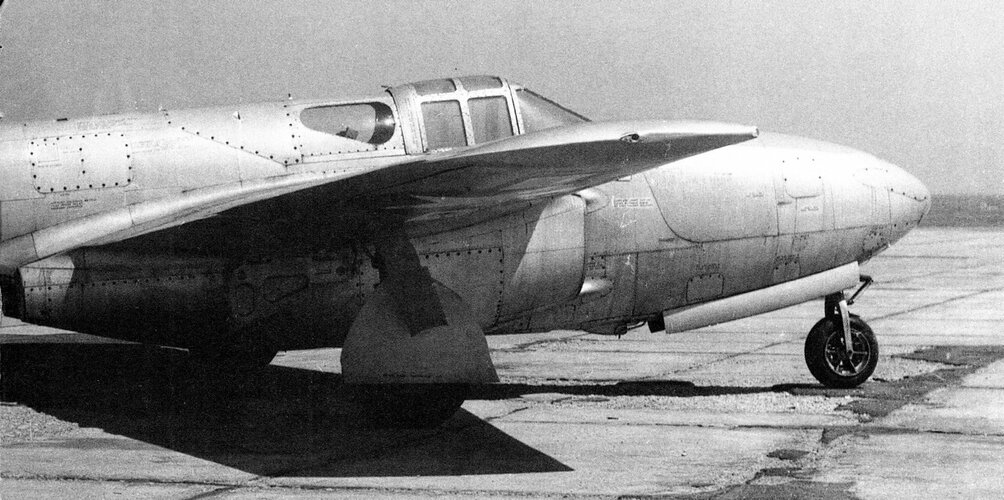

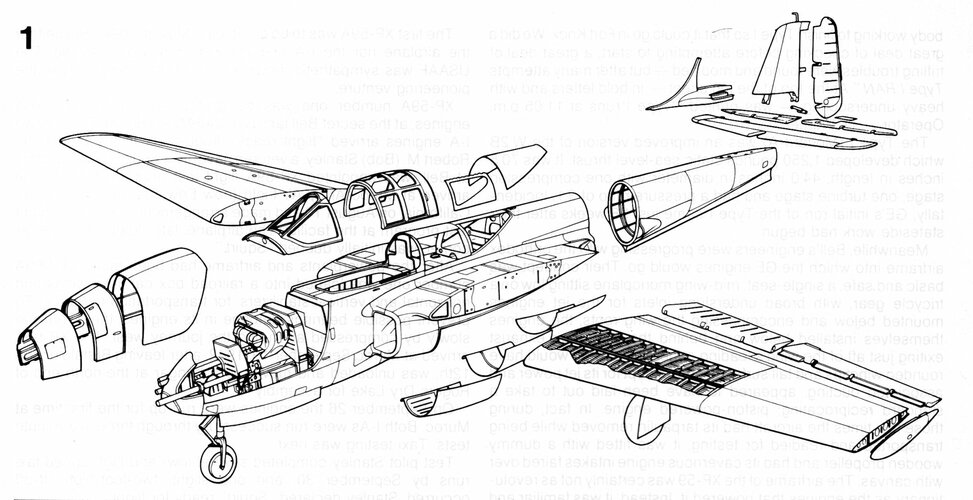

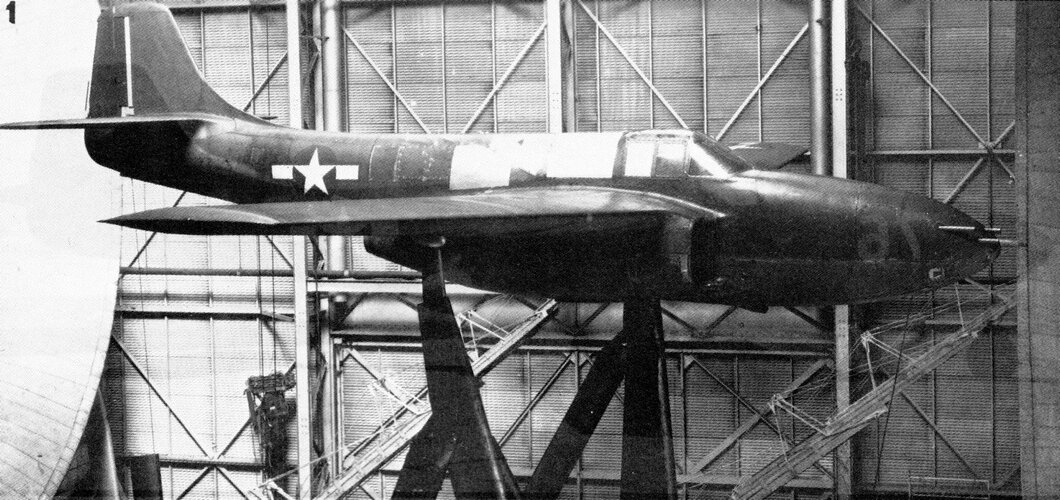

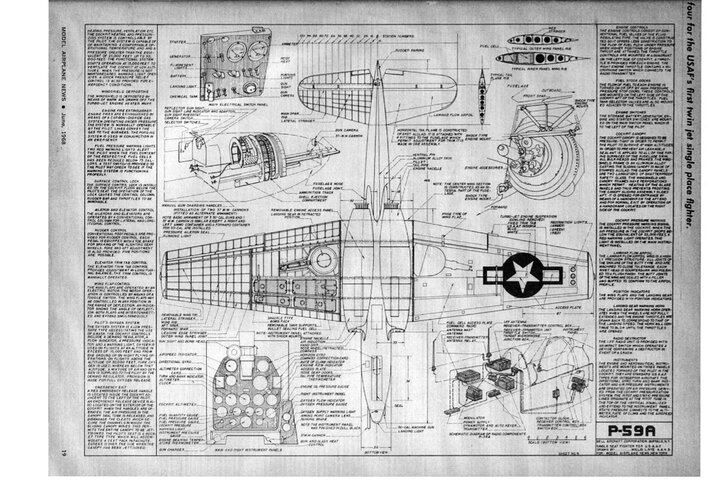

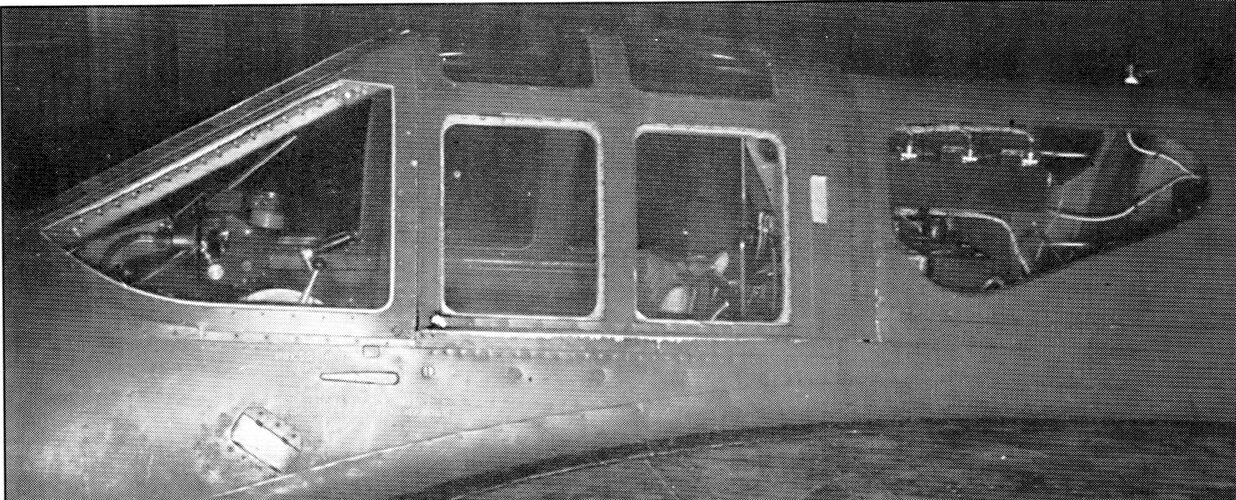

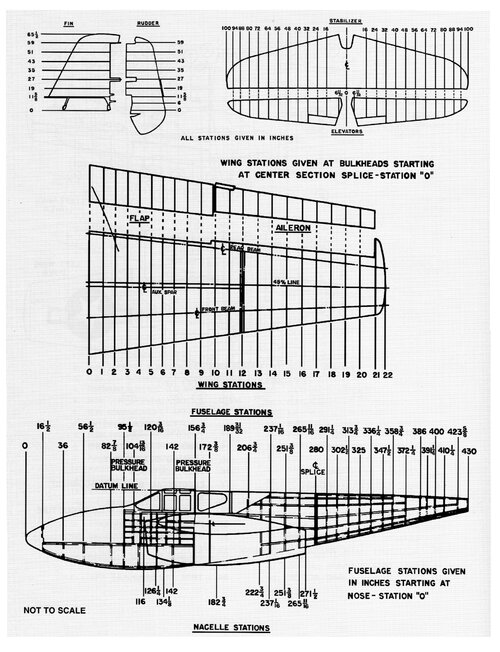

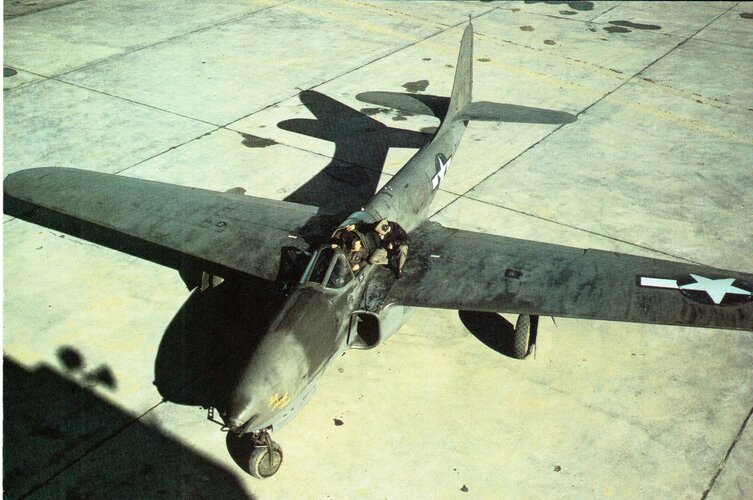

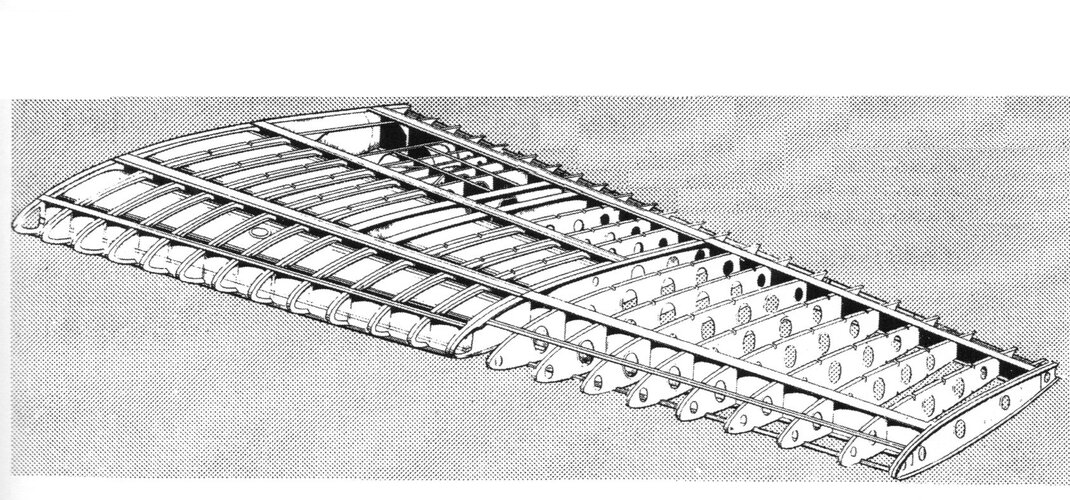

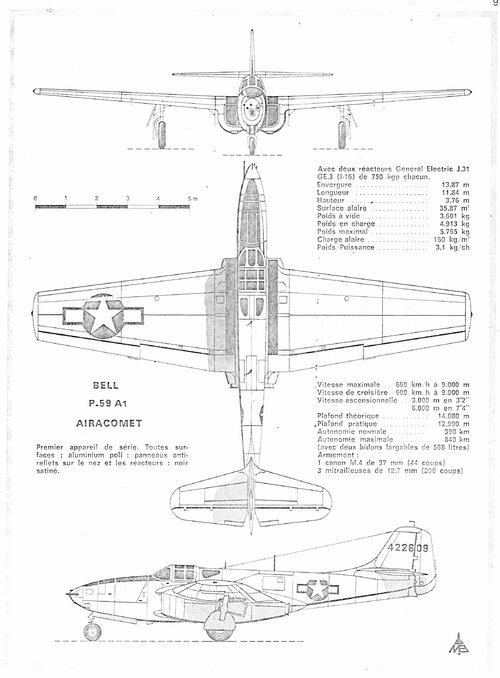

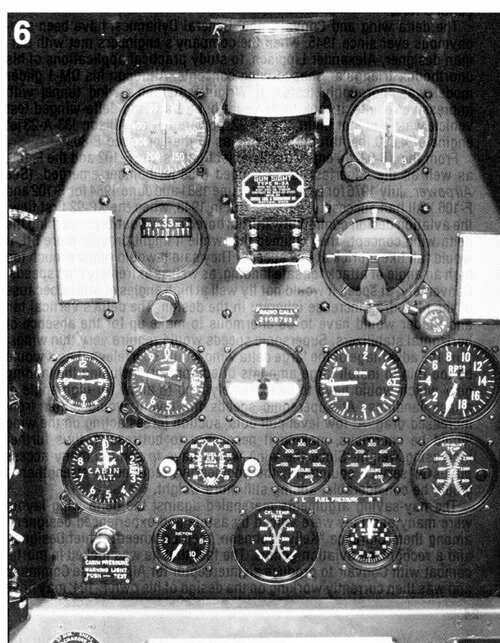

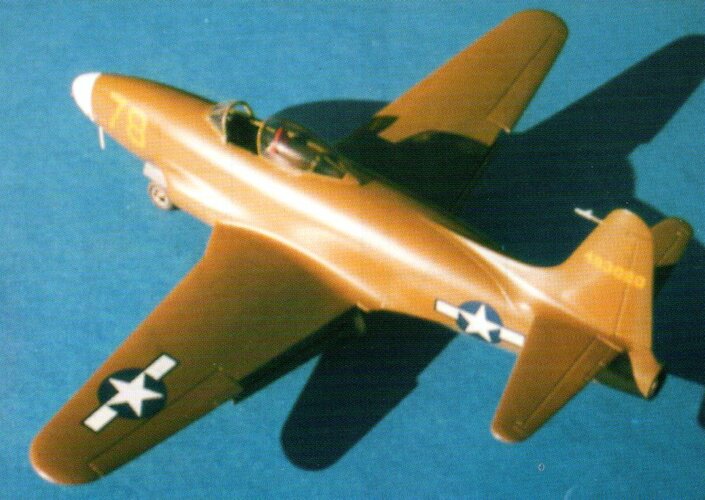

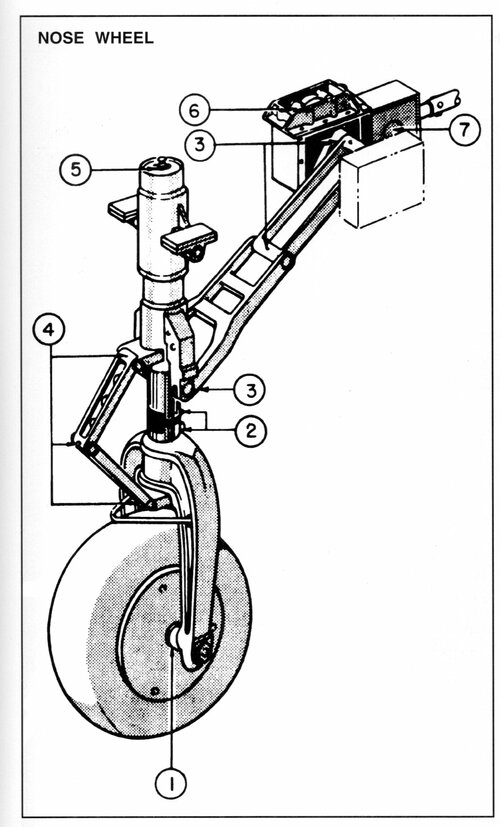

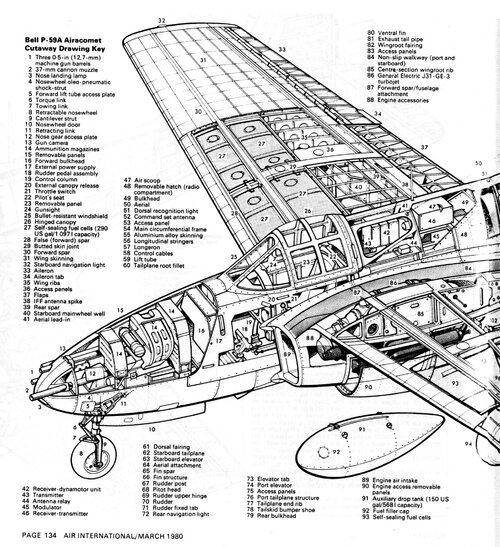

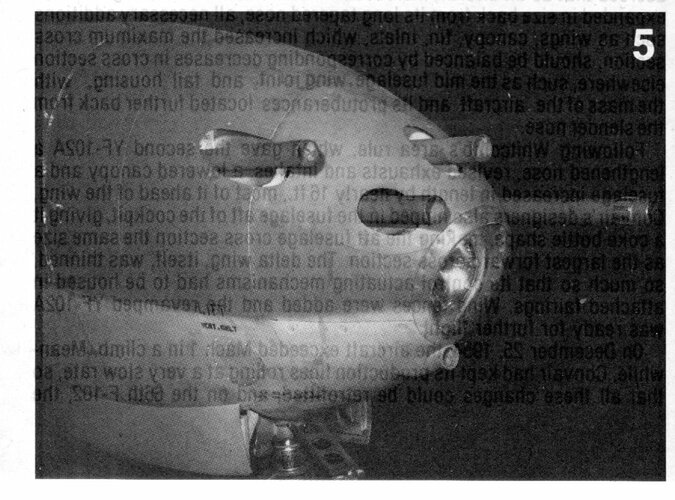

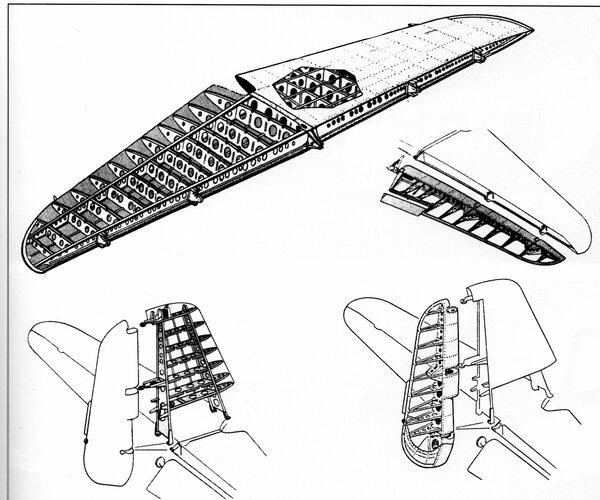

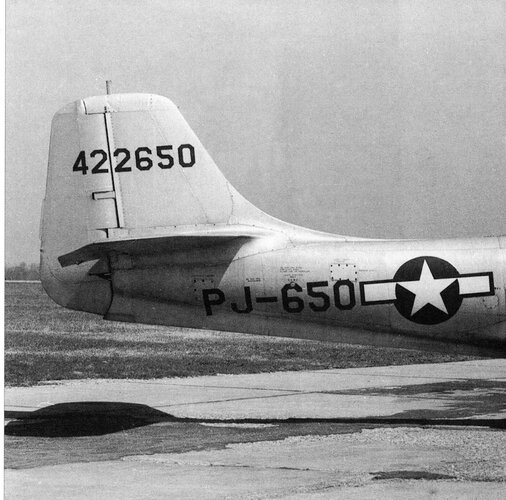

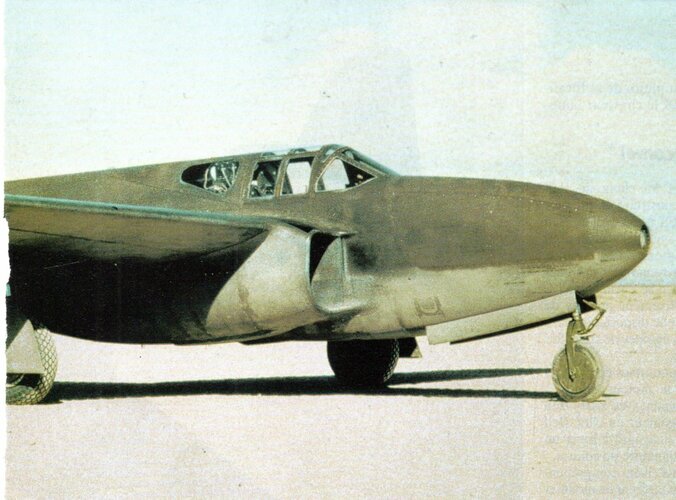

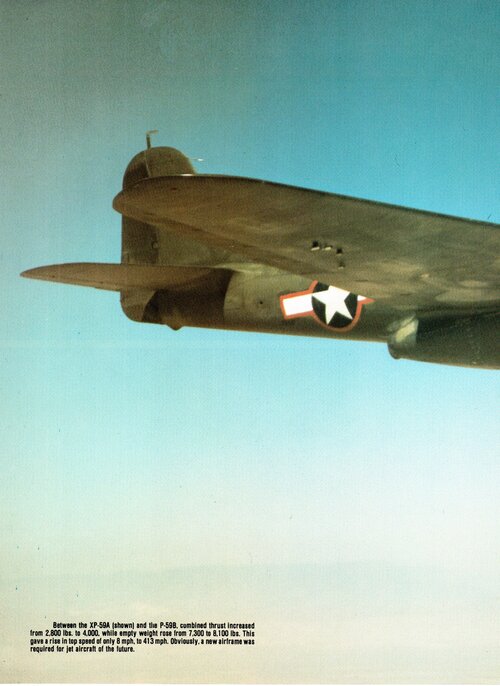

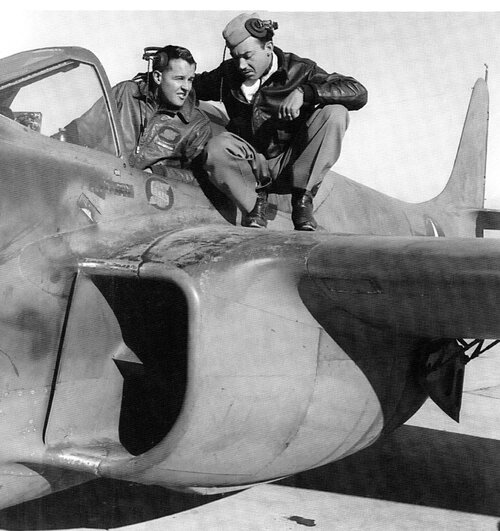

Bell XP-59 Airacomet Bibliography

Angelucci E., The American Fighter, (Orion, 1987).

Green W., War Planes of the Second World War, Vol.4, (Macdonald, 1961).

Green, W., The Complete Book of Fighters (Smithmark, 1994).

Jenkins D., Experimental & Prototype U.S. Air Force Jet Fighters, (Specialty Press, 2008).

Pelletier A., La première Génération Jet. L'USAAF, 1944-1947 (Le fana de l’Aviation Hors Série Nº 16, December 2001).

Swanborough G., United States Military Aircraft Since 1909, (Smitsonian Institution Press, 1989).

Airacomet a jet pioneer by Bell, Air International/March 1980

Pace S., Airforce Legends Number 208

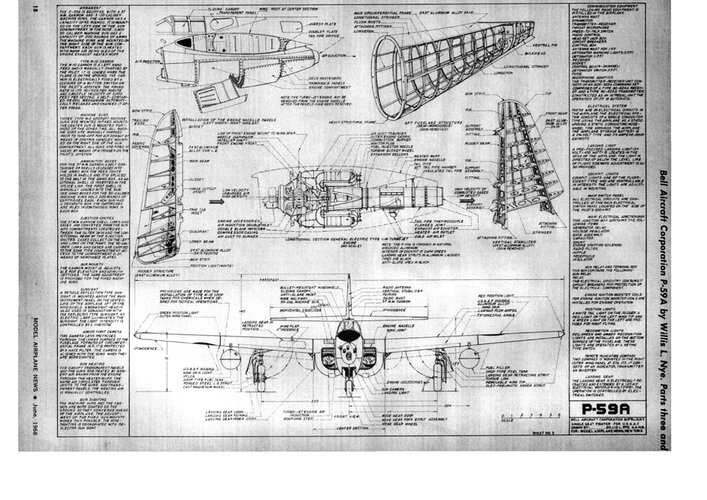

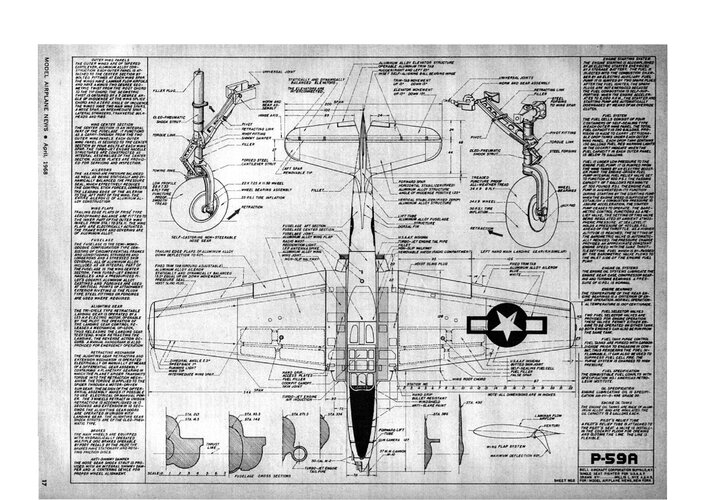

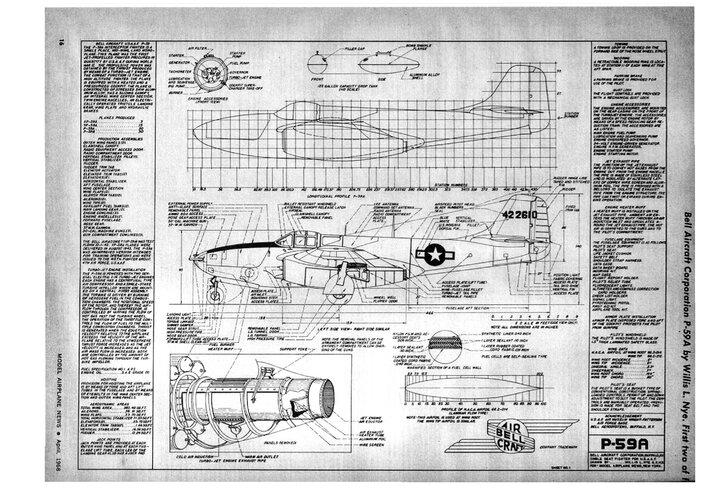

Model Airplane News, June 1968

Wings & Airpower unknown issues


Attachments

  • 285.jpg
    1.3 MB · Views: 10
  • 286.jpg
    1.2 MB · Views: 4
  • 287.jpg
    592.3 KB · Views: 4
  • 288.jpg
    972 KB · Views: 4
  • 289.jpg
    695.2 KB · Views: 5
  • 290.jpg
    428.3 KB · Views: 4
  • 291.jpg
    353.7 KB · Views: 4
  • 292.jpg
    2.6 MB · Views: 4
  • 293.jpg
    2.5 MB · Views: 4
  • 294.jpg
    913.8 KB · Views: 5

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,622
Reaction score
2,893
Website
www.amazon.com
Post-3


Attachments

  • 303.jpg
    268.2 KB · Views: 6
  • 304.jpg
    191.4 KB · Views: 5
  • 305.jpg
    441.3 KB · Views: 5
  • 306.jpg
    532.8 KB · Views: 6
  • 307.jpg
    638.7 KB · Views: 7
  • 309.jpg
    731.7 KB · Views: 7
  • 310.jpg
    1.8 MB · Views: 6
  • 311.jpg
    1.7 MB · Views: 3
  • 312.jpg
    1.9 MB · Views: 5
  • 313.jpg
    1.8 MB · Views: 5

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,622
Reaction score
2,893
Website
www.amazon.com

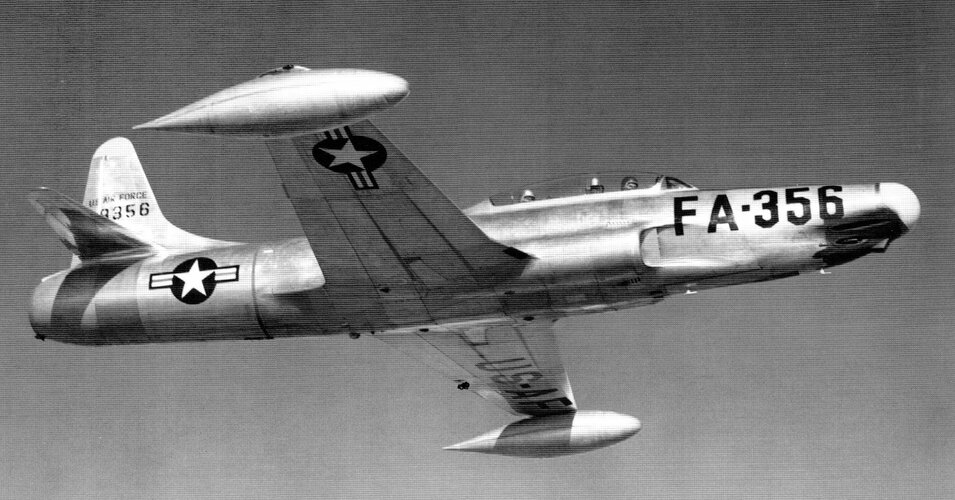

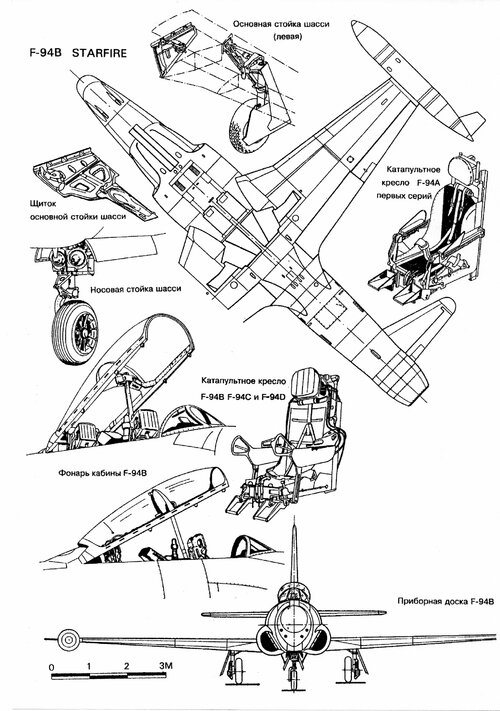

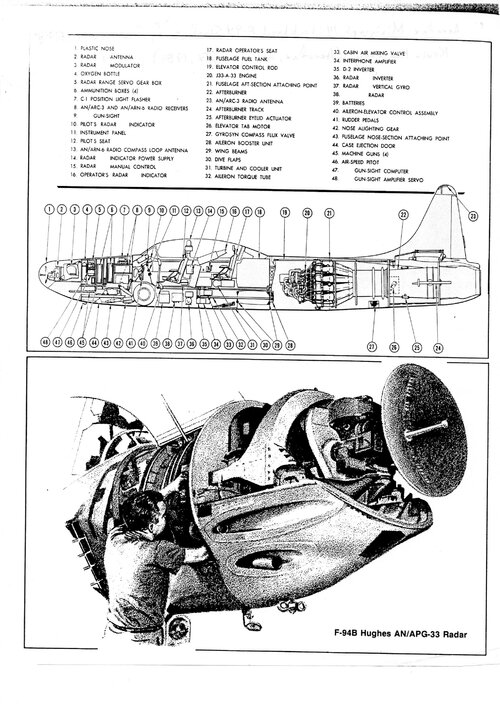

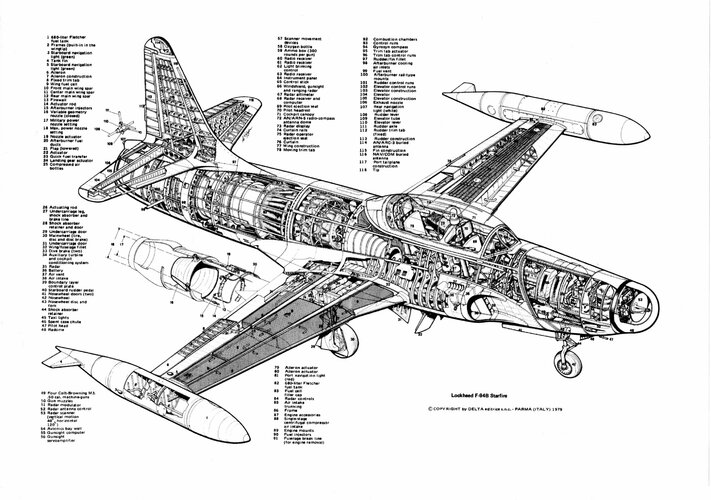

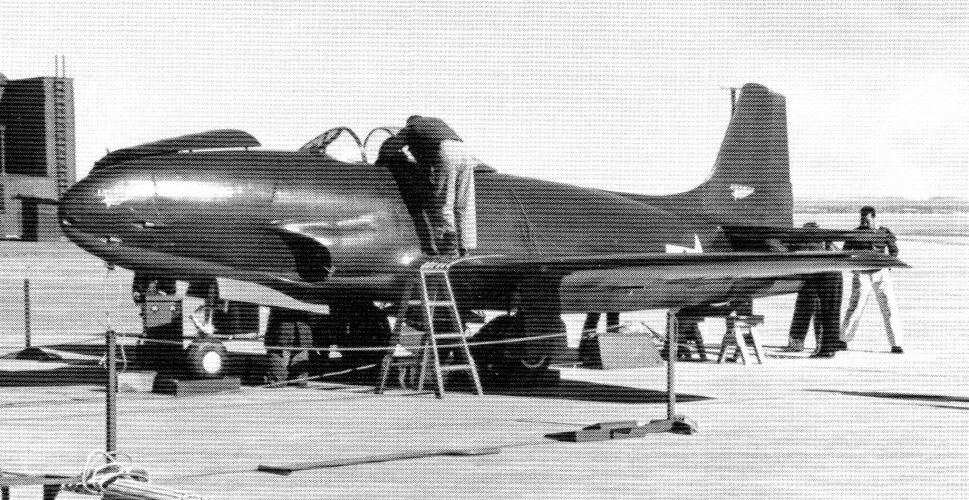

Lockheed F-94 Bibliography
Le fanatique de l'Aviation Nº 294, Le lockheed F-94 monographie, by Hoehn j.
Angelucci E., The American Fighter, (Orion, 1987).

Green, W., The Complete Book of Fighters (Smithmark, 1994).

Jenkins D., Experimental & Prototype U.S. Air Force Jet Fighters, (Specialty Press, 2008).

Pelletier A., La première Génération Jet. L'USAAF, 1944-1947 (Le fana de l’Aviation Hors Série Nº 16, December 2001).

Aerofax Minigraph Nº 14 by René Francillon


Attachments

  • 314.jpg
    707.1 KB · Views: 5
  • 315.jpg
    762 KB · Views: 4
  • 316.jpg
    1.4 MB · Views: 4
  • 317.jpg
    807.3 KB · Views: 4
  • 318.jpg
    325.6 KB · Views: 4
  • 319.jpg
    1.2 MB · Views: 4

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,622
Reaction score
2,893
Website
www.amazon.com

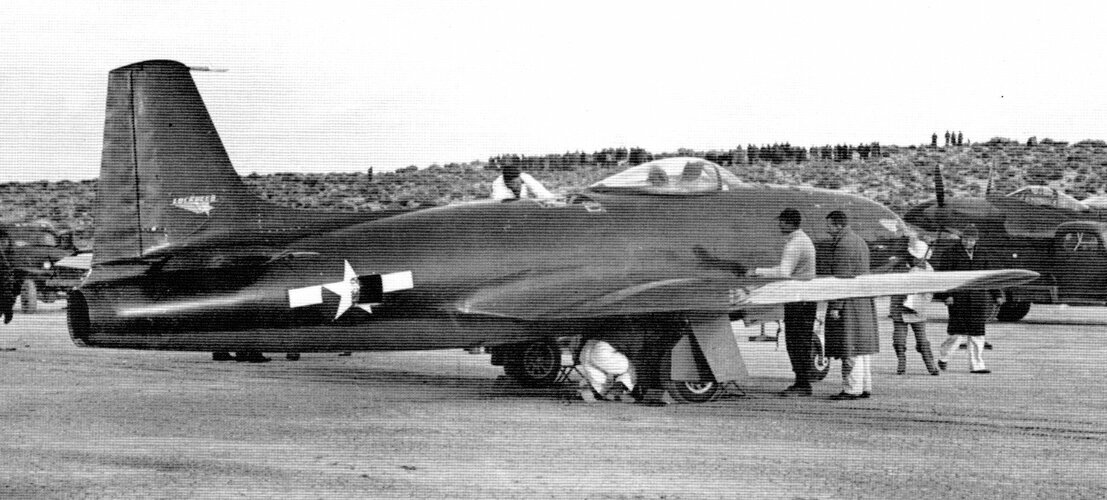

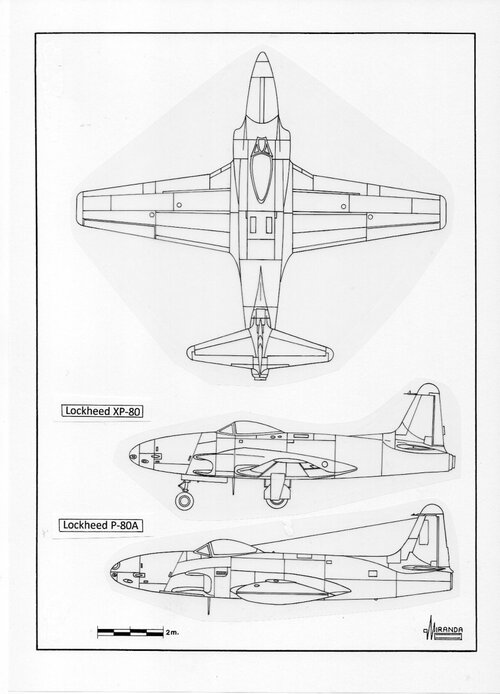

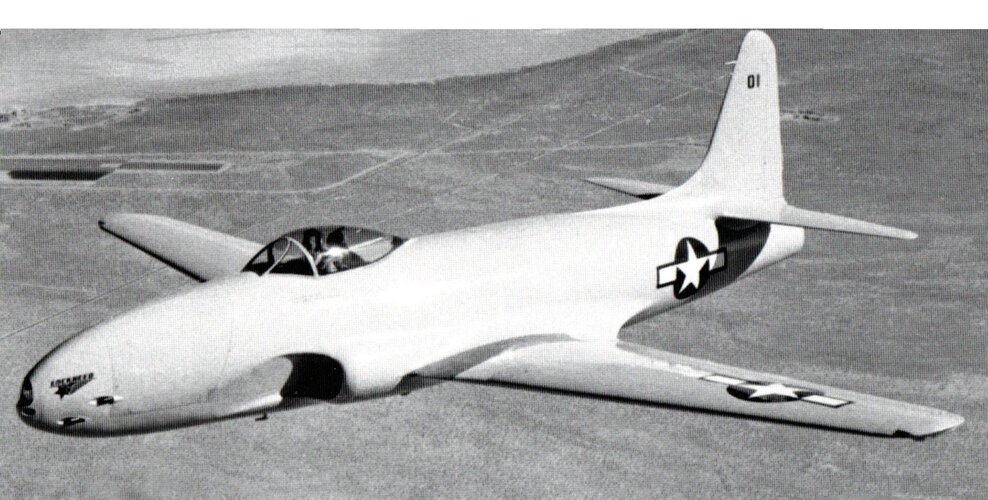

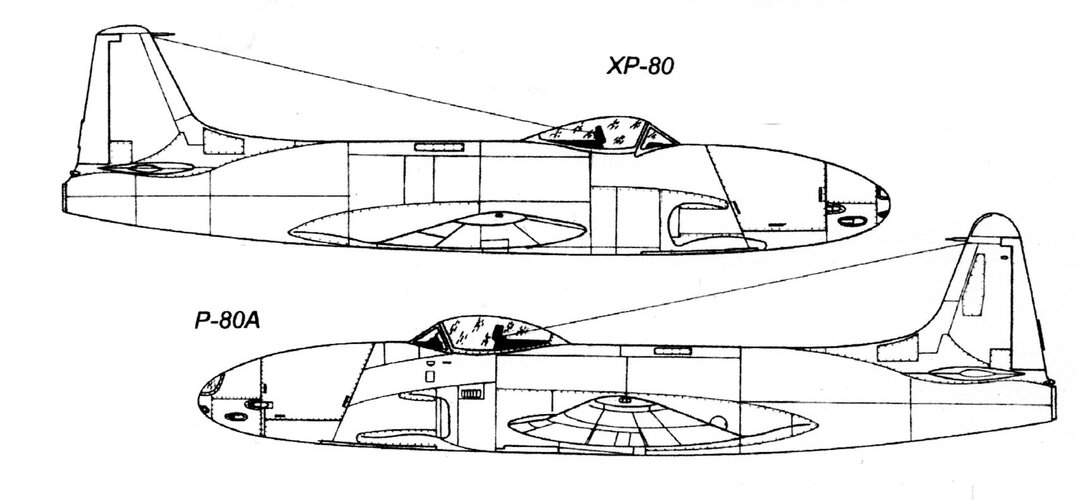

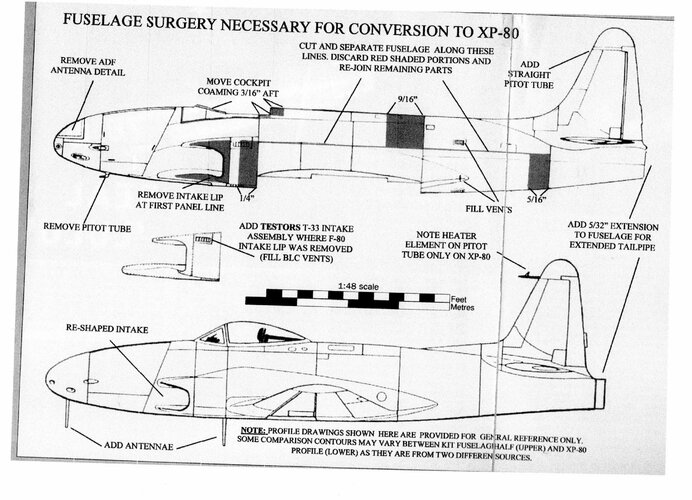

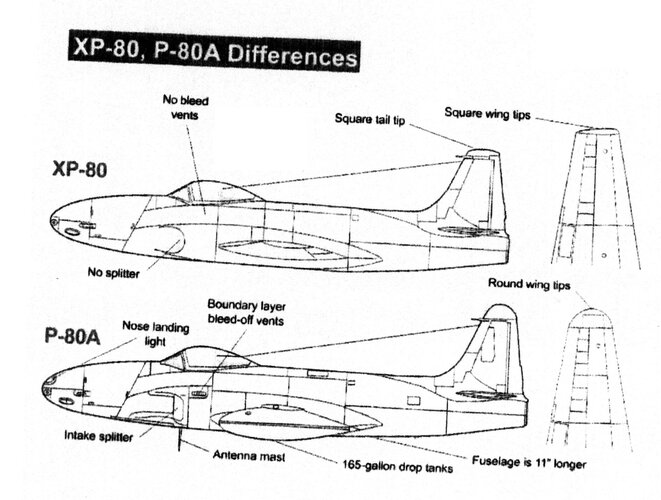

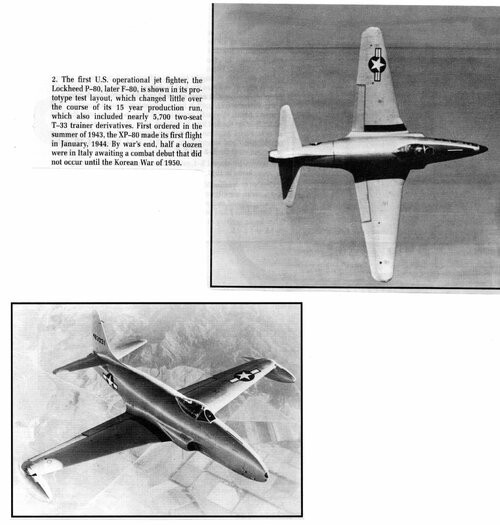

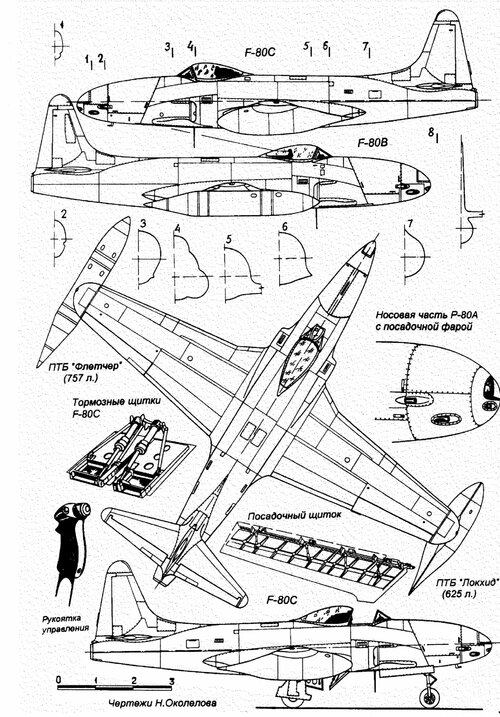

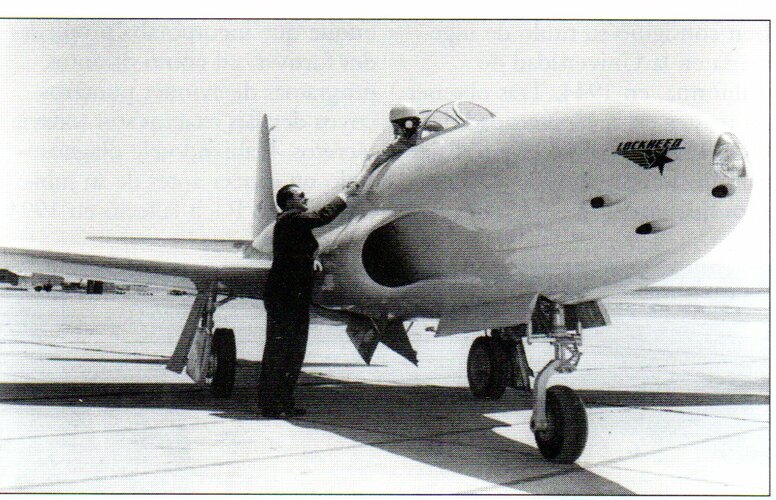

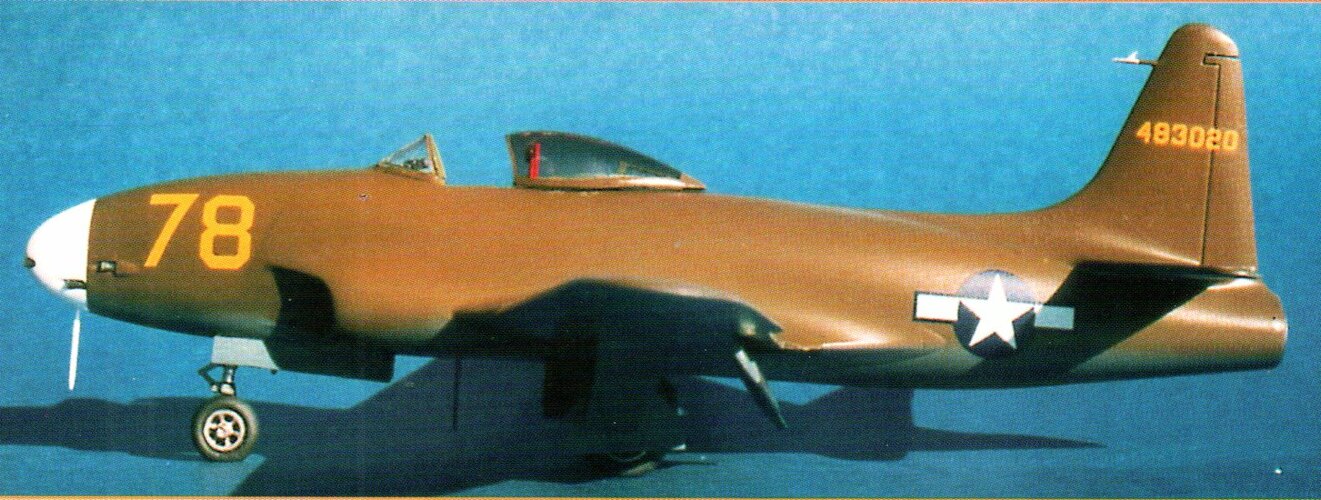

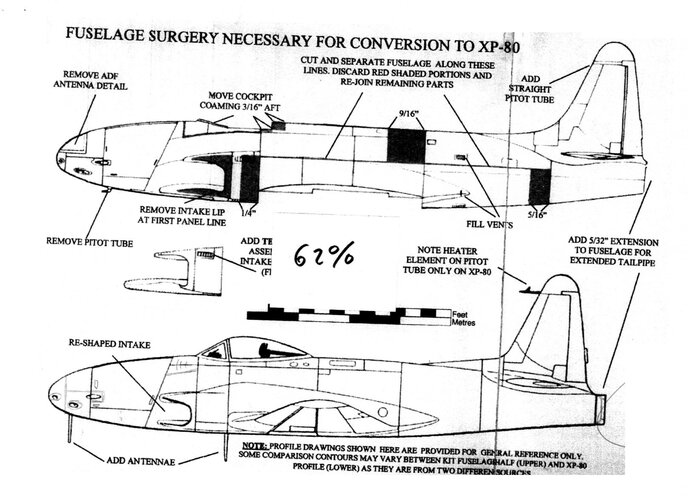

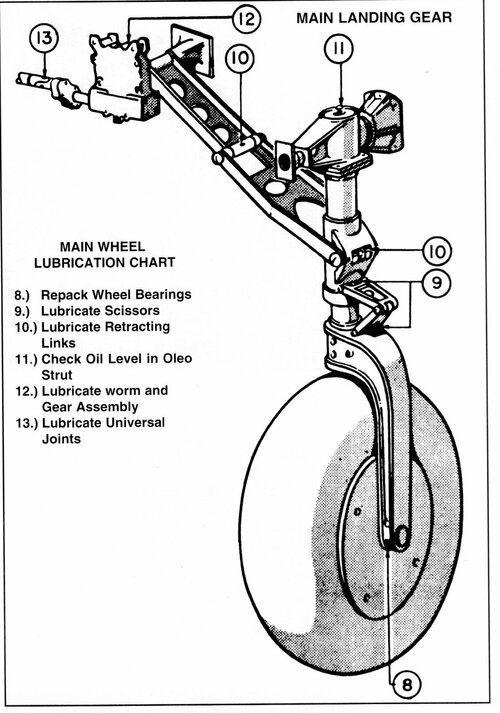

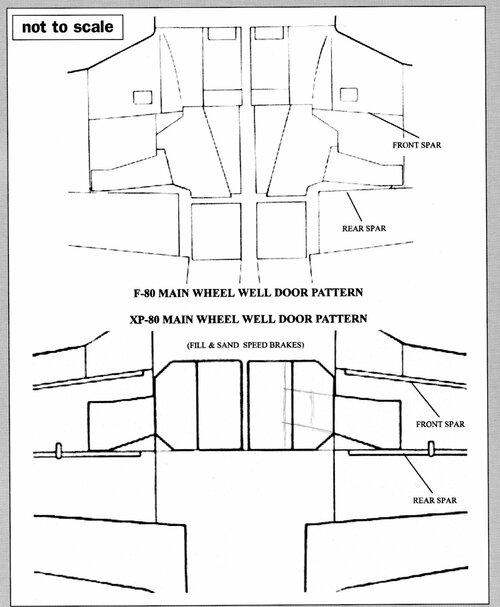

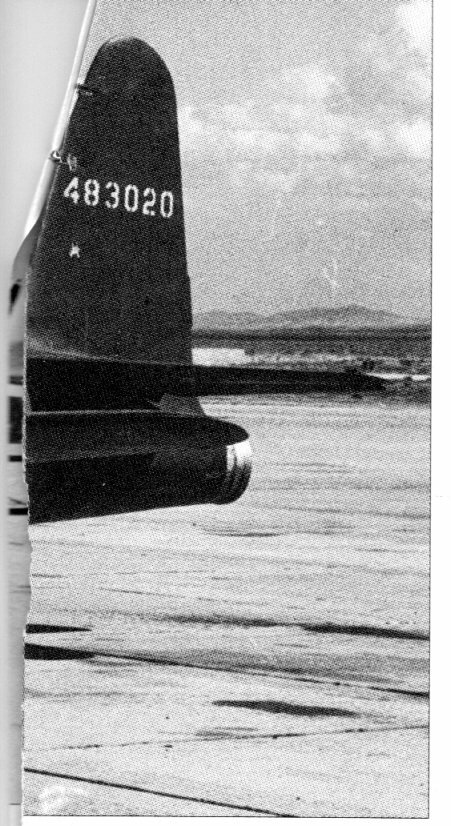

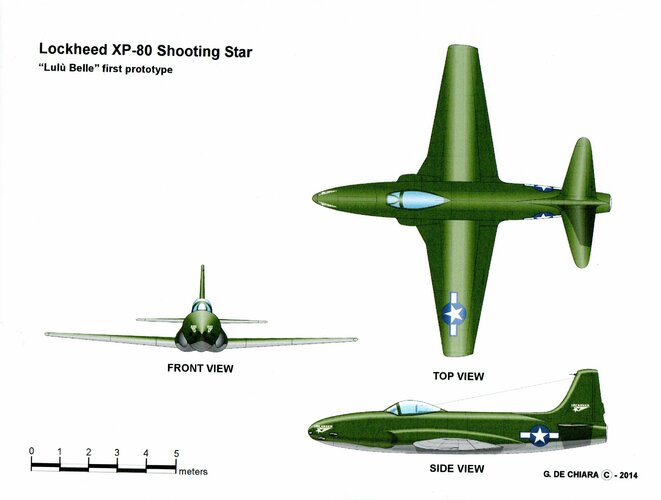

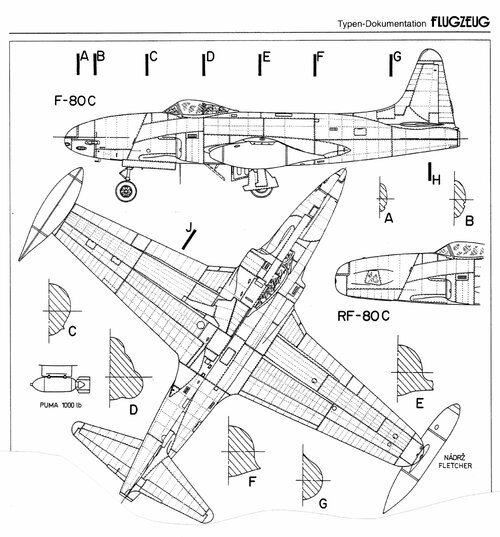

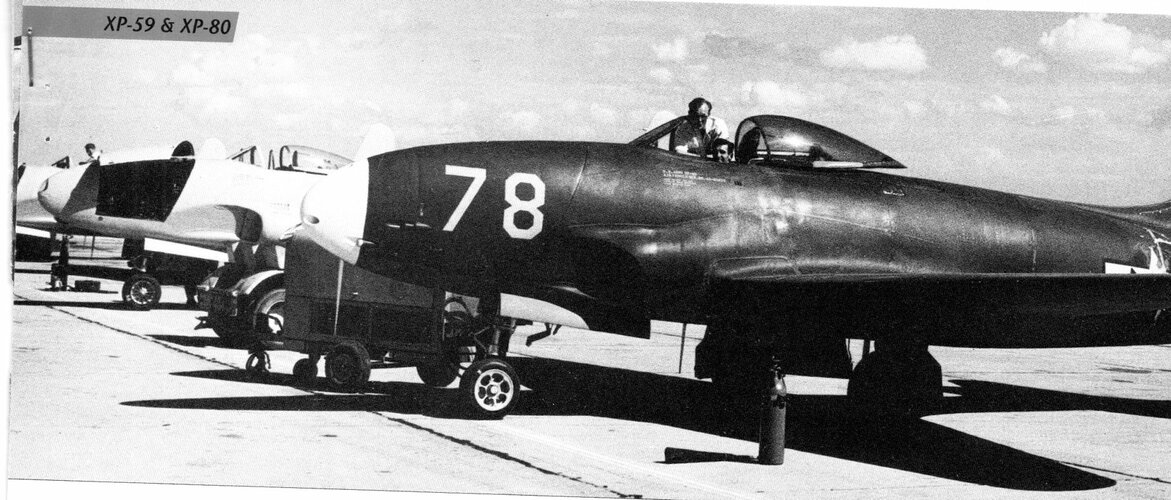

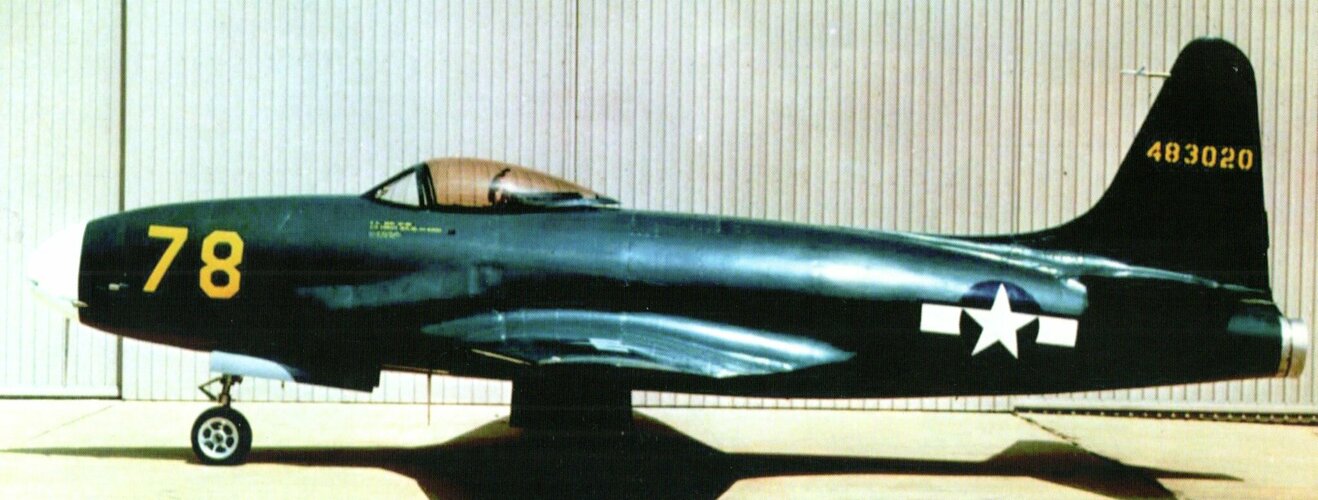

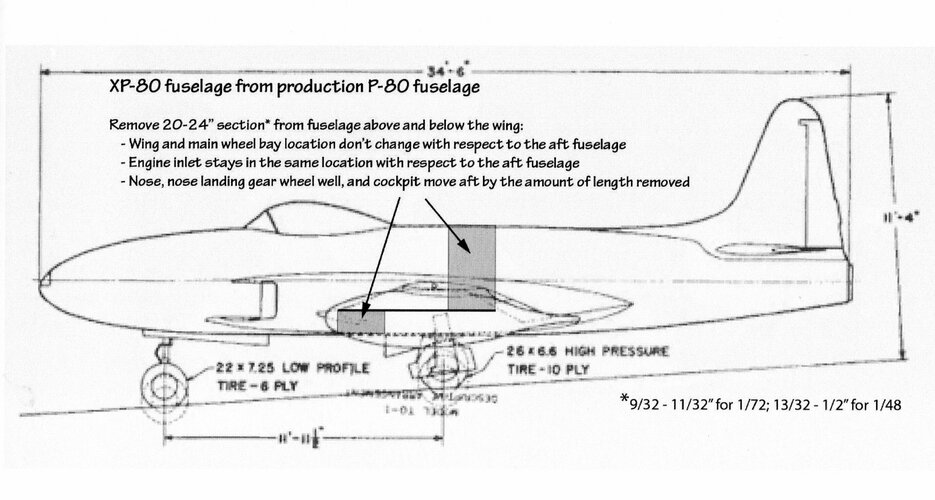

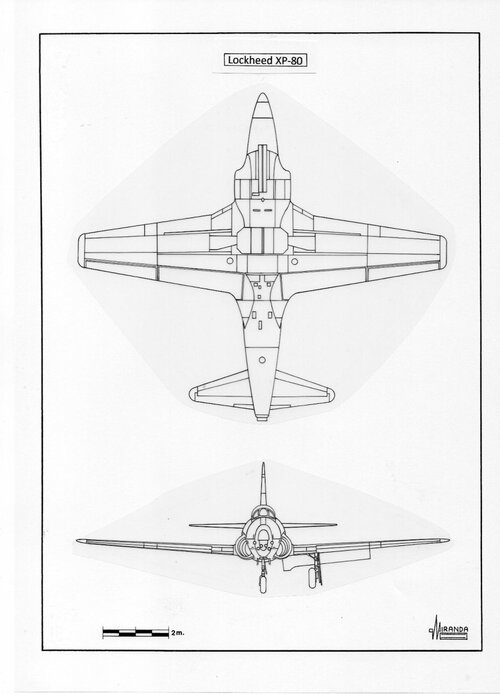

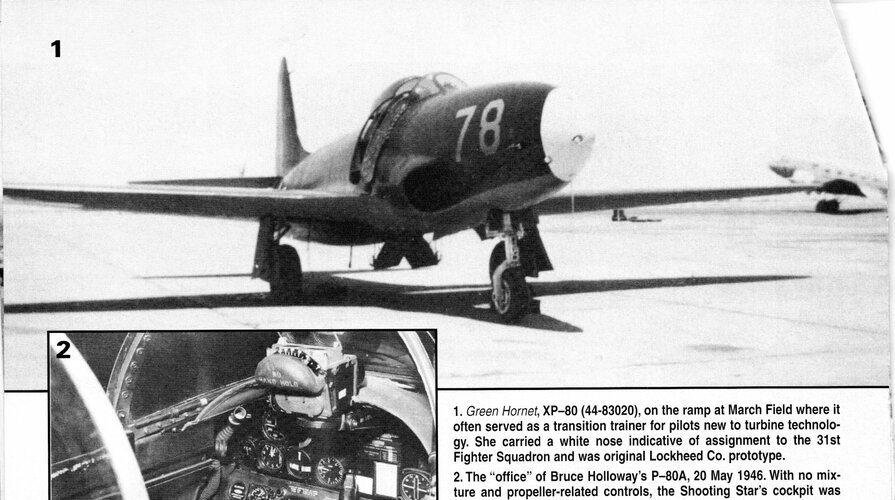

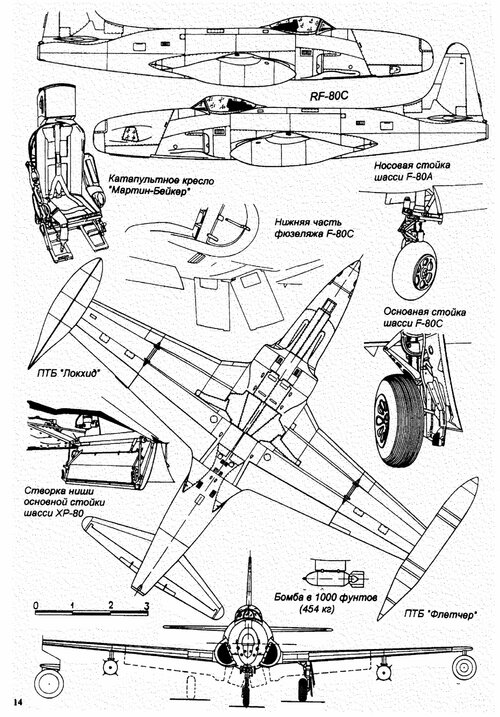

Lockheed XP-80 Bibliography

Angelucci E., The American Fighter, (Orion, 1987).

Green, W., The Complete Book of Fighters (Smithmark, 1994).

Jenkins D., Experimental & Prototype U.S. Air Force Jet Fighters, (Specialty Press, 2008).

Pelletier A., La première Génération Jet. L'USAAF, 1944-1947 (Le fana de l’Aviation Hors Série Nº 16, December 2001).

Hallion R., Lockheed P-80 the story of a star, Air enthusiast/Eleven

Davis l., P/F-80 Shooting Star, Squadron/Signal In Action Nº 213

Wings, June 2004


Attachments

  • 320.jpg
    564.1 KB · Views: 2
  • 321.jpg
    236.6 KB · Views: 2
  • 338.jpg
    748.9 KB · Views: 1
  • 336.jpg
    642 KB · Views: 1
  • 340.jpg
    713.9 KB · Views: 2
  • 341.jpg
    525.6 KB · Views: 2
  • 342.jpg
    125.6 KB · Views: 3
  • 344.jpg
    848.4 KB · Views: 3
  • 345.jpg
    1.7 MB · Views: 4
  • 348.jpg
    285.8 KB · Views: 4
  • 346.jpg
    266.2 KB · Views: 5
Last edited:

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,622
Reaction score
2,893
Website
www.amazon.com

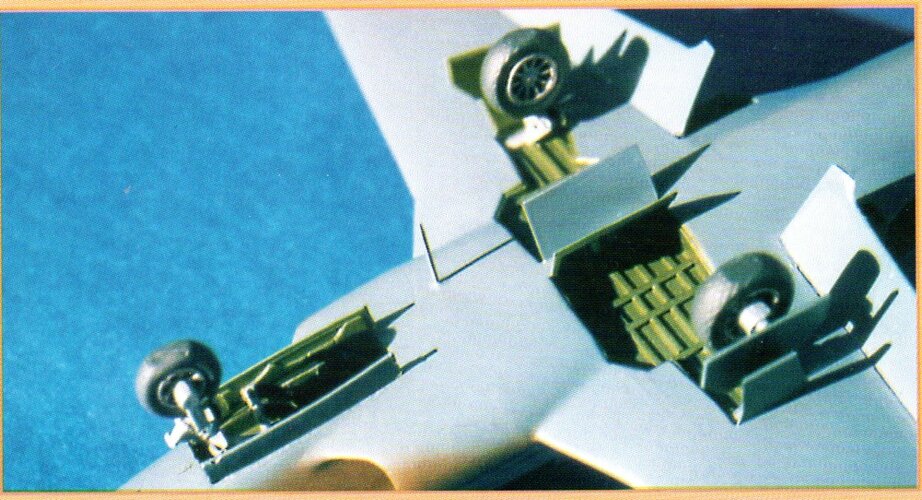

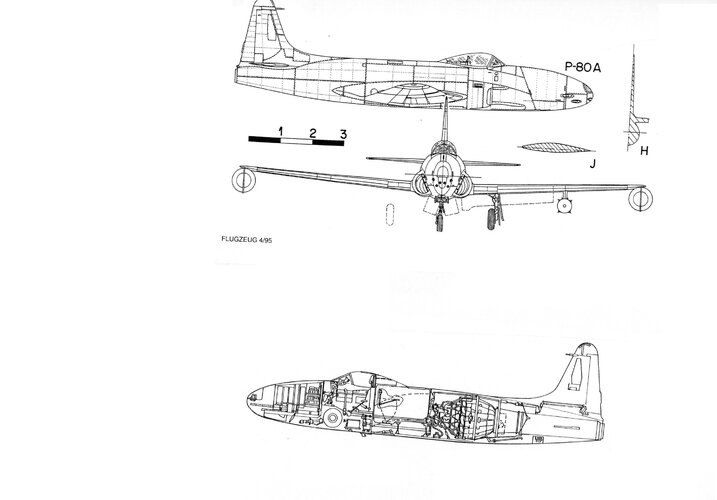

Post-2


Attachments

  • 322.jpg
    383.6 KB · Views: 5
  • 323.jpg
    565.7 KB · Views: 4
  • 324.jpg
    495.4 KB · Views: 3
  • 325.jpg
    1.2 MB · Views: 3
  • 326.jpg
    1.2 MB · Views: 3
  • 327.jpg
    493.4 KB · Views: 3
  • 328.jpg
    426.2 KB · Views: 5
  • 329.jpg
    212.6 KB · Views: 4
  • 330.jpg
    185 KB · Views: 4
  • 133.jpg
    115.1 KB · Views: 3
  • 134.jpg
    92.3 KB · Views: 3

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,622
Reaction score
2,893
Website
www.amazon.com

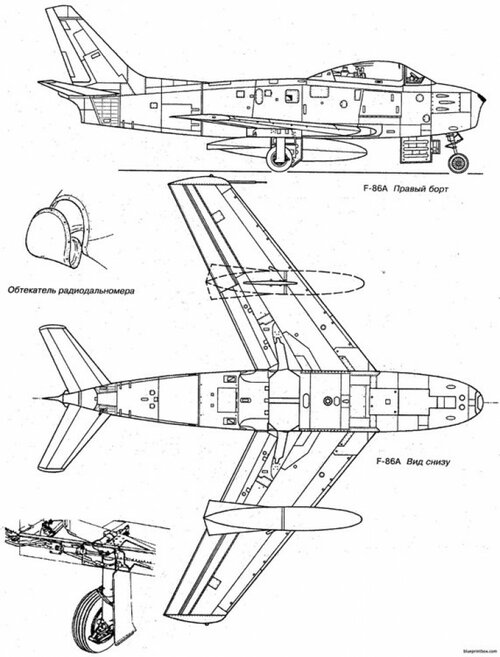

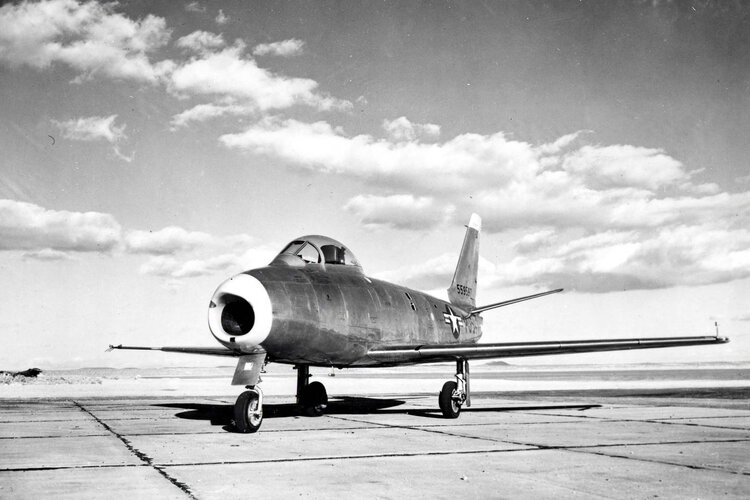

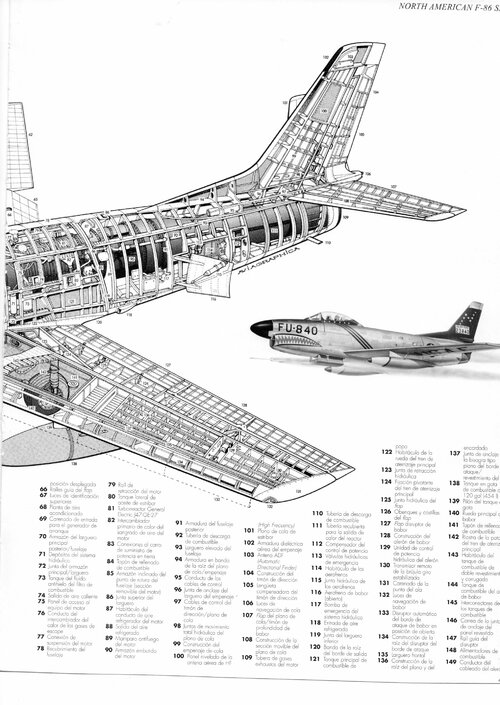

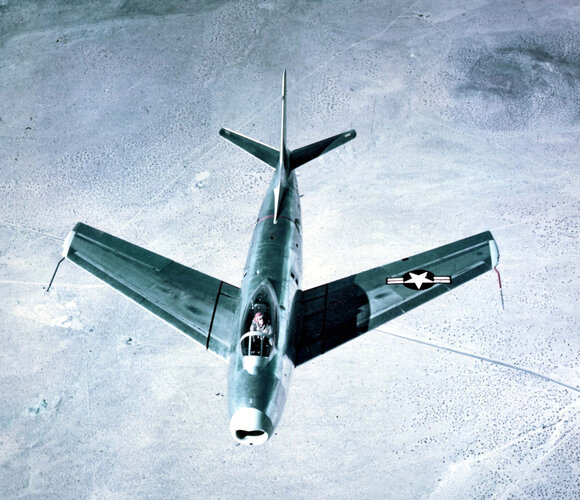

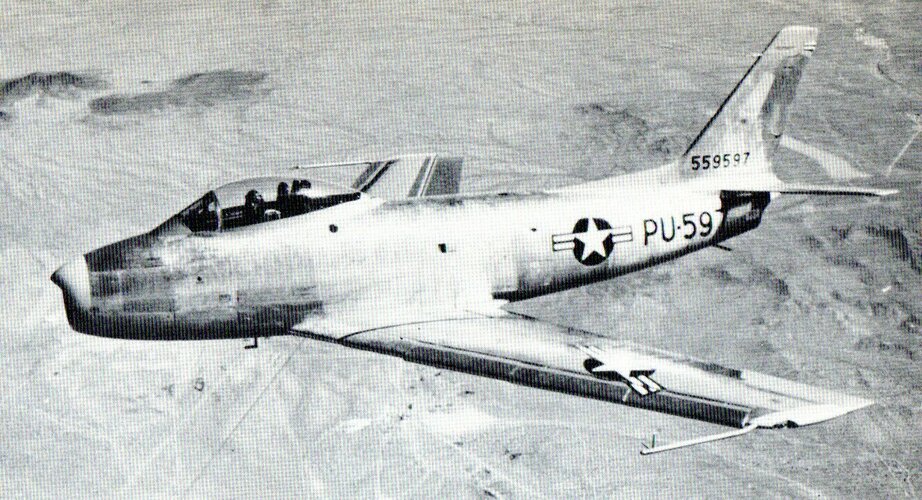

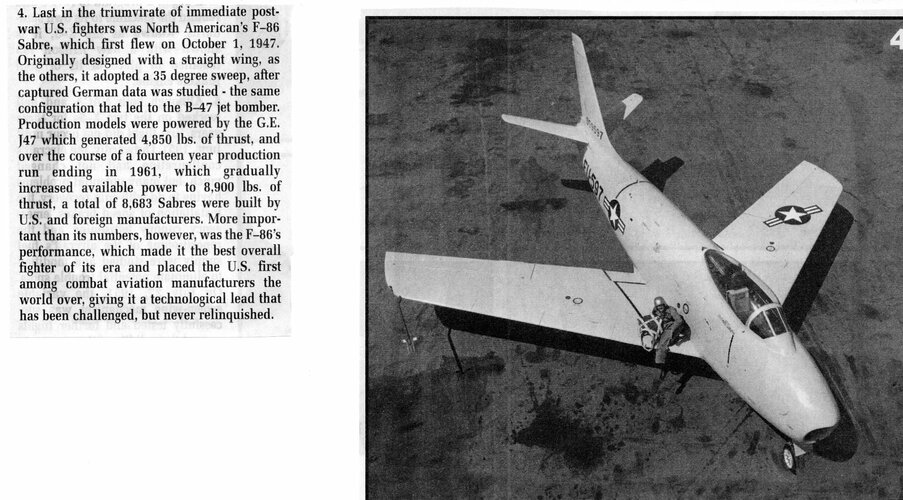

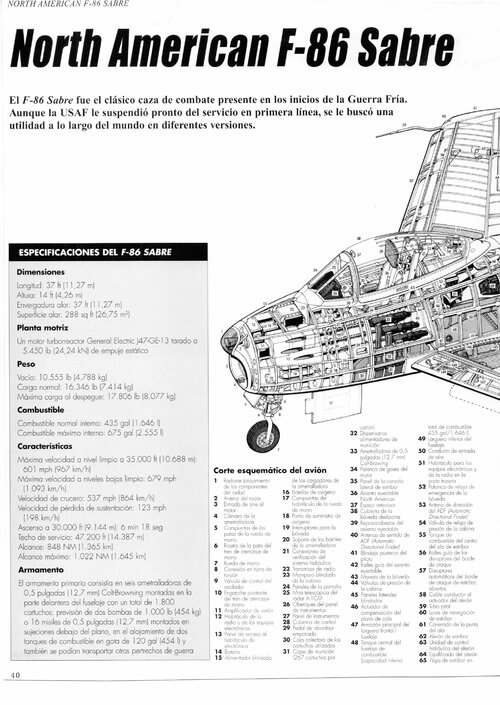

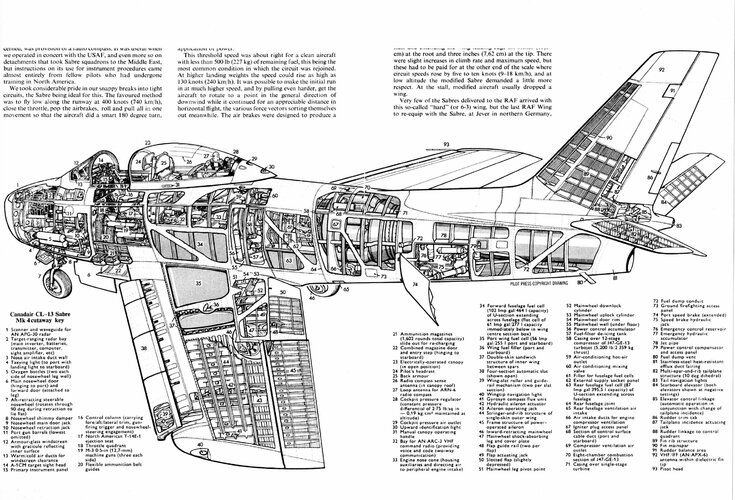

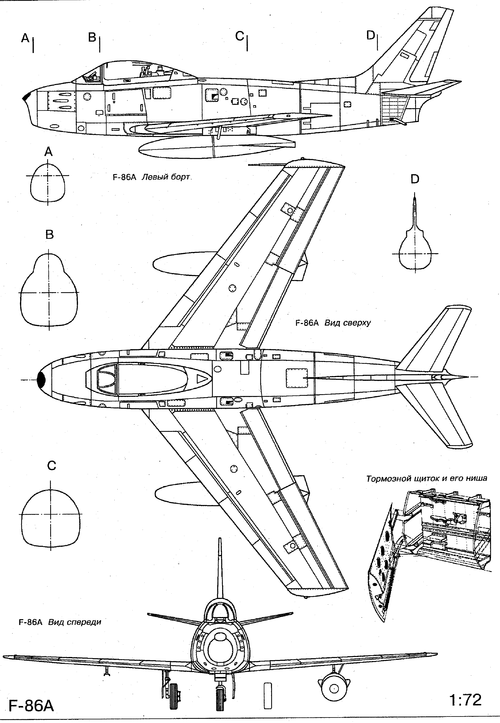

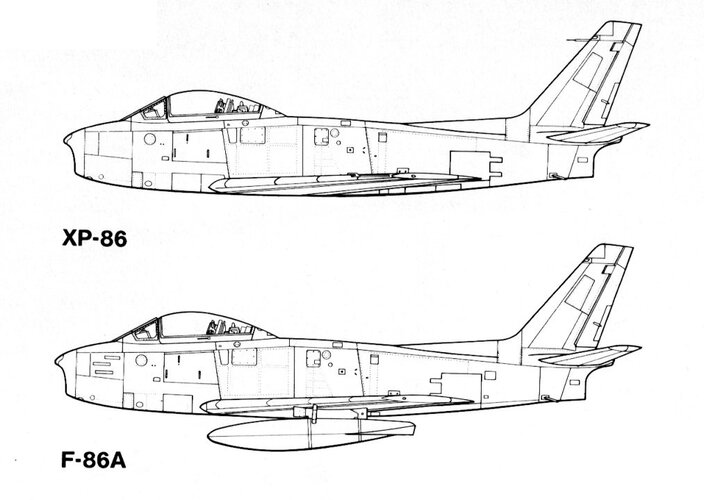

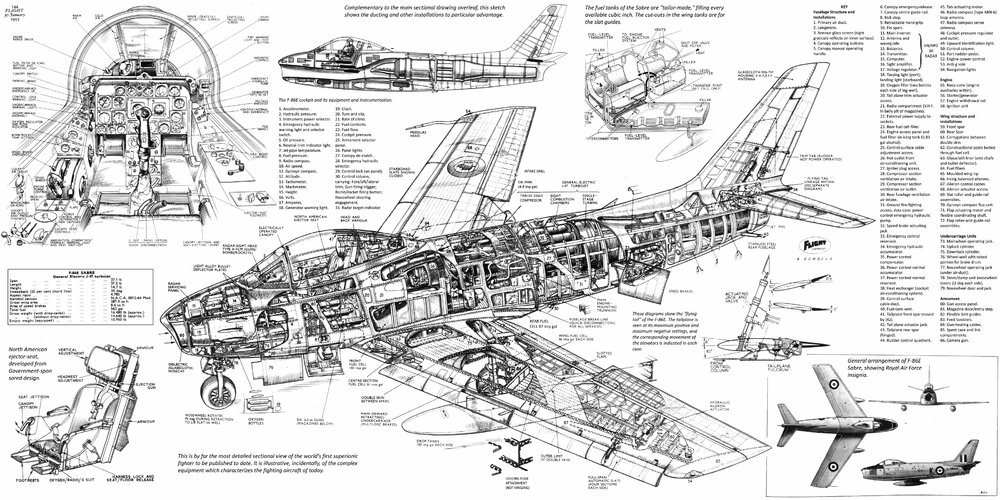

North American XP-86 Bibliography

Davis L., Air War over Korea, Squadron/Signal 1982

Spick M., Sabre v Mig-15, Air International April 1985

Davis L., F-86 Sabre in action, Squadron/Signal Nº 126

Davis L., MiG Alley. Air to Air combat over Korea, Squadron/Signal, 1978


Attachments

  • 349.jpg
    398.6 KB · Views: 3
  • 350.jpg
    1.1 MB · Views: 3
  • 351.jpg
    431.7 KB · Views: 5
  • 352.jpg
    135.5 KB · Views: 5
  • 353.jpg
    1,020.9 KB · Views: 4
  • 354.jpg
    977.6 KB · Views: 2
  • 355.jpg
    1 MB · Views: 2
  • 060829-F-1234S-012.JPG
    247.4 KB · Views: 4
Last edited:

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,622
Reaction score
2,893
Website
www.amazon.com

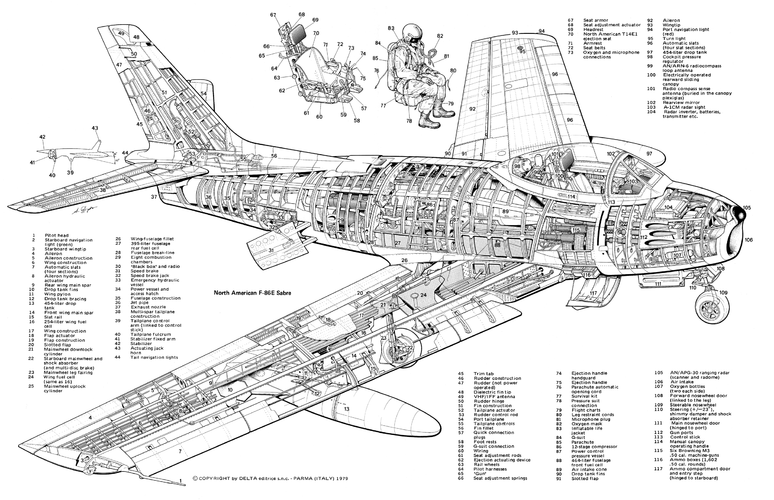

post-2


Attachments

  • 991smfj2xhs01.jpg
    3 MB · Views: 4
  • f86ecut.gif
    703 KB · Views: 4
  • img.php.jpg
    141.7 KB · Views: 4
  • F-86_1.png
    96.7 KB · Views: 4
  • North-American-Aviation-XP-86-45-59597-color.jpg
    419.6 KB · Views: 3
  • unnamed.jpg
    45.1 KB · Views: 8

Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,093
Reaction score
468
I wonder why this was never deployed or was it?

66 built.

From the Wikipedia page of the P-59 :

Over the following months, tests on the prototypes and pre-production P-59s revealed a multitude of problems including poor engine response and reliability (common shortcomings of all early turbojets), poor lateral and directional stability at speeds over 290 mph (470 km/h), so that it tended to "snake" and was a poor gunnery platform. Performance was greatly hampered by the insufficient thrust from its engines that was far below expectations. The Army Air Force conducted combat trials against propeller-driven Lockheed P-38J Lightning and Republic P-47D Thunderbolt fighters in February 1944 and found that the older aircraft outperformed the jet. It therefore decided that the P-59 was best suited as a training aircraft to familiarize pilots with jet-engine aircraft.

Bell P-59 Airacomet - Wikipedia
