Projects of the Flettner Aircraft Corporation/Key Gardens NY, USA

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,412
Reaction score
1,825

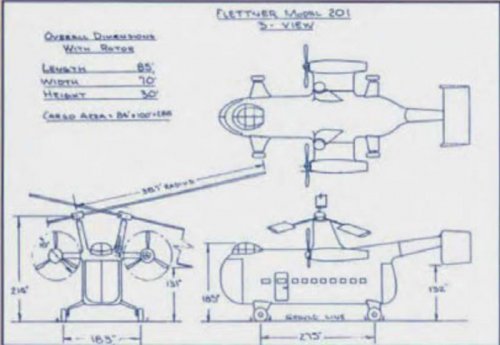

Anton Flettner, well known for his helicopters in Germany emigrated to the USA in 1947 and
founded the Flettner Aircraft Corporation. There he designed a heavy lift helicopter with
gas powered intermeshing rotors. Forward propulsion was given by two propellers, the rotors
should turn freely during forward flight and only be powered for take-off and landing, or low
speed flight. Rotor diameter was 23.5 m, length25.8m and payload about 3 tons. The compound
helicopter was desiganted Model 201.
(Information and drawing from vertiflite Summer 2003)


Attachments

  • Flettner model 201.jpg
    Flettner model 201.jpg
    41.2 KB · Views: 642

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,078
Reaction score
481
An absolutly great find, fantastic :-* :-* :-*


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,995
Reaction score
6,898
Amazing project my dear Jemiba,


you made my day.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,220
Reaction score
973
Such a sweet serendipity!!! The whole US connection with Flettner is totally new to me. Thanks a lot, Jemiba!


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,412
Reaction score
1,825

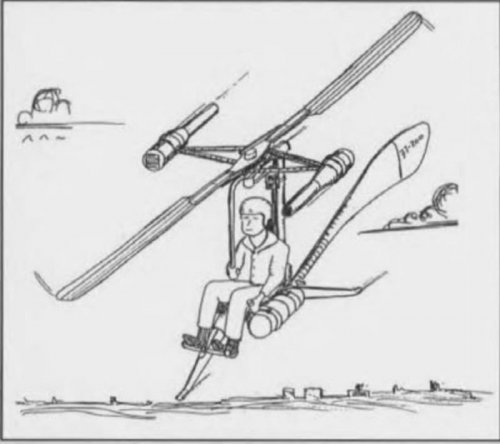

Another project shown in that article, but just as a sketch, was the model 200, proposed
to the USN. It was a one-man helicopter, with a two-bladed rotor powered by two pulse jets,
mounted on beams perpendicular to the rotor blades.


Attachments

  • Flettner model 200.jpg
    Flettner model 200.jpg
    41 KB · Views: 520

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
68

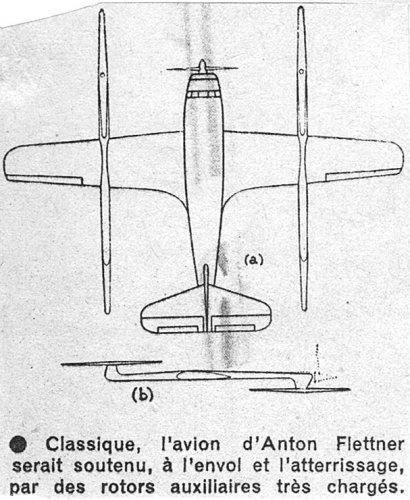

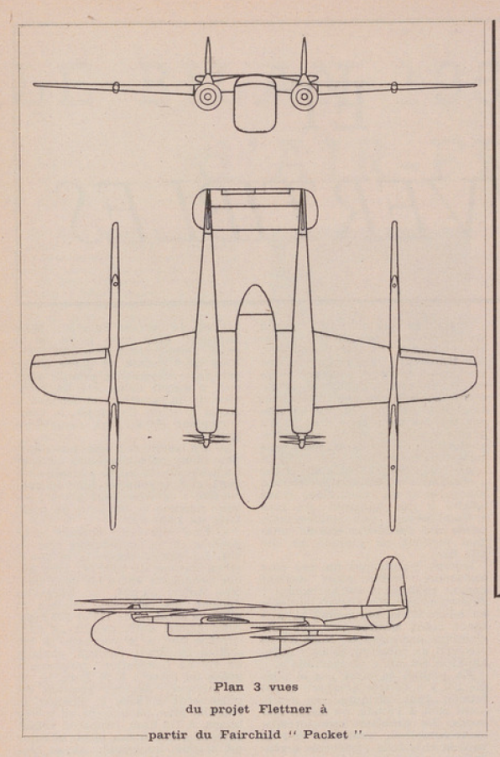

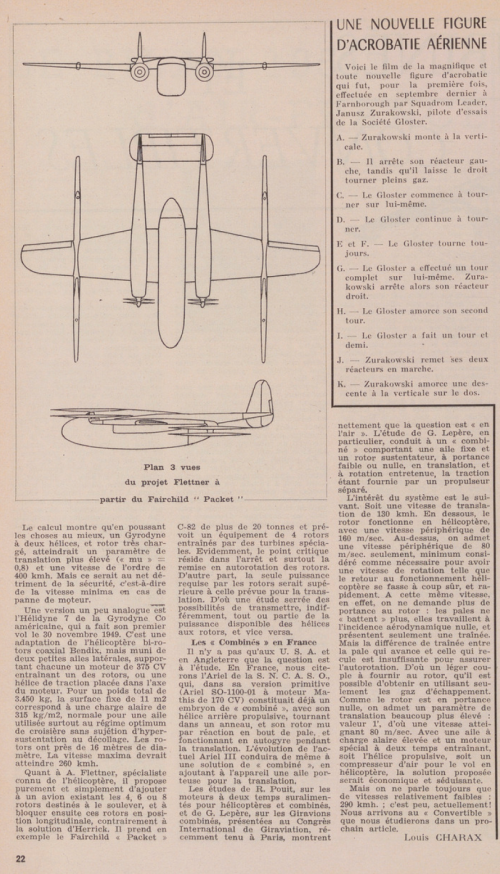

From a "Science et Vie" of the mid-fifties :


Attachments

  • Numériser 3.jpeg
    Numériser 3.jpeg
    242 KB · Views: 418

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,995
Reaction score
6,898
Wow,what a beauty project my dear Richard,many thanks.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,995
Reaction score
6,898
Hi,

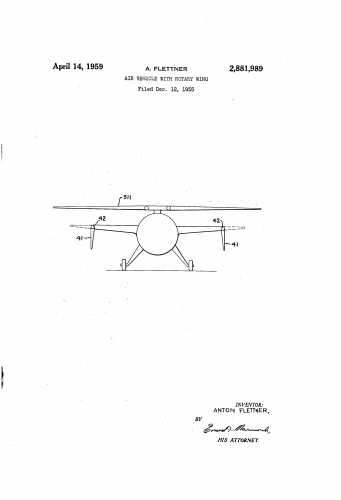

anther Flettner patent in USA;


http://www.google.com/patents/US2881989


Attachments

  • US2881989-0.png
    28.6 KB · Views: 256

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,995
Reaction score
6,898

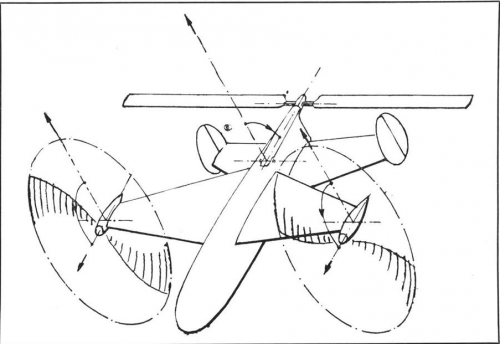

Hi,

http://archive.aviationweek.com/image/spread/19521222/8/2
http://archive.aviationweek.com/image/spread/19521222/9/2


Attachments

  • 1.png
    171.6 KB · Views: 152
  • 2.png
    75.7 KB · Views: 40
  • 3.png
    89.4 KB · Views: 38

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,995
Reaction score
6,898
From Vertiflite 1955-2

here is anther Project for convertiplane,could accommodated 40
passenger.


Attachments

  • 2-1955-2.png
    11.1 KB · Views: 40
