Hi,

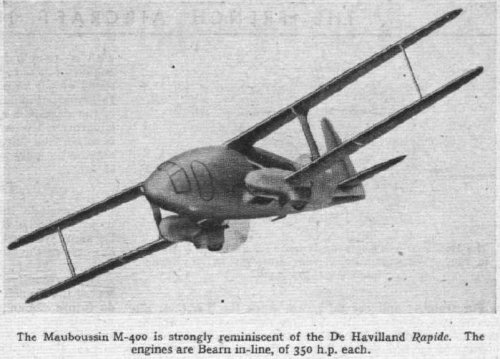

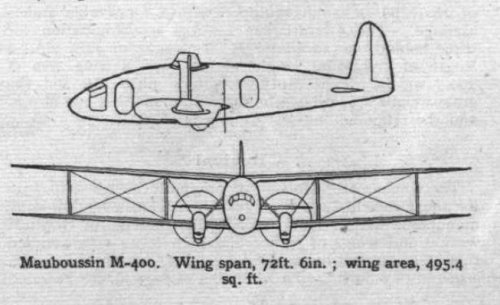

the Mauboussin M.400 was twin engined light tyransport biplane
project,powered by two 350 hp Bearn C.M.B-6D inline engines
and had estimated speed of 225 mph.
http://www.flightglobal.com/PDFArchive/View/1943/1943%20-%202361.html


Attachments

  • M-400.JPG
    57.8 KB · Views: 616
  • Drawing.JPG
    39.6 KB · Views: 591

red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
719
Reaction score
255
When was this project from hesham?

Its an interesting blend of streamlining and typical biplane.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,347
Reaction score
1,544
In "Planeurs & Avions" by Christian Castello it is said to be a development
from 1939, so the date of publishing in Flight can be a little misleading


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
121
1939 is correct.It was the last design of Mauboussin.

Mauboussin M 400- Biplan a grand allongement et moteurs propulsifs.

engines : 2BE 6 DO of 350hp.
span : 22.10m
lenght : 15.00m
height : 4.01m
empty weight :2604kg
crew+passenger :3
range :100km.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
121
Error.

Range must be : 1000km.

source: L'Aviation-early sixties.


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
248

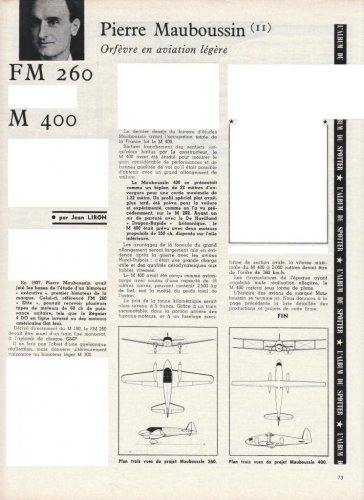

Dear Hesham, here is an article I've found in French on the Mauboussin M 400 biplane project along with the Mauboussin FM 260 project; neither of which are "secret". I've edited out material on the Mauboussin M 300 which was built and flown......

The article comes from the 15th September 1967 issue of Aviation Magazine International......

Terry (Caravellarella)


Attachments

  • Mauboussin FM 260 & M 400 projects - Aviation Magazine International - No.jpg
    Mauboussin FM 260 & M 400 projects - Aviation Magazine International - No.jpg
    121.4 KB · Views: 631

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,445
Reaction score
6,104
Thank you my dear Caravellarella very much;

and the projects of this company is such a mystery.


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
248
hesham said:
Thank you my dear Caravellarella very much;

and the projects of this company is such a mystery.

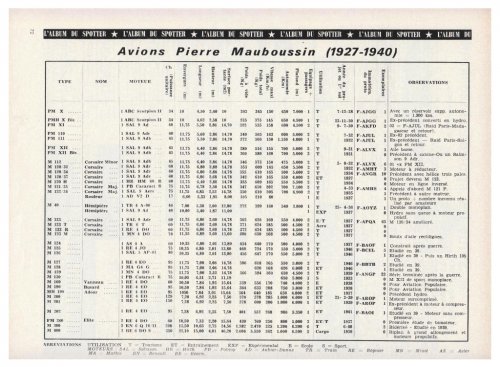

Poor Hesham; don't worry. This list might help; it's from the same article but I didn't originally include it as many aren't "projects"......

Best, Terry (Caravellarella)


Attachments

  • Avions Pierre Mauboussin - Aviation Magazine International - No. 475 - 15th Septembre 1967.......jpg
    Avions Pierre Mauboussin - Aviation Magazine International - No. 475 - 15th Septembre 1967.......jpg
    169.3 KB · Views: 513

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,445
Reaction score
6,104
Thank you my dear Caravellarella,

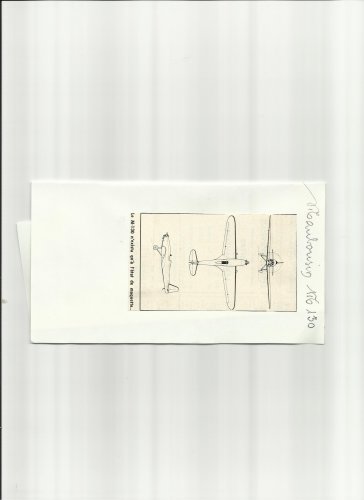

and I know those Mauboussin aircraft,except M.130 and FM.260.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
145
Hi Hesham

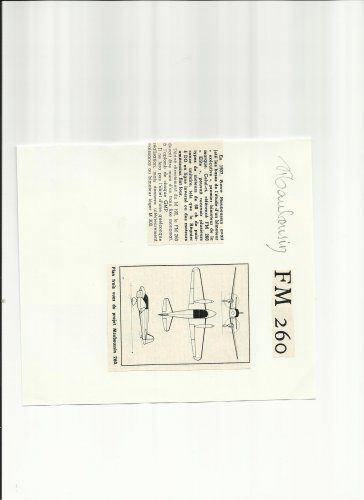

Maubousin fm 260


Attachments

  • Scan.jpg
    212.3 KB · Views: 520

javelinfaw9

ACCESS: Restricted
Joined
Jun 8, 2010
Messages
2
Reaction score
0
I work for Aerospace publishing and in our entry for Marboussin in the Illustrated Encyclopedia of Aircraft was the following:

Avions Mauboussin was well known in pre-World War 2 days for the design and manufacture of a series of efficient light aircraft and sailplanes. In 1936 the Societe des Etablissements Fouga acquired exclusive production rights for all Mauboussin designs, beginning in 1937 with the M.123. This was a two-seat lightplane with open cockpits, based on the earlier Mauboussin Corsaire, and powered by a 60-hp (45-kW) Salmson engine. An enclosed M.124 was followed by the open-cockpit M.128 and M.129, all three with the same basic airframe as the M.123 but powered respectively by the 85-hp (63-kW) Salmson 5Ap, 100-hp (75-kW) Mathis G.4R, and 70-hp (52-kW) Minie 4Do engines. Subsequent designs included the M.160, a side-by-side two-seat monoplane trainer with a 65-hp (48-kW) Regnier engine; a generally similar M.190 with revised landing gear and powered by a 95-hp (71-kW) Regnier engine; and the single-seat M.200 enclosed-cockpit racing monoplane powered by a 115-hp (86-kW) Regnier 4-EO engine. This last aircraft established new FAI class records over 100 km (62.1 miles) and 1,000 km (621 miles) in May 1939. Aircraft development was then frustrated by the outbreak of war, but subsequent designs included the M.300 which had been intended as a six-seat light civil transport and was completed as a liaison and training aircraft, with retractable landing gear and powered by two 220-hp (164-kW) Renault 6Q engines; it was completed by French air ministry request as a three/four-seat liaison/trainer in 1943. Final design was the M.400 biplane, intended as a 5,512-lb (2500-kg) capacity cargo carrier, with two 350-hp (261-kW) Beam engines mounted on the lower wing to drive pusher propellers.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,445
Reaction score
6,104
My dear Jemiba,


you notice here,the members spoke about many Mauboussin aircraft and not only
M.400,please can you change the title into; Mauboussin Prototypes and Projects,
and many thanks.

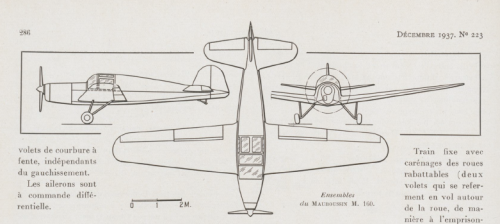

From l'Aeronautique 12/1937,here is the Mauboussin M.160 side-by-side two seat
trainer aircraft project.


Attachments

  • M.160.png
    381 KB · Views: 68

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
33

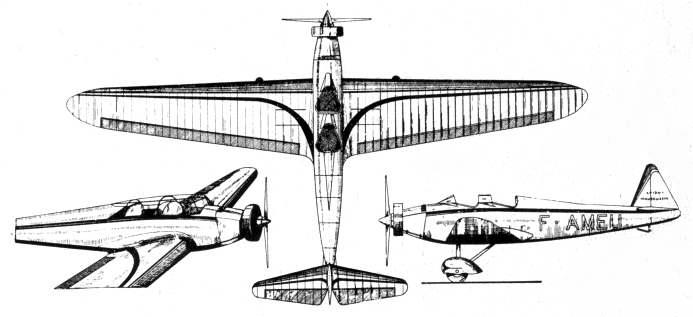

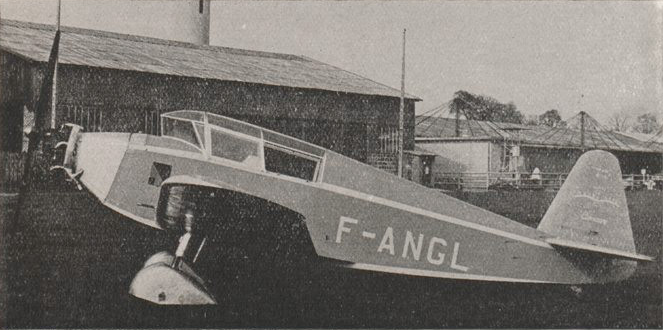

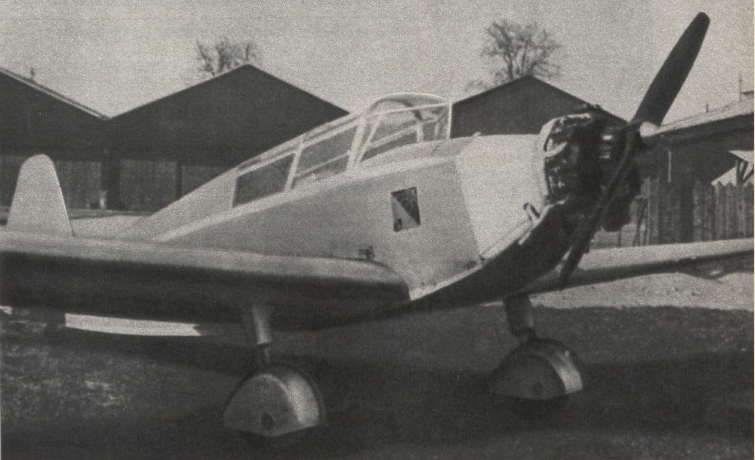

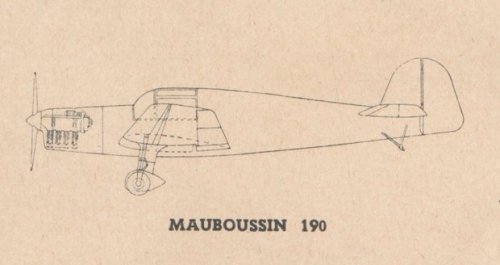

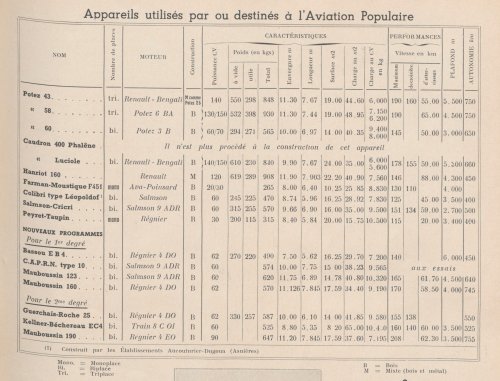

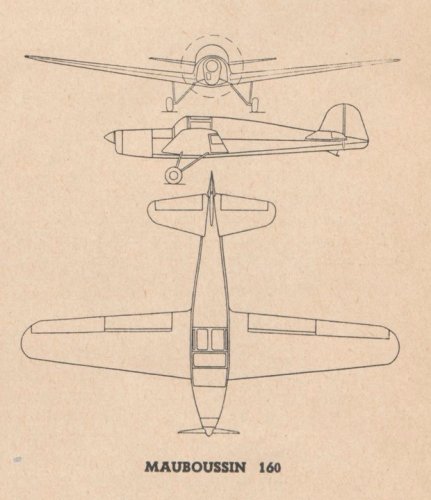

Mauboussin 160 and 190 for l'Aviation Populaire, from L'Aérophile 02/1938.
The two aircraft look closely related.


Attachments

  • mauboussin_160_plan_L_Aérophile_1938_p82.jpg
    84.2 KB · Views: 201
  • mauboussin_190_plan_L_Aérophile_1938_p82.jpg
    37 KB · Views: 195
  • aviation_populaire_L_Aérophile_1938_p80.jpg
    636.8 KB · Views: 209

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,027
Reaction score
432
c460, can I ask you for drawings or 3view of the types Hanriot 160, Bassou E.B.4, C.A.P.R.N. Type 10 and Guerchais-Roche 25?
Thank you


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
33
Thanks Hesham and Maveric.
Here is the link for more 3-views:
http://gallica.bnf.fr/ark:/12148/bpt6k6555153t/f19.image.r=
I'll post them in the relevant topics.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,445
Reaction score
6,104

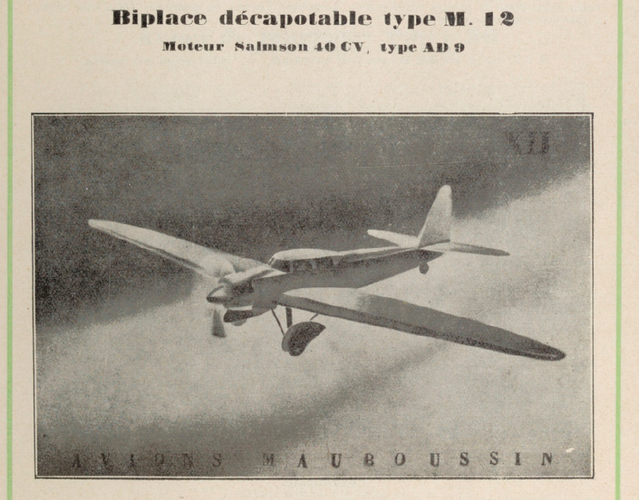

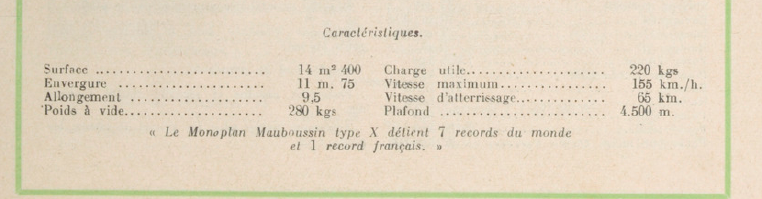

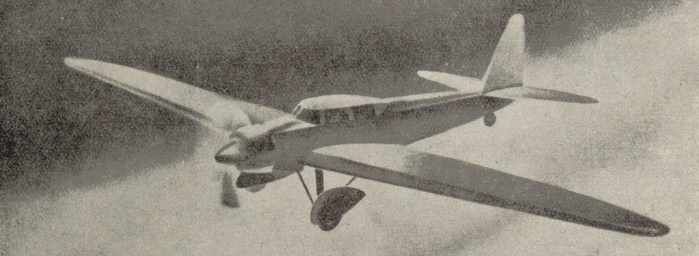

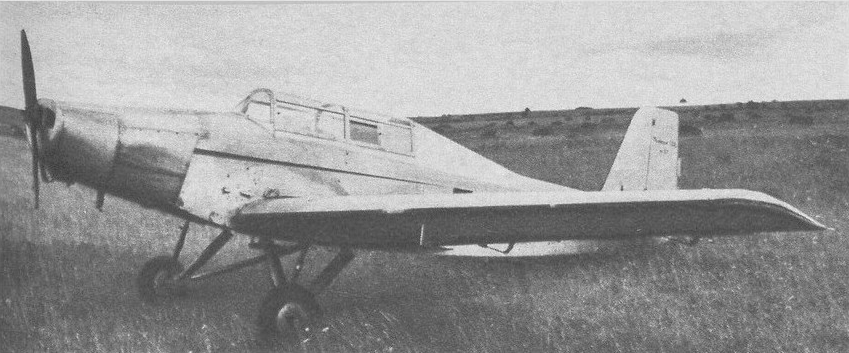

From, Annuaire_de_l'aéronautique__bpt6k9810211h,

the Mauboussin M-12.


Attachments

  • 8.png
    778.3 KB · Views: 25
  • 8-1.png
    231.4 KB · Views: 22
