The Potez 660 was one of the contenders for the french B5 bomber program of the late 1930s.

Am I correct in assuming that it used the same design of wing as the Potez 661 and 662 transport aircraft?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,460
Hi,

Potez XIV :three seat postal biplane aircraft.

Potez XVI :single seat fighter project.(this project was very little known)

Potez XX :three seat bomber version of Potez XVIII

Potez XXI :multi-engined transport aircraft.

Potez 49 :general purpose (colonial) sesquiplane ,conversion of Potez 392.


The Potez-700 & 702 were twin engined heavy fighters,like
Mosquito in UK,the 700 was powered by HS 12Z and 702
was powered by radial Gnome-Rhone engines.Top speed
was 500 km/h and the Potez-700 was actually built and flown.


Attachments

  • untitled.JPG
    24.2 KB · Views: 751

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,031
Reaction score
202
Dear Nick Summer, according to the June/July 2006 issue of Aviation Française Magazine, the Potez 661 and 662 did not share an identical wing design. The Potez 661 (span 22.5 metres) had a swept-back leading edge and straight trailing edge; DC-3 style. The Potez 662 (span 22.45 metres) had equal taper on both leading and trailing edges outboard of the engines to cater for the heavier Gnome-Rhône 14M engines, Lancaster style.

I cannot find any dimensions for the Potez 660 B5 bomber, but pictures in the same magazine article of the wooden mock-up would imply that it is a larger aircraft.

Best wishes, Terry, (Caravellarella).


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,582
Reaction score
884
Nick,

For images of the Potez 661 and 660 see "French bombers":
http://www.secretprojects.co.uk/forum/index.php?PHPSESSID=da302984a75066a70bb923add62dd39a&topic=2789.0


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,211
Reaction score
1,853

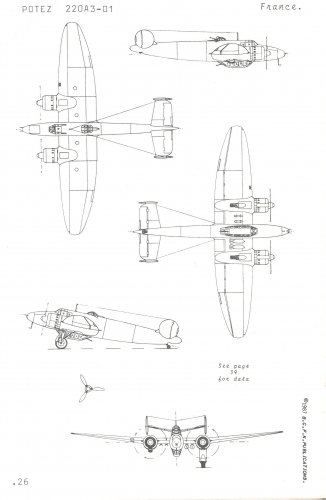

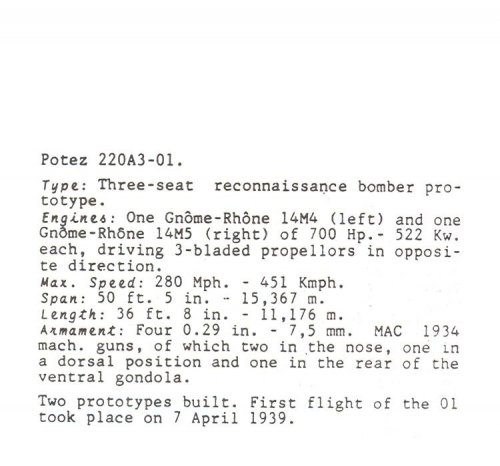

Potez 220 A3-01 from "Airplane Five View Album" via Chuck Davis


Attachments

  • Escanear0003.jpg
    206.3 KB · Views: 1,365
  • Escanear0005.jpg
    57.1 KB · Views: 945

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,211
Reaction score
1,853
Potez 670

French heavy fighter prototype

sources
-http://www.aviastar.org/pictures/france/potez-670.gif
-"Warplanes of the Second Wolrd War-fighters -Volume one" by William Green ,Macdonald :London 1967


Attachments

  • Escanear0003.jpg
    179.5 KB · Views: 161
  • Escanear0002.jpg
    98.1 KB · Views: 722
  • Escanear0001.jpg
    73.6 KB · Views: 785

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,211
Reaction score
1,853

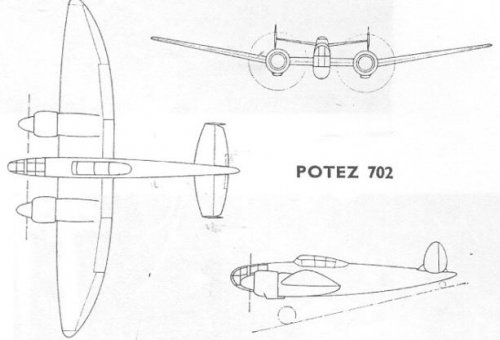

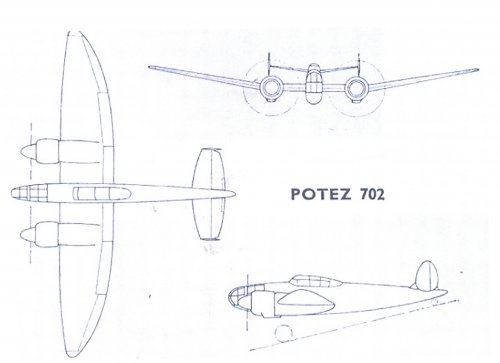

Potez 702

French medium bomber project
sources
-photocopy of unknown magazine
-http://www.premiumwanadoo.com/aeroscope/coroller2.htm


Attachments

  • Escanear.jpg
    104.9 KB · Views: 201

Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,014
Reaction score
341
The Potez 160 was destroyed by a RAF bombing on 10 march 1944.

Because of the french collapse in june 1940 the 161 flew for the first time on 20 march 1942. It was Captured by the german troops in november 1942. It was flown to Germany in april 1944 and was destroyed on the water on 18 september 1944 by a P-51 attack.
It seems that it was a better plane than its two (too heavy) rivals : SE 200 and Latécoère 631.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,211
Reaction score
1,853

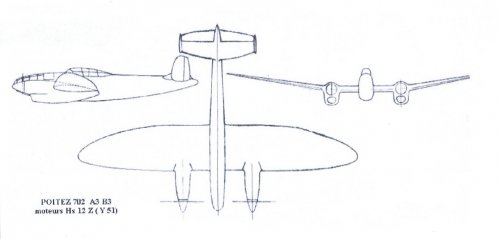

Potez 702

in line engines version

French medium bomber project
sources
-photocopy of unknown magazine
-http://www.premiumwanadoo.com/aeroscope/coroller2.htm


Attachments

  • Escanear.jpg
    72.6 KB · Views: 237

Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,014
Reaction score
341
The Potez 670 (2x700 hp) flown for the first time on 30 march 1939. The prototype got later 2 x 800 hp engines and became the Potez 671 (first fly july 1939). This prototype was destroyed (how ?) during the french retreat.

40 Potez 671 were ordered before the collapse of France.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
451
A Potez bomber project for a heavy B5-type project (bomber, 5-place) 1936 competition:


Attachments

  • B5 bomber project for 1936 competition (small).jpg
    B5 bomber project for 1936 competition (small).jpg
    65 KB · Views: 117

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
451
Jemiba said:
C'est le Potez 660, n'est-ce pas ? ;)
Good to have this near perfect side view now, thanks !

Sure is. Interesting that the scan in the post you linked says "1934 competition" while the Docavia book from which I took this picture says 1936... ???


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,460

Attachments

  • Potez-41.JPG
    25.5 KB · Views: 727

patvig

ACCESS: Confidential
Joined
Jan 28, 2012
Messages
114
Reaction score
2
Website
www.vignaud.org
hesham said:

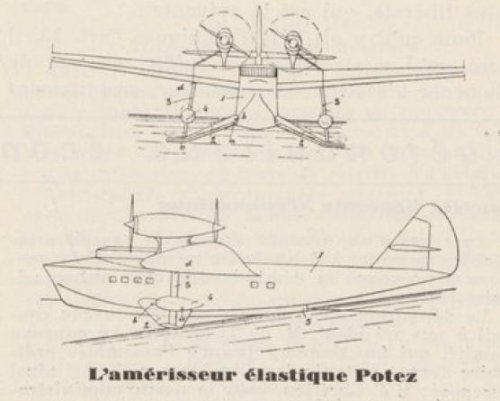

here is the Potez 41 was a large high-wing flying boat project,powered
by four engined,mounted each two engines in tandem above pylons,the
Potez 41 M was actually built as BN.4 four seat night bomber aircraft.
...
I have a 1st flight date for the Po 41 BN5 : 25th of July 1934, no reference registered for this info


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,460
Yes Patvig,


Potez 41 M BN.5 not BN.4,I will correct it.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,460

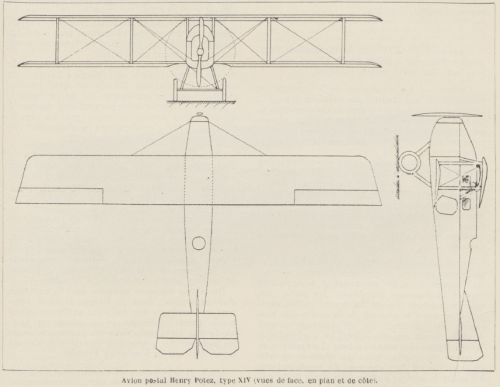

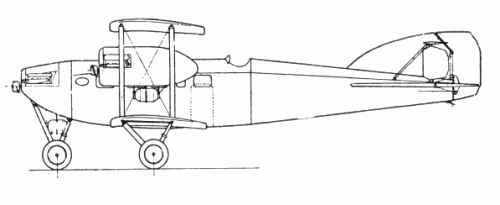

From Aerophile 1921,


here is the Potez-XIV was a biplane postal aircraft,powered by one 270 hp Lo 8 Bd
engine,and its crew was one and accommodated two passengers.


Attachments

  • Potez XIV.png
    Potez XIV.png
    751 KB · Views: 601

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,460

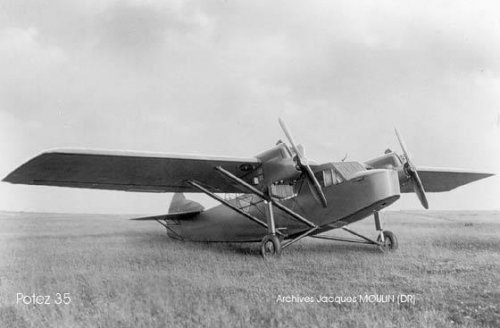

Hi,

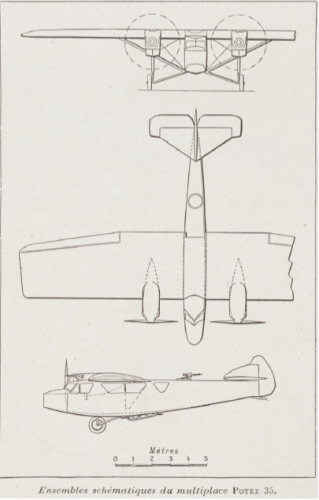

a 3-view to Potez-35 recce and bomber aircraft,it was actually built.


Attachments

  • Potez-35.png
    331.9 KB · Views: 424
  • image.jpg
    24.2 KB · Views: 378

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,460

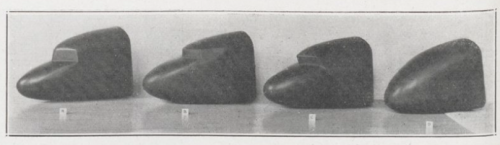

From l'Aeronautique 1938,


here is a different nose shapes for Potez-66.


Attachments

  • 2.png
    237.2 KB · Views: 346
  • 1.png
    251 KB · Views: 47

Tomac

ACCESS: Restricted
Joined
Jan 31, 2009
Messages
43
Reaction score
2
Hi all - Recently I was going through scans of old aviation magazines from the 1930s and came across this photo. I've been logging these photos by manufacturer, but I can't seem to find out who built the darn thing. I thought that I had a Doug Rolfe drawing (a good source of obscure aircraft) of it, but that turned out to be negative. Can anyone help me? ???
[/color][/size]Thanks in advance for your help.
[/color][/size]
[/color][/size]Regards,
[/color][/size]John Braungart


Attachments

  • (1934-07) Model Airplane News 011.jpg
    (1934-07) Model Airplane News 011.jpg
    166.4 KB · Views: 115

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,460
Hi Tomac,


it's Potez-41;


http://www.aviafrance.com/potez-41-aviation-france-10243.htm


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
99
and the end of this plane !


Attachments

  • test.jpg
    577.1 KB · Views: 119

Tomac

ACCESS: Restricted
Joined
Jan 31, 2009
Messages
43
Reaction score
2
And so it is! I knew that I had a copy in my Rolfe collection, I just didn't look hard enough. Thanks for your help, I really appreciate it.

Regards,
John Braungart


Attachments

  • (1934) Type 41 (DR01).jpg
    (1934) Type 41 (DR01).jpg
    61.3 KB · Views: 123

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,460
Hi,


here is the Potez X drawing, as a Colonial aircraft.


http://aerophile.over-blog.com/page/2


Attachments

  • Potez X.jpg
    Potez X.jpg
    39.6 KB · Views: 73

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
451
Nice, thanks hesham.

I find it shocking that some people ambition to make informative websites yet are capable of producing such horrid retouched images as that (especially since the white areas in the picture are not from the original plan and do not add anything).

The following enhancement took me exactly 10 seconds to do, and it can be done in just ANY imaging software, even the cheapest!! Merely a play on lighting and contrast.


Attachments

  • Potez X (enhanced).gif
    Potez X (enhanced).gif
    21.1 KB · Views: 76

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,460
Skyblazer said:
A Potez bomber project for a heavy B5-type project (bomber, 5-place) 1936 competition:

By the way,

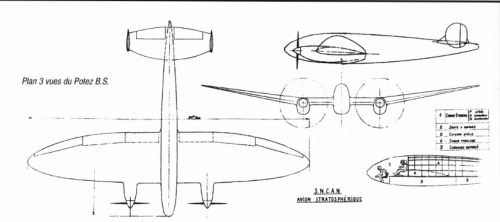

there is anther Project called B.S,it was two engined attack stratosphere bomber.


Attachments

  • 1.png
    96.9 KB · Views: 500

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
574
Reaction score
144
I found a VTOL potez 63:

from: http://modelarchives.free.fr/Bestiaire/P63VTOL_P/index.html


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,370
Reaction score
2,533

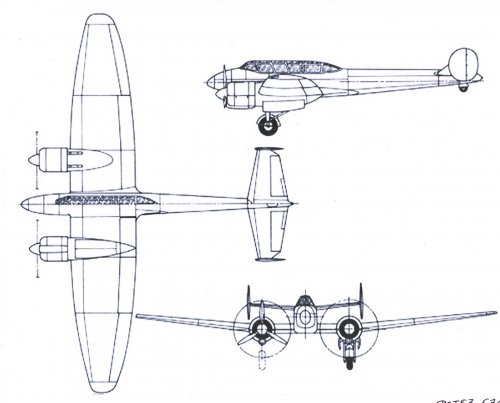

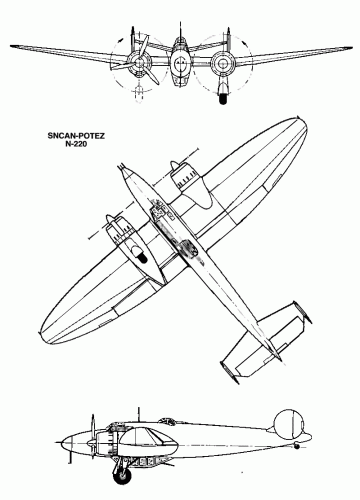

Hi! Potez 220.
http://www.airwar.ru/enc/spyww2/potez220.html
https://en.wikipedia.org/wiki/Potez_220
"On 6 February 1937, the French air ministry issued specification A.24 for a three-seat reconnaissance and army-cooperation aircraft. To meet this requirement, the nationalised Société Nationale de Constructions Aéronautiques du Nord (SNCAN), formed in January 1937 from ANF Les Mureaux, Potez, Chantiers Aéro-Maritimes de la Seine and parts of Breguet and Amiot, gave the task to the design team inherited from Les Mureaux. Their design, the Potez 220 was a twin-engined monoplane of all metal construction. The fuselage was an oval section monocoque, which accommodated the aircraft's crew of three, consisting of a pilot, a radio operator gunner and an observer, with a glazed gondola slung under the fuselage provided for the observer. "


Attachments

  • potez220-1.gif
    67.2 KB · Views: 371
  • potez220-1.jpg
    76 KB · Views: 361
  • potez220-2.jpg
    71.3 KB · Views: 347
  • potez220-3.jpg
    35.3 KB · Views: 73
  • potez220-c1.jpg
    24 KB · Views: 83

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,370
Reaction score
2,533

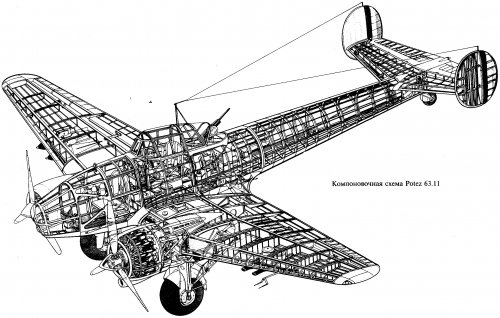

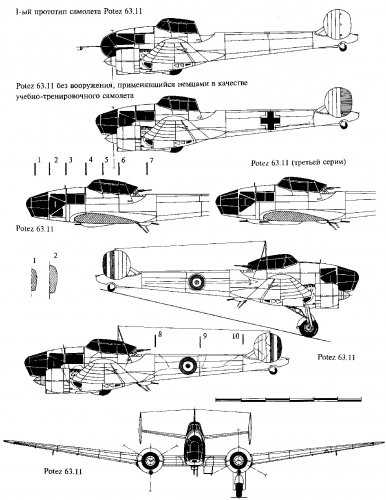

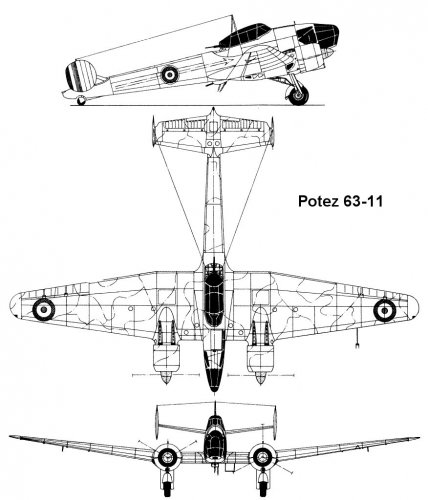

Hi! Top drawing of top picture and bottom picture shows Potez 63-11 No.1 prototype aircraft.
No.2 drawing of top picture shows "Without weapons used by the Germans as Training aircraft".

1-ый прототип самолета : No.1 prototype aircraft
без вооружения, применявшийся немцами в качестве учебно-тренировочного самолета : Without weapons used by the Germans as Training aircraft
третъей серии : third series

https://www.passionair1940.fr/Armee%20de%20l%27Air/Appareils/Reconnaissance/Potez-63-11/Potez-63-11.htm

http://aviadejavu.ru/Site/Arts/Art5334.htm


Attachments

  • 41-1.jpg
    149.1 KB · Views: 76
  • Potez 63.jpg
    Potez 63.jpg
    313.5 KB · Views: 80

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,370
Reaction score
2,533

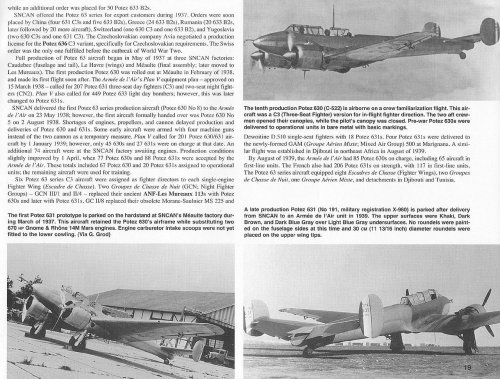

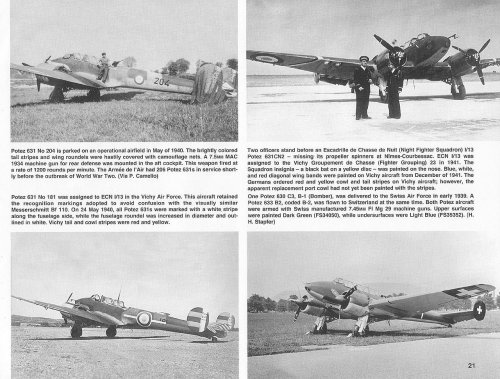

Hi! Potez 63-11. Terribly sorry for off course again.
63-11 shape is very unique compared with other 630 series aircraft.

https://en.wikipedia.org/wiki/Potez_630

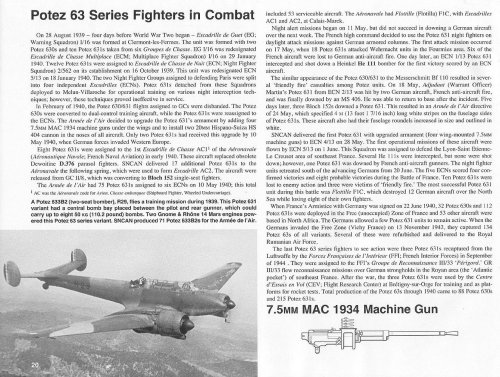

"Potez 63.11Because the pilot needed to be seated above the observer, the fuselage was taller, which resulted in degraded top speed and manoeuvrability. As a result, the 63.11 proved very vulnerable, despite being protected with some armour and basic self-sealing coating over the fuel tanks. As a secondary light bomber capability was part of the requirements (though it was rarely if ever used), the fuselage accommodated a tiny bomb bay, carrying up to eight 10 kg-class bombs. This bomb bay was replaced by an additional fuel tank on late examples. Additionally, two 50 kg-class bombs could be carried on hardpoints under the inner wings. Frontal armament was originally one, then three MAC 1934s under the nose, and many 63.11s were equipped with the same additional guns in wing gondolas as the 631s.The first Potez 63.11 No.1 and second No.2 prototypes first flew in December 1938, and no less than 1,365 examples were on order in September 1939, of which 730 were delivered, making the 63.11 the most numerous variant of the family by far."

Squadron/Signal Publications 1180 "AIRCRAFT Number 180 French Fighters of WWII in action" , SQUADRON/SIGNAL PUBLICATIONS INC. USA , 2002 .
https://sassik.livejournal.com/409681.html

https://www.youtube.com/watch?v=Fk_TgiPMlPo


Attachments

  • 0_2120a5_bacb214b_orig.jpg
    305.6 KB · Views: 71
  • 0_2120a4_b1712e09_orig.jpg
    362.2 KB · Views: 64
  • 0_2120a3_9d11b1a3_orig.jpg
    343.8 KB · Views: 68
  • Potez 630,631.jpg
    Potez 630,631.jpg
    332.2 KB · Views: 80
  • 630,631,633,63.11.jpg
    70.4 KB · Views: 76
  • 46-1.jpg
    1.3 MB · Views: 62
  • potez63-11 3v.jpg
    potez63-11 3v.jpg
    121.1 KB · Views: 47

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,460
Again and again,

please notice that,this section is for prototypes and Projects only,Potez-63.11 was
a production version,the Aerospace section is suitable for that ?!.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,370
Reaction score
2,533

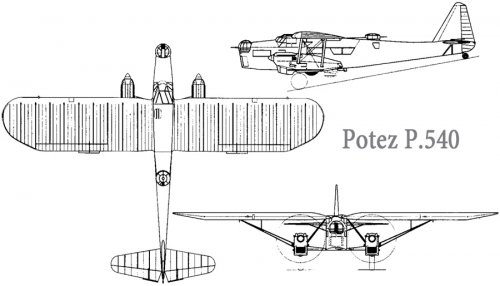

Hi! Potez 54 prototype with twin vertical tail stabilizer and 540.

https://www.aviarmor.net/aww2/_photo_aircraft/f_fra/potez540/

https://en.wikipedia.org/wiki/Potez_540
"Potez 54 : One prototype, later converted (with twin tails) into the Potez 540 No. 1.
Potez 540 : Production aircraft with 1 each of 590 kW (790 hp) Hispano-Suiza 12Xirs and 12Xjrs, (left and right hand rotation), V-12 inline
engines. 185 built. Used by France and Spain.
Potez 541 : 540 re-engined with 640 kW (860 hp) Gnome-Rhône 14Kdrs radial engines. One converted from a 540.
Potez 542 : Derivative of 540 powered by 540 kW (720 hp) Lorraine 12Hfrs Pétrel V-12 engines. 74 built. Used by France and Spain.
Potez 543 : Production derivative of Potez 541, powered by 640 kW (860 hp) Gnome-Rhône 14Kdrs radial engines. 10 built for Romania."

http://pro-samolet.ru/aircraft-ww2-france/bombers/1030-bomber-potez-p540-542-543

https://www.youtube.com/watch?v=HoWlsF3ZfeM


Attachments

  • bomber_potez-p540_542_543-07big.jpg
    89.5 KB · Views: 49
  • potez540_4.jpg
    54.6 KB · Views: 42
  • potez54 prototype.jpg
    potez54 prototype.jpg
    31.3 KB · Views: 47

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,668
Reaction score
3,460
blackkite said:
Hi! Potez 54 prototype with twin vertical tail stabilizer and 540.

https://www.aviarmor.net/aww2/_photo_aircraft/f_fra/potez540/

https://en.wikipedia.org/wiki/Potez_540
"Potez 54 : One prototype, later converted (with twin tails) into the Potez 540 No. 1.
Potez 540 : Production aircraft with 1 each of 590 kW (790 hp) Hispano-Suiza 12Xirs and 12Xjrs, (left and right hand rotation), V-12 inline
engines. 185 built. Used by France and Spain.
Potez 541 : 540 re-engined with 640 kW (860 hp) Gnome-Rhône 14Kdrs radial engines. One converted from a 540.
Potez 542 : Derivative of 540 powered by 540 kW (720 hp) Lorraine 12Hfrs Pétrel V-12 engines. 74 built. Used by France and Spain.
Potez 543 : Production derivative of Potez 541, powered by 640 kW (860 hp) Gnome-Rhône 14Kdrs radial engines. 10 built for Romania."

http://pro-samolet.ru/aircraft-ww2-france/bombers/1030-bomber-potez-p540-542-543

https://www.youtube.com/watch?v=HoWlsF3ZfeM

Again and again every day,

what are those doing here ?,they were not a Projects or a Prototypes ,only one of them was a prototypes,and all people in the world know it,you can open a new topic for them in Aerospace
section,I want my dear PaulMM to solve this problem.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,370
Reaction score
2,533
Hi! Potez 230.
I feel this drawing's wing plan form is little strange.


Attachments

  • Potez 230.jpg
    Potez 230.jpg
    121.7 KB · Views: 45

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,370
Reaction score
2,533
I think that this is the correct wing plan form of Potez 230.


Attachments

  • potez-230 three side.gif
    potez-230 three side.gif
    16.6 KB · Views: 40
  • potez230.jpg
    19.8 KB · Views: 48
  • p2.jpg
    56.8 KB · Views: 51

Similar threads

Top
