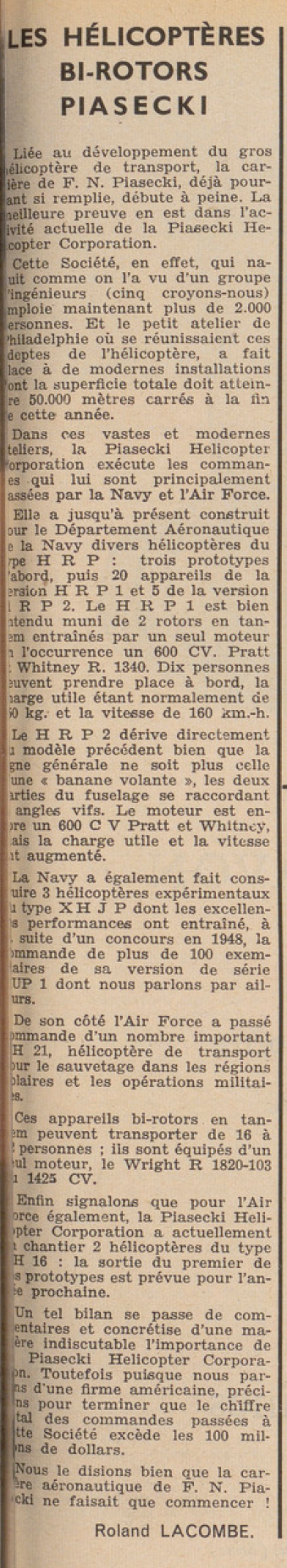

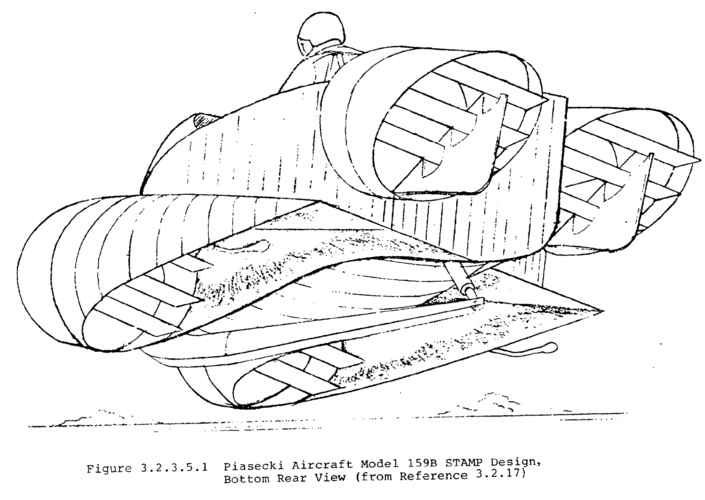

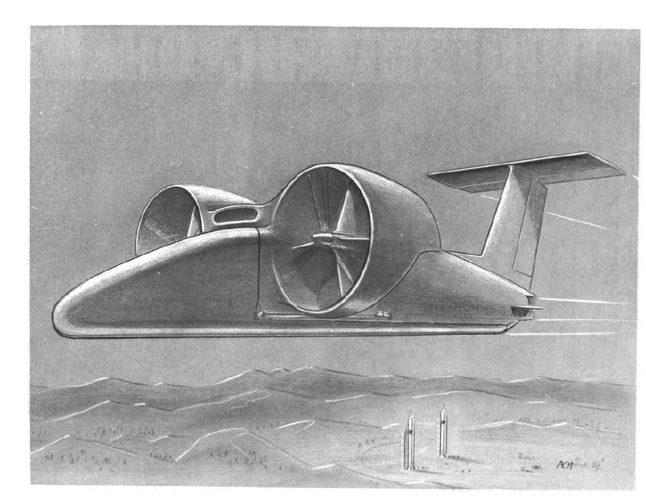

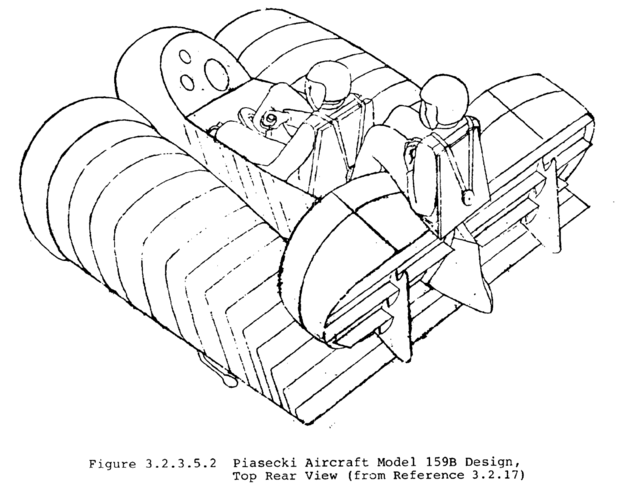

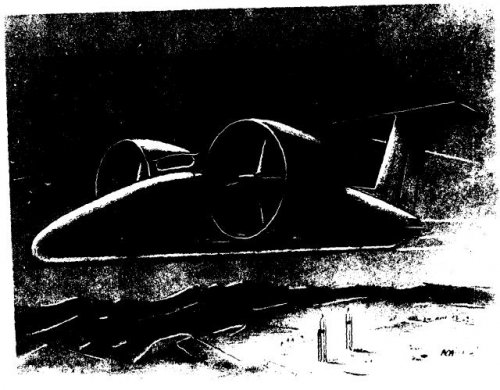

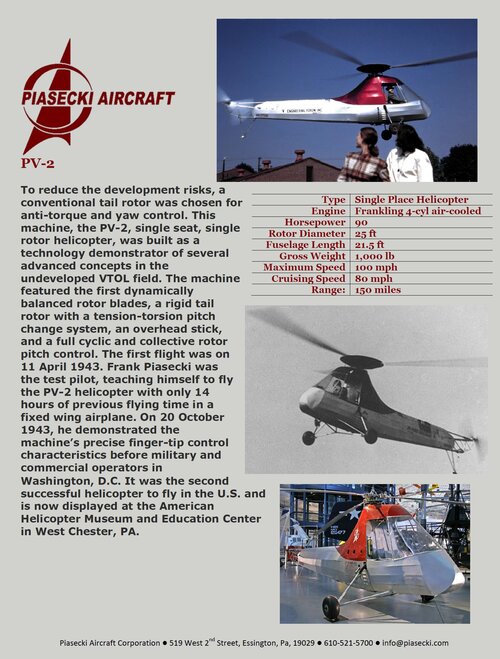

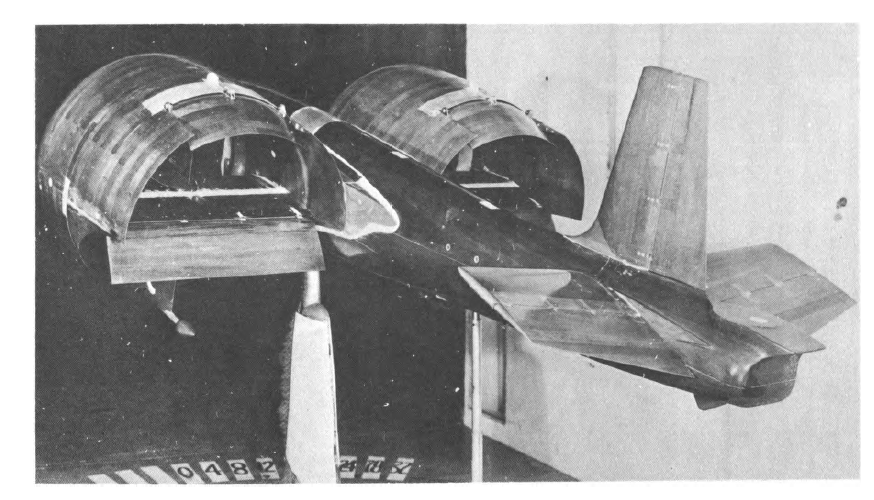

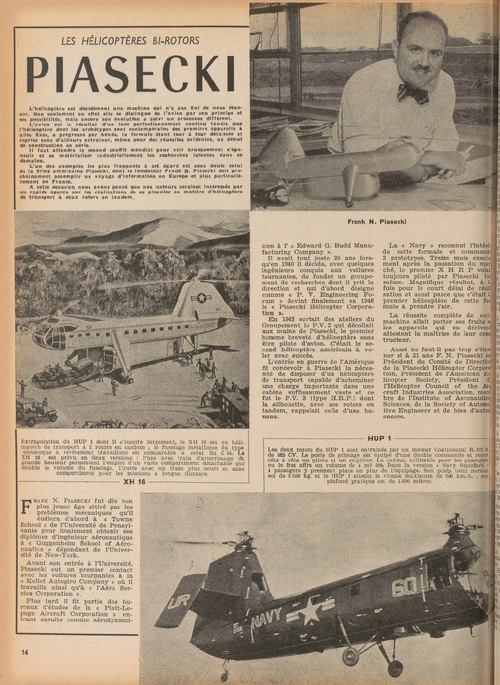

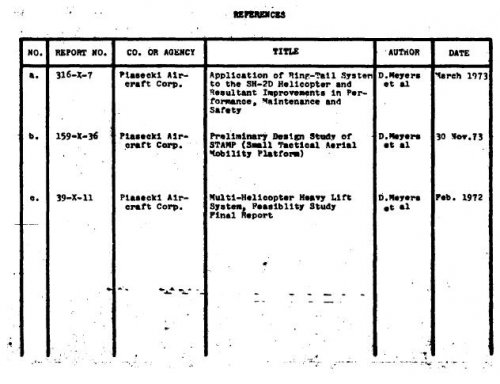

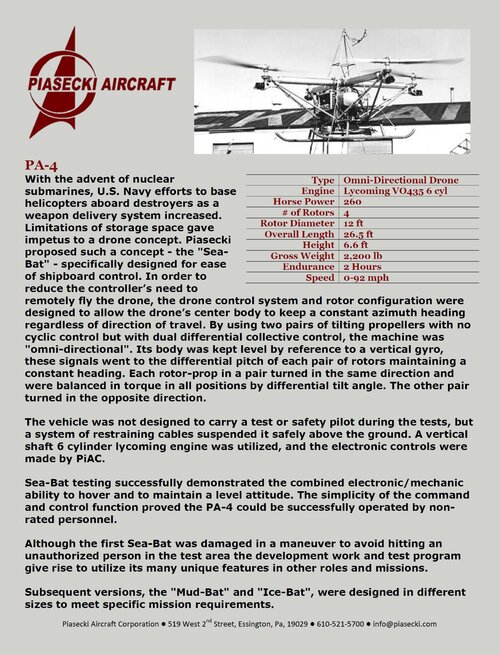

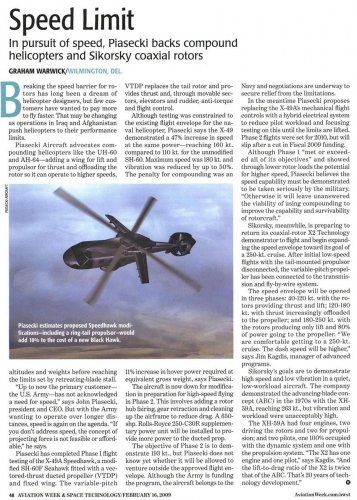

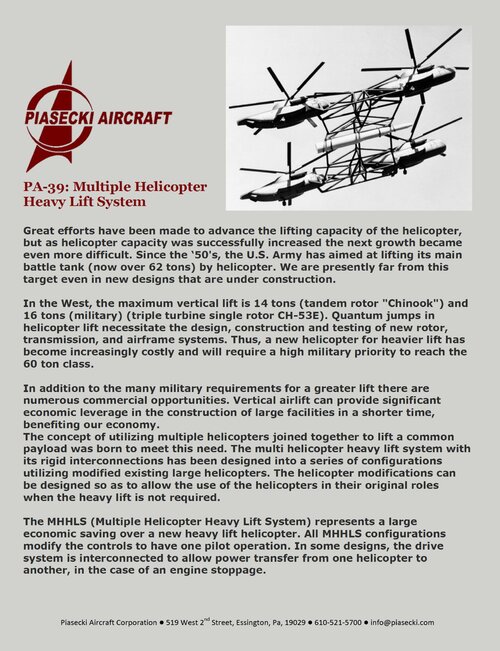

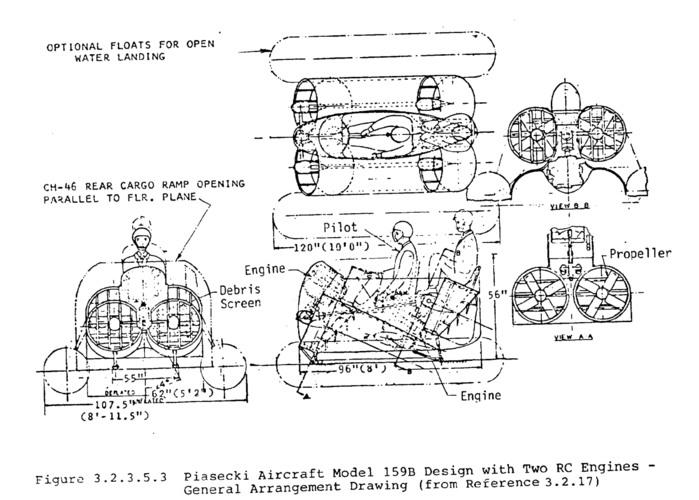

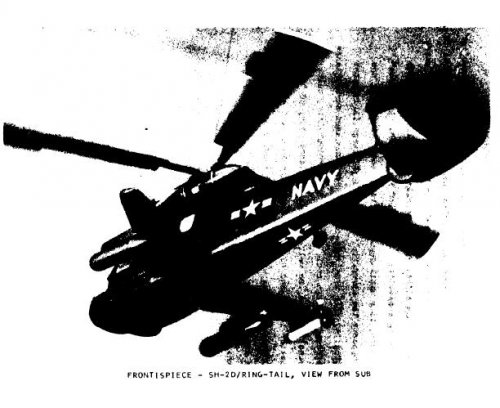

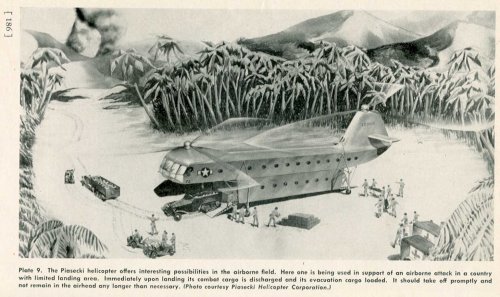

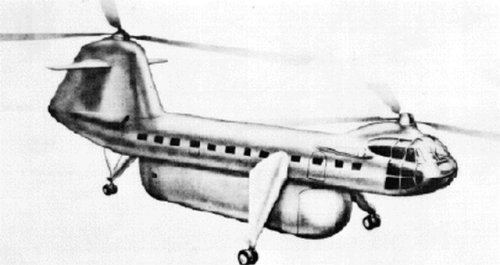

Post-WWII Vertol Piasecki Projects

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,995
Reaction score
955
Hi,

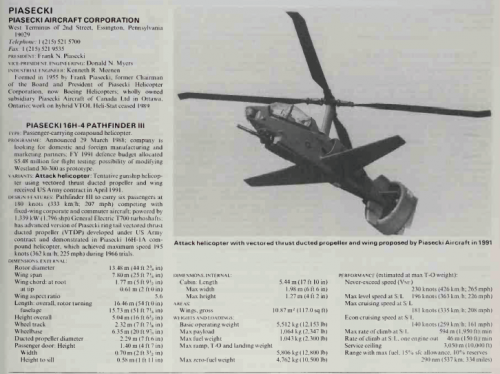

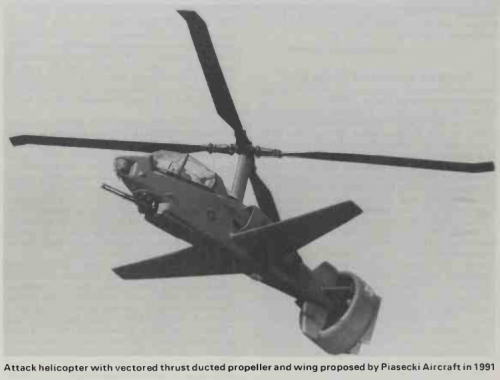

here is an Info about Piasecki 16H-4 Panthfinder III,which was a Werstland 30-300 helicopter with
modifications,also anther attack helicopter with gunship and using a vectored thrust ducted propeller
and wing.

Jane's ALL the World's Aircraft 1991-1992


Attachments

Vladimir

I really should change my personal text
Joined
Sep 22, 2015
Messages
321
Reaction score
8
and Piasecki "Cobra" here: http://www.aviastar.org/helicopters_eng/piasecki_cobra.php
Piasecki 16H "Pathfinder" here: http://www.aviastar.org/helicopters_rus/piasecki_path-r.html


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,995
Reaction score
955
Vladimir said:
and Piasecki "Cobra" here: http://www.aviastar.org/helicopters_eng/piasecki_cobra.php
Piasecki 16H "Pathfinder" here: http://www.aviastar.org/helicopters_rus/piasecki_path-r.html
Thank you Vladimir,I know all Piasecki 16H variants,but that is new (16H-4).


Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,531
Reaction score
156
Good Day All -

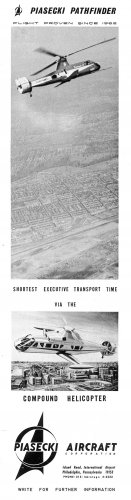

Here's an advertisement from the October 1968 issue of Flight Magazine ( A U.S. gen av magazine, NOT Flight International) that pitches a corporate version of the 16H Pathfinder.

Enjoy the Day! Mark


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,995
Reaction score
955
thank you my dear Mark,

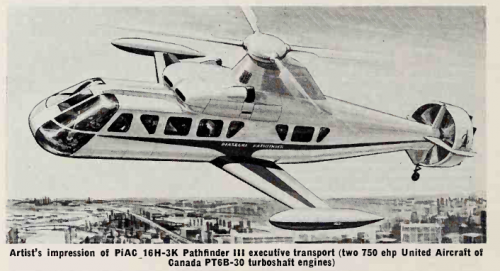

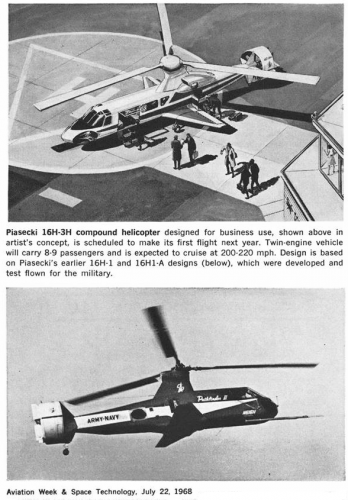

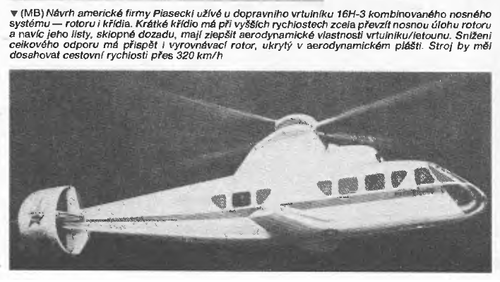

and this helicopter Project called Piasecki 16H-3K.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,995
Reaction score
955

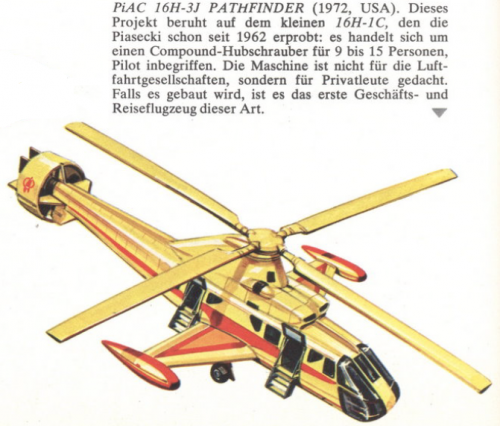

The Piasecki PiAC 16H-3J;

Flugzeuge. 1000 Maschinen aus aller Welt mit sämtlichen technischen Daten. Vom ersten Fluggerät bis zum Überschalljet


Attachments

Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,531
Reaction score
156
Good Day All!

A nice photo from the Aviation Historian website. Excellent journal in the style of the long gone Air Enthusiast - check their website at:

www.theaviationhistorian.com/

Enjoy the Day! Mark


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,995
Reaction score
955

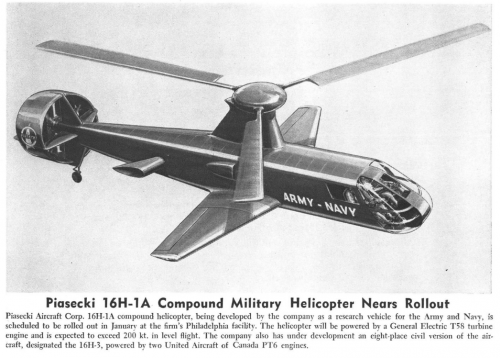

Hi,

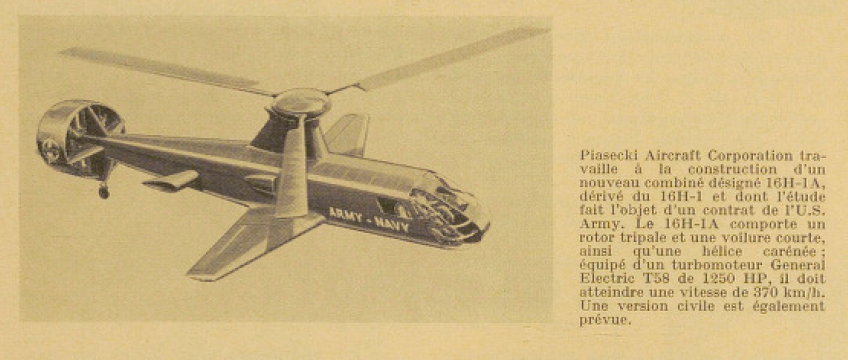

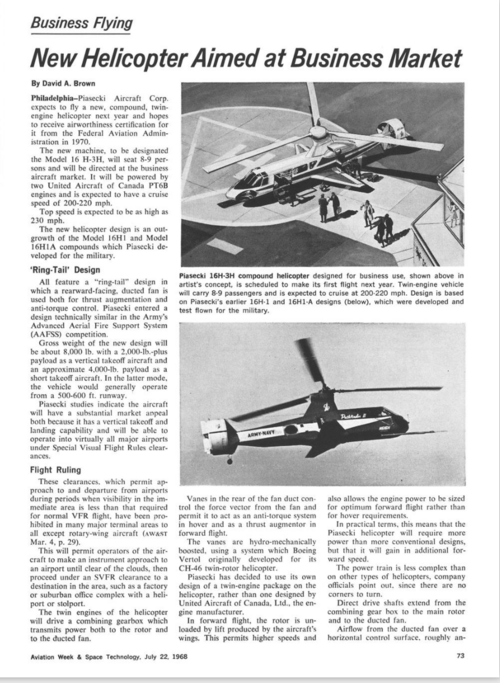

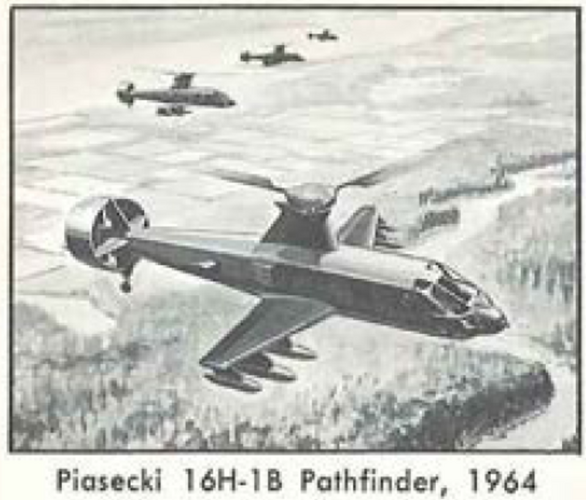

here is a well known Piasecki 16H-1A helicopter,but in the artist drawing there was a strange thing
behind the wing and before rear rotor,what was it ?.

http://archive.aviationweek.com/image/spread/19641228/23/2


Attachments

TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,229
Reaction score
134

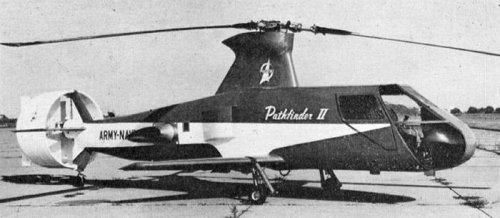

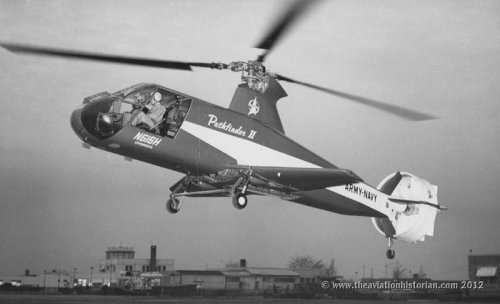

There was a semi-flush engine exhaust there in the actual Pathfinder 2. Maybe at this point in the design process, they thought they would need a duct to direct the exhaust clear of the pusher fan.

Edit: Actually, you can see it in this picture of the real machine. It's an aerodynamically shaped exhaust pipe. Looks a bit shorter than in the drawing. But then so does the whole vehicle -- the drawing is pretty distorted compared to what was actually built.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,995
Reaction score
955
Thank you my dear Tom.
