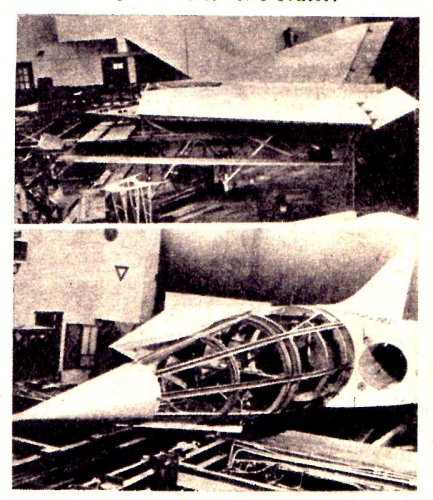

Was looking for something else and came across these two small images in the January 1955 issue of RAF Flying Review. Sorry about the image quality - the pics are rather small. The short description says that IAME was "currently completing the prototype...possessing a delta wing spanning approximately 32 feet and swept 70 degrees at the leading edge." Powerplant was to be a pair of either RR Avons or SNECMA Atars. Anyone know if this is actually a prototype, and not a mock-up -- and how much further it went?


Attachments

  • img205.jpg
    165.7 KB · Views: 714

batigol

ACCESS: Restricted
Joined
Jun 8, 2009
Messages
47
Reaction score
42
Looks like the IAe 37, which never got past the mockup stage.


Attachments

  • ia37.jpg
    104.5 KB · Views: 654

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
607
Reaction score
148
batigol said:
Looks like the IAe 37, which never got past the mockup stage.

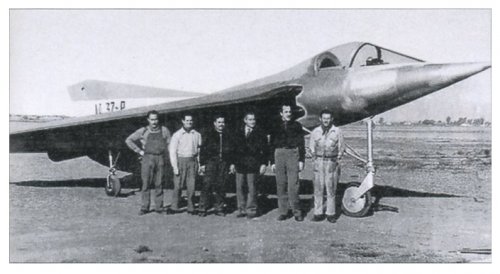

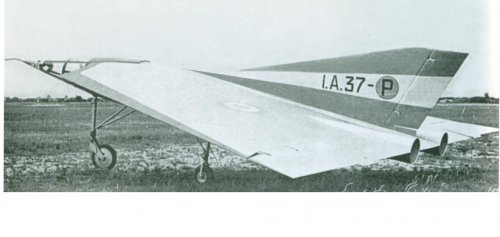

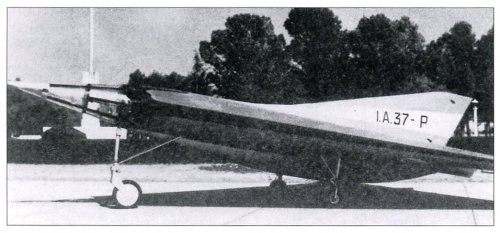

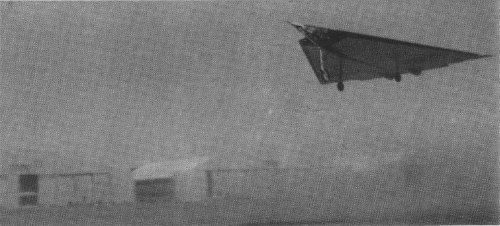

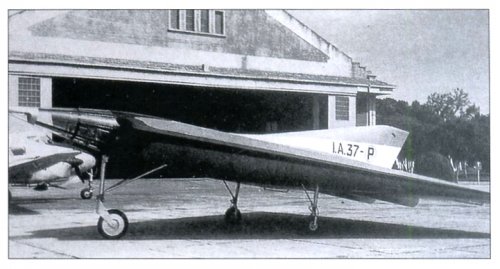

Well, the glider IAe-37P shown in the 3 above photos DID fly, towed first by a Ju-52 then a DC-3, piloted by Doyle, Gonzalez, Rossell and long-time Horten test pilot Heinz Scheidhauer.
It logged around 100hours in its original prone pilot configuration. In october 1956, it was modified with a normal seat cockpit (3rd photo), logging around 50 hours in that configuration.
Construction of two prototypes of the IAe-37 was started but stopped when the program was dropped.

Photo here-under taken from "Nurfügel. Die Geschichte der Horten-Flugzeuge 1933-1960" by Reimar Horten and Peter Selinger.(1985)


Attachments

  • IAe-37P.jpg
    131.6 KB · Views: 635

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766

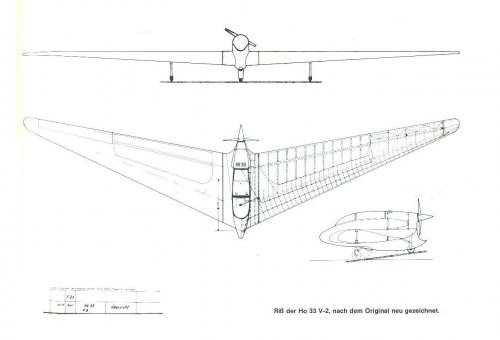

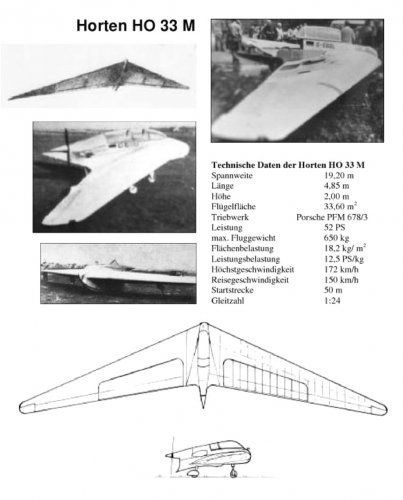

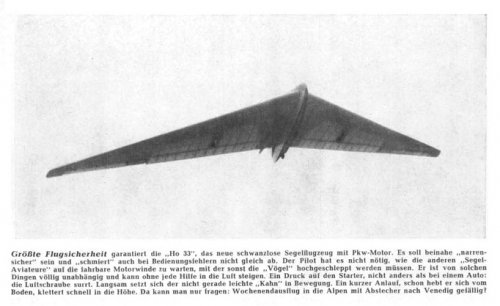

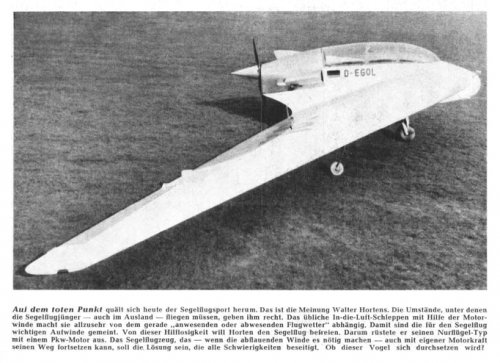

Here is the Horten Ho 33 M, a post-war two-seat lightweight flying wing of which I have only these poor quality pictures.

How did this relate to the wartime Horten designs? And were there more post-war Horten types?


Attachments

  • Ho 33 M.jpg
    Ho 33 M.jpg
    237.6 KB · Views: 1,149

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
124
Hi Stéphane :D
Some more info on the Ho-33. Word document.


Attachments

  • HORTEN Ho-33.doc
    515 KB · Views: 74

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766
Just happened on more HO 33 stuff as I was researching further...


Attachments

  • HO 33_1.jpg
    HO 33_1.jpg
    144.3 KB · Views: 910
  • HO 33_2.jpg
    HO 33_2.jpg
    205.5 KB · Views: 679

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766
Michel Van said:
the rest like I. Ae. 38 are somewhere in this forum...

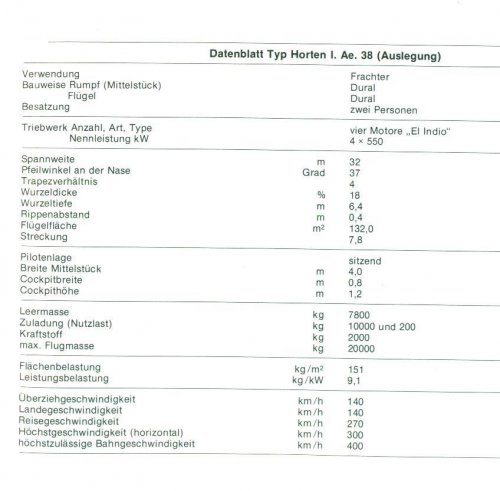

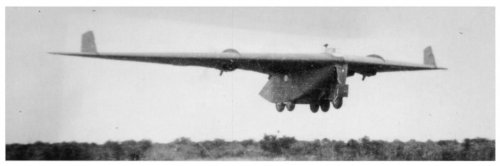

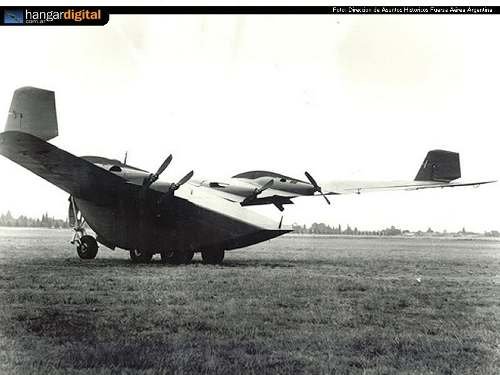

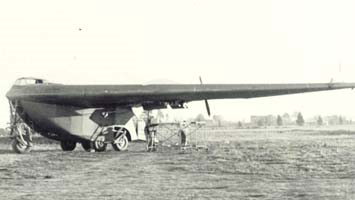

Just because I could only find a small mention on the forum (see below)... :-\ here are photos of the DINFIA I. Ae. 38 Naranjero which flew in 1960.

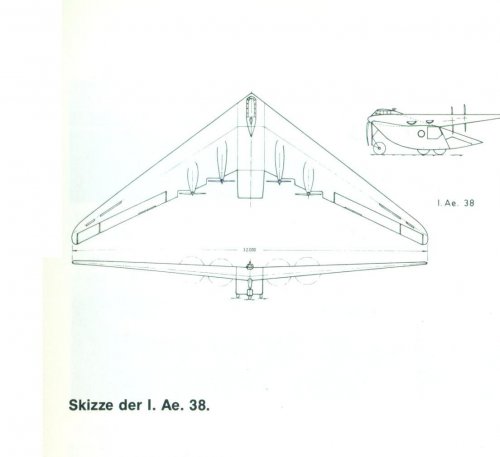

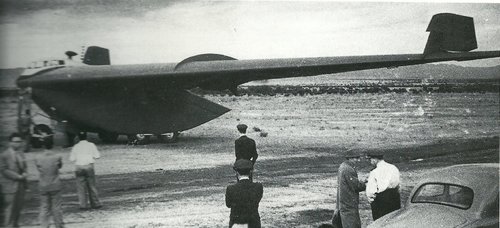

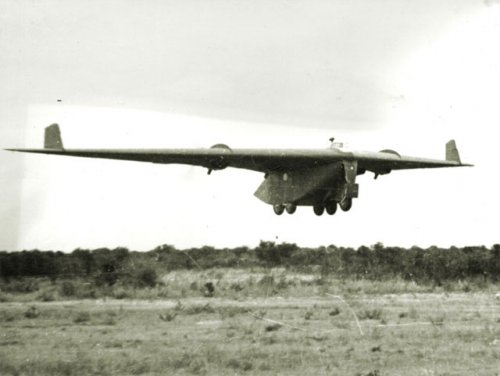

Horten began with the construction of gliders in Argentina, after 1945, but their 'magnum opus' was a four-engined cargo plane, specifically built to transport oranges from the Argentinian farmlands to its capital, the IAe 38 "Naranjero". The single prototype made a total of four flights, but the project was shelved because only Argentinian power plants could be used, which were not powerful enough by a long shot.


Attachments

  • I.Ae.38 (Horten design).jpg
    I.Ae.38 (Horten design).jpg
    120.2 KB · Views: 172
  • DINFIA_IAe.38_hangardigital.jpg
    23.8 KB · Views: 167
  • 1.png
    60 KB · Views: 527
  • ia38naranjero.jpg
    38.3 KB · Views: 539

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766

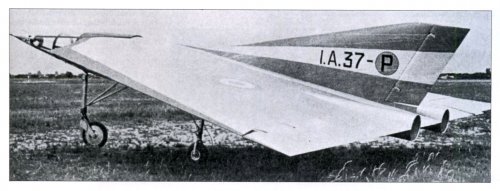

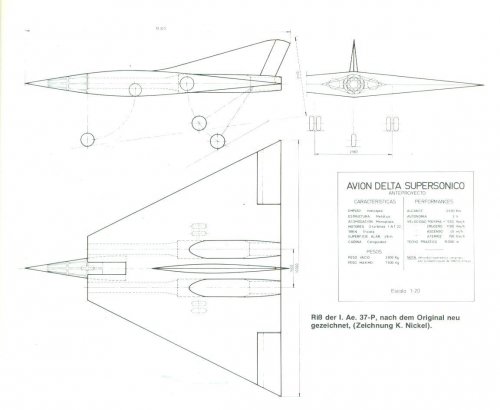

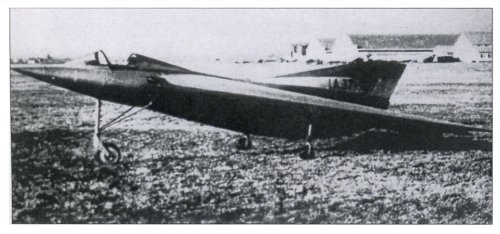

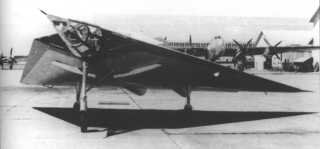

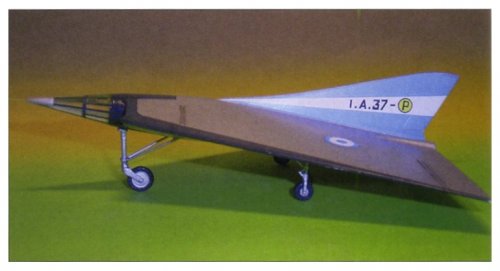

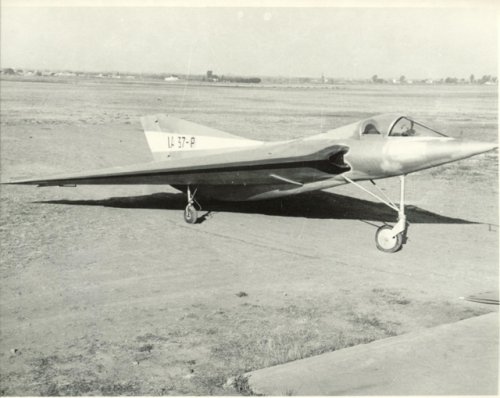

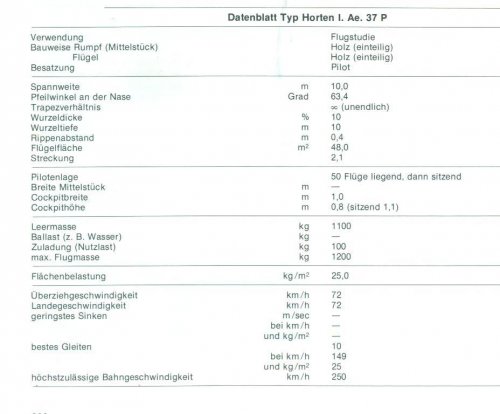

The I.Ae.37 P is simply designated as I.A.37 P in other sources, and this is what appears on the tail fin anyway...

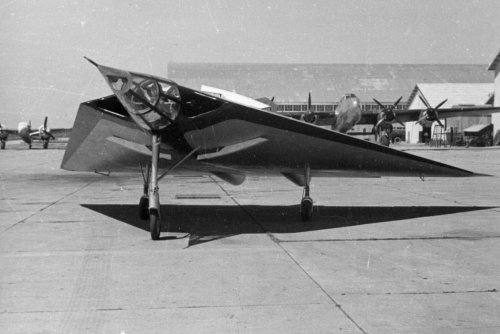

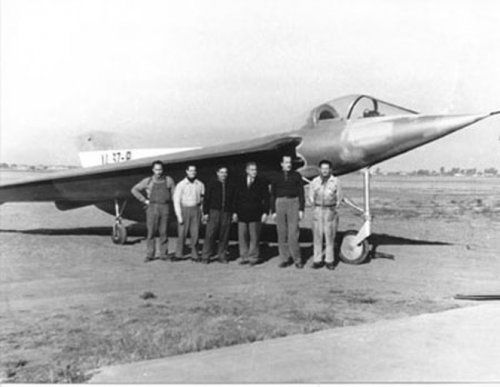

Here is a set of pictures of the sole prototype in its first configuration: with glazed nose and pilot within the fuselage, and after modification with pilot in regular cockpit.


Attachments

  • main-qimg-f79d8fe2ee58acd0e25dde89bb8937d9.jpg
    164.4 KB · Views: 152
  • I.A.37 three-view.gif
    I.A.37 three-view.gif
    74.4 KB · Views: 155
  • I.A.37P_model2.jpg
    134.3 KB · Views: 133
  • I.A.37P_model1.jpg
    141.8 KB · Views: 124
  • I.A.37P_04.jpg
    257.7 KB · Views: 104
  • I.A.37P_02.jpg
    164.7 KB · Views: 247
  • I.A.37P_01.jpg
    410.7 KB · Views: 274

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766

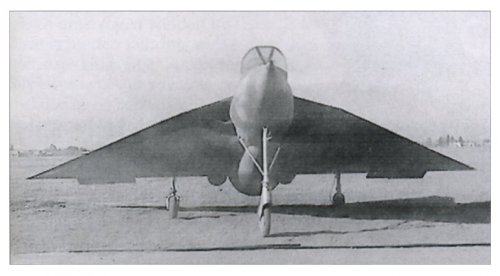

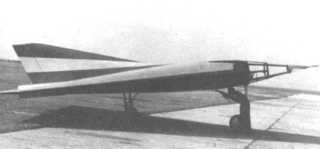

And here is the same prototype after modification to full nose and regular cockpit:


Attachments

  • Escanear0006.jpg
    108 KB · Views: 156
  • I.A.37P_07.jpg
    110.5 KB · Views: 148
  • I.A.37P_06.jpg
    137.5 KB · Views: 139
  • I.A.37P_05.jpg
    248.6 KB · Views: 134

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766

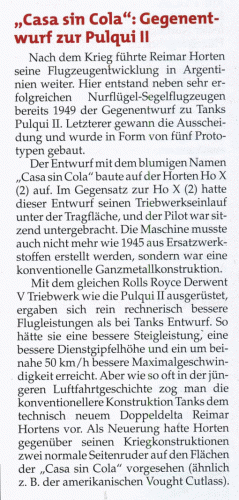

Reimar Horten's first project on Argentinian soil, even before the I.A. 37 interceptor, was an all-wing jet fighter which he named the "Casa sin Cola" (literally "tailless pursuit aircraft" (i.e. fighter) — thanks Retrofit!), a development of the earlier Ho X (2) Volksjäger.


Attachments

  • Casa sin Cola.gif
    Casa sin Cola.gif
    79.2 KB · Views: 193

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
607
Reaction score
148
Stargazer2006 said:
the "Casa sin Cola" (literally "House without Cola")
Hum, the translation of "Casa sin cola" or more precisely "avión de casa sin cola" is "fighter aircraft without tail" or "tailless fighter aircraft" ;D


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766

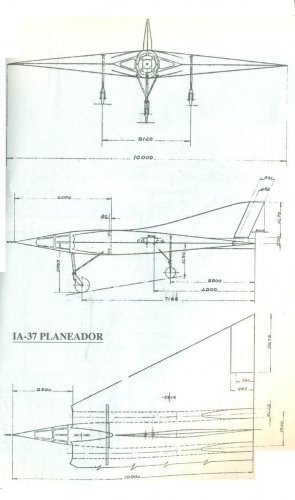

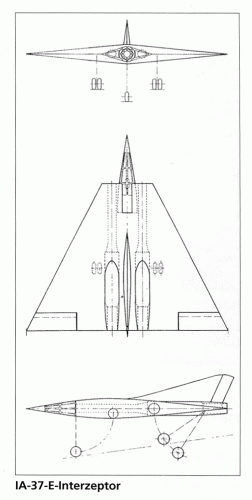

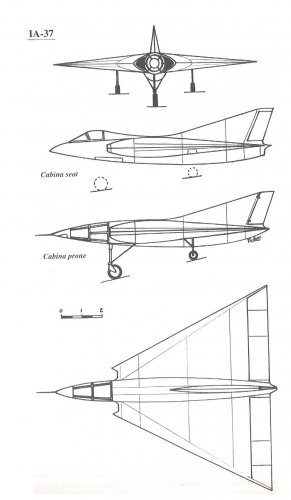

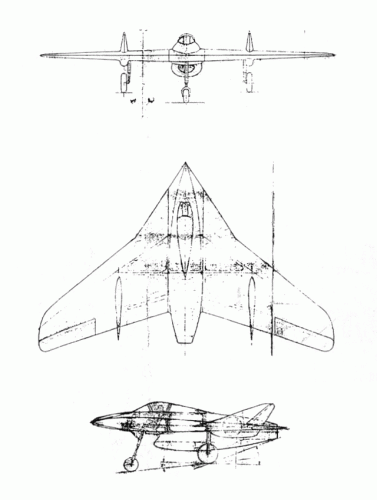

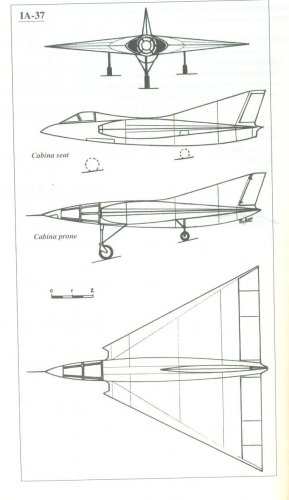

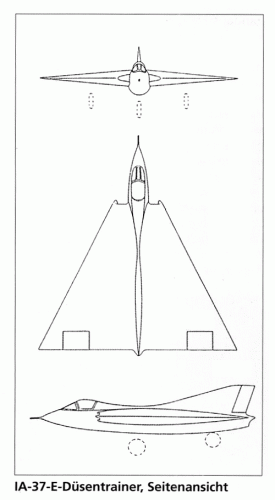

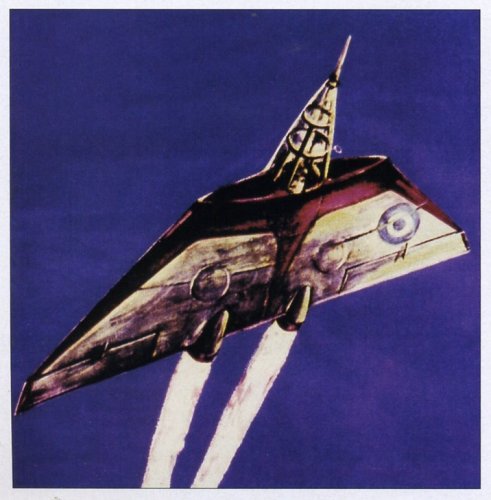

The I.A. 37 P (Planeador, or glider) was only a demonstrator for the I.A. 37 program.

Studies included I.A. 37 interceptor and I.A. 37 E (Entrenador, or trainer) versions. I'm not quite sure however how the seating arrangement was planned in the latter since the cockpit seems too short for tandem seating and too narrow for side-by-side seating!

I believe the first of the plans below is ill-labeled because it associates the "E" suffix with the interceptor. Logically only the trainer ought to have carried that letter.


Source for all these Horten images: Flugzeug Classic, July and August 2004.


Attachments

  • I.A.37E trainer three-view.gif
    I.A.37E trainer three-view.gif
    75.6 KB · Views: 129
  • I.A.37 interceptor three-view.gif
    I.A.37 interceptor three-view.gif
    102.4 KB · Views: 130
  • I.A.37_art2.jpg
    252.4 KB · Views: 109
  • I.A.37_art1.jpg
    275.2 KB · Views: 116

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766

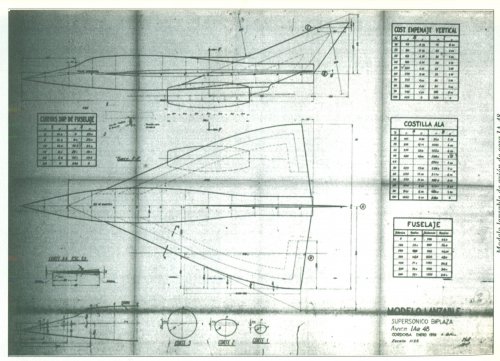

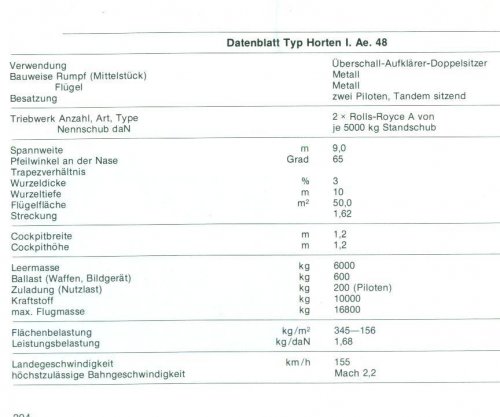

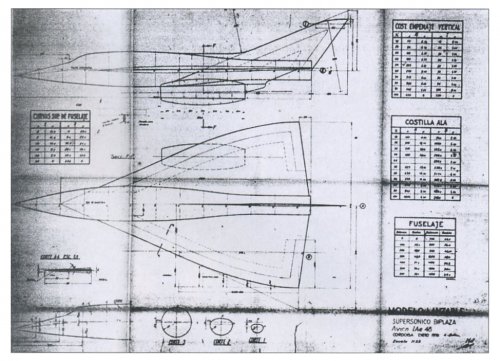

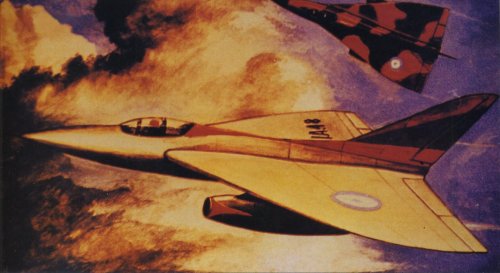

Last development of the Ho X lineage in Argentina was the I.A. 48 reconnaissance project:


Attachments

  • I.A.48_art1.jpg
    389.6 KB · Views: 136
  • I.A.48_plan.jpg
    374.5 KB · Views: 129
  • I.A.48_model5.jpg
    137.2 KB · Views: 100
  • I.A.48_model4.jpg
    133.5 KB · Views: 98
  • I.A.48_model3.jpg
    309.6 KB · Views: 95
  • I.A.48_model2.jpg
    89.2 KB · Views: 103
  • I.A.48_model1.jpg
    621.3 KB · Views: 112

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766
Retrofit said:
Hum, the translation of "Casa sin cola" or more precisely "avión de casa sin cola" is "fighter aircraft without tail" or "tailless fighter aircraft" ;D

Ouch! Thought it might have been some sort of inside joke or something. Feeling so terribly stupid right now! You're right! "sin cola" means tailless!


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,586
Reaction score
424
The precisse translation of "casa sin cola" is tailless house.
If you want to say tailless fighter in Spanish, then you should say "caza sin cola"

"Avión de caza" is literally "Hunting aircraft"

Spanish pronounciation in Spain of "z" and "s" is clearly different while Spanish speakers from American nations pronounce "z" the same way as "s". That can be a source of confusion for not native Spanish speakers.


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
607
Reaction score
148
My bad. Thanks Pometablava.


Attachments

  • cz.jpg
    6.4 KB · Views: 213

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766
Well my source definitely got it wrong... No wonder I got mixed up and translated it as "House without Cola"!!! :'(


Attachments

  • 'Casa sin Cola' text.gif
    'Casa sin Cola' text.gif
    230.7 KB · Views: 225

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
935
Reaction score
492
Stargazer2006 said:

The I.A. 37 P (Planero, or glider) was only a demonstrator for the I.A. 37 program.

The Spanish word for glider is "planeador". In the case of this project, the P probably was also for "prototipo".

The Argentinian government site page about Ala Delta has 3-views of the different stages:
http://www.mincyt.cba.gov.ar/site/fabricamilitar/19431955/19431955_08s.html


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766

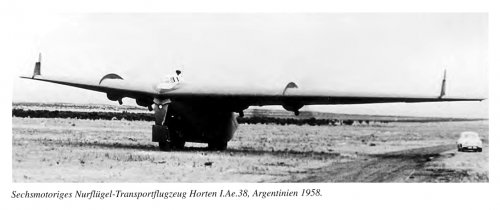

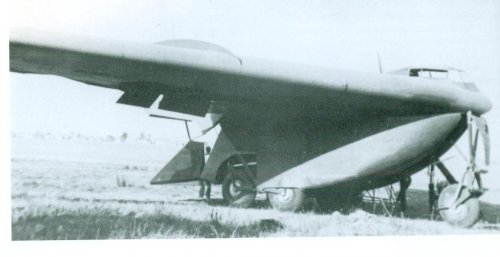

Another view of the I.Ae. 38 Naranjero:


Attachments

  • I. Ae.38.jpg
    I. Ae.38.jpg
    151.6 KB · Views: 233

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766

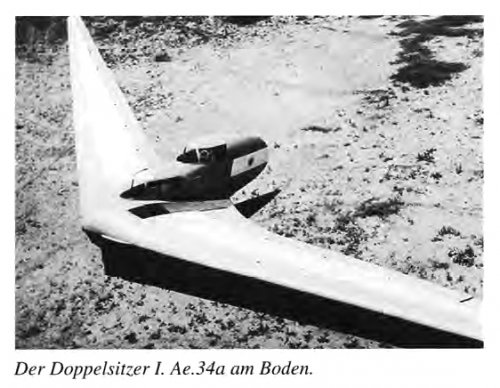

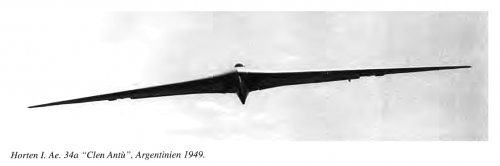

Two views of the little-known I. Ae. 34a Clen Antù:


Attachments

  • I.Ae. 34a.jpg
    I.Ae. 34a.jpg
    127.7 KB · Views: 249
  • I. Ae. 34a 'Clen Antu'.jpg
    I. Ae. 34a 'Clen Antu'.jpg
    67.1 KB · Views: 218

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,894
Reaction score
3,816
Website
www.amazon.com
Horten IAE-37


Attachments

  • IAE-37 007.jpg
    IAE-37 007.jpg
    78.9 KB · Views: 109
  • IAE-37 006.jpg
    IAE-37 006.jpg
    67.6 KB · Views: 113
  • IAE-37 005.jpg
    IAE-37 005.jpg
    120.3 KB · Views: 117
  • IAE-37 003.jpg
    IAE-37 003.jpg
    81.2 KB · Views: 106
  • IAE-37 002.jpg
    IAE-37 002.jpg
    67 KB · Views: 117
  • IAE-37 001.jpg
    IAE-37 001.jpg
    63.2 KB · Views: 95
  • IAE-37.jpg
    67.9 KB · Views: 107

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,894
Reaction score
3,816
Website
www.amazon.com

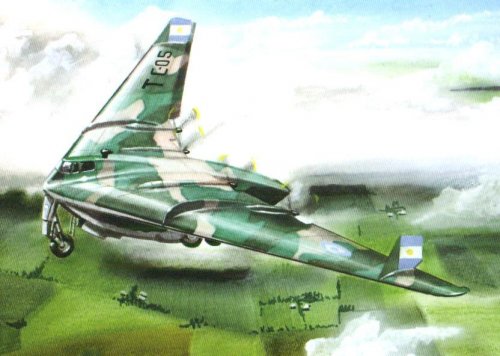

IAE-38


Attachments

  • IAE-38 art.jpg
    IAE-38 art.jpg
    66.9 KB · Views: 161
  • IAE-38 003.jpg
    IAE-38 003.jpg
    70.5 KB · Views: 125
  • IAE-38 002.jpg
    IAE-38 002.jpg
    69.1 KB · Views: 121
  • IAE-38 001.jpg
    IAE-38 001.jpg
    46.6 KB · Views: 134
  • IAE-38.jpg
    488.1 KB · Views: 118

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,894
Reaction score
3,816
Website
www.amazon.com

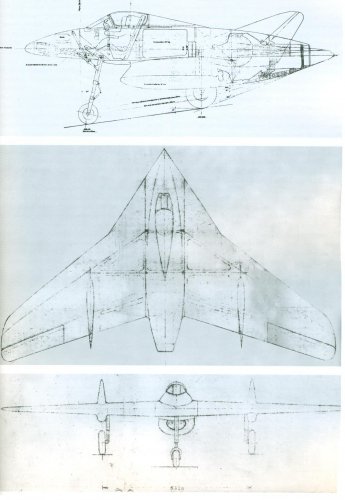

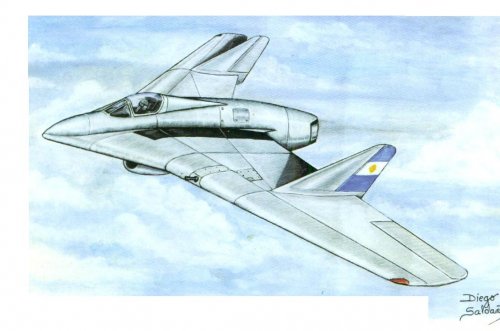

Horten project 1949 tailless fighter


Attachments

  • 1.jpg
    89.8 KB · Views: 166
  • 2.jpg
    187 KB · Views: 220
  • 3.jpg
    116.3 KB · Views: 146
  • 4.jpg
    192.1 KB · Views: 188

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,894
Reaction score
3,816
Website
www.amazon.com

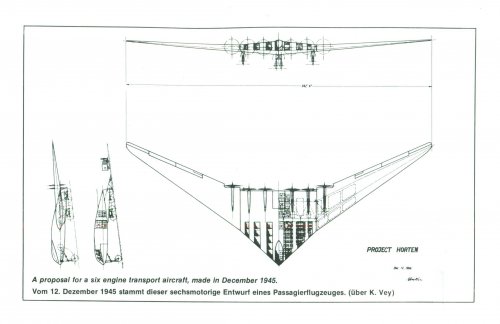

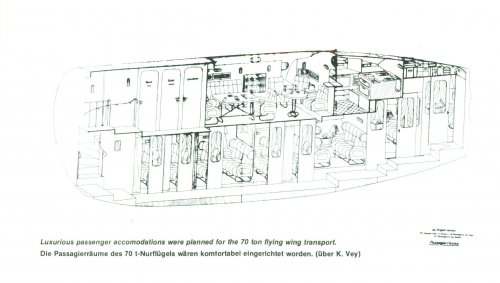

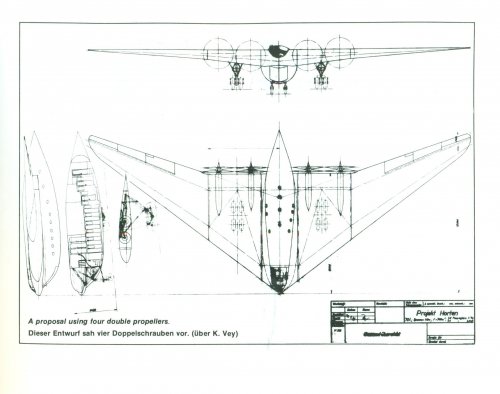

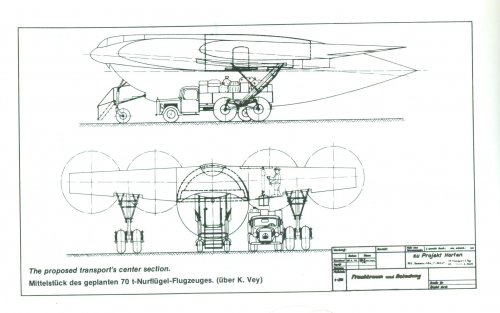

Civil projects


Attachments

  • 004.jpg
    232.5 KB · Views: 232
  • 003.jpg
    247.1 KB · Views: 222
  • 002.jpg
    229.5 KB · Views: 212
  • Horten civil projects.jpg
    Horten civil projects.jpg
    174.7 KB · Views: 200

martinbayer

ACCESS: Top Secret
Joined
Jan 6, 2009
Messages
744
Reaction score
232
Could the post-war concepts be broken out and relocated in the corresponding section?

Martin


done


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
766
Jemiba said:
Thread cleaned up and posts from other sections added

Thanks Jemiba. I was about to write that there was more to the subject than just these two pages of material on the forum, but I realize now that you are adding more as I write, so keep up the good work... ;-)


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
599
Reaction score
303

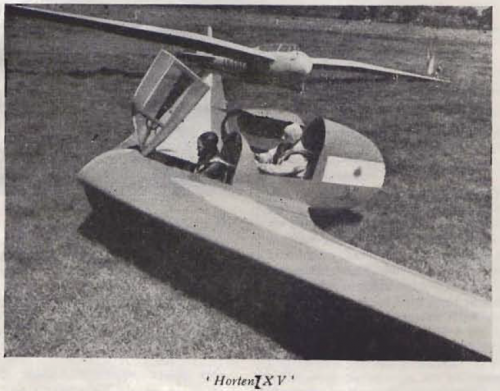

A post-war image of a Reimar Horten designed glider in Argentina, marked as the Horten XV. It was possibly the Fabrica Miitar de Aviones I.Ae. 34 Clen Antú which was the local designation of the XVa.


Attachments

  • Horten_XV_Argentina_Glider_Image.png
    530.6 KB · Views: 467

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,136
Reaction score
5,658
Re: Argentinian Unbuilt Projects

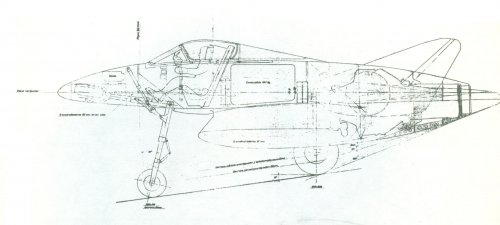

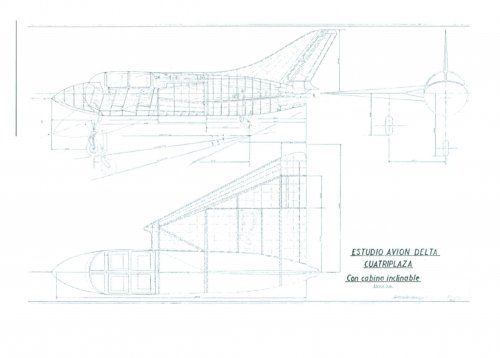

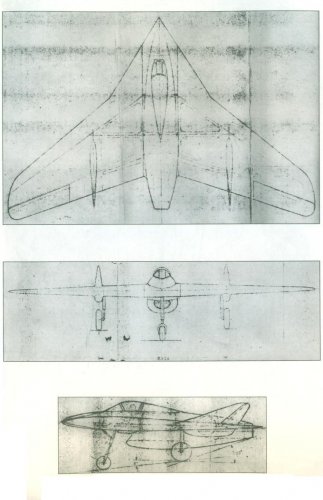

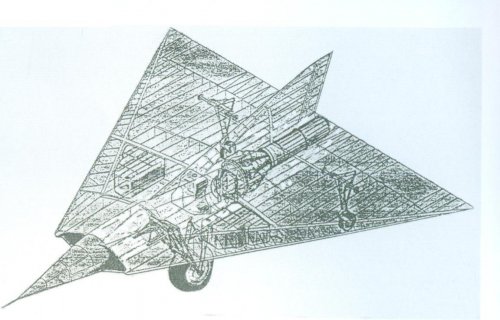

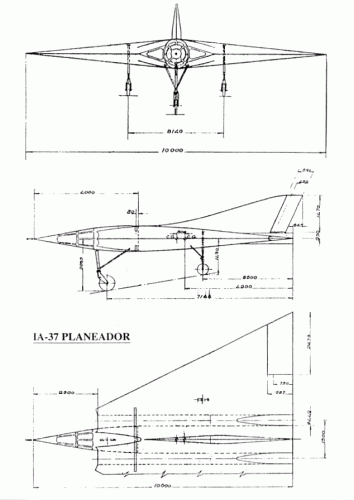

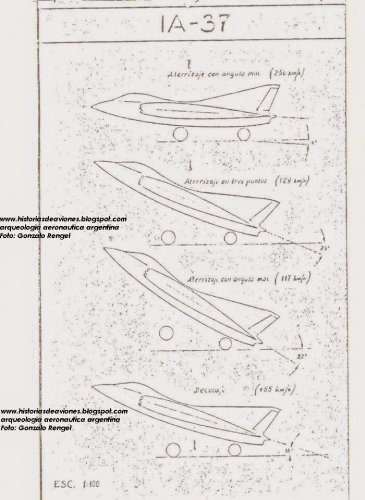

The IA.37 drawing.

http://historiasdeaviones.blogspot.com.eg/2015/04/ia-37-camino-romper-l-barrera-del-sonido.html


Attachments

  • ia 37 3.jpg
    ia 37 3.jpg
    125.8 KB · Views: 279
  • IA37 Monoplaza de entrenamiento.jpg
    IA37 Monoplaza de entrenamiento.jpg
    143.7 KB · Views: 277
  • IA37 (Para Tunel Supersonico).jpg
    IA37 (Para Tunel Supersonico).jpg
    151 KB · Views: 335
  • ia 37 4.jpg
    ia 37 4.jpg
    122.3 KB · Views: 344

iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
460
Reaction score
340
Re: Re: Argentinian Unbuilt Projects

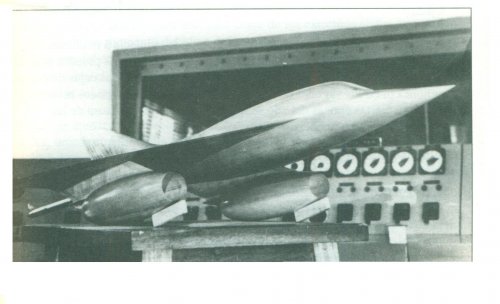

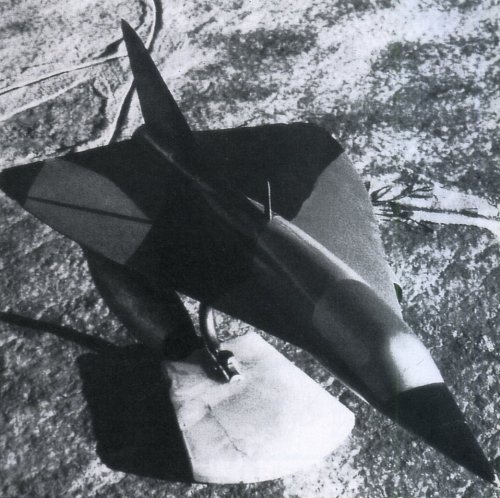

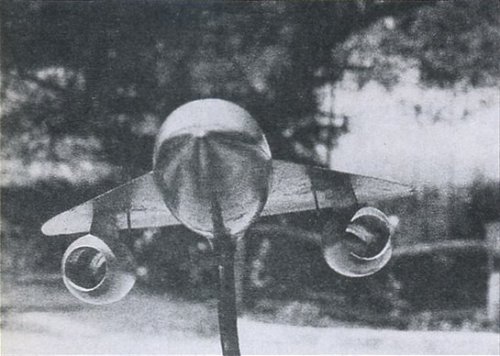

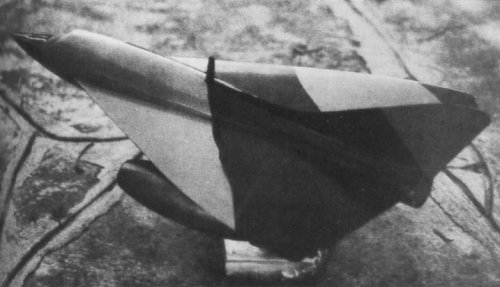

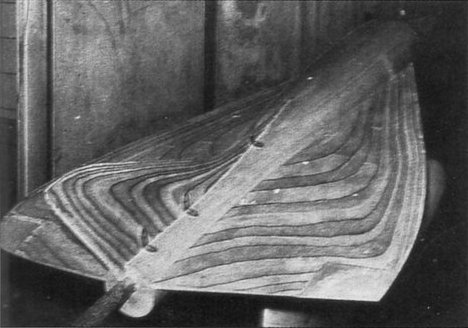

The IAe37 was a Horten project for a Pulqui III fighter. The wind tunnel model represents a prone-pilot version. It and the variant with the convetional canopy were also built as full-scale gliders.


Attachments

  • horten_y_balado_en_el_ia-37.jpg
    10.3 KB · Views: 377
  • IAE-37 006.jpg
    IAE-37 006.jpg
    67.6 KB · Views: 84
  • ia37_3.jpg
    193.7 KB · Views: 88
  • 4102917.jpg
    54.1 KB · Views: 80
  • 37_5_320.jpg
    4 KB · Views: 73
  • 37_4_320.jpg
    10.3 KB · Views: 68
  • 37_7_320.jpg
    5 KB · Views: 80

Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,149
Reaction score
1,048
There is a certain resemblance to the FD-2 in the 37.


Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
140
Reaction score
483

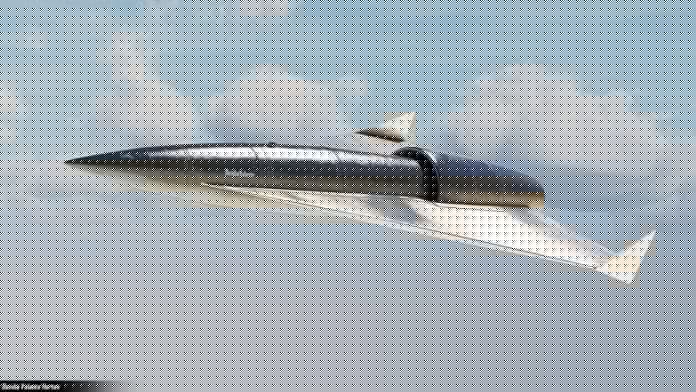

Hello I am from Argentina. Looking for information on Horten for my final aeronautical engineering work I found a lot of information about the IA-37 and the unknown cruise missile proposed by Horten in 1960

Then I wrote this article, which was translated into English in warisboring's web







edwest2

ACCESS: Top Secret
Joined
Nov 9, 2007
Messages
1,665
Reaction score
900
Thank you very much. As time passes, more material is being released about a threat from Argentina. Meanwhile, Eugen Sänger was working on the Sänger II space plane in Germany, which was also derived from wartime work.


Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
140
Reaction score
483

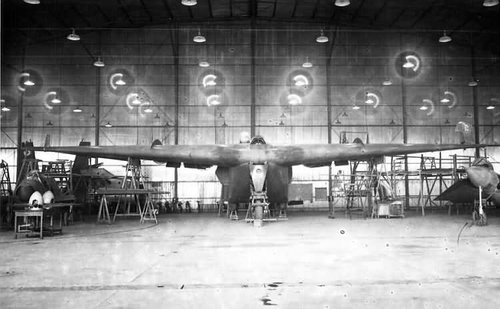

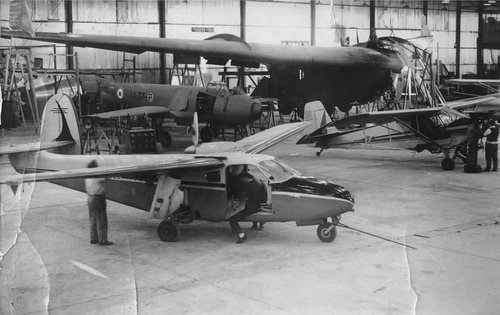

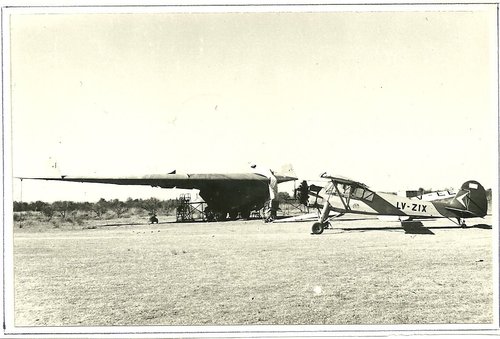

Somo photos of FMA IA-38


Attachments

  • 10869736_425252614291017_8188736142254390365_o.jpg
    132.3 KB · Views: 65
  • 11227934_10153270751922982_4026259118490271258_o.jpg
    294.8 KB · Views: 65
  • 11753665_125219134487592_7174812543139005297_n.jpg
    37.3 KB · Views: 65
  • FMA IA-38 MNA_00.jpg
    FMA IA-38 MNA_00.jpg
    145.3 KB · Views: 66
  • FMA IA-38 MNA_01.jpg
    FMA IA-38 MNA_01.jpg
    368 KB · Views: 67
  • IA-38 e IA-46_01.jpg
    IA-38 e IA-46_01.jpg
    78.2 KB · Views: 72

Similar threads

Top
