Hello,

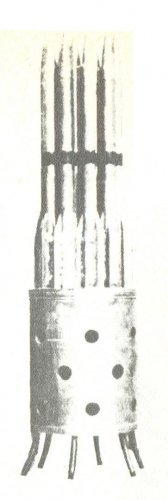

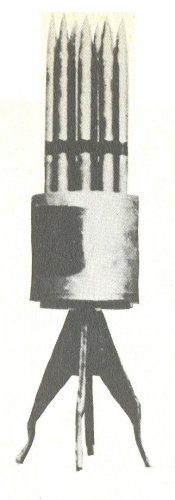

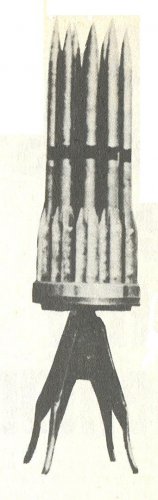

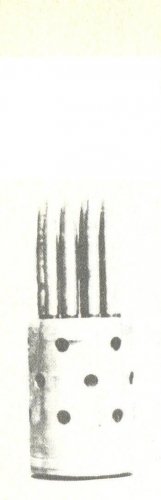

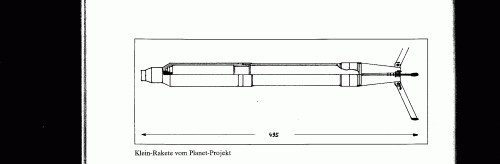

as a offshot from the previous thread, here is what I know about the Planet-Projekt. Dating from late 1944, it was to use a A4/V2 with as many as 427 small rockets mounted in beehive form and intended to be fired upon a bomber formation, and using a shotgun effect from down the formation, releasing the tiny rockets. Their caliber was to be 44,5mm and configuration were similar to the better known R4M Orkan.
Does anyone know more?

Image and data from Fritz Hahn`s "Waffen und Geheimwaffe...".


Attachments

Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,499
Reaction score
157

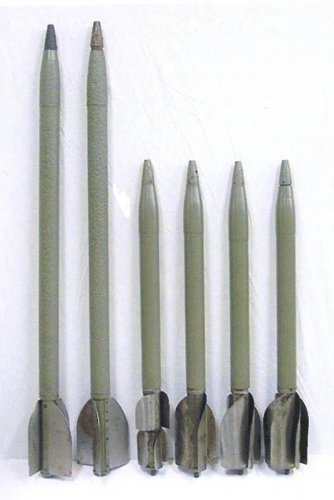

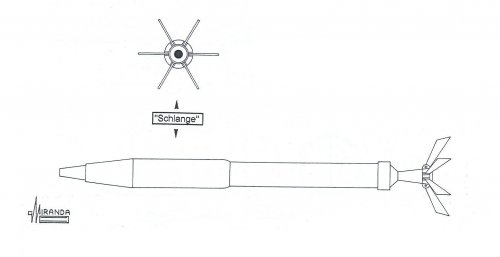

Waffenmunition Skoda Brünn "Schlange"
Length 790 mm.
Diameter 55 mm.
Weight 3,5 kg.
Max speed 450 m/sec.


Attachments

Grzesio

CLEARANCE: Secret
Joined
Mar 20, 2008
Messages
208
Reaction score
18
Website
chemnitzer27kb.blogspot.com
I'm not too convinced if the Schlange had anything to do with the Planet Project, or was just an air-to-air rocket study, similar to the R 4M?
Hahn also mentions a 97 mm rocket carrying nine 3 cm subprojectiles as a development of the Planet project. The Planet was, as I understand, not the name of a single project, but a whole program of small rocket subprojectiles, some of which were to move on helical trajectories.

Regards

Grzesio


Wurger

CLEARANCE: Top Secret
Senior Member
Joined
Oct 25, 2007
Messages
865
Reaction score
11
Hi guys :),

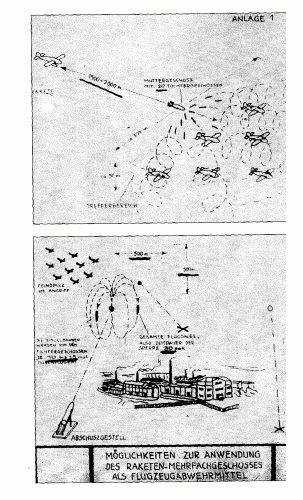

thank you so much for your replies. Attached are some images from Igor Witkowski`s book "Truth About the Wunderwaffe". He found several projects of submunitions rocket carriers. The spiralling rockets could be related to "Planet", as well as the ones shown at the detailed plan.


Attachments

Petrus

CLEARANCE: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
519
Reaction score
26
Justo Miranda said:

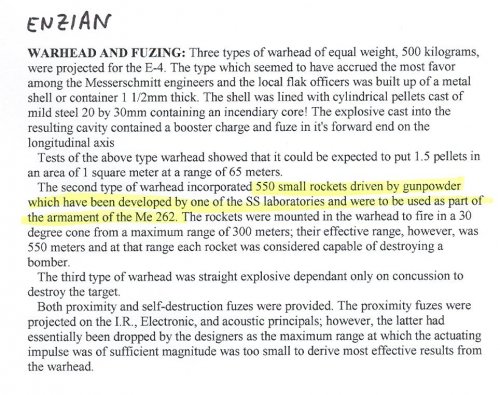

I have references of something named "Pfeilrakete" used in the Enzian warhead.
Could it be anione in the pictures?
I am afraid (that means I am sure) there is something wrong with the pictures you've attached to your post. They are not visible, they cannot open in any way.

Piotr


moin1900

CLEARANCE: Secret
Joined
Jan 28, 2008
Messages
458
Reaction score
4
Hi everybody

To Wurger: Thanks for the pictures ! Are there more ?

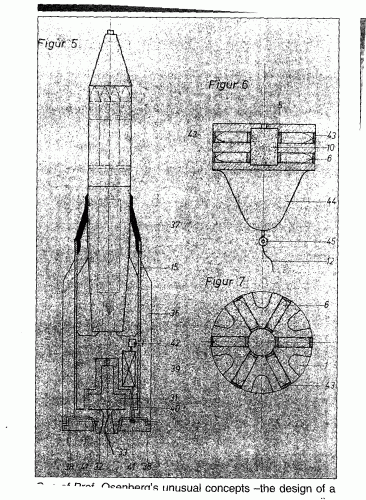

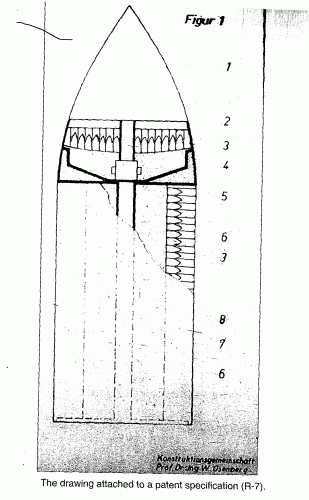

Prof. Osenberg developed a warhead for the R100BS with 14 little rockets. Someone knows more ?

About the V-2 with 427 little rockets. What would this anti-aircraft A-4 rocket look like ?
Only a different warhead ? Extra vertical stabilizers ? Like the Wasserfall ?
What about the big fuel-tanks and the fuel ? Another rocket engine ?

I read that prof. Osenberg and the Aerodynamische Versuchsanstalt Göttingen (AVA Göttingen) worked on a project called Projekt Bienenkorb. (Project beehive) What was it ?
(It was a Miznay-Schardin effect mine)

Maybe interesting ?
http://www.sturmpanzer.com/Default.aspx?tabindex=5&tabid=611&item=1&sec=1
Reichsforschungsrat "Project Planet" ?
http://downloads.sturmpanzer.net/guides/NARA_T733_R1_Guide_11.pdf

Many greetings and thanks in advance


moin1900

CLEARANCE: Secret
Joined
Jan 28, 2008
Messages
458
Reaction score
4
Hi

Another variant.
Projekt Planet 15.01.1945

Submarine launched variant
-against aircraft
-against ships
-against depth charges

Source
https://books.google.com
"Voll Begeisterung schlagen unsere Herzen zum Führer": Die Technische Hochschule Hannover und ihre Professoren im Nationalsozialismus
by Michael Jung
Page 303


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
483
Reaction score
48
what the V2 with 427 rocket looked like?


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
483
Reaction score
48
do you have something regarding the V2 with 427 rocket?


Basil

CLEARANCE: Confidential
Joined
Aug 10, 2009
Messages
199
Reaction score
10
Dan, thanks.

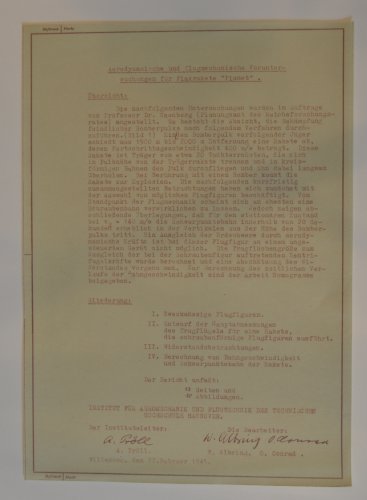

Highly interesting paper. Any chance to see the rest of the document?
