Paul Aubert

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,771
Reaction score
40
P.A. 10 ???
P.A. 20 http://www.aviafrance.com/aubert-pa-20-cigale--aviation-france-10074.htm (with many versions)
P.A. 30 ???
P.A. 40 ???
P.A. 50 ???
P.A. 60 Fighter Project 1937 http://www.secretprojects.co.uk/forum/index.php/topic,395.210.html
P.A. 70 Fighter Project 193? http://www.secretprojects.co.uk/forum/index.php/topic,395.210.html
P.A. 80 ???
P.A. 90 ???
P.A.100 tourisme project http://www.secretprojects.co.uk/forum/index.php/topic,395.210.html


I have also a P.A.400...


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,020
Reaction score
971
Great work my dear Maveric,and many thanks to my dear Tophe.

P.A.300 was a single seat biplane project,powered by one engine.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,010
Reaction score
181
PA.201, post-war version of the PA.20 with 140 hp Renault engine
PA.204 Cigale-Major, touring aircraft with 170 hp SNECMA engine
PA.204S Super Cigale, version of the PA.204 with Lycoming engine


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,771
Reaction score
40
Maveric said:
P.A. 10 ???
P.A. 20 http://www.aviafrance.com/aubert-pa-20-cigale--aviation-france-10074.htm (with many versions)
P.A. 30 ???
P.A. 40 ???
P.A. 50 ???
P.A. 60 Fighter Project 1937 http://www.secretprojects.co.uk/forum/index.php/topic,395.210.html
P.A. 70 Fighter Project 193? http://www.secretprojects.co.uk/forum/index.php/topic,395.210.html
P.A. 80 ???
P.A. 90 ???
P.A.100 tourisme project http://www.secretprojects.co.uk/forum/index.php/topic,395.210.html






P.A.100 tourisme project

P.A.200 ???
P.A.300 was a single seat biplane project,powered by one engine

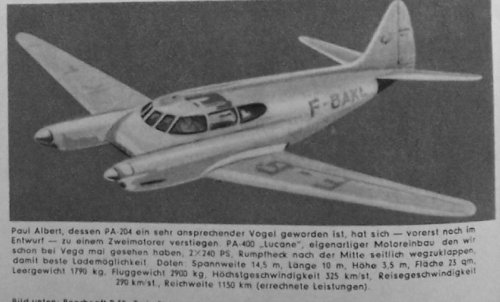

P.A.400 (pictured)


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,134
Reaction score
64
Thanks Maveric. My list has a few variant details but little more to add :(

_____________________________________

Aviation Aubert - Paul Aubert (PA) Designations

Pre-WWII PA Designations

PA-10 -- [??] Possibly 1936 light aircraft design

PA-12 -- Sansonnet, 1936 sesquiplane 2-seat* lightplane/tourer,
- PA-12: 60 hp Train 6T or 70 hp Train 6D air-cooled inverted 6-cyl.
-- * Tandem for training, single-seat for racing/long-range
-- http://www.secretprojects.co.uk/forum/index.php/topic,15888.msg211378.html#msg211378

PA-20 -- Cigale, 1938 high-wing cantilever monoplane cabin a/c, 1 built
- PA-20 Cigale: wooden const., 1 x 60 hp Train 6T, conv. into PA-201

PA-201 - Cigale, refined PA-20, 1 x 90 hp Régnier 4-cyl inline
PA-201 Cigale: 1938, n° 1 prototype PA-201 is re-engined PA-20
PA-201 Cigale: 1938, n° 2 prototype PA-201, F-WBBQ

PA-202 - PA-203 - [??]

PA-204 - Cigale Major, 4-seat vers. PA-201, 2 built (n°1 converted from PA-201 n°2)
- PA-204 Cigale Major: 1949 1 x 140 hp Renault 4 Pei 4-cyl inline
-- Cigale Major was to be "transformable en sanitaire"
- PA-204S Super Cigale: 1951 re-engined PA-204, 1 x 170 hp SNECMA-Régnier 4L-21, 1 built
- PA-204L Super Cigale: 1955 re-engined PA-204S, 1 x 135 hp Lycoming 290-D2B, 4 built

PA-205L Super Cigale: 1956 re-engined PA-204S, 1 x 150 hp Lycoming O-320, 1 built

PA-250 [Project] 1955 PA-204S development, club touring aircraft

PA-30 - (Project) 1936 twin-engined biplane cargo aircraft
- PA-30: To Argentine contract, not completed
-- Said to resemble de Havilland DH.84 Dragon

PA-40 - (Project) 1936 twin-engined low-wing monoplane cargo a/c
- PA-40: To Argentine contract, not completed
-- Removable cargo bunkers, trucks able to pass beneath

PA-50 - [??]

PA 60: [Project] 1937 2-seat side-by-side twin-boomed twin-engined pull-pull fighter

PA 70: [Project] 1936 'Jockey' fighter, 1 x Gnome-Rhône 14M Mars radial engine

PA-80 - PA-90 - [??]

Post-WWII PA Designations

PA-100 - [Project] 1946, fighter-trainer

PA-101: [Project] - 194? PA-100 variant

PA-102 - (Project) 1953 Espervier 2-seat tandem trainer,
- PA-102: 1 x 260 hp Argus-Salmson 8-AS.04, span ?? m
-- PA-102 to use wings of civil PA-204 Cigale Major

PA-200 - [??]

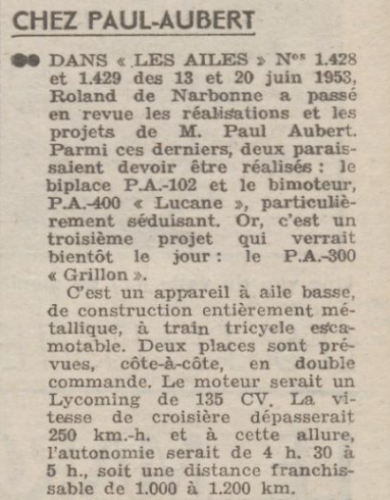

PA-300 - Grillon [Project] all-metal 2-seat side-by-side light a/c, 1 x 135 hp Lycoming
-- low-wing monoplane Grillon was to have a retractable tricycle u/c

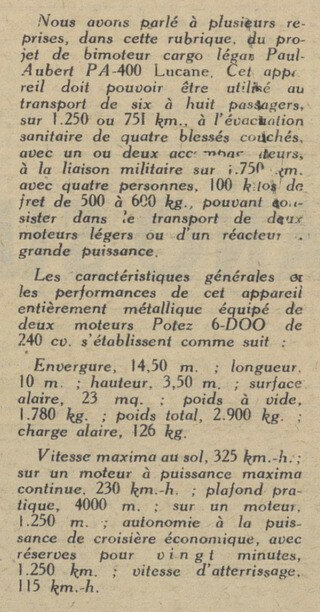

PA-400 - Lucane [Project] 1953 light cabin twin, 2 x 240 hp air-cooled inlines
-- Engine nacelles blended into fuselage, optional swing-tail for cargo

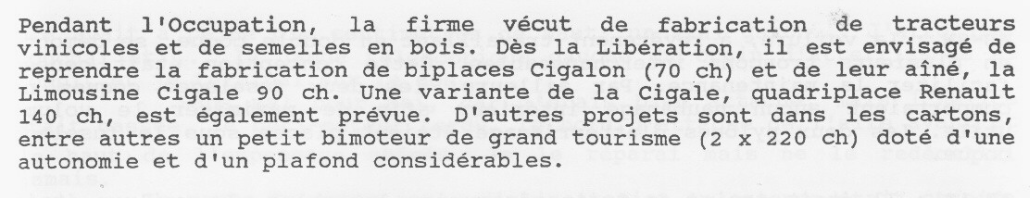

PA-[??] - [Project] 1957 high-wing 6-pax transport, 2 x 180-240 hp Lycomings
-- composite construction (metal + wood), retractable undercarriage
-- Possibly designated PA-500 (??)

Last edited:

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,771
Reaction score
40
Thanks for your list...Apophenia ;D


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,020
Reaction score
971
By the way,

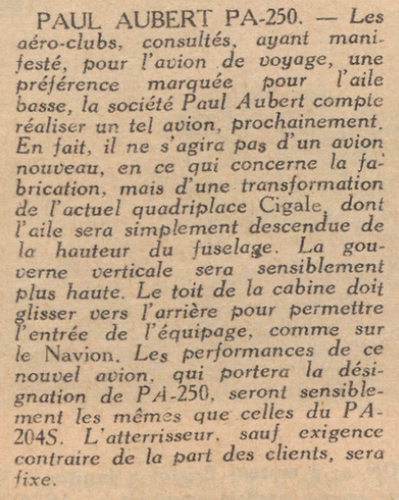

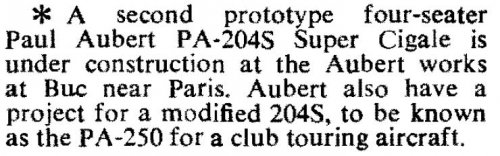

the PA-204S was called PA-250 designation,as in Air Pictorial 1955 magazine.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,020
Reaction score
971
Thank you my dear Apophenia.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,020
Reaction score
971
My dear Apophenia,

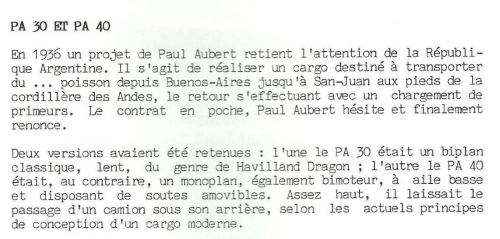

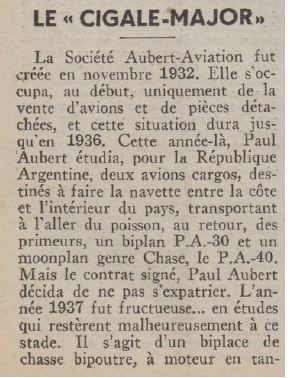

please add those two Projects,the Aubert PA-30 & PA-40 were a twin engined medium cargo/transport
aircraft of 1936,of biplane and monoplane configurations respectively.


Attachments

Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,134
Reaction score
64
Thanks, done. Do you have a source for your clipping hesham?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,020
Reaction score
971
Yes my dear Apophenia,

it's TU magazine issue 135.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,020
Reaction score
971
Apophenia said:
PA-[??] - [Project] 1957 high-wing 6-pax transport, 2 x 180-240 hp Lycomings
-- composite construction (metal + wood), retractable undercarriage
http://www.flightglobal.com/pdfarchive/view/1957/1957%20-%201391.html
Also in Air Pictorial 9/1957,maybe it was PA-500 ?.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,020
Reaction score
971

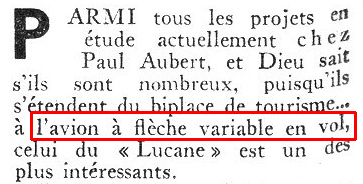

From Ailes 1/1954,

here is a strange Info about two-seat PA.102 ?.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,020
Reaction score
971
From Ailes 1/1954,

here is a strange Info about two-seat PA.102 ?.

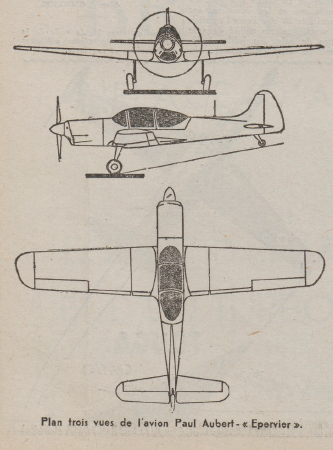

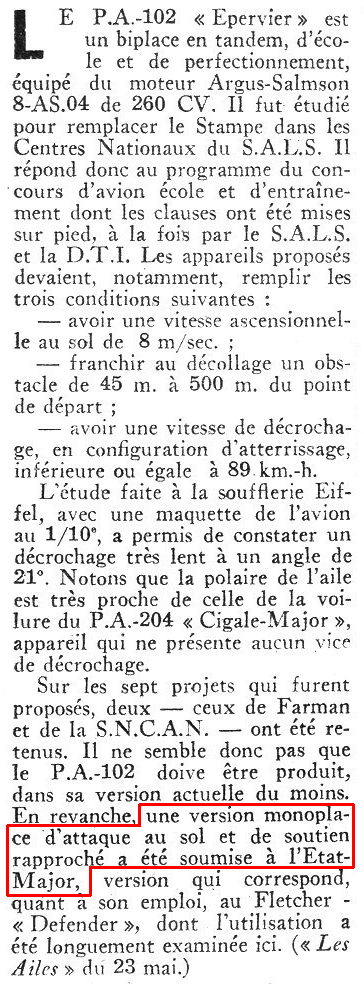

From Ailes 20/6/1953,

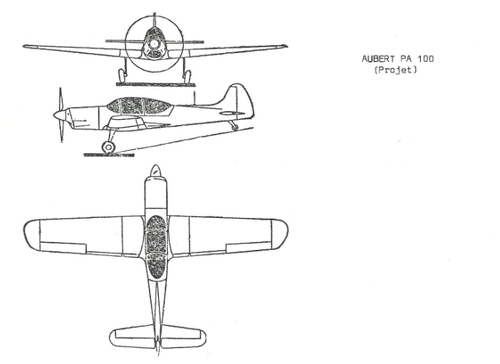

the Aubert PA.102 Epervier was a tandem two seat trainer/fighter monoplane Project,also the PA.100 & PA.101

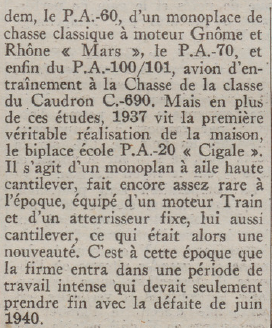

were the same aircraft in TU magazine from issue 135 ?.


Attachments
