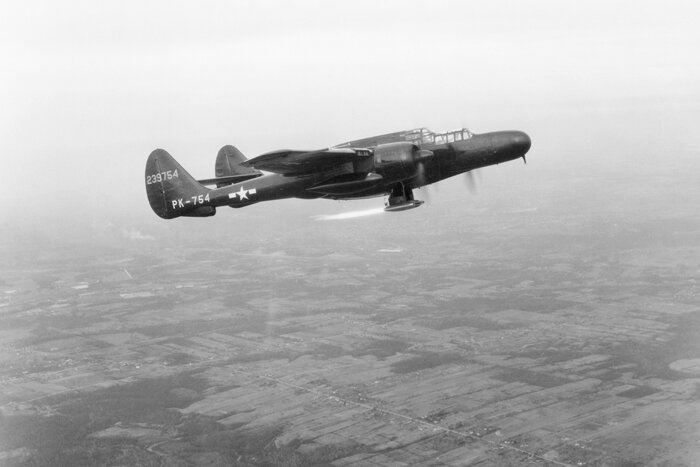

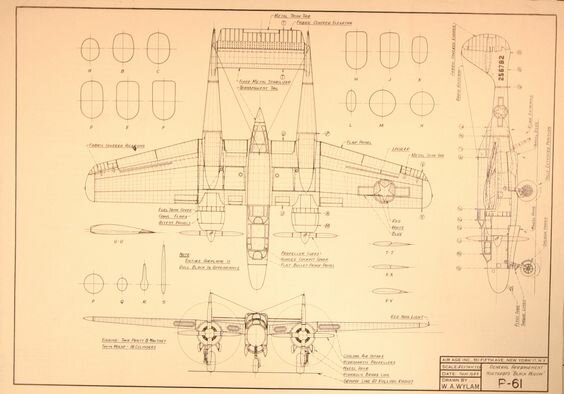

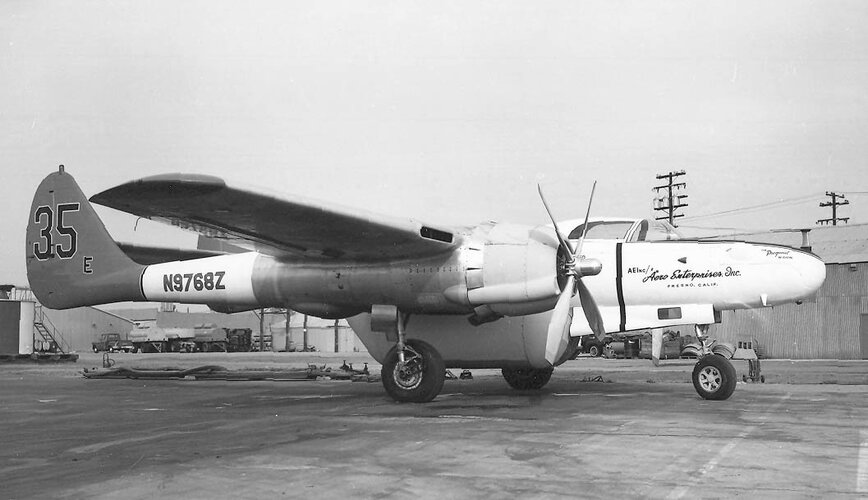

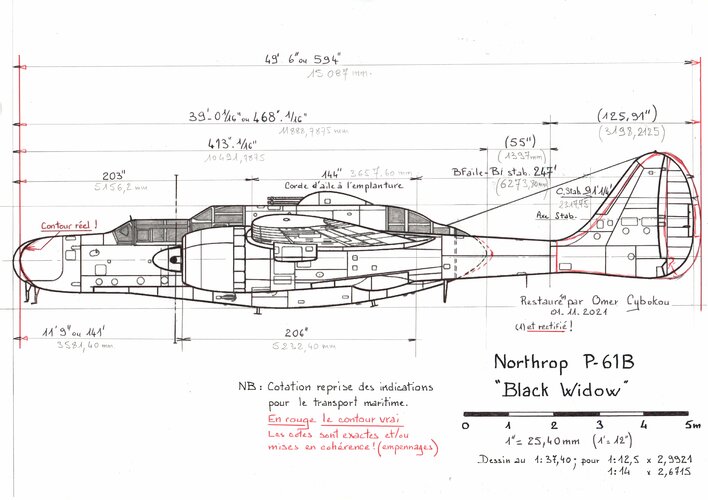

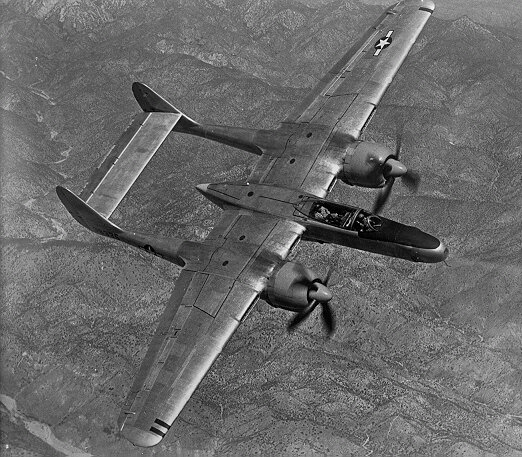

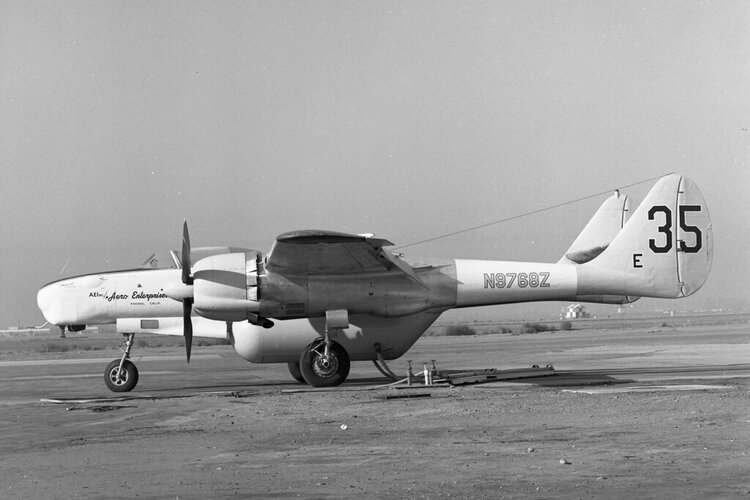

P-61 related projects

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,669
Reaction score
40
Website
beyondthesprues.com
Hi folks,

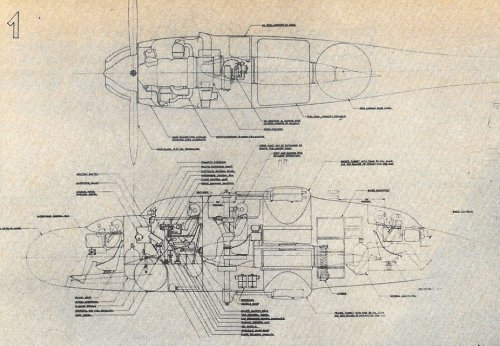

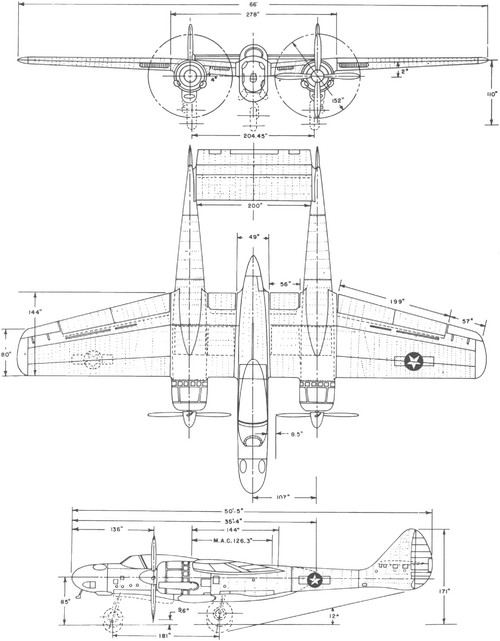

Here's something I stumbled across recently - an early project from Northrop that led to the P-61 (eventually). Note the upper and lower turrets as well as what appears to be ducted spinners for the engines. Note that it was also planned to have 4 crew members.

Regards,

Greg


Attachments

mattrix

CLEARANCE: Restricted
Joined
May 1, 2007
Messages
39
Reaction score
0
There are more similarities to Lockheed XP-58 "Chain Lightning" than Nothrop P-61, except for additional crew member and radial engine.


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,363
Reaction score
43
You can find that drawing on the book "Queen of the midnight skies" by Pape and Harrison. Ed Schiffer. ISBN 0-88740-415-4. Page 29. Text under the pic is : "Early conceptual design of the P-61. This four crew, two turret design does not indicate the presence of radar on the drawing and the nose is of metallic construction. (Balzer Collection)"

From Page 28-29

Northrop Specification 8A. November 5th 1940
Original Night Interceptor Pursuit Airplane data was: tricycle landing gear, 2xDouble Wasp engines, twin tail boom configuration, crew of three (gunner for the nose turret, pilot and radar operator/rear turret gunner), span = 66 feet, lenght = 45 feet, weight = 16,245 pounds empty/22,654 pounds gros.

An interim design of a single tail shoulder wing design was shortlived (no drawings :'()

Mid November 1940 re-design: additional gunner station added. Nose and tail turrets deleted and in their place was a .50 cal machine gun in the belly and four .50 cal machine guns in the top turret. The crew now consisted in two gunners, pilot and radar operator. In the nose was located the airborne intercept radar with the structure of the nose now being fabricated from non-metallic material.

November 22nd 1940 re-design: The crew once again to a three man configuration: pilot, gunner and radar operator. The armament changed once again also. It now consisted of four 20 mm cannon in the wings, the lower turret had been deleted with the top turrer being retained.

I have seen other drawings about P-61 early conceptual design but I can remember where...probably on Northrop P-61 Black Widow - WarbirdTech Volume 15 (WarbirdTech) by Warren E. Thompson (http://www.amazon.com/Northrop-P-61-Black-Widow-WarbirdTech/dp/0933424809/ref=sr_1_3/104-6982050-1731157?ie=UTF8&s=books&qid=1192527531&sr=1-3).

Lark, do you remember it?


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,783
Reaction score
7

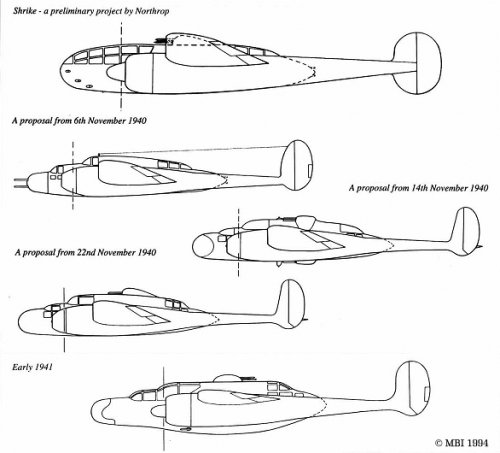

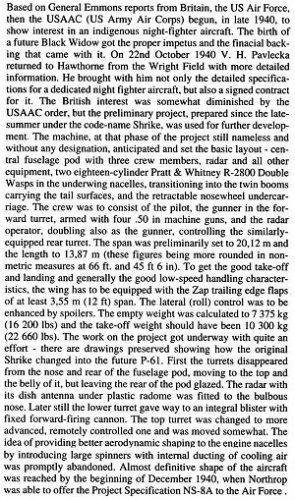

No memories about in the 'WarbirdTech Vol. Pometabla but in

MBI-Northrop P-61 'Black Widow' - Miroslav Balous.

(Norhrop 'Shrike' + 3 initial concepts.)


KJ_Lesnick

CLEARANCE: Top Secret
Joined
Feb 13, 2008
Messages
1,021
Reaction score
6

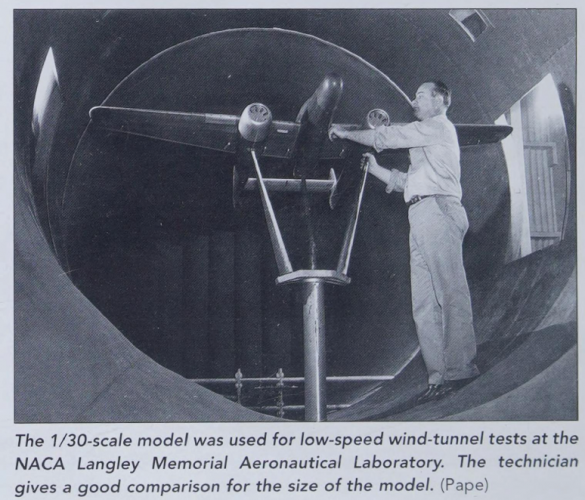

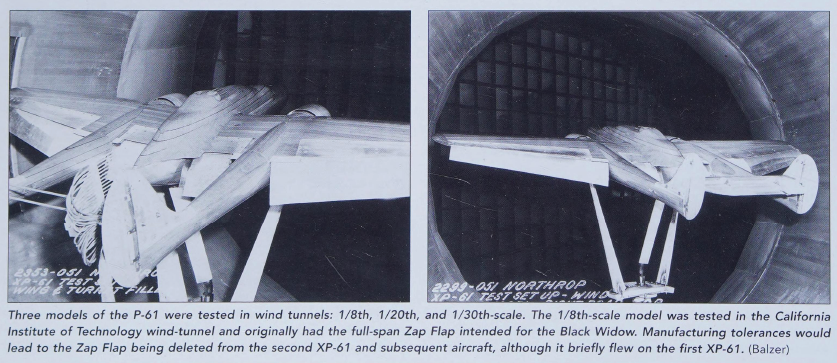

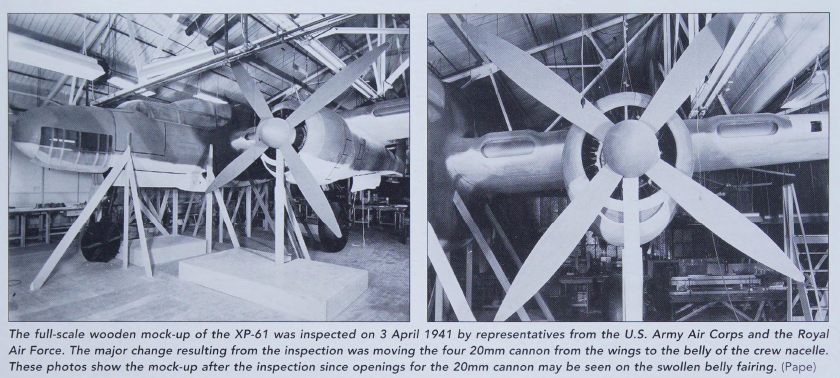

I had a feeling I'd be able to find preliminary designs here: The design seemed to have been a twin-boomer almost from the outset


CaseyKnight

I really should change my personal text
Joined
Jul 25, 2011
Messages
28
Reaction score
0
I was told that the P-61 was designed around using a type of blind-shooting system which revolved around ranging and lead-computation to provide effective aiming at night: While a highly practical feature, it seemed to never work and only involved the turret itself.

I'm curious why the system was designed to only use the turret itself, unless the position of the turret (if aimed dead ahead) would provide accurate aiming for the turret and forward armament?


BTW: This post is on behalf of somebody else


KJ_Lesnick

CLEARANCE: Top Secret
Joined
Feb 13, 2008
Messages
1,021
Reaction score
6
I was told that the P-61 was designed around using a type of blind-shooting system which revolved around ranging and lead-computation to provide effective aiming at night: While a highly practical feature, it seemed to never work and only involved the turret itself.
Basically they had proposed putting the AN/APG-2 on the aircraft, which was fitted with features to allow auto-track.

The reason it wasn't put into service was because, in order to auto-track, you couldn't see other aircraft on radar: You'd lose all situational awareness.


Basil

CLEARANCE: Confidential
Joined
Aug 10, 2009
Messages
193
Reaction score
6
CaseyKnight,

you can read a discussion about the gun laying capability of the P-61 radar here:


KJ is totally right.
