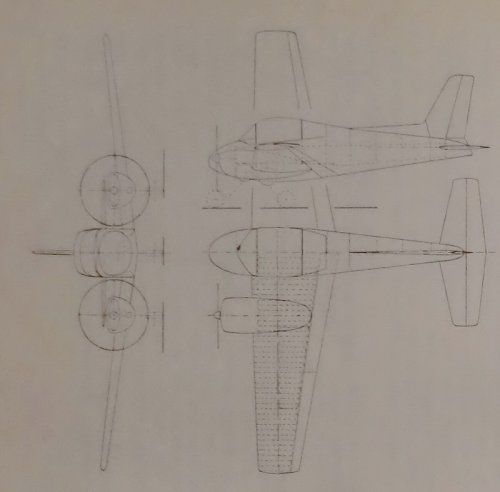

During the late '50s, the "Motorenfabrik Otto Wimmer made attempts to succeed as a manufacturer
of light aircraft. First negotiations were made for a license production of the Austrian Meindl M 211,
a single engined touring aircraft, but stopped after the decision to concentrate efforts on the Ka-10.
This was an own design for a twin engined touring aircraft, powered by two Continental engines with
90 hp, length of 6.96m, span 11.00m, empty weight 720kg and MTOW of 1300 kg. Expected max. speed
was 240 km/h and a range of 1200 km. Construction of the aircraft is said to have been started, but
never finished.

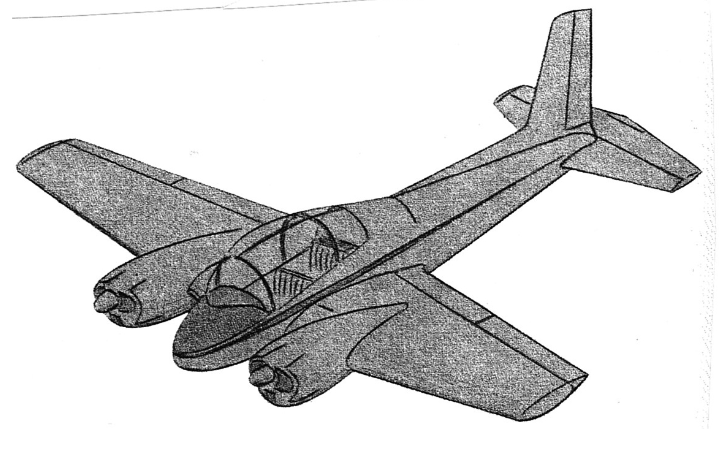

(Drawing from Aero November 1959)


Attachments

  • Wimmer_Ka-10_01.jpg
    94.1 KB · Views: 429

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,402
Reaction score
142
Website
cluttonfred.info
Neat! The lines are a little bit pudgy but there aren't many light twins with bubble canopies, it looks like it would have been lots of fun.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,938
Reaction score
5,204
My dear Jemiba,


do you have a drawing to Meindl M-211 aircraft ?.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,311
hesham said:
.. do you have a drawing to Meindl M-211 aircraft ?.

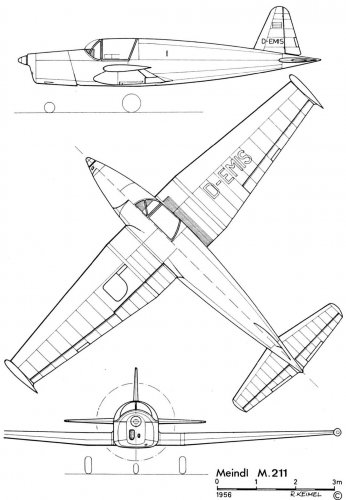

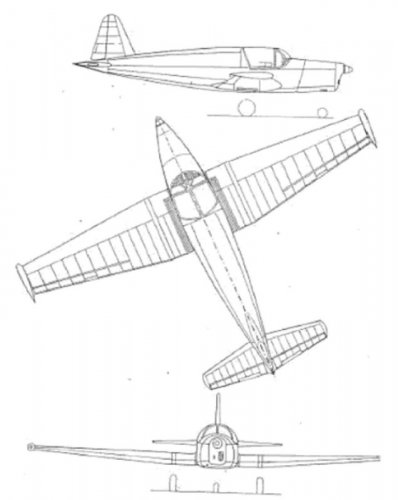

From "Deutsche Motorflugzeuge" by Rolf Wurster, Motorbuchverlag:


Attachments

  • Meindl_M-211_01.jpg
    46.4 KB · Views: 201
  • Meindl_M-211_02.jpg
    36.4 KB · Views: 188

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,002
Reaction score
401

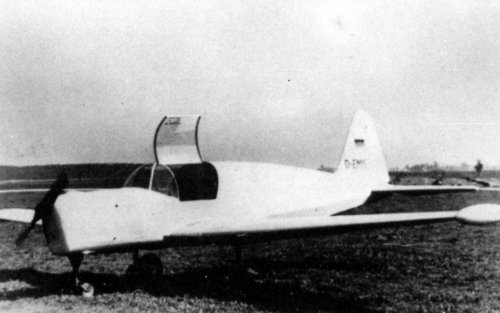

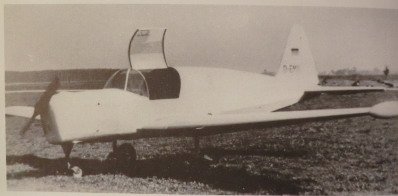

...Jemiba was a little bit faster...


Attachments

  • Meindl M-211.jpg
    Meindl M-211.jpg
    189.2 KB · Views: 187
  • Meindl M-211-.jpg
    Meindl M-211-.jpg
    178.7 KB · Views: 169

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,938
Reaction score
5,204
Thank you my dears Jemiba and Maveric.
