Omnionics Dolphinair Variable-Span Amphibian Project

[hesham]

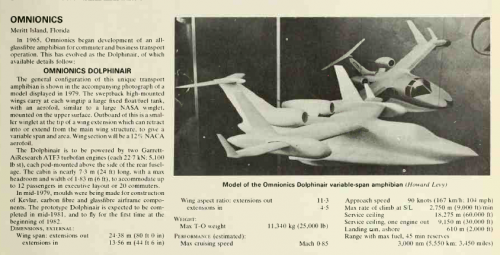

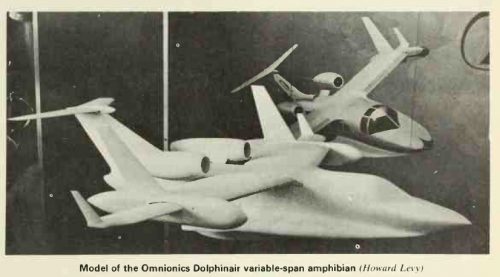

From Jane's All the World's Aircraft 1980-1981,


here is the Omnionics Dolphinair,a variable-span jet amphibian project,it
was from USA.


http://books.google.com.eg/books?id=Wql7EtlJw3wC&pg=PA15&lpg=PA15&dq=OMNIONICS+amphibian&source=bl&ots=71eVV9qiqy&sig=POAbfEkvLou4TAnnSahtn-0vKgA&hl=ar&sa=X&ei=7yJvVO7RCaWiyAPpqIHoCA&ved=0CCUQ6AEwAg#v=onepage&q&f=true



[Motocar]

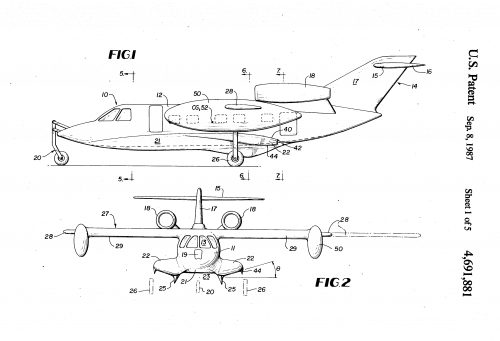

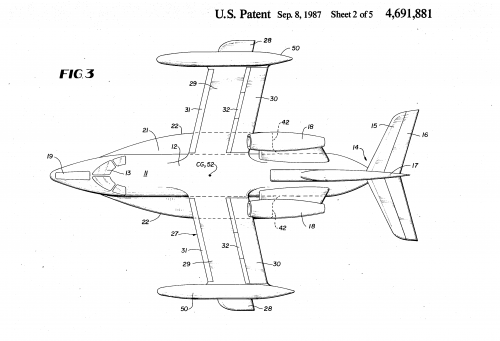

U.S Patent Omnionics Dolphinair, Drawings blueprint



[Motocar]

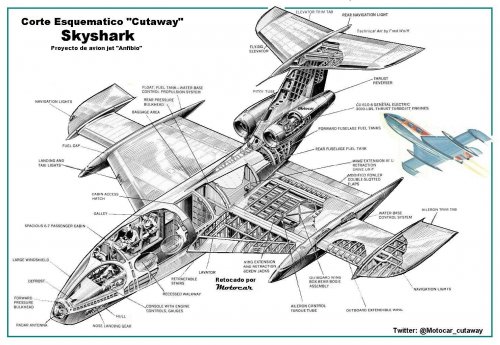

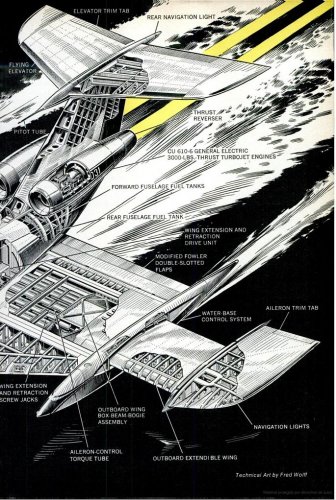

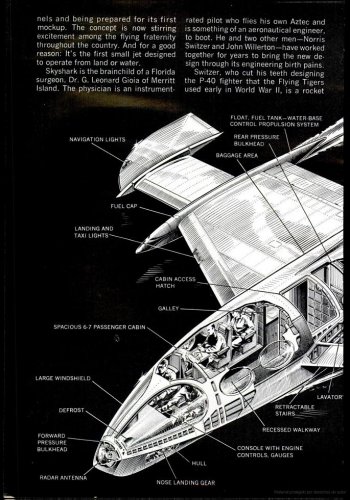

Cutaway Skyshark Amphibious jet plane, Even being completely different projects, both proposed "Telescopic wings" the Skyshark dates from 1971, appeared in the magazine "Popular Mechanics" April 1971, the image is retouched to join the two halves, clean and missing areas draw



[hesham]

Thank you my dear Motocar
