OKB-1/Junkers EF-132

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,013
Website
deeptowild.blogspot.com

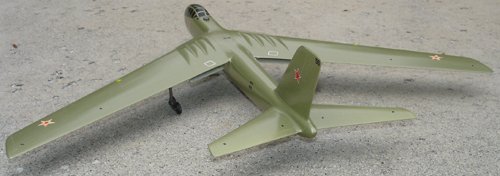

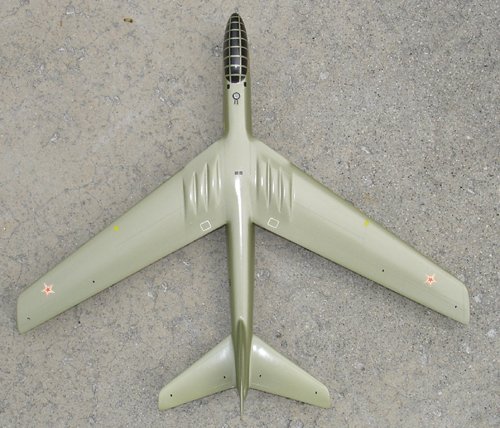

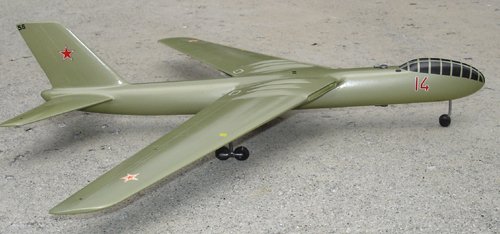

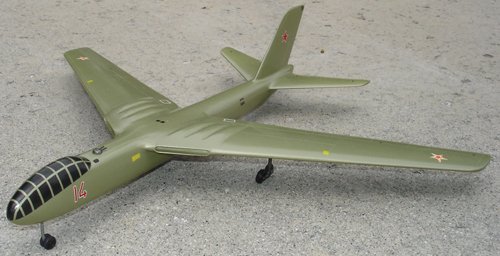

Model of OKB-1/Junkers EF-132 from USSR-Russian Aviation & Space Collectibles (Alex Panchenko).

Description:
12 inches wing span hand made model of famous Junkers EF-132 project of Soviet OKB-1 with German engineers-designers. In 1946 the whole Dessau complex and the German engineers were transferred to the Soviet Union to continue the development of both the Ju 287 and EF 132 in organized OKB-1. The Soviets tested the EF 132, using Mikulin jet engines and later evolved the plane by placing two AL-5 engines in nacelles under the wings and giving it a T-tail. Two prototypes were tested as the EF 150, but lost to the Tupolev Tu-16 in the related competition. The EF132 was also a development, which was already started and of which a mock-up was already built at Dessau. In contrast to the original Ju287, the EF132 had a back swept wing. The cockpit section was similar to that of the Ju288. The six jet engines were integrated within the wing structure. This design later became typical for Russian aircraft designs. But the EF132 program was stopped before the construction of a prototype began. The EF132 was the final Junkers-Dessau development.

Source:
http://www.ussr-airspace.com/index.php?main_page=product_info&cPath=28_39_38_108&products_id=2515


Attachments

  • 09123302.jpg
    97.8 KB · Views: 819
  • 09123258.jpg
    142.7 KB · Views: 718
  • 09123304.jpg
    129.4 KB · Views: 682
  • 09123307.jpg
    239.3 KB · Views: 639

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
74
The description is, at least, curious:

The Soviets tested the EF 132 (?? - rs72), using Mikulin jet engines and later evolved the plane by placing two AL-5 engines in nacelles under the wings and giving it a T-tail. Two prototypes were tested as the EF 150

Actually, EF-132 and the "150" are VERY different aircraft, not only in shape and construction, but even in size! The EF-132 would be almost 1.5x bigger than the "150" was.

Wing span: 34.4 m (EF-132) vs 24.1 m ("150")
Length: 39.4 m (EF-132) vs 26.7 m ('150")
Takeoff weight: 87 500 kg (EF-132) vs 38 000 kg normal, 47 000 kg overloaded ("150")


Attachments

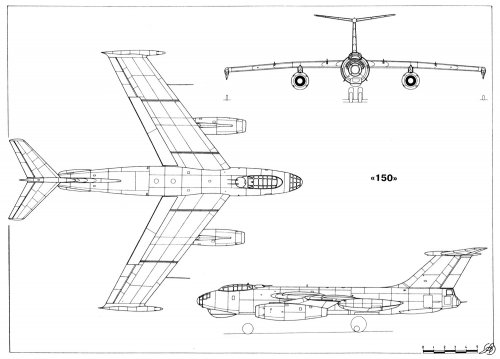

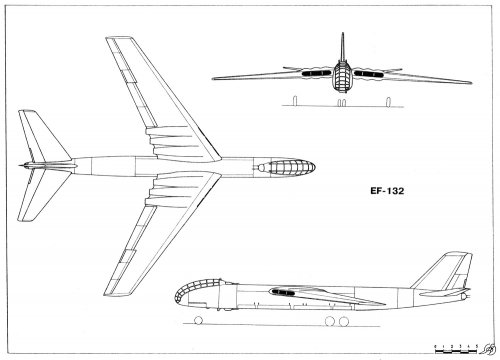

  • 150_3-view resize.jpg
    150_3-view resize.jpg
    130.9 KB · Views: 253
  • EF-132 3-view_resize.jpg
    EF-132 3-view_resize.jpg
    106.4 KB · Views: 727

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,546
Reaction score
1,233

pacopepe

ACCESS: Restricted
Joined
Oct 11, 2008
Messages
25
Reaction score
3
OKB-2

Yes Triton, very interesting.

Also, in 1946, as members of the Junkers factory of Dessau, german technicians and scientists of the factory Siebel were forced to move from Halle (Germany) to Podberesje (near Moscow). Two years later they created the project named COMBINAT OKB-2. The objective: beating Mach 1; like Yeager in his Bell X-1 on 1947.

This is the result: Junkers EF-131/DFS 346 (*)

Regards
Fran
(*): Is fictional. One B-29 carried the DFS 346.


Attachments

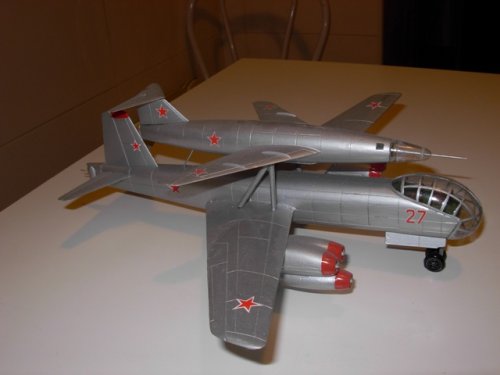

  • DSCN0910.JPG
    64.8 KB · Views: 225

renax

ACCESS: Confidential
Joined
Dec 21, 2009
Messages
55
Reaction score
2
Website
www.sharkit.com
I am interested in viewing detail of the engines exhaust

They are not the same on the model and the drawing.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
793
Reaction score
167
renax said:
I am interested in viewing detail of the engines exhaust

They are not the same on the model and the drawing.
Right on the drawing by Jurgenson in Reply # 1 redstar72


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
351
Reaction score
22
I just stumbled upon this thread. I have always been fascinated by a number of Junkers late WWII and "Luft '46" projects. Anyway, it sounds like the description above for the EF 150 is this artist concept of a Soviet EF 132 variant. Holy cow, sorry for the length of the link! Can anyone shorten it for me? anyway, the first time I saw this artist concept was many years ago in the Monogram Pubs. issue on the Junkers 287.
link removed thanks to Orionblamblam!


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,804
Reaction score
3,187
Website
www.aerospaceprojectsreview.com
famvburg said:
Holy cow, sorry for the length of the link! Can anyone shorten it for me?

Shazam!


Just use the "Insert image" button above and to the left. looks like a very tiny Mona Lisa.


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
351
Reaction score
22
Thanks! I have always been fascinated with this particular design.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,445
Reaction score
6,104
Hi,

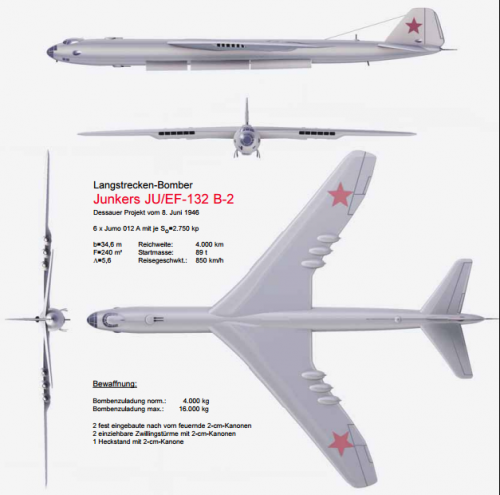

the best artwork I have ever seen to Junkers EF-132 B-2.


http://www.flugzeug-lorenz.de/fileadmin/user_upload/PDF-Junkersbuch/Junkers_232-235.pdf


Attachments

  • 1.png
    194.4 KB · Views: 218
  • 2.png
    159.5 KB · Views: 241
  • 3.png
    525.3 KB · Views: 235

Airborne2001

ACCESS: Confidential
Joined
Jun 19, 2020
Messages
103
Reaction score
83
Did the aircraft inspire the Myasishchev M-4 Bison, or is the similarity in looks just a coincidence?
