Nova launch vehicle (post-Saturn)

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
480
Website
deeptowild.blogspot.com
From Proceedings of the American Astronomical Society Symposium on the Exploration of Mars June 6-7, 1963:

"Nova Launch Vehicle Design Studies" by Andrew Kalitinsky

http://www.gravityassist.com/IAF1/Ref.%201-47.pdf


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,333
Reaction score
1,352
I'm more than a little surprised that there doesn't appear to be a thread about Nova already. :eek:


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,609
Reaction score
593
sferrin said:
I'm more than a little surprised that there doesn't appear to be a thread about Nova already. :eek:


were you say it, dam there was no NOVA thread here
but we got one now ;D


NOVA start 1959 as "we fly to moon direct" big rocket
later as LOR and Saturn V was selected in 1961, NOVA was change into Heavy lift rocket with 1 million lb or 453 metric tons payload.
for advance manned mission to Moon or Mars, the studys were conduct until 1964
then NASA Administration stop all NOVA study in favor of advance Saturn V version.


F-14D

I really did change my personal text
Senior Member
Joined
Oct 4, 2007
Messages
1,780
Reaction score
133
http://www.astronautix.com/lvs/nova.htm


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
13,333
Reaction score
1,352
I have no idea what possessed M. Wade to change the layout but ye Gods, what a pain in the backside to find anything now. And if you don't already know where to look forget about browsing to it. I liked the layout he had about 10 years ago.


bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
10,186
Reaction score
1,183
sferrin said:
I have no idea what possessed M. Wade to change the layout but ye Gods, what a pain in the backside to find anything now. And if you don't already know where to look forget about browsing to it. I liked the layout he had about 10 years ago.

Yes absolutely I could find stuff kind of intuitively before, not so good now.


blackstar

CLEARANCE: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,766
Reaction score
136
sferrin said:
I have no idea what possessed M. Wade to change the layout but ye Gods, what a pain in the backside to find anything now. And if you don't already know where to look forget about browsing to it. I liked the layout he had about 10 years ago.

He changed the layout a long time ago. I have no idea why he did it, but it dramatically lowered the readability of the site.


OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
11
Website
www.io.com
blackstar said:
sferrin said:
I have no idea what possessed M. Wade to change the layout but ye Gods, what a pain in the backside to find anything now. And if you don't already know where to look forget about browsing to it. I liked the layout he had about 10 years ago.

He changed the layout a long time ago. I have no idea why he did it, but it dramatically lowered the readability of the site.

..."A long time ago" = "When the site got trollhammered", which wasn't *that* long ago. That being said, I and quite a few others have fired off e-mails to Mark asking about the layout change, and if he'd consider changing it back. I even offered to redesign the front page so that it was more navigatable, but *nobody's* managed to receive a reply from him so far. Mark's never been this "under the radar" in the past, so I'm sort of worried about him. Considering we're all now at the age where we're starting to drop like flies like poor Pat Flannery, I'm hoping Mark's health hasn't taken a turn for the worst.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,485
Reaction score
3,347
Hi,

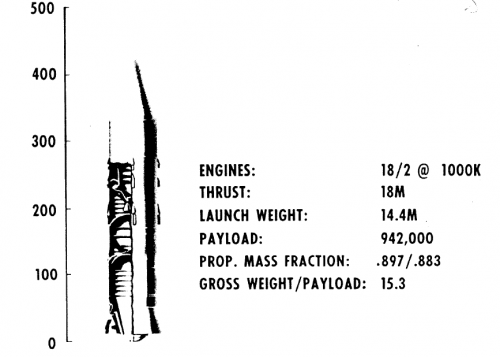

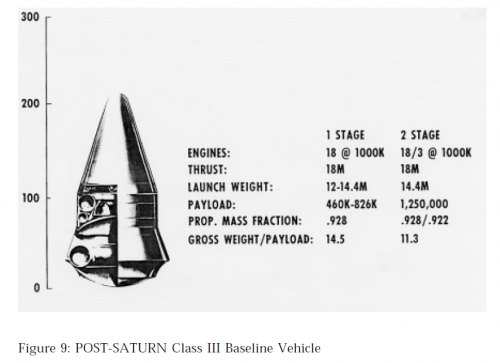

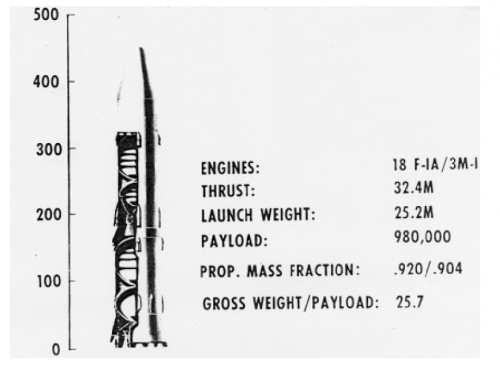

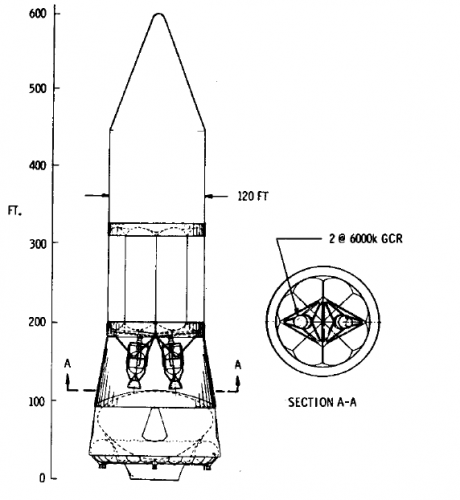

here is the Nova (Post-Saturn) Class I,II,III & IV.


Attachments

  • Post-Saturn Class I.png
    Post-Saturn Class I.png
    250.3 KB · Views: 451
  • Post-Saturn Class II.png
    Post-Saturn Class II.png
    39.1 KB · Views: 405
  • Post-Saturn Class III.png
    Post-Saturn Class III.png
    233.2 KB · Views: 397
  • Post-Saturn Class IV.png
    Post-Saturn Class IV.png
    26.3 KB · Views: 384

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,485
Reaction score
3,347
Hi,

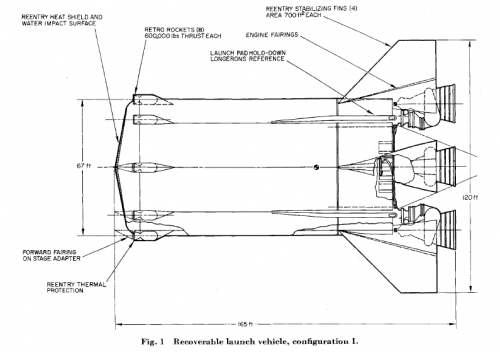

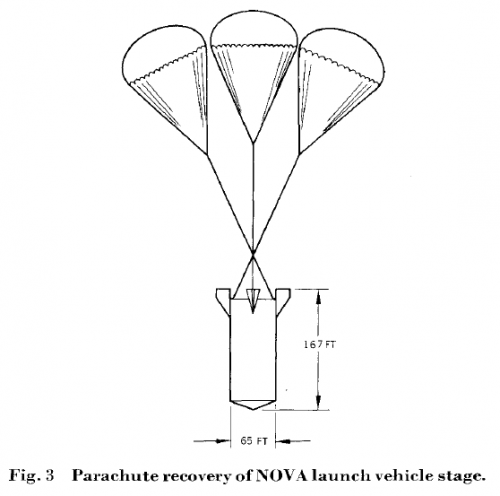

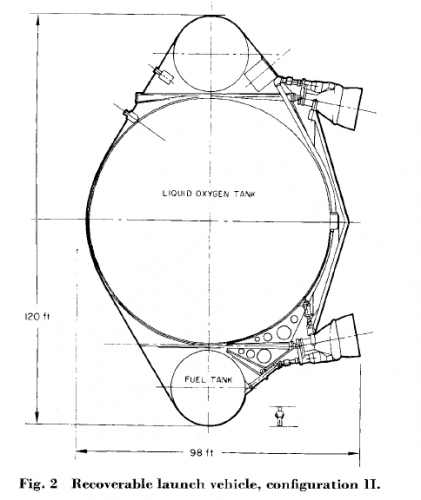

here is a Hughes Nova large launch vehicle recovery;


http://arc.aiaa.org/doi/abs/10.2514/3.28177?journalCode=jsr


Attachments

  • 1.png
    45.6 KB · Views: 216
  • 2.png
    28.8 KB · Views: 68
  • 3.png
    19.1 KB · Views: 55

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
480
Website
deeptowild.blogspot.com

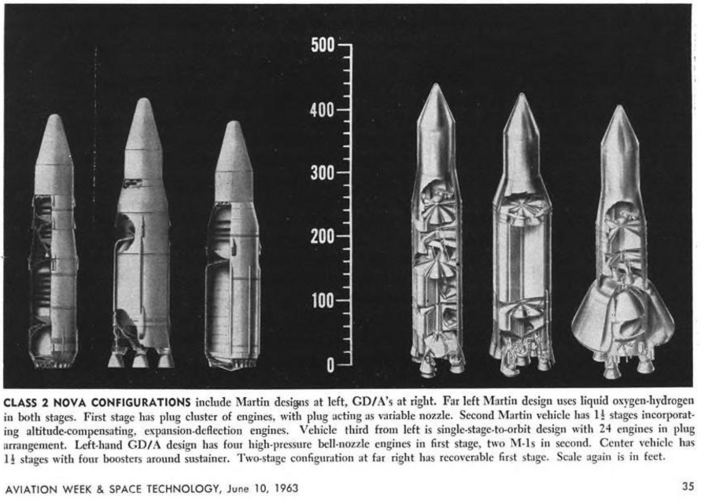

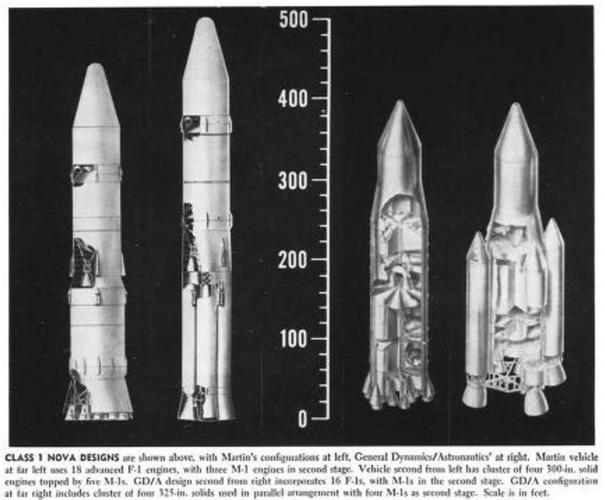

Some Martin Nova-family launch vehicle designs on Scott's The Unwanted Blog.

Source:
http://up-ship.com/blog/?p=2640
