Northrop's Flying Wing airliner projects

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,432
Reaction score
287
Sundog said:
How about the Northrop Flying Wing Transport from the 40's ;)

http://www.google.com/patents?vid=USPAT2650780

I've always thought that a cargo version of this one with a set of clamshell doors at the back of the center section, instead of the lounge, would look good.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,909
Reaction score
433
I've always thought that a cargo version of this one with a set of clamshell doors at the back of the center section, instead of the lounge, would look good.

Being a flying wing fan, I think any kind of flying wing, well most, anyway, look good. :)

Here's a Boeing Tandem Wing design.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638

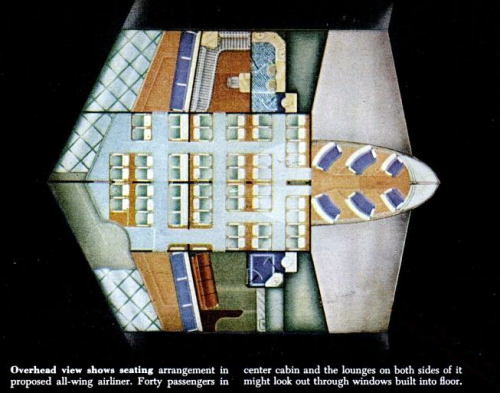

Attachments

  • 47.jpg
    114.9 KB · Views: 723
  • 49.jpg
    73.3 KB · Views: 613
  • 59.jpg
    112.2 KB · Views: 599
  • fw_r7_c11.jpg
    8.1 KB · Views: 2,484
  • fw_r8_c1.jpg
    4.7 KB · Views: 2,455
  • fw_r8_c3.jpg
    4 KB · Views: 2,418

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,432
Reaction score
287
Any chance of seeing some artr of the proposed airliner version of the XB-49 in commercial service? I'm thinking it might have done better, though, as a dedicated cargo aircraft with the rear lounge replaced by a "clamshell" hatch for cargo loading and unloading.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,358
Reaction score
2,200
Website
www.aerospaceprojectsreview.com




Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,358
Reaction score
2,200
Website
www.aerospaceprojectsreview.com

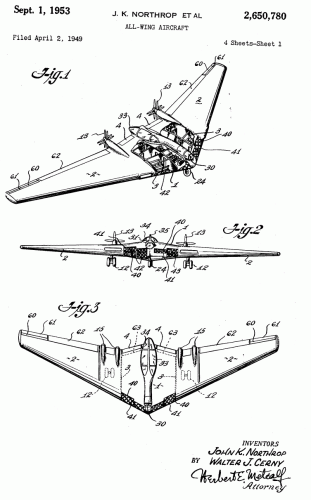

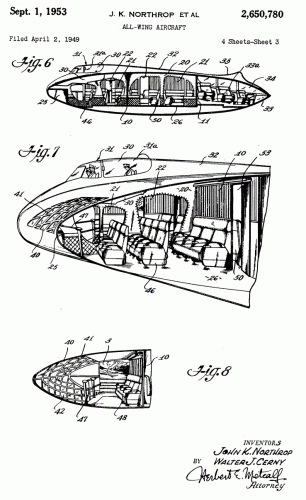

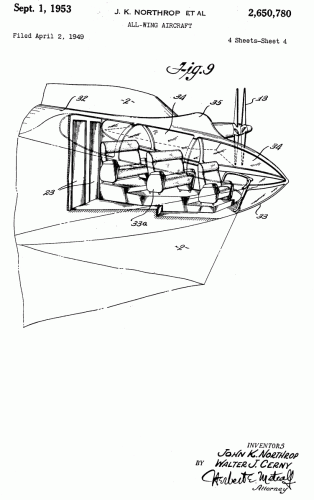

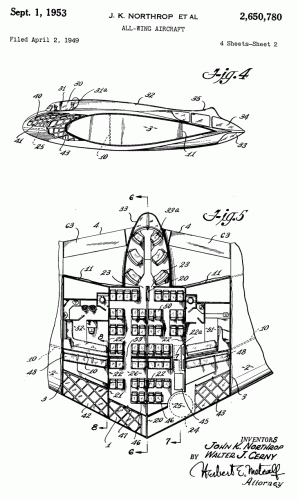

And the turboprop version:


Attachments

  • us002650780-004.gif
    93.6 KB · Views: 153
  • us002650780-003.gif
    152.9 KB · Views: 172
  • us002650780-002.gif
    153.8 KB · Views: 216
  • us002650780-001.gif
    107 KB · Views: 345

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,432
Reaction score
287
And I say that I imagine a cargo version of that airliner with the aft lounge replaced by clamshell doors similar to those used on some C-119 variants; it'd make quite a transport. *chuckle* Reminds me of a diorama i've thought to do using one of the less-accurate B-2 models converted to a transport in the markings of "Aerotransportes Medellin" (much like the low-viz version of the Canadian roundel, but with a cocoa leaf, not a maple leaf).


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
763
Except that weights would have to be really scientifically balanced between the left-wing and right-wing (so to speak) payload. I am no expert in aerodynamics, bu I don't think a flying wing would be safe flying with much more luggage weight on one side than on the other. The volume of payload and position of payload in a conventional airliner is pretty much safe in this respect, because the payload remains located in the central axis of the aircraft. Payload that is not evenly spread in an airliner's hatch could affect pitch, but this can be corrected easily by the ailerons. By putting too much weight on one wing, however, there would be great difficulty in controlling roll, which can get pretty dangerous. Could anyone with solid knowledge on these questions confirm?


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,432
Reaction score
287
Well, yes, there'd obviously have to be some weight and balance concerns and book-keeping done for that purpose, but I don't see any insurmountable obstacles.


Bomiwriter

ACCESS: Confidential
Joined
Oct 9, 2008
Messages
58
Reaction score
4
Greetings from Bomiwriter. New gateway NB with my first wireless and its like a Lamborgini to my 2005 Gateway station wagon that paid for itself many times over. This is 3rd try and hope to get this rite...wright, no right once and for all. Found some many decades old but very small drawings from Northrop XB-35 engineering team showing three previous fly-wing designs before the finalised XB-35 built. I just cut n' pasted and supposing an interest from various chaps, can send it along this week. They were expanded just a bit so as to remain crips lines and it looks nice.

I need to address the Super-Hustler Marquardt RJ59 thing, cause AAHS asked me to write up a story on the Super Hustler design itself; I have those goods most all in drawings from Convair, simply outstanding nevertheless.

I'll start it as new topic. Hang tuff chaps.
Bomiwriter. I suppose I can find this site again and post the drawings here.


KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,043
Reaction score
45
I'm looking around for any significant data on the N-31 and N-31A.


I've been searching google and I've found little more than silhouettes and data about one variant having turboprops and another with six engines (jet). I'm uncertain what kind of payload it had and when the project began


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
763
KJ_Lesnick said:
I'm looking around for any significant data on the N-31 and N-31A.


I've been searching google and I've found little more than silhouettes and data about one variant having turboprops and another with six engines (jet). I'm uncertain what kind of payload it had and when the project began

You can't have been looking around real hard... We had no less than TWO separate topics on this forum and this very board! It's all now here, in the same place, and probably as much as you can ever find on the web regarding this topic. Of course there is also Tony Buttler's Secret Projects book which contains an item on the subject.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
763

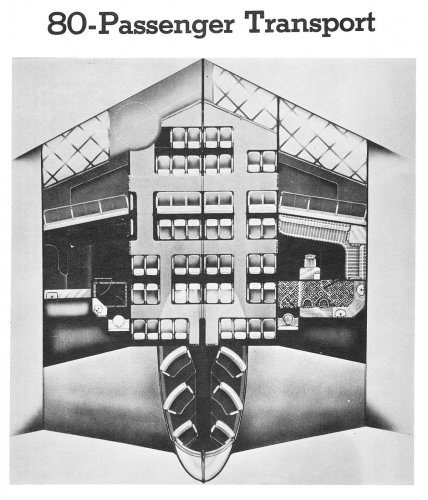

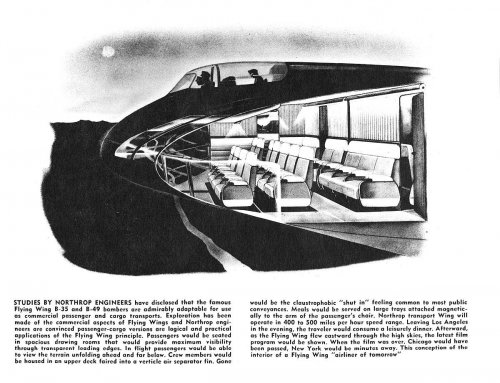

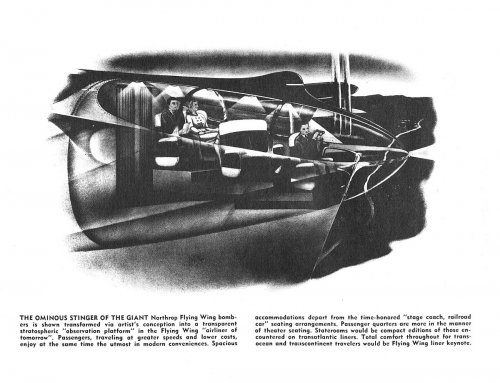

From Northrop Flying Wings, by Edward T. Maloney (World War II Publications, Revised Edition 1976):


Attachments

  • p3.jpg
    232.5 KB · Views: 128
  • p2.jpg
    362.6 KB · Views: 290
  • p1.jpg
    240.6 KB · Views: 286

NUSNA_Moebius

I really should change my personal text
Joined
May 26, 2012
Messages
191
Reaction score
62
Moreso than the cancellation of the B-35/49 program (and it's conspiracy theories), to me, the worst part is the literal theft of the XT-37 from Northrop. As great as jet engines are, in the era before turbofans, turboprops made too much sense for many roles and had so much potential that was never realized in the West. Seems the N-31 or a purely turboprop B-47 1 would've made the basis for a good Navy ASW patrol aircraft. It would be interesting for someone to calculate the fuel savings over the years for some of the viable aircraft that could've made do having their turbojets replaced with turboprops despite the slight loss in cruise speed and increased maintenance.

I guess turboprops were just not sexy enough.......


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,909
Reaction score
433
NUSNA_Moebius said:
Moreso than the cancellation of the B-35/49 program (and it's conspiracy theories), to me, the worst part is the literal theft of the XT-37 from Northrop. As great as jet engines are, in the era before turbofans, turboprops made too much sense for many roles and had so much potential that was never realized in the West. Seems the N-31 or a purely turboprop B-47 1 would've made the basis for a good Navy ASW patrol aircraft. It would be interesting for someone to calculate the fuel savings over the years for some of the viable aircraft that could've made do having their turbojets replaced with turboprops despite the slight loss in cruise speed and increased maintenance.

I guess turboprops were just not sexy enough.......

The problem the west had with turboprops back then was designing the gearboxes for them. Our designs were less than stellar and turbojets were advancing quite rapidly at the time. Boeing did look at TP's for the B-52, but jet powerplants met the requirements with better performance overall.


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,406
Reaction score
151
Website
cluttonfred.info
And don't forget about the historical context we were talking about. Fuel was cheap, so fuel economy was not a driving factor unless it impeded operational requirements like range. The full-size Chevrolets with inline-engines 3.5 liters and bigger were the most popular American car for decades and got about 10-12 mpg around town and maybe 16 mpg at highway speeds. That's 20-24 l/100km to 15 l/100km for the metric folks among us.


RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
697
Reaction score
485

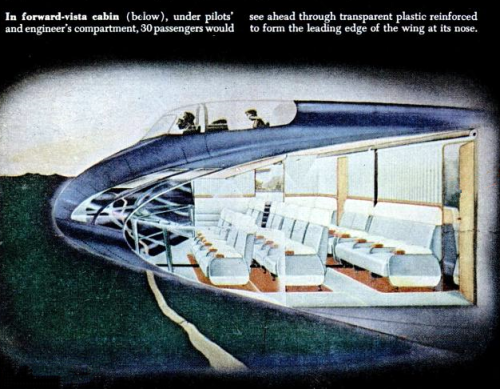

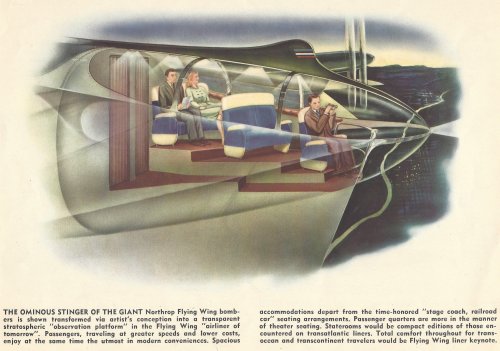

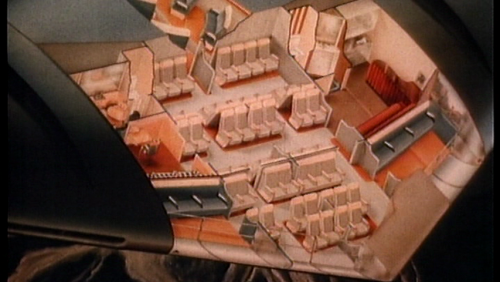

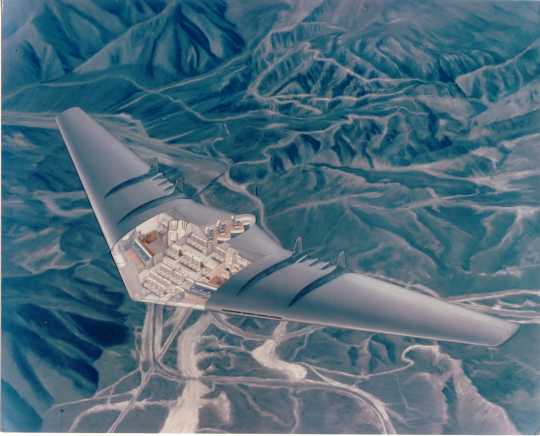

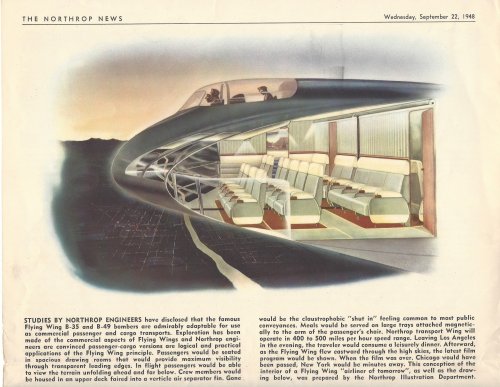

These two pictures have been posted before, one looks like a screen shot the other in b/w. These two are from Northrop News.


Attachments

  • fw.jpg
    1.5 MB · Views: 92
  • fw1.jpg
    1.3 MB · Views: 111

taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
330
Reaction score
228
So does any of the literature state whether the flying wing airliner cabin would have been pressurized? The speeds stated for the jet versions anyway imply that this would have been necessary. I suspect that the structural difficulty and weight penalty of a wing-shaped pressure hull was a major reason why the flying wing airliner never got beyond the illustration stage.
