Northrop N-251 V/STOL Interceptor Aircraft

BlastWave

CLEARANCE: Restricted
Joined
Nov 26, 2015
Messages
26
Reaction score
0
Hello!

Here are two fictitious side profiles of the Northrop Grumman N-251 supersonic V/STOL demonstration aircraft, meant to resemble what it would look like if it made it to production and service of the USAF.





Thread with original desk model images: https://www.secretprojects.co.uk/forum/index.php/topic,16621.0


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,405
Reaction score
20
It's certainly one of the strangest designs I've seen.


yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
1,918
Reaction score
19
It is also certainly nice art work


circle-5

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,161
Reaction score
11
sferrin said:
It's certainly one of the strangest designs I've seen.

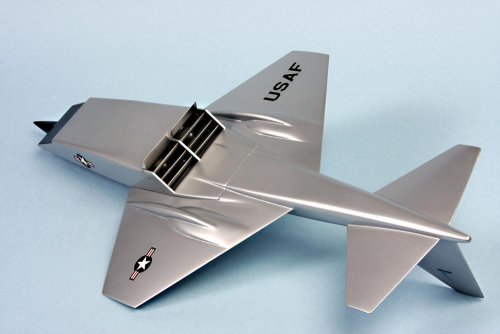

Like the X-14, the DuPont DP-1, The Bell Seakat and others, the N-251 needs to have the thrust-vectoring exhaust louvers exactly at the CG for VTOL. The simplest and most efficient way to do this is to place the entire engines forward of those louvers, which dictates the aircraft's unusual appearance. Attached photo shows the underside of the airplane.

Good job, blastwave. If you need other views of this contractor model, just send me a PM.


Attachments

Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,882
Reaction score
0
Nice synergy! I really love how this forum brings together people with artefacts, researchers, and artists. It is a pleasure to see!


ivran

CLEARANCE: Confidential
Joined
Jan 20, 2008
Messages
143
Reaction score
0
Very nice, impresive work, any drawing?
