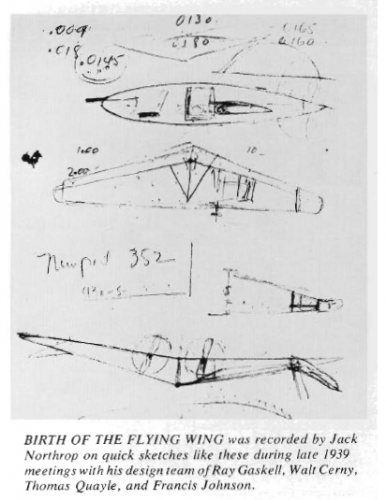

hesham ACCESS: USAP Senior Member Joined 26 May 2006 Messages 32,667 Reaction score 11,872 17 June 2015 #1 Hi, here is the Northrop N-1M early sketch from the book; Northrop an Aeronautical History Attachments Northrop.png 150.1 KB · Views: 351

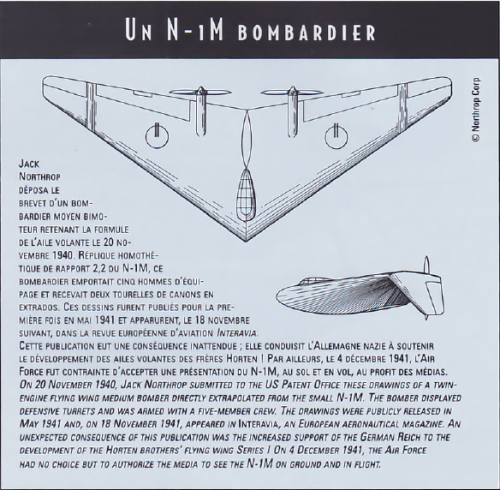

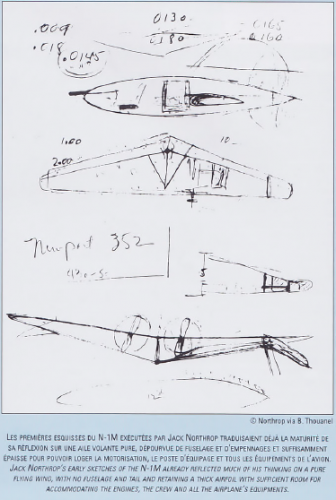

hesham ACCESS: USAP Senior Member Joined 26 May 2006 Messages 32,667 Reaction score 11,872 3 January 2016 #2 And from Air Fan Horse 10, the early N-1M and the final drawings for it. Attachments a.png 227.9 KB · Views: 211 b.png 298.2 KB · Views: 193 c.png 489 KB · Views: 183
Dynoman ACCESS: Top Secret Senior Member Joined 29 July 2009 Messages 1,525 Reaction score 1,531 3 January 2016 #3 Excellent find! Such a simple drawing and beginning for a pioneering aircraft.
hesham ACCESS: USAP Senior Member Joined 26 May 2006 Messages 32,667 Reaction score 11,872 3 January 2016 #4 Dynoman said: Excellent find! Such a simple drawing and beginning for a pioneering aircraft. Click to expand... Thank you Dynoman.
