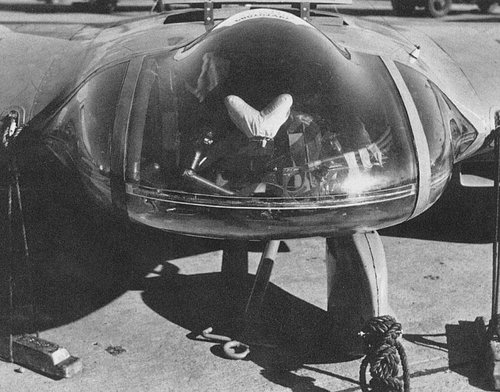

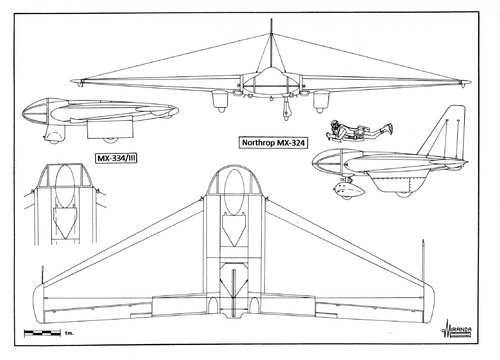

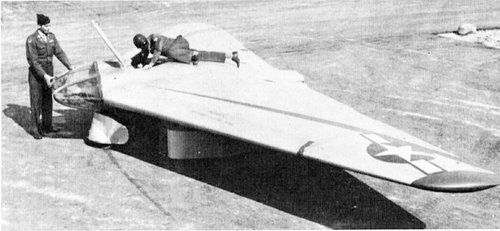

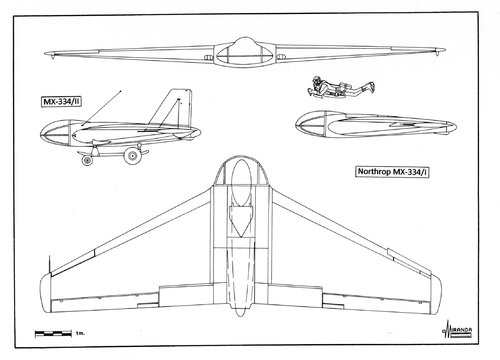

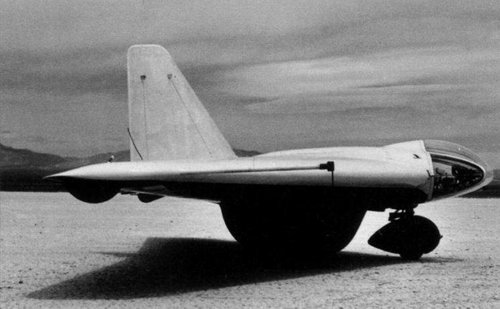

Technical data (MX-334/II)

Wingspan: 10.90 m (35.7 ft), length: 4.34 m (14.2 ft), height: 2.13 m (7 ft), wing area: 23.41 sq.m (260 sq.ft), max weight: 1,656 kg (3,656 lbs), estimated max speed: 480 kph (298 mph), ceiling: 5,200 m (17,056 ft), range: 480 km (298 mls).

Airframe: wood/plywood/steel tubing.


Attachments

  • 174.jpg
    218.9 KB · Views: 102

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,065
Reaction score
4,152
Hi!

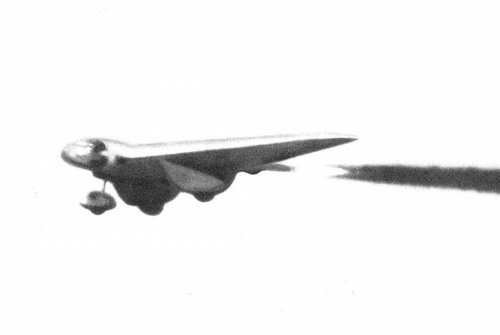

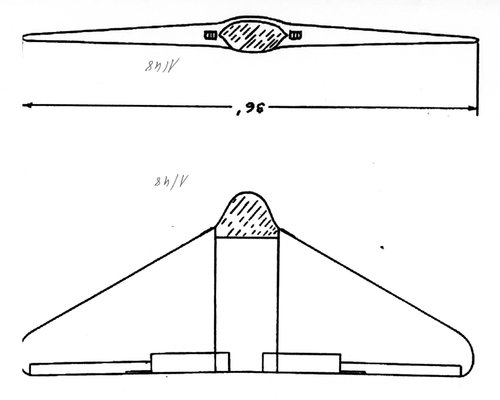

According to Justo-san's drawing, MX-334Ⅰdid not have a vertical tail stabilizer.


Attachments

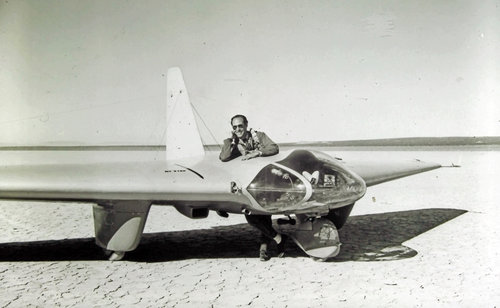

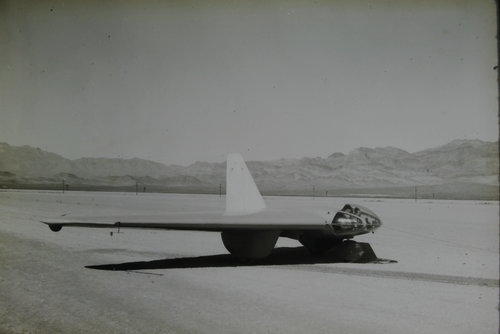

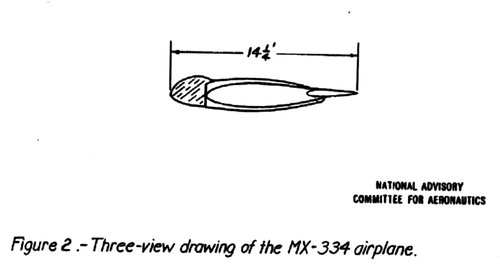

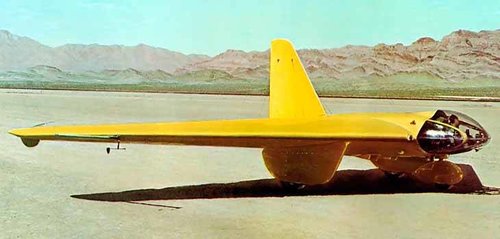

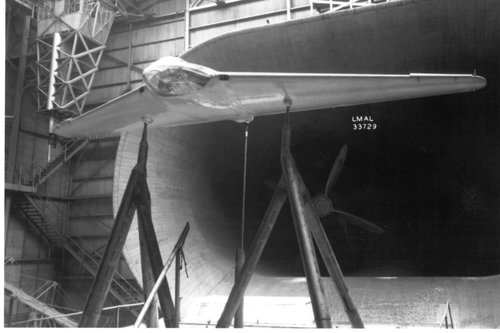

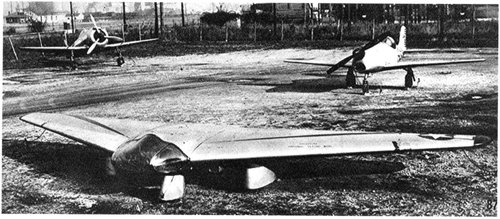

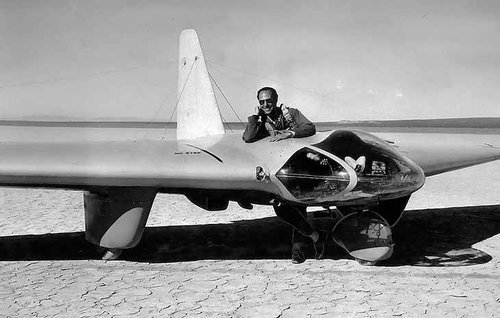

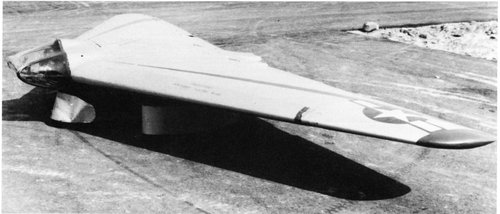

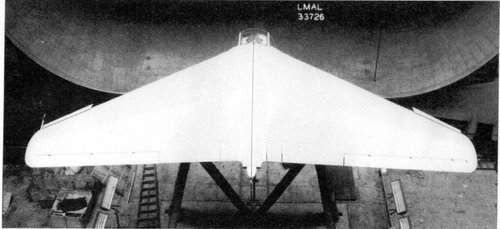

  • 1506518487_northrop-mx-334-zonwar_ru-2.jpg
    28.7 KB · Views: 60
  • 1506518488_northrop-mx-334-1.jpg
    41.7 KB · Views: 37
  • 1506518508_northrop-mx-334-3.jpg
    88.3 KB · Views: 37
  • 1506518546_northrop-mx-334-4.jpg
    15.5 KB · Views: 38
  • 1506518573_northrop-mx-334-5.jpg
    43.9 KB · Views: 46

BillRo

ACCESS: Secret
Senior Member
Joined
May 12, 2008
Messages
205
Reaction score
220
Here is a Northrop slide, taken from a 1944 print of the rocket-powered MX-wing, plus a better copy of and image above.


Attachments

  • IMAG0028.JPG
    2.3 MB · Views: 24
  • IMAG0027A_edited-1.jpg
    289.7 KB · Views: 29
