North American F-86 Sabre - special variants and projects

Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,251
Reaction score
920
Hi !

For some days i have seen a little article (i don't remember where :-\ , maybe in the french Air & Cosmos Magazine) about a supersonic F-86. It was a modified canadian F-86 with a mightier Orenda engine and a modified fuselage. But the prototype failed to achieve expected performances and this plane ended as a QF-86 target.

A forum's member knows something about this plane ?


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
17
I'm guessing it's the XF-93 (or at least similiar to it)

http://en.wikipedia.org/wiki/North_American_YF-93


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,094
Reaction score
225
The CAC Sabre which had an Avon engine was transonic. Does that count?


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,649
Reaction score
508
I'm guessing it's the XF-93 (or at least similiar to it)

The XF-93 was a different beast and neither a supersonic design.

Studies at North American for a supersonic Sabre existed under designation "Sabre 45". The idea, from 1949, was to replace the 35º wing with a new 45º one coupled with a more powerful engine then in development (P&W J57). An all weather configuration was offered to USAF but the military requested a daytime version. The final configuration led to the F-100 Super Sabre.

I have nothing about this Orenda Sabre but I'll keep on searching


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,226
Reaction score
247
YF-93 thrust/weight ratio 0.36:1.... Gulfstream V 0.4:1... and by the way the YF-93 number is WITH burner!

Arf! Arf!

J

joncarrfarrelly

Guest

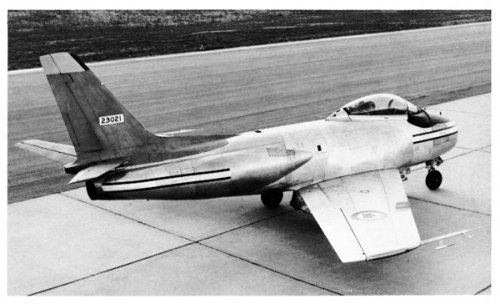

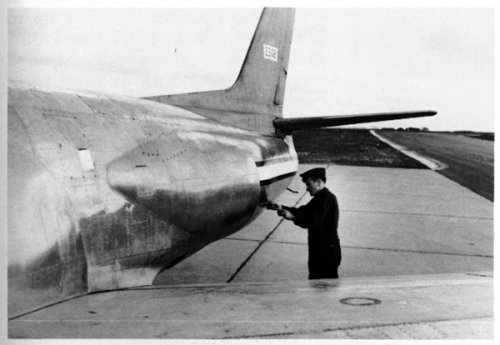

Canadair CL-13E, Sabre Mk.5 23021, c/n 811, NAE research aircraft, MAS FS(N1049D) crashed White Sands 1/2/80.

Pics from 'The Canadair Sabre', Larry Milberry, CANAV 1986

Cheers, Jon


Attachments

  • CL-13E_01sm.jpg
    133.4 KB · Views: 949
  • CL-13E_02sm.jpg
    138 KB · Views: 835

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,778
Reaction score
3,153
Website
www.aerospaceprojectsreview.com

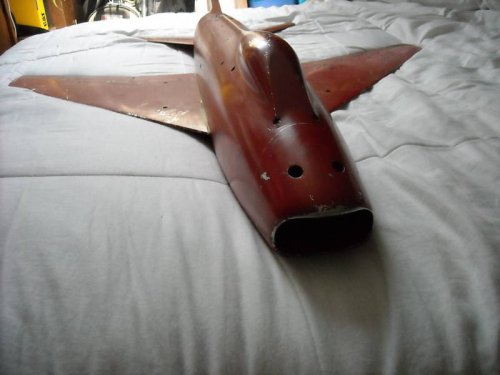

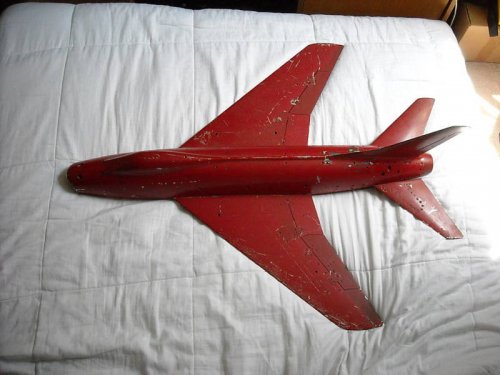

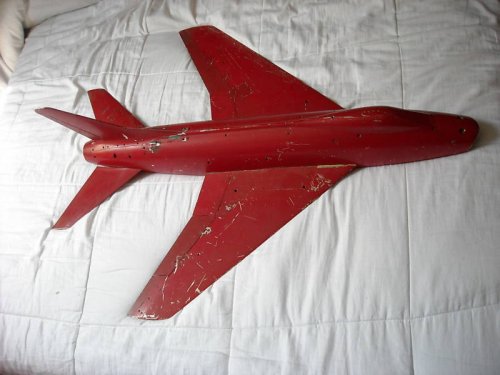

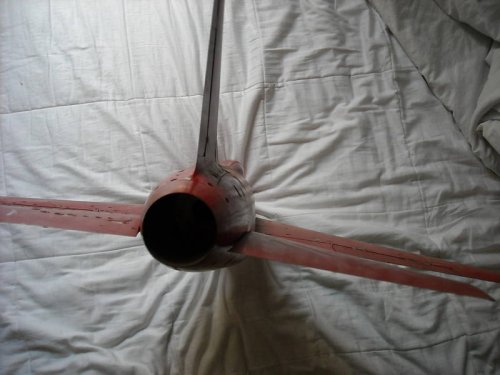

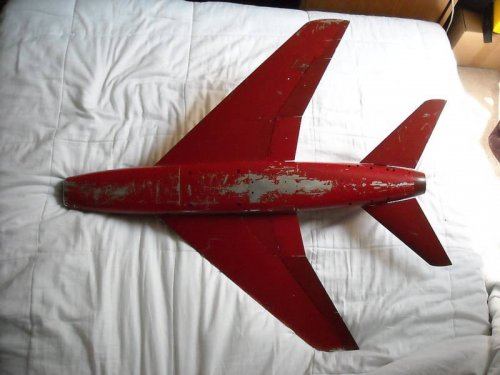

Original, North American F-86, Wind Tunnel Test Model

[link no longer active]


Attachments

  • 1.jpg
    52.1 KB · Views: 587
  • 2.jpg
    50.1 KB · Views: 486
  • 3.jpg
    48.4 KB · Views: 482
  • 4.jpg
    38.6 KB · Views: 116
  • 5.jpg
    46.9 KB · Views: 106
  • 6.jpg
    46 KB · Views: 142

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,266
Reaction score
63
Orionblamblam said:
Original, North American F-86, Wind Tunnel Test Model
http://cgi.ebay.com/Original-North-American-F-86-Wind-Tunnel-Test-Model_W0QQitemZ320568707479QQcategoryZ86954QQcmdZViewItemQQ_trksidZp4340.m8QQ_trkparmsZalgo%3DMW%26its%3DC%26itu%3DUCC%26otn%3D5%26ps%3D63%26clkid%3D6637177726201426368
I do believe it to be the pre F-100 known as the Sabre 45... SP


aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
635
Reaction score
429
The fuselage looks like a missing link: the Advanced Sabre or Sabre 45 perhaps. The wings, however are F-100D/F wings. The model also has the original horizontal stabilator, as well.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,129
Reaction score
669
G'day gents

I am once again going through my loved copy of Tony Buttler's American Secret Projects Fighters & Interceptors 1945-1978

In it is some great pictures of manufacturers models of the North American Aviation 'Advanced F-86' & 'Sabre 45' projects? (page 50 & 51) - the pre F-100 Super Sabre!

Does anyone have any profile / 3-view drawings and performance specifications of either of these designs?

Your assistance will be greatly appriciated

Regards
Pioneer


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,129
Reaction score
669

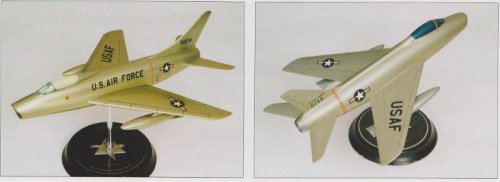

Sorry here are some photos from American Secret Projects Fighters & Interceptors 1945-1978 of models of the 'Advanced F-86 Day Fighter' (left) (by Jonathan Rigutto) and the 'Sabre 45 Air Superiority Fighter' (right) (by Jonathan Rigutto)

Regards
Pioneer


Attachments

  • advanced f86 & Sabre 45 001.jpg
    advanced f86 & Sabre 45 001.jpg
    37.9 KB · Views: 460

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,129
Reaction score
669
Just a friendly nudge to see if anyone has more information and profile drawings etc..... ;D


Regards
Pioneer


Spook

ACCESS: Confidential
Joined
Jul 6, 2012
Messages
148
Reaction score
17
Also there was a modified F-86 to test F-103 Periscope concept... the pictures had been already posted in another topic.. Does that get counted?


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,945
Reaction score
973
Ardavan.K said:
Also there was a modified F-86 to test F-103 Periscope concept... the pictures had been already posted in another topic.. Does that get counted?
I think you're referring to this modified Republic F-84G.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
820

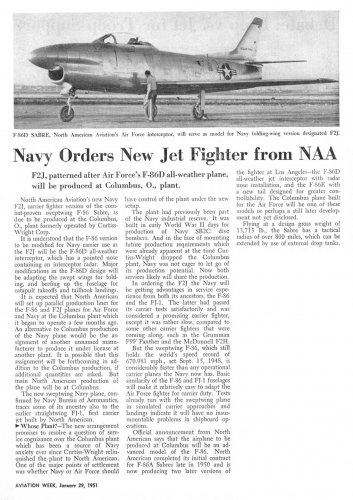

Several of us have pondered over the years what the "F2J" might have been, even on this very forum, but here is a January 29, 1951 article from Aviation Week which clearly states the U.S. Navy's plans to procure the F-86D as... the F2J.


Attachments

  • F2J project.jpg
    F2J project.jpg
    483.8 KB · Views: 406

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,129
Reaction score
669
Several of us have pondered over the years what the "F2J" might have been, even on this very forum, but here is a January 29, 1951 article from Aviation Week which clearly states the U.S. Navy's plans to procure the F-86D as... the F2J.
So what came of the USN /F2J/F-86D derivative??

Regards
Pioneer


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,129
Reaction score
669
On the topic of an all-weather F2J/F-86D, I'm just wondering if anyone is aware of whether NAA studied a traditional two-seat all-weather interceptor derivative of its F-86 Sabre design, before it derived the then highly technical F-86D single-seat all-weather interceptor?


Regards
Pioneer


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,624
Reaction score
1,093
On a related note (but not quite an "F-86 variant" as such):
Bubimat looks like it was designed to melt ice on runways.
The RCAF experimented with a similar system for de-icing their F-86 Sabres before take-off. They parked a pair of Sabres tail-to-tail with the gap slightly wider than the wingspan. They started both engines, then taxied a third Sabre between them.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,847
Reaction score
6,450
On the topic of an all-weather F2J/F-86D, I'm just wondering if anyone is aware of whether NAA studied a traditional two-seat all-weather interceptor derivative of its F-86 Sabre design, before it derived the then highly technical F-86D single-seat all-weather interceptor?


Regards
Pioneer
I think they did indeed, but I can't remember any details at the moment, sorry.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,129
Reaction score
669
On the topic of an all-weather F2J/F-86D, I'm just wondering if anyone is aware of whether NAA studied a traditional two-seat all-weather interceptor derivative of its F-86 Sabre design, before it derived the then highly technical F-86D single-seat all-weather interceptor?


Regards
Pioneer
I think they did indeed, but I can't remember any details at the moment, sorry.
Thanks for your response just the same Grey Havoc

Regards
Pioneer


T. A. Gardner

ACCESS: Secret
Joined
Feb 18, 2021
Messages
237
Reaction score
463
Several of us have pondered over the years what the "F2J" might have been, even on this very forum, but here is a January 29, 1951 article from Aviation Week which clearly states the U.S. Navy's plans to procure the F-86D as... the F2J.
So what came of the USN /F2J/F-86D derivative??

Regards
Pioneer

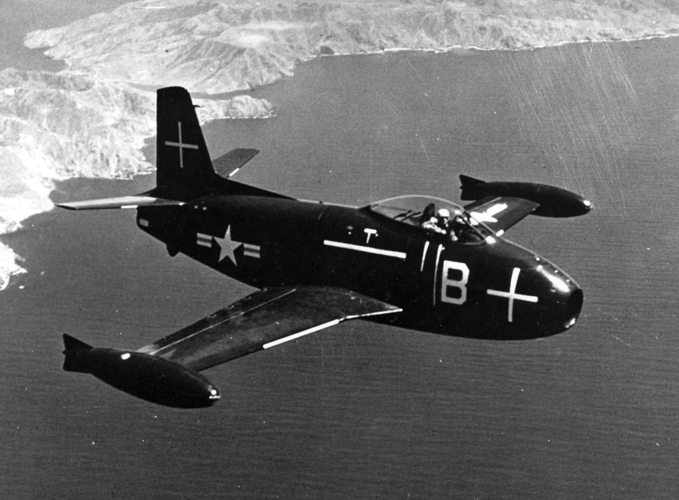

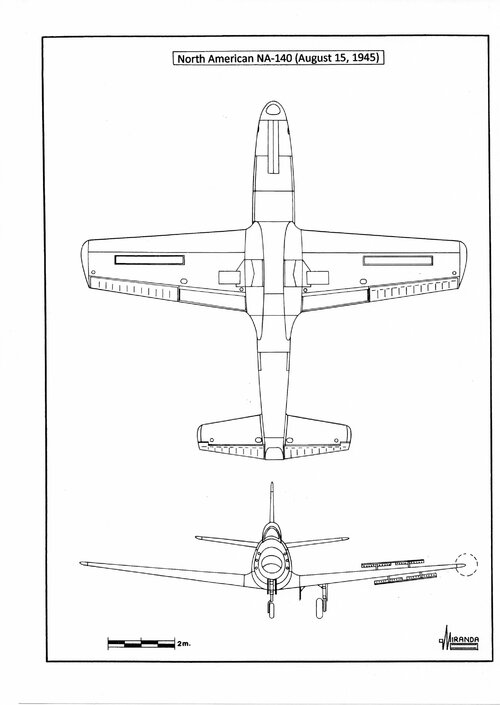

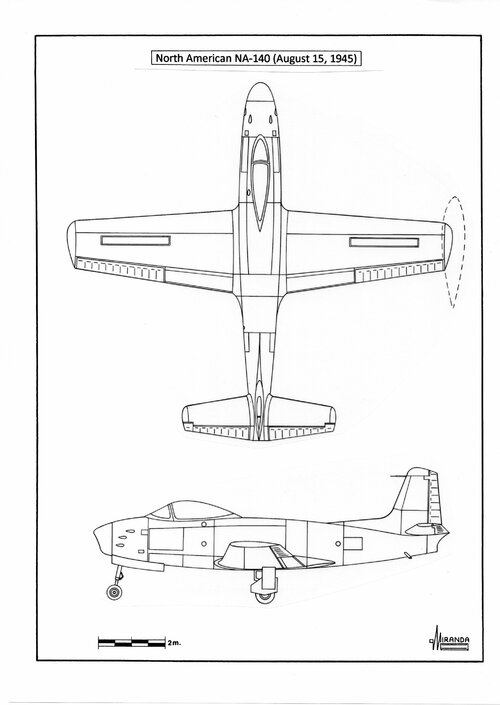

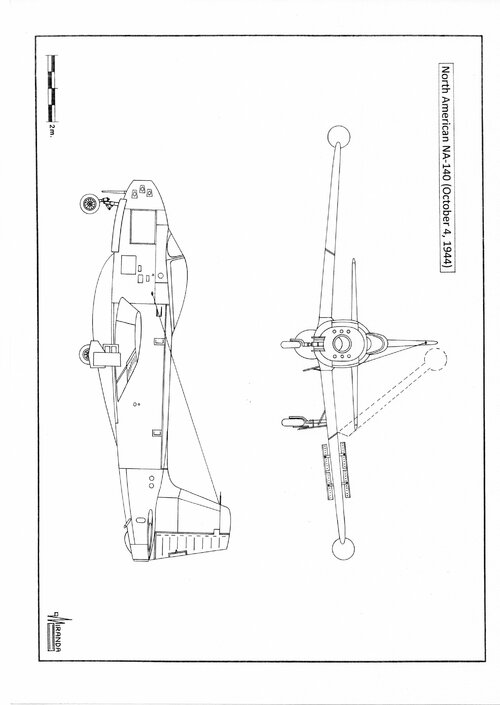

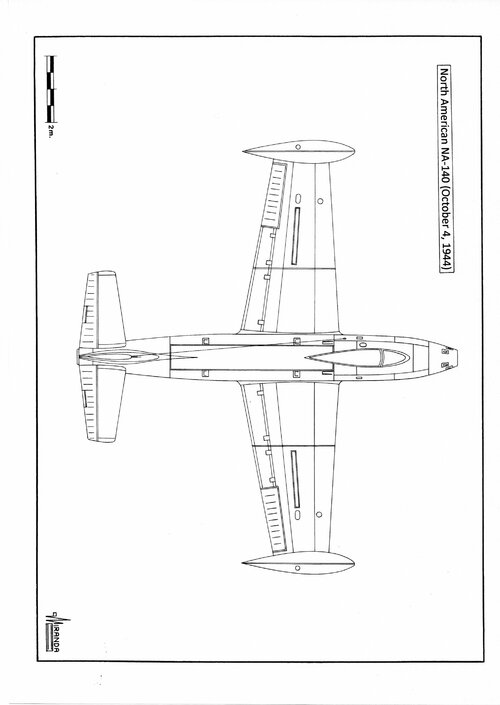

The FJ Fury series was the USN's development of a F-86 derivative that started with the original XF-86 "Jet Mustang." NAA and the USAF abandoned it shortly after WW 2 ended, but the USN continued development for a strike fighter.


The USN then decided to go with a variant of the F-86E as the FJ-2. This designation was because Congress was not approving new designs but was giving massive funding to upgrade existing ones. Otherwise, the FJ-2 would have become the F2J a totally new aircraft.

Anyway, the F-86E as the NA-179, 181, 185 (variously) was modified to take 4 20mm Colt Oerlikon copies from WW 2 as they were intended mostly for ground support. The plane had all the usual navalization and included a longer nose wheel to increase the angle of attack on take off.

The FJ-3 was a much more modified F-86 and was no longer really compatible with the USAF version.

The final FJ-4 (AF-1E) was a completely different machine that had no relationship to the F-86 series other than a vague resemblance.


ggova

I really should change my personal text
Joined
Oct 27, 2014
Messages
4
Reaction score
9
Hi all,

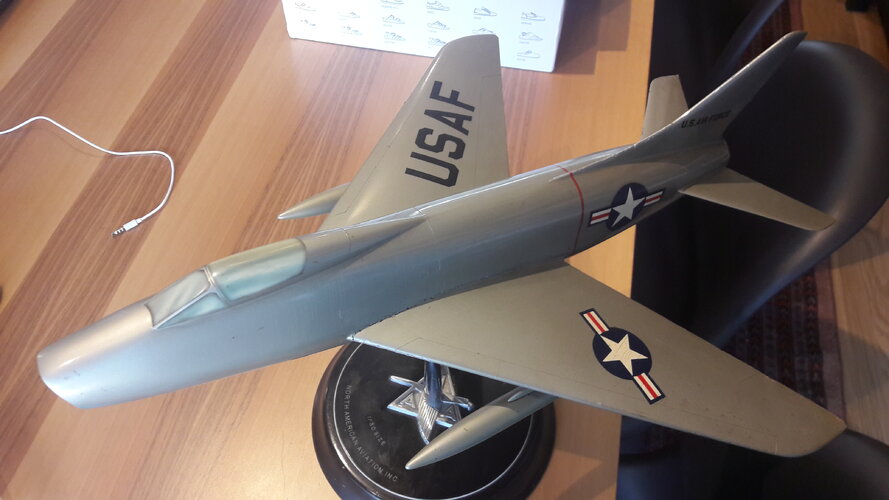

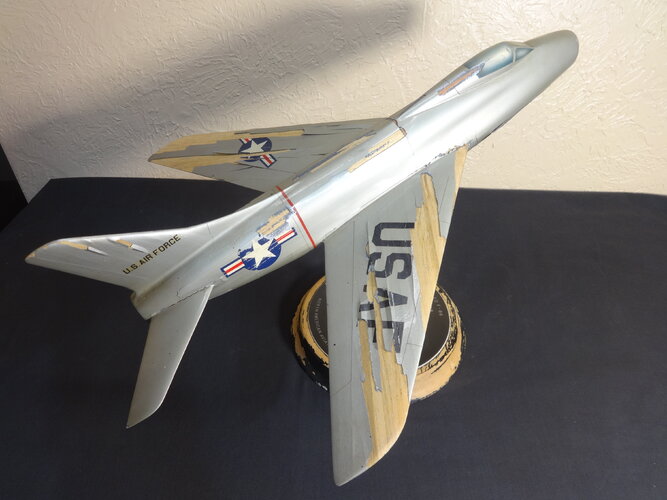

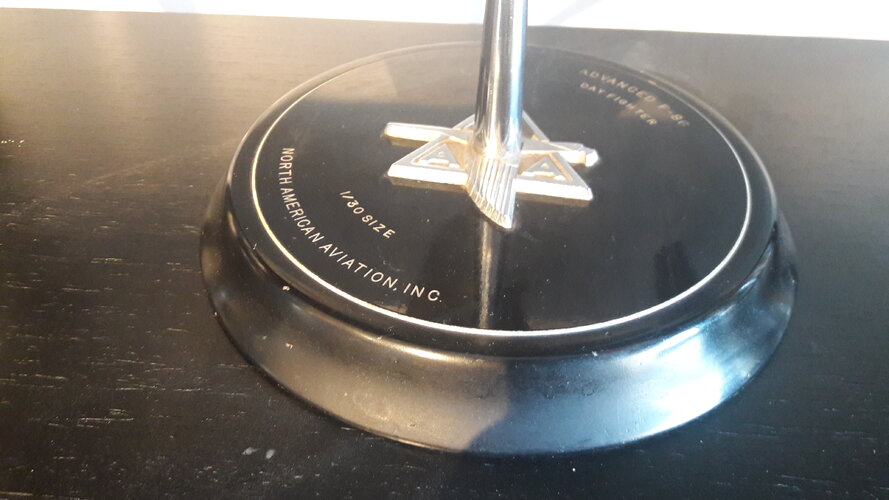

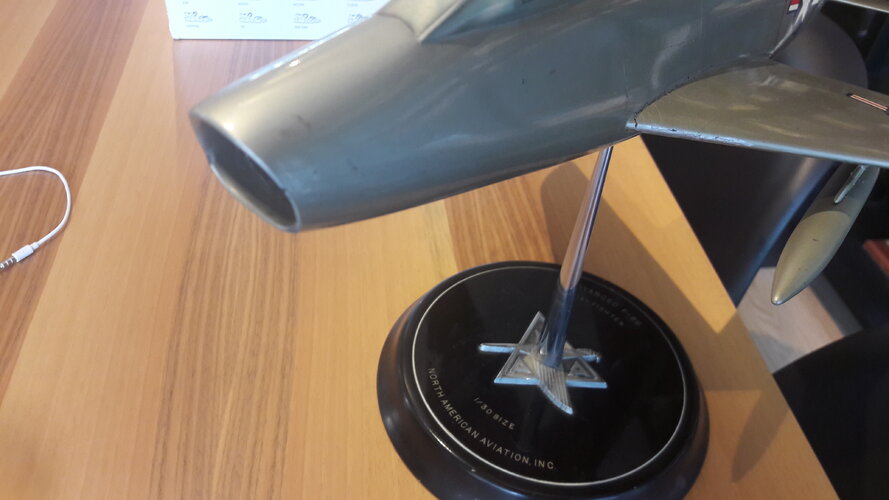

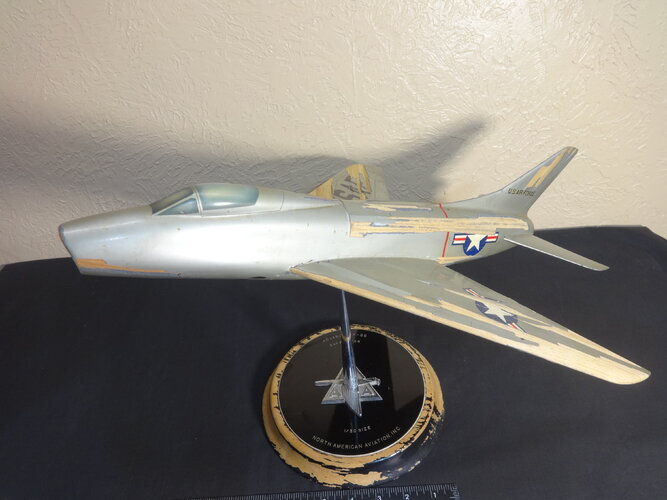

Here is another model of a NAA F-86 Advanced Day Fighter in 1/30th scale that came up for sale last week.
Also attached a close-up photo of the nose section.....
Hope you enjoy.


Attachments

  • 20210412_090506.jpg
    2.3 MB · Views: 80
  • 20210412_090418.jpg
    2.9 MB · Views: 76
  • 20210412_090516.jpg
    2.2 MB · Views: 104

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
641
Reaction score
396
On the topic of an all-weather F2J/F-86D, I'm just wondering if anyone is aware of whether NAA studied a traditional two-seat all-weather interceptor derivative of its F-86 Sabre design, before it derived the then highly technical F-86D single-seat all-weather interceptor?


Regards
Pioneer
I think they did indeed, but I can't remember any details at the moment, sorry.
If my memory serves me well, an all-weather F-86 variant for NATO countries, which eventually became F-86K, initially was to be a two-seater. Such was a requirement of the countries in question. Then it turned out that the radar operator was not necessary, so F-86K remained single-seater.
Piotr


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,129
Reaction score
669
On the topic of an all-weather F2J/F-86D, I'm just wondering if anyone is aware of whether NAA studied a traditional two-seat all-weather interceptor derivative of its F-86 Sabre design, before it derived the then highly technical F-86D single-seat all-weather interceptor?


Regards
Pioneer
I think they did indeed, but I can't remember any details at the moment, sorry.
If my memory serves me well, an all-weather F-86 variant for NATO countries, which eventually became F-86K, initially was to be a two-seater. Such was a requirement of the countries in question. Then it turned out that the radar operator was not necessary, so F-86K remained single-seater.
Piotr
Thank you for your replies Grey Havoc & Petrus

Regards
Pioneer


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,877
Reaction score
1,536
Canadair CL-13E, Sabre Mk.5 23021, c/n 811, NAE research aircraft, MAS FS(N1049D) crashed White Sands 1/2/80.

Pics from 'The Canadair Sabre', Larry Milberry, CANAV 1986

Cheers, Jon
Area rule?

Yes.

From CASM's Canadair CL-13B / F-86 Sabre Mk 6 RCAF Golden Hawks Serial 23651, Bill Upton, page 9:

"Two Canadair Sabre aircraft were modified under the auspices of the Uplands-based CEPE [Central Experimental and Proving Establishment] and the NAE [National Aeronautical Establishment, Ottawa] for research and test purposes of thrust augmentation and aerodynamics improvements. The first modification went to former RCAF Sabre Mk 5 [RCAF] serial 23021 [c/n 811]. From May to July 1955, Canadair heavily modified the exterior contours of this aircraft with sonic drag reducing fairings made out of wood and aluminum, to produce Richard Whitcomb’s area-rule or “Coke-bottle” shape. Now designated the CL-13E, numerous flight tests were performed by the NAE in 1956 without showing any major performance improvements. ..."
