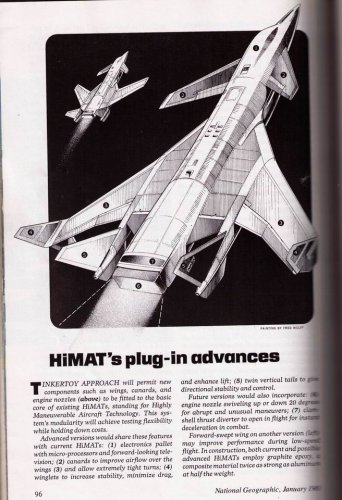

These scanned pitures are from the article "They're Redesigning the Airplane", written by Micheal E. long and James A. Sugar and published in the magazine "National Geographic", January 1981, Vol. 159, No.1.

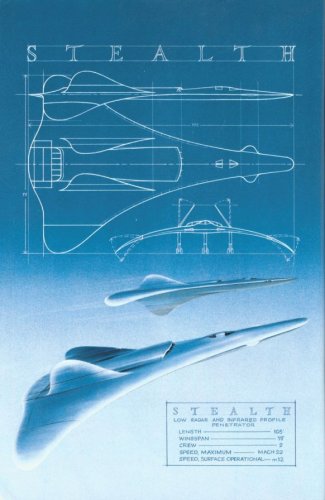

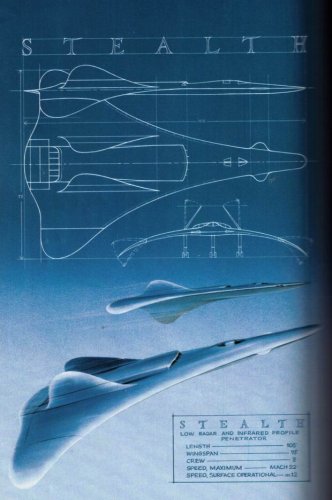

The stealth fighter looks like a larger two seater version of the Loran concept of the "F-19 Stealth Figther". Painting by NGS Artist William H. Bond.
I would also love those models hanging in my bedroom ;D


Attachments

  • NGS_01_81_p91b.jpg
    102.5 KB · Views: 540
  • NGS_01_81_p96b.jpg
    138 KB · Views: 448
  • NGS_01_81_p102a.jpg
    81.3 KB · Views: 435

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,546
Reaction score
1,234
The model "subsonic transport aircraft with canards" in the hands of Bard Allison seems to me a model of the Lockheed nuclear-powered aircraft studies.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,649
Reaction score
511
I realised that the black plane in the right up corner can be Lockheed´s AMSA bomber

You're right Matej. There is a 3 view drawing of this AMSA design at Jay Miller's Lockheed Skunk Works book

http://www.amazon.com/Lockheed-Martins-Skunk-Works-Official/dp/1857800370


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,439
Reaction score
313
I'll have to re-size them to fit here, but I've got good scans of that last page and of a close-up of the 3-view there. I've got the entire magazine if anyone wants scans.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,649
Reaction score
511
I've got the entire magazine if anyone wants scans.

could you please email me a copy?

pometablava@yahoo.es


Thanks a lot :)


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,439
Reaction score
313
Okay, copies are emailed to those who asked for them. Here are forum compatible versions of both scans:


Attachments

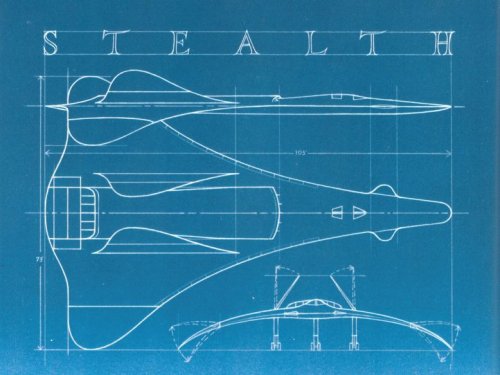

  • early stealth for web.jpg
    early stealth for web.jpg
    73 KB · Views: 236
  • early stealth three-view for web.jpg
    early stealth three-view for web.jpg
    66.6 KB · Views: 252
