NASA span wise adaptive wing

ford_tempo

CLEARANCE: Confidential
Joined
Jan 31, 2011
Messages
74
Reaction score
0
Hi

I have found this presentation that I could not find on this forum yet:

https://www.nasa.gov/feature/nasa-to-test-in-flight-folding-spanwise-adaptive-wing-to-enhance-aircraft-efficiency

and

https://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/20170009544.pdf

on a concept for wings that fold in flight under study at NASA

best

F_T


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,006
By the way,

I sent this idea to Boeing company from long time ago ?!.


fredymac

CLEARANCE: Top Secret
Joined
Dec 14, 2009
Messages
1,532
Reaction score
87
https://www.youtube.com/watch?v=9y1kkG2_QpE


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,006
TomcatViP said:
Did they reply?
Of course,they wanted a more useful ideas,by that time,I could't say anything ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,006
hesham said:
hesham said:
By the way,

I sent this idea to Boeing company from long time ago ?!.

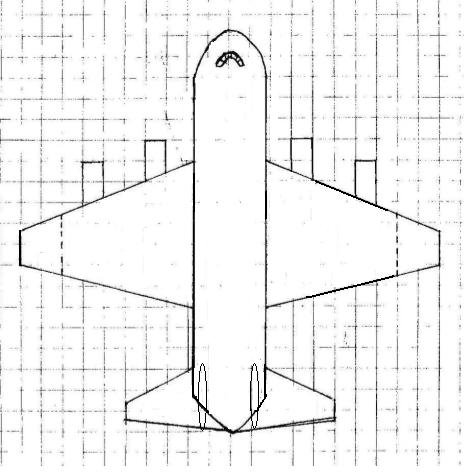

Here it's.

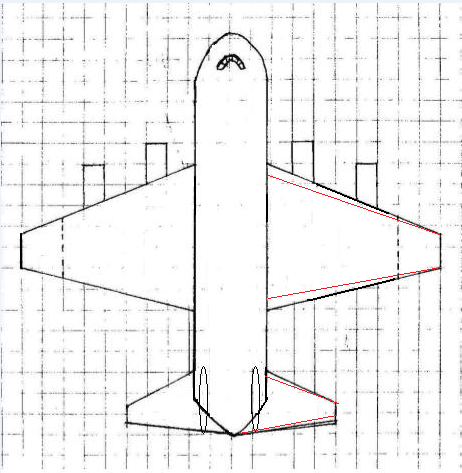

Actually I designed this concept to use in condition "A" in takeoff and condition "B"
in landing,but what NASA done,it is wrong,there most not make the degree 90,they
have to simulate my form exactly,and I will send to NASA,they know me very well
and I had an account in their site,but I did't talk to them from many years.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,006
By the way,

my design was a military transport,could carry overload,and the broken wings help
in avoiding problems at takeoff and landing.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,006
hesham said:
hesham said:
By the way,

I sent this idea to Boeing company from long time ago ?!.
Here it's.
And condition "B" is used in also in case of lost one or two engines,the aircraft can
make a successful landing by turn this edge at that degree,not 90 degree.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,198
Reaction score
393
Hmmm, I've seen this before somewhere. . .oh yes:

(2:20)

And they didn't even need a special NASA program to figure it out.

Last edited:

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,006
But no one thought it was useful for heavy transport.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,198
Reaction score
393
hesham said:
But no one thought it was useful for heavy transport.
It was the heaviest aircraft in the world when it flew.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,006
sferrin said:
It was the heaviest aircraft in the world when it flew.
There was a differences.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,198
Reaction score
393
hesham said:
sferrin said:
It was the heaviest aircraft in the world when it flew.
There was a differences.
My point is they didn't need to build a special X-plane to figure out how to do it. They just said, "we need this" and did it.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,006
Believe me,that's concept is perfect for transport aircraft,as I explained before,and it's
stupid if they ignore it.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,198
Reaction score
393
hesham said:
Believe me,that's concept is perfect for transport aircraft,as I explained before,and it's
stupid if they ignore it.
I never said it was bad.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,006
sferrin said:
hesham said:
Believe me,that's concept is perfect for transport aircraft,as I explained before,and it's
stupid if they ignore it.
I never said it was bad.
it's bad if they don't use my idea in transport aircraft.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Joined
Jul 19, 2016
Messages
961
Reaction score
90
Saying it is your design is imho, wrong. Whether it be used on transport aircraft or not, the design was extant. A half competent lawyer would reveal a new method of sitting down on a three legged stool to you if you tried to insist otherwise. Not a personal or any other kind of attack but I have been there myself and it hurts.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,006
Hi,

that's a best thing to employ the aeronautic in its place,believe me it makes for transport aircraft,and if NASA
tries to use it on a medium cargo/airliner as my design,they will see the benefits of STOL capacity for takeoff
from a normal concept and a very good and safety landing,they can contact me.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,119
Reaction score
1,006
One more thing,I can fix any problem in design to be useful.
