A portable, tactical approach guidance (PTAG) system, based on a novel, X-band, precision approach concept, was developed and flight tested as a part of NASA's Rotorcraft All-Weather Operations Research Program. The system is based on state-of-the-art X-band technology and digital processing techniques. The PTAG airborne hardware consists of an X-band receiver and a small microprocessor installed in conjunction with the aircraft instrument landing system (ILS) receiver. The microprocessor analyzes the X-band, PTAG pulses and outputs ILS compatible localizer and glide slope signals. The ground stations are inexpensive, portable units, each weighing less than 85 lb, including battery, that can be quickly deployed at a landing site. Results from the flight test program show that PTAG has a significant potential for providing tactical aircraft with low cost, portable, precision instrument approach capability.

Development of a portable precision landing system (1986)

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19870004877.pdf


Attachments

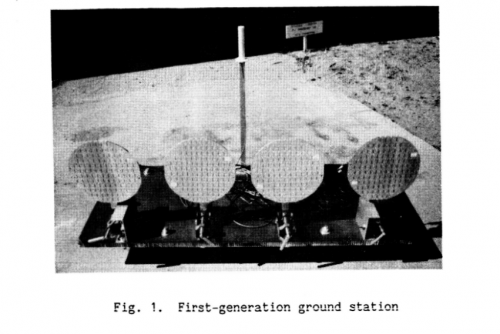

  • PTAG_Localizer_First_Version.png
    300.4 KB · Views: 48

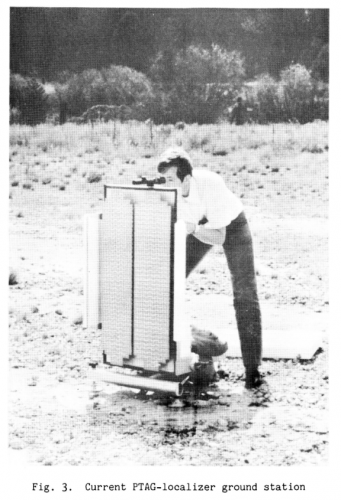

  • PTAG_Localizer_Second_Version.png
    484 KB · Views: 45
