From a pdf file about oblique-wing aircraft;


From mid-1974 to mid-1975, Ames studied a
“dash-on-warning” air mobile Intercontinental
Ballistic Missile (ICBM) launch platform. This
study, conducted for the Air Force Space and Missile
Systems Organization (SAMSO), evaluated aircraft
designs that could dash supersonically to a perimeter
area and then loiter for six hours at a time – ready to
air launch two internally housed ICBMs – each
weighing 100,000 lb (90,700 kg). A total of eight
configurations were explored, including two
concepts that were called “two position oblique wing

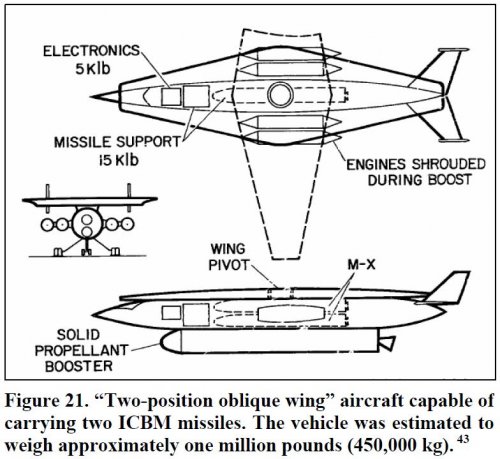

designs.” These two concepts (one of which is
shown in Figure 21) used a rocket-boosted take-off
to reach supersonic speeds with the wing completely
rotated to 90°. It would then rotate to 0° for long
term loiter. While not flying steady state with the wing at an oblique angle, it would still have transitioned between
the two positions. No research appears to have been conducted into this transient wing movement, however. 43
Another Ames study, conducted from early 1975 to early 1976 with the Naval Postgraduate School, developed a
conceptual design of a “two-position oblique wing” carrier aircraft that was “armed with a special weapon system.”
The wing was again rotated to the 90° position, this
time for stowage on deck.


Attachments

  • SAMSO.JPG
    88.6 KB · Views: 305

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,295
Reaction score
1,254
hesham said:
From a pdf file about oblique-wing aircraft;

... from "A Summary Of A Half-Century of Oblique Wing Research" by Mike Hirschberg, David M. Hart and
Thomas J. Beutner to be a little bit more precise.
And it was a NASA study ... ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,790
Reaction score
4,943
Thank you my dear Jemiba for that correction.
