NASA/Langley Hypersonic Missiles

[hesham]

Hi,


http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19790013251_1979013251.pdf



[quellish]

Hi,


http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19790013251_1979013251.pdf

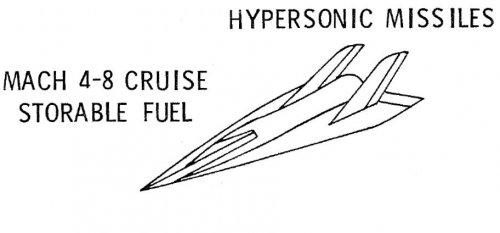

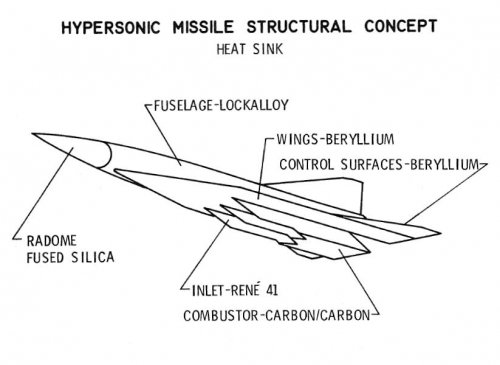

Last image is very, very interesting.



[hesham]

Thank you Quellish.



[flateric]

Aerodynamic and Inlet Flow Characteristics of Several Hypersonic Airbreathing Missile Concepts
James L. Dillon , Don C. Marcum Jr. , Patrick J. Johnston and James L. Hunt
Journal of Aircraft
Volume 18, Issue 4
July 1981

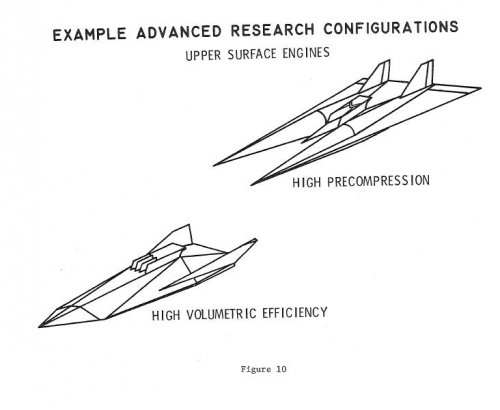

This shape was the result of a parametric study aimed at
simultaneously achieving high aerodynamic performance
(L/D<<4.0), good volumetric efficiency (K2/5/<<0.23) and
stealth in a vehicle designed for long-range cruise at Mach 6.
