NASA Hyper-Agility Planform Model

Sentinel36k

Nothing to fear but a high radar cross section
Joined
Oct 31, 2013
Messages
43
Reaction score
1

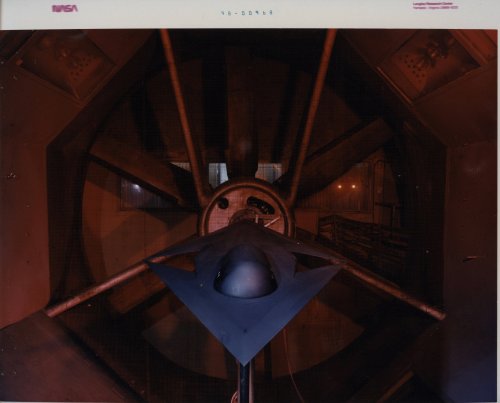

I found this set of wind tunnel model configurations while poking around the NASA langley page. Haven't been able to find any other data other than the photos has anyone seen or heard about them before? http://crgis.ndc.nasa.gov/historic/12-Foot_Low_Speed_Tunnel_Models_A-M


Attachments

  • 98-00968.jpg
    554.1 KB · Views: 575

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,945
Reaction score
505
Yes, there is a link at this site somewhere to a paper on the various planforms that were tested, one of them having the double diamond canard as seen on the Northrop "Christmas Tree" fighter design. The planform you show in that image is also discussed in the paper. It's the NASA paper 1999-01-5619, Advanced Aerodynamic Control Effectors. The configuration shown in the image is the joined wing configuration. I think this was discussed in the thread on the I.C.E. technology research.


Sentinel36k

Nothing to fear but a high radar cross section
Joined
Oct 31, 2013
Messages
43
Reaction score
1
That was exactly was I was looking for thank you sundog! Some of those designs studied have crazy configurations, I'm glad to see they don't just stick to the normal shapes.
Much appreciated
