Greetings All -

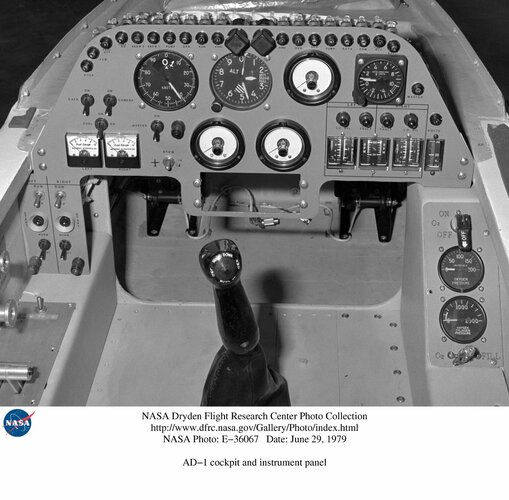

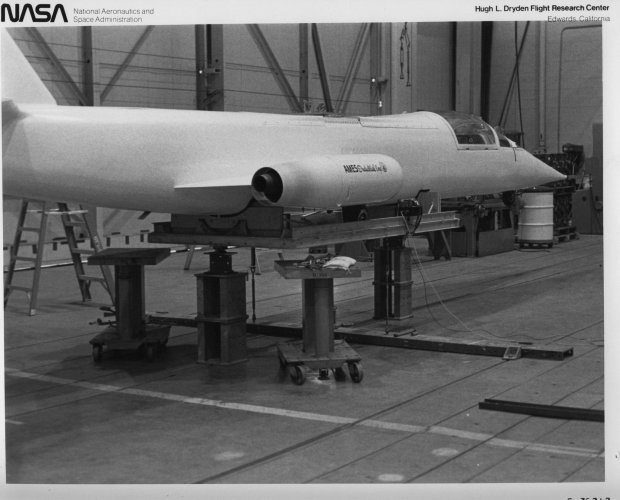

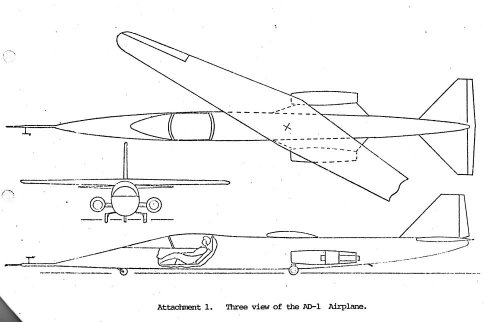

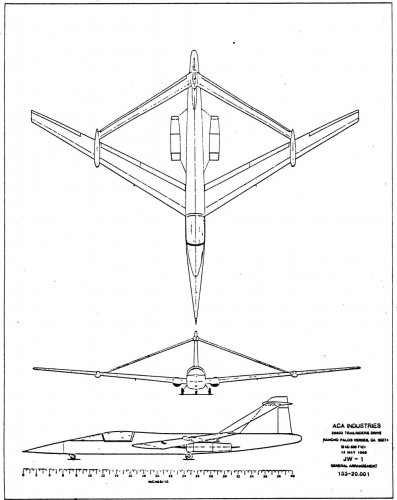

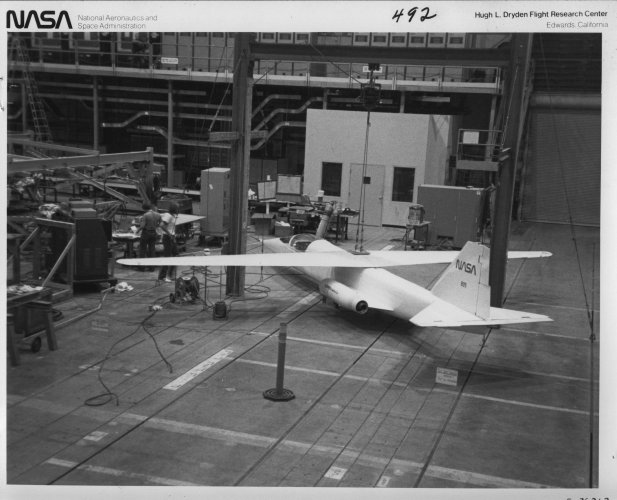

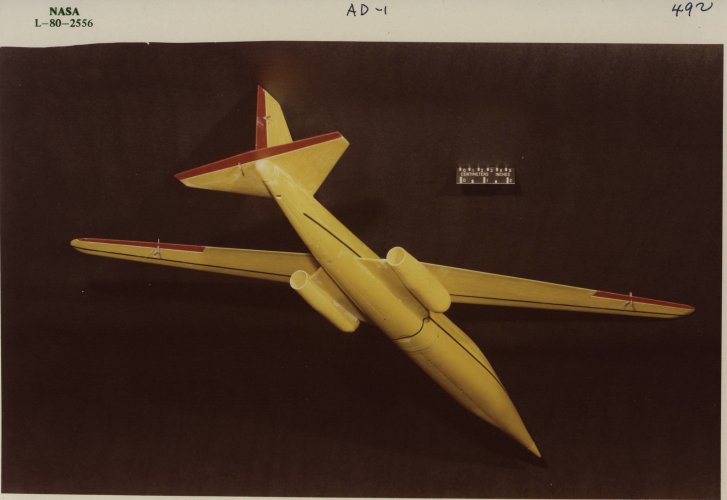

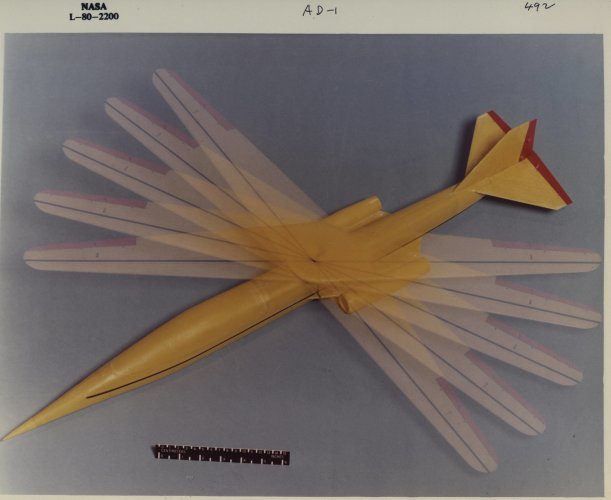

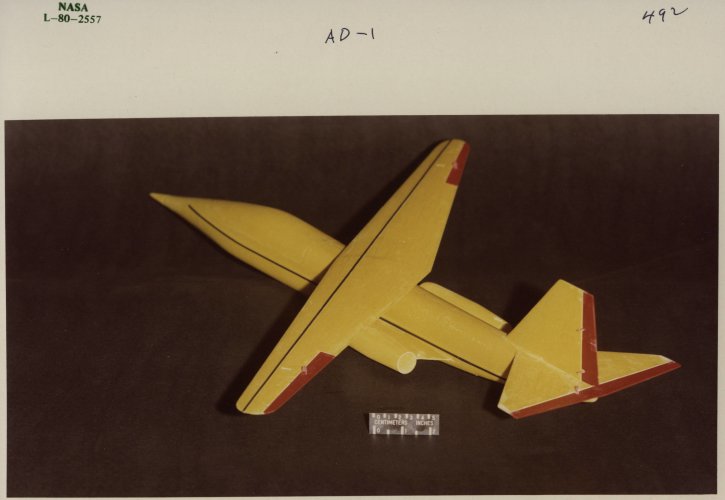

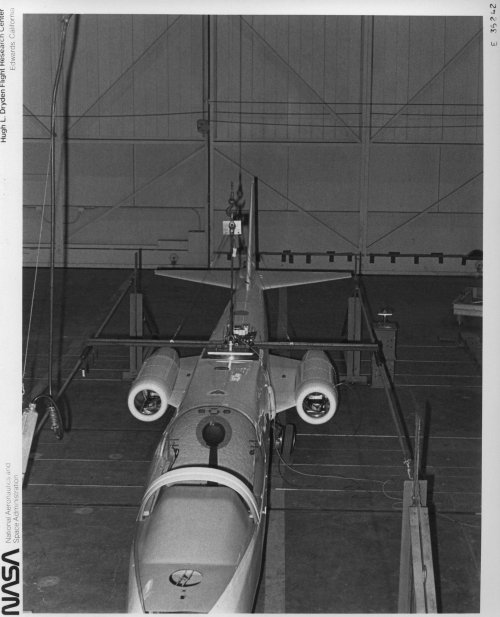

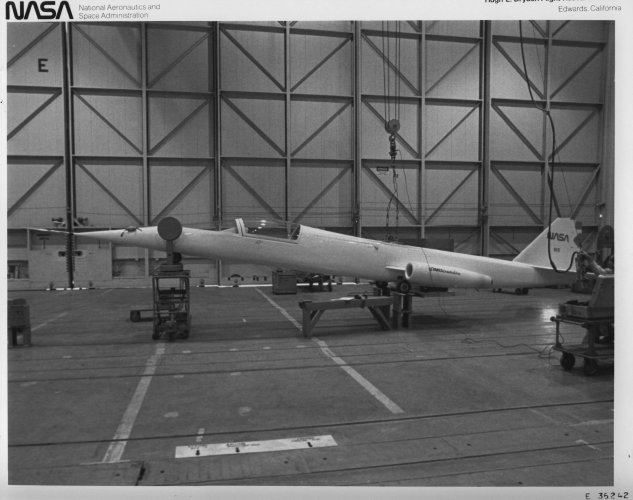

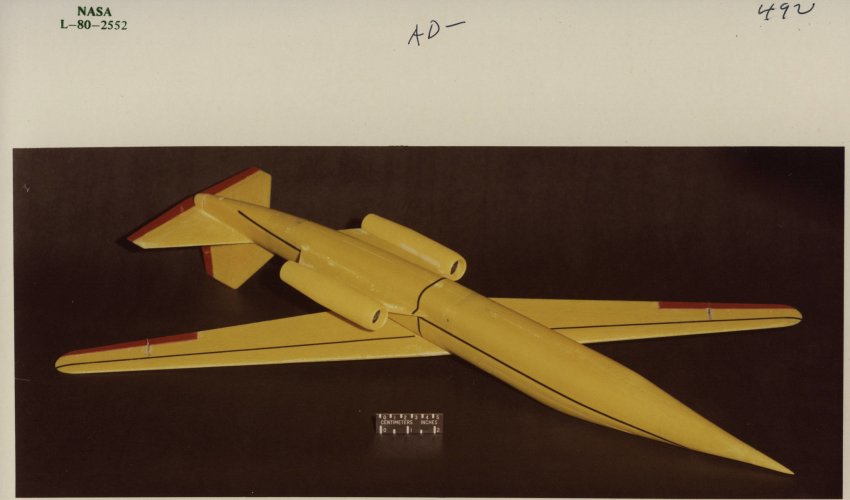

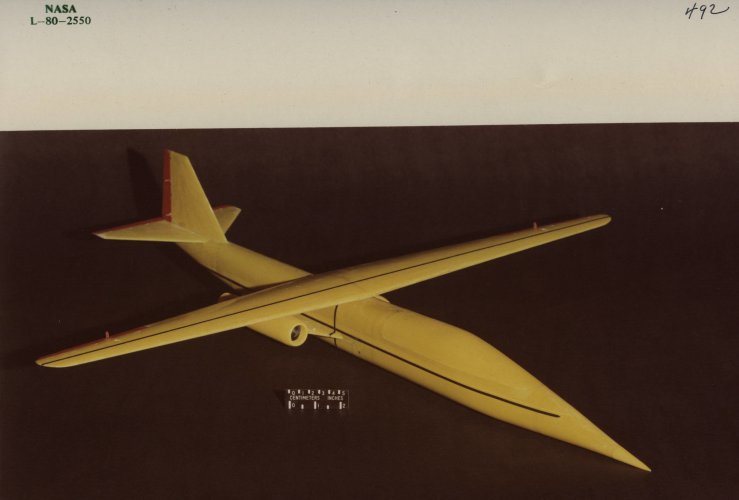

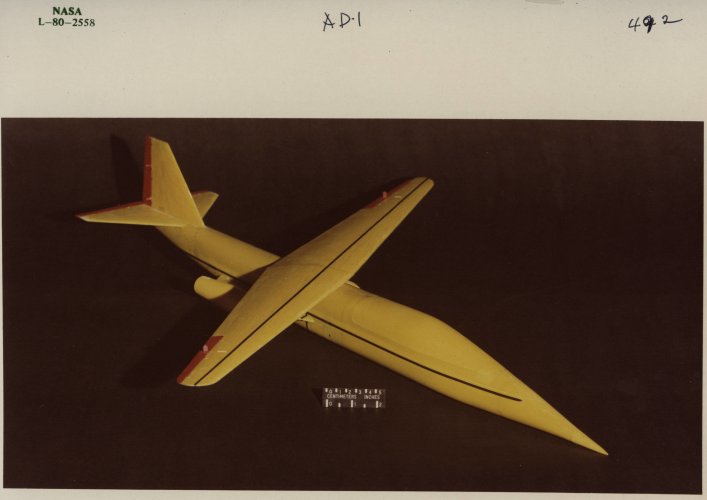

I received a few drawings from Al Bowers at NASA of which two are of the AD-1 and the proposed JW-1 which was to be built with the same airframe.

Enjoy the Day! Mark


Attachments

  • AD-1small.jpg
    65 KB · Views: 609
  • JW-1small.jpg
    112.1 KB · Views: 2,079

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Hi,

and it is the first time for me to see the oblique tail also.
http://dtrs.dfrc.nasa.gov/archive/00000661/01/1042.pdf


Attachments

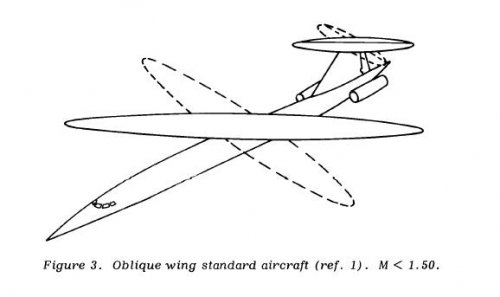

  • oblique.JPG
    17.5 KB · Views: 447

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,260
Reaction score
160
JW stands for Julian Wolkovitch, the originator of the idea (at least in that particular form. Several similar configurations were proposed at one time or another in the past). Lots of papers available o the NASA technical server and on the Journal of aircraft (which unfortunately is not free. Curses you, darned AIAA!).


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
In 2006 I received the recollections of an engineer who had formerly worked with Scaled Composites.

Here is what he had to say about the JW-1: « At one time, Julian Wolkovitch had a contract to modify the AD-1 into a joined wing aircraft. When he died, this project died with him. »


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Also see:

http://www.secretprojects.co.uk/forum/index.php/topic,4963.msg128810.html#msg128810
http://www.secretprojects.co.uk/forum/index.php/topic,9003.msg108219.html#msg108219


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Hi,

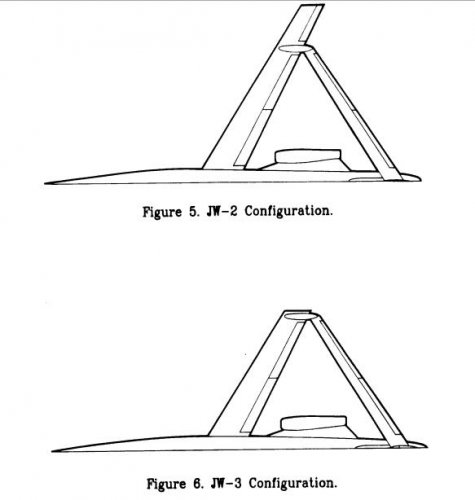

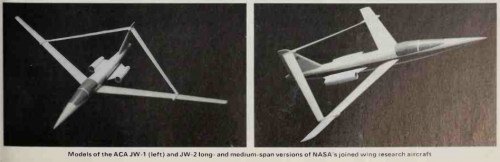

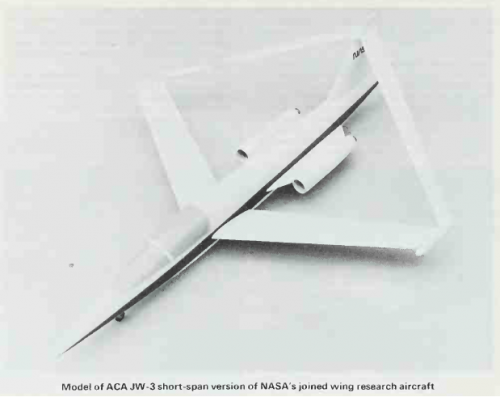

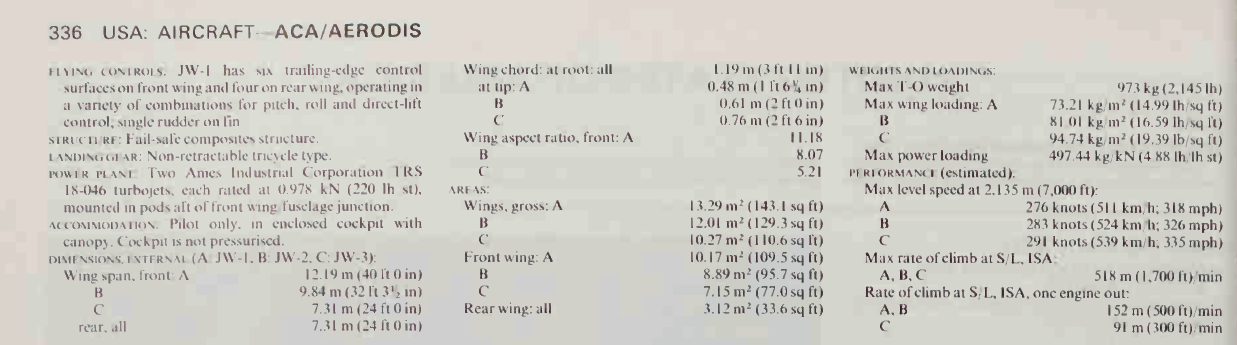

here is the ACA JW-1,JW-2 and JW-3 Models.


Attachments

  • JW-1 & JW-2.png
    JW-1 & JW-2.png
    254.2 KB · Views: 99
  • JW-3.png
    85.3 KB · Views: 33

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
A merge with some of the posts in this topic may be advisable, keeping a cross-link between them I guess:
http://www.secretprojects.co.uk/forum/index.php/topic,9003.0
