hesham said:
From Japan,

NAL project of 1995 :it was medium-range lift/cruise fan 100 passenger
VTOL airliner.

The NAL VTOL aircraft;
http://www.flightglobal.com/PDFArchive/View/1991/1991%20-%200473.html?search=Aeritalia%20aircraft


Attachments

  • NAL VTOL.JPG
    NAL VTOL.JPG
    12.5 KB · Views: 495

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,045
Website
deeptowild.blogspot.com
National Aerospace Laboratory (NAL) VTOL Airliner, Japan (1991)

Medium-range lift/cruise fan 100-passenger VTOL airliner study by Japan's National Aerospace Laboratory (NAL), Fuji, and Ishawajima intended to fly in 2010.

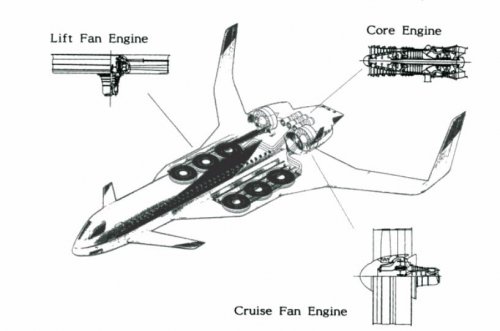

Three core engines to drive either six lift fans beside center-fuselage in aerodynamic wingroot sections or two propulsion fans at tail; rear mounted swept-back wings with large winglets; sweptback foreplanes; airscoops above above rear fuselage.

Flight controls: Pitch-axis control by reaction jets or small fans; rudders in winglets.

Cruising speed: Mach 0.8
Range: 1,350 nautical miles (2,500km;1,550 miles)

Source: Jane's All the Word's Aircraft 1995-1996
Image: Future Aeronautical and Space Systems by Ahmed Noor, Samuel L. Venneri, et al.


Attachments

  • NALVTOLAirliner.JPG
    37.1 KB · Views: 244

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,538
Reaction score
6,260

Attachments

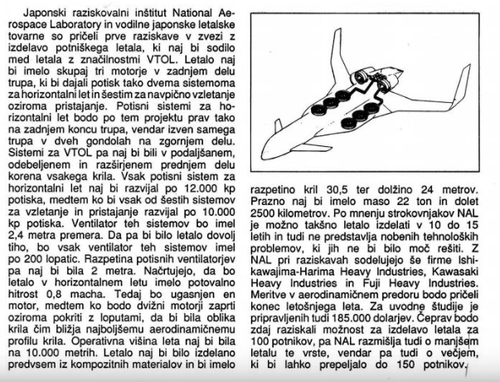

  • 1.png
    210.2 KB · Views: 48
  • 2.png
    254.3 KB · Views: 53
