Muniz aircraft, Brasil

LAW

ACCESS: Restricted
Joined
Jan 9, 2011
Messages
41
Reaction score
5
Antonio Guedes Muniz
BRASIL


M-1 - ?

M-2 - ?

M-3 - ?

M-4 - ?

M-5 - 1929-1930, two-seat, single-engine low-wing monoplane with open cockpits (later enclosed) and fixed undercarriage, only 1 built

M-6 - 1935, two-seat, single-engine low-wing monoplane with open cockpits and fixed undercarriage, only 1 built and flown (second built as static test airframe), later rebuild as M-8 with more powerfull engine

M-7 - 1936, two-seat, single-engine biplane with open cockpits and fixed undercarriage, first series built Muniz aircraft, 27 built

M-8 - 1936, see M-6

M-9 - 1937, two-seat, single-engine biplane with open cockpits and fixed undercarriage, 41 built

M-10 - project only

M-11 (in the Brasilian Air Force designated as TP-1 = Treinador Primário modelo 1 [Primary Trainer model 1]) - 1941, two-seat, single-engine low-wing monoplane with open cockpits and fixed undercarriage, only 1 built

Casmuniz 52 - 1952, five-seat, twin-engine low-wing monoplane with enclosed cabin, only 1 built

Any comments or additions are welcome.

Regards,

LAW


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574
Hi,

The Muniz Casmuniz 52 was a twin-engine light transport aircraft designed by
Antonio Muniz in Brazil. It was the first all-metal aircraft built in Brazil, only the
prototype was built.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574
Hi,

all I have,the M-1 & M-2 was Projects for light aircraft,no more details.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,695
Reaction score
1,096
A bit more ...

Muniz M-1, M-2, and M-5 were designed in France and date to 1927. One sources describes the M-1, M-2, M-3, and M-4 as "croquis" (sketches) but gives no other details.

The sole M-5 low-winged monoplane was built in Paris by Caudron (?? between 1928 and 1931 ??). The wooden M-5 was then dismantled and shipped to Rio de Janeiro where it was presented on 10 July 1931 at Campo dos Afonsos (now SBAF). The M-5 flew in Brazil until damaged in an accident in 1934.

Span: 12 m, Length: 7.10 m, Max Speed: 205 km/h Max Cruise: 175 km/h, Endurance: 4.5 hours
Powerplant: 1 x 100 hp Hispano Suiza (?? HS 6O ??), Weight: 900 kg

http://www.centrohistoricoembraer.com.br/sites/iba/Galeria%20Aeronaves/muniz_5%28M-5%29_06_en-us.jpg
http://www.centrohistoricoembraer.com.br/sites/iba/pt-br/historia/paginas/detalhes.aspx?idi=11
http://www.revistabandeirante.com.br/revista/1975/1975-especial.pdf

Muniz M-6 - Essentially the M-5 revised for steel-tube construction.

Muniz M-7 - First flew in Oct 1935.

Muniz M-8 - 1x 100 hp DH Gipsy (anyone know what the M-6 powerplant was?)

Muniz M-11 - June 1940 high-wing cabin monoplane, 1 x Continental A65
- M-11: Built as CNNA HL-1 in 1942, Piper Cub clone
-- http://aviadejavu.ru/Images6/JS/Janes46-3/4-1.jpg


Hope that helps.


LAW

ACCESS: Restricted
Joined
Jan 9, 2011
Messages
41
Reaction score
5
Hi All,

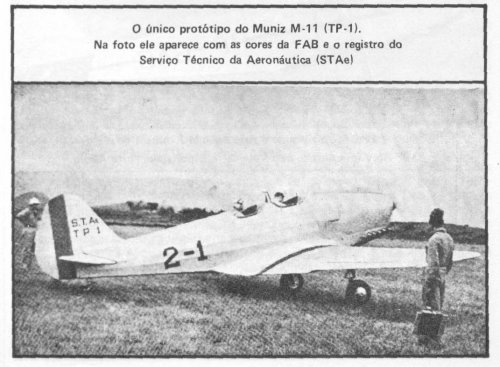

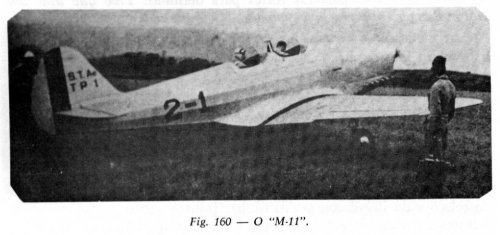

M-11 - low-wing, open cockpits, engine: Ranger 190 hp or DH Gipsy 200 hp, first flight 28 October 1941

Regards,
LAW


Attachments

  • M11_01.jpg
    126.5 KB · Views: 89
  • M11_02.jpg
    92.8 KB · Views: 86

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
357

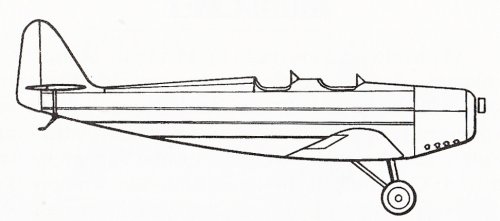

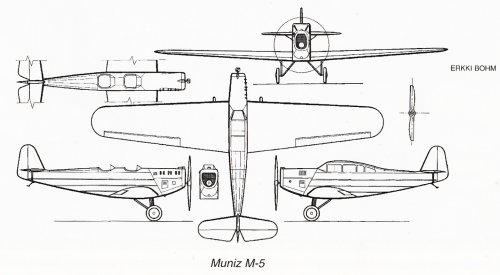

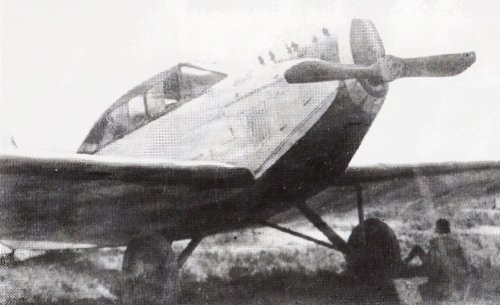

Muniz M.5


Attachments

  • Muniz M-5.jpg
    Muniz M-5.jpg
    300.9 KB · Views: 82
  • Muniz M-5-.jpg
    Muniz M-5-.jpg
    227.2 KB · Views: 81

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
357

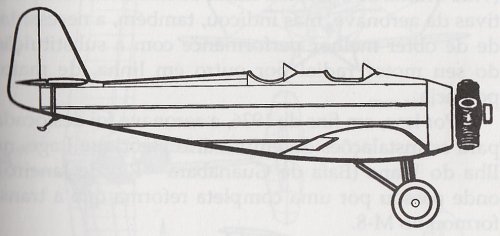

Muniz M.6


Attachments

  • Muniz M-6.jpg
    Muniz M-6.jpg
    160.4 KB · Views: 71

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
357

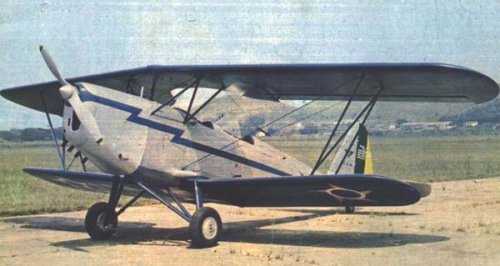

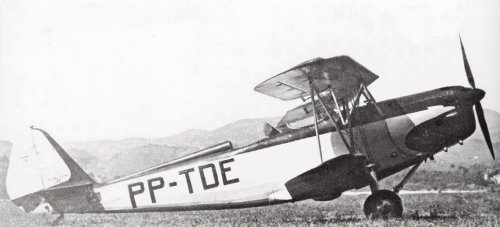

Muniz M.7


Attachments

  • Muniz M-7-.jpg
    Muniz M-7-.jpg
    344.8 KB · Views: 20
  • Muniz M-7.jpg
    Muniz M-7.jpg
    60.5 KB · Views: 14

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
357

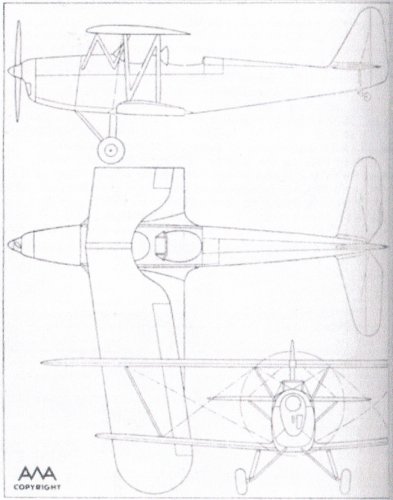

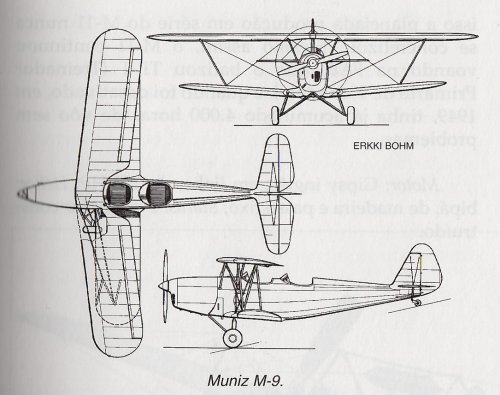

Muniz M.9


Attachments

  • Muniz M-9.jpg
    Muniz M-9.jpg
    542.9 KB · Views: 13
  • Muniz M-9-.jpg
    Muniz M-9-.jpg
    358 KB · Views: 20

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,992
Reaction score
357

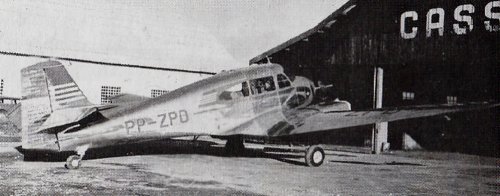

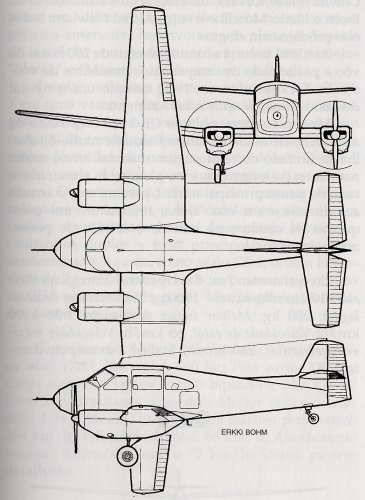

Muniz Casmuniz 5-2


Attachments

  • Muniz Casmuniz 5-2-.jpg
    Muniz Casmuniz 5-2-.jpg
    449.9 KB · Views: 22
  • Muniz Casmuniz 5-2.jpg
    Muniz Casmuniz 5-2.jpg
    254.5 KB · Views: 17

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,695
Reaction score
1,096
Thanks Maveric, great stuff!

LAW said:
M-11 - low-wing, open cockpits, engine: Ranger 190 hp or DH Gipsy 200 hp, first flight 28 October 1941

Thanks LAW: So sources saying that the Muniz M-11 led to (or was the same as) the CNNA HL-1 are completely in error .


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574

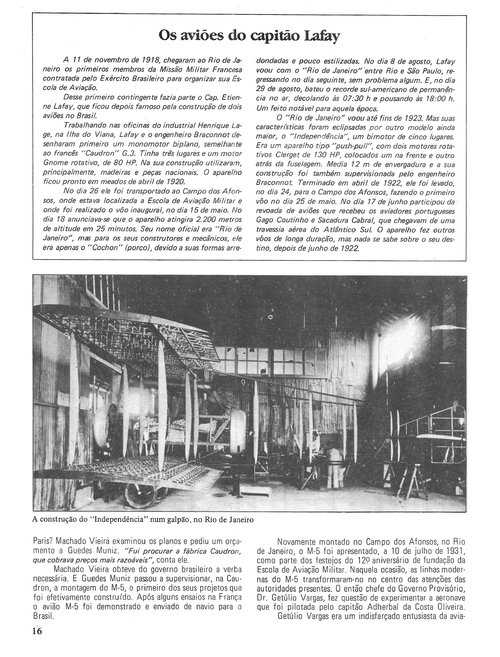

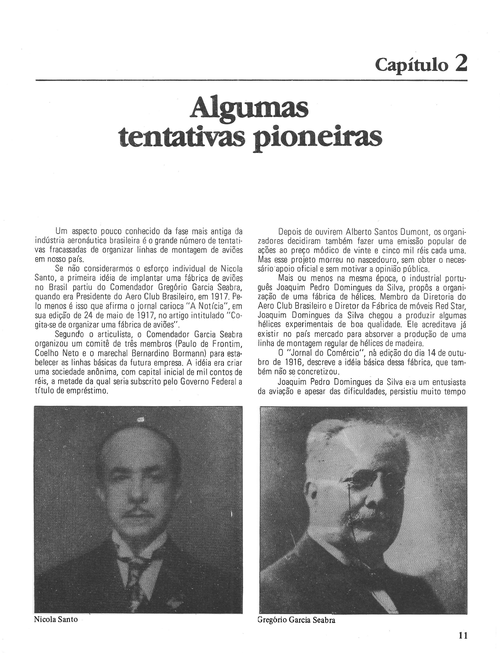

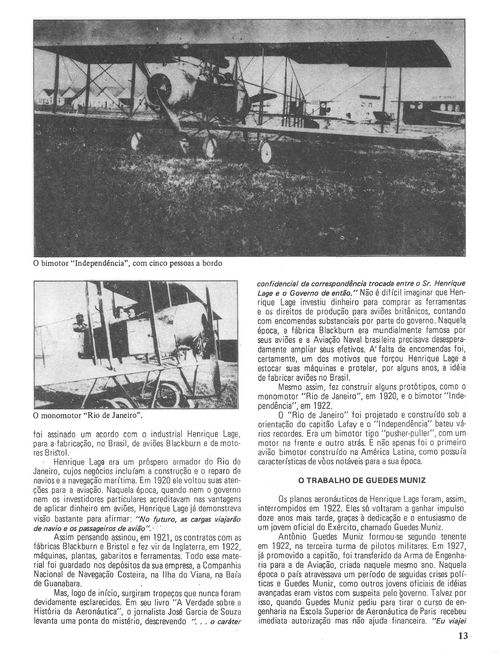

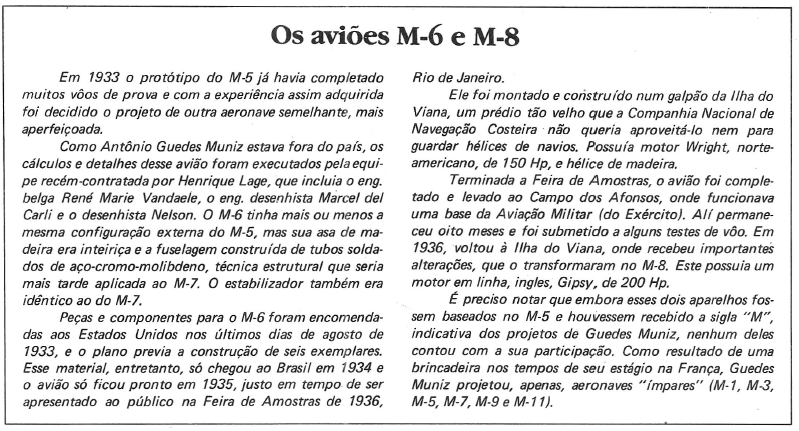

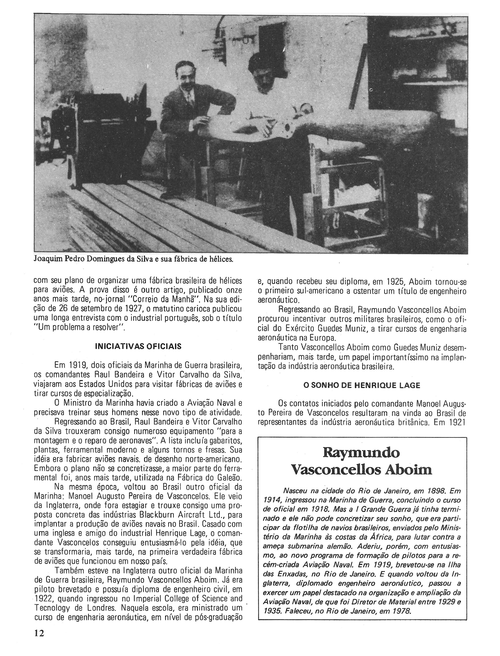

From, Historia da Construcao Aeronautica no Brasil,

here is a more Info about M-6 and M-8,also a hint for
M-1 & M-3 Projects.


Attachments

  • 1.png
    206.7 KB · Views: 5
  • 2.png
    3.9 MB · Views: 5
  • 3.png
    5 MB · Views: 5
  • 4.png
    5.4 MB · Views: 4
  • 5.png
    2.5 MB · Views: 4
  • 6.png
    4.7 MB · Views: 8

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,611
Reaction score
4,574

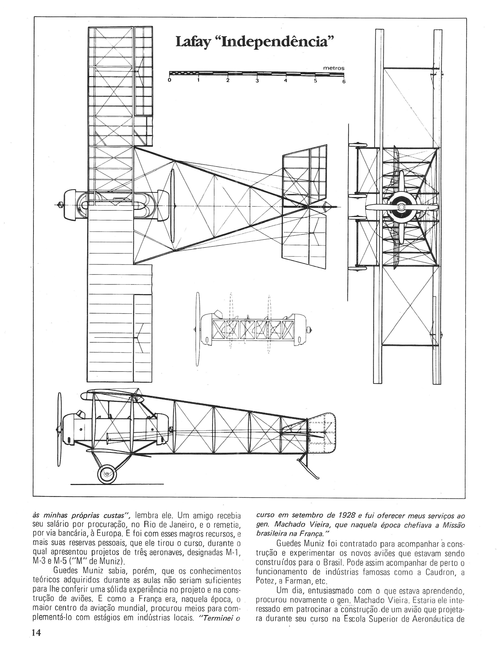

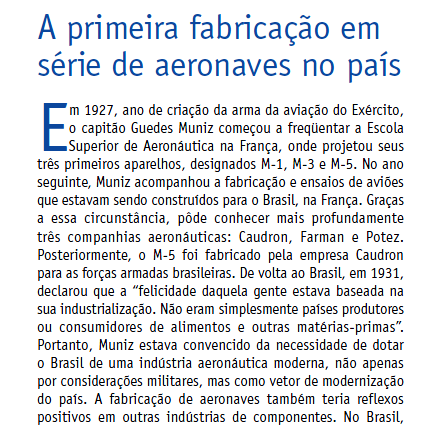

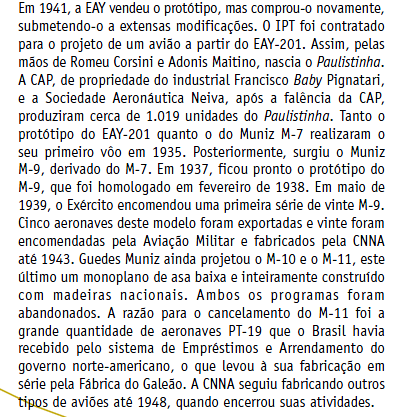

Here is a hint for M-1,M-3 7 M-10.


Attachments

  • 1.png
    48 KB · Views: 2
  • 2.png
    53.8 KB · Views: 2
  • 3.png
    56.3 KB · Views: 1
