Here is some data on the original big MOWAG 8x8. The following information has been copied from Jane’s Light Tanks and Armoured Cars 1984 by Christopher F. Foss. It is posted here for educational purposes.

MOWAG Shark Weapons Carrier

Development
The Shark has been developed by the MOWAG company as a private venture specifically for the export market. It was first shown in public at the 1981 Paris Air Show fitted with the Oerlikon-Bührle Type GDD-BOE two-man turret armed with a 35 mm cannon and a coaxial 7.62 mm machine gun. A further two prototypes were completed in mid-1983.
In 1982 the Shark was successfully tested in Switzerland fitted with a French Fives-Gail Babcock FL-12 turret armed with a 105 mm gun and fitted with a SOPTAC fire-control system. In West Germany it was successfully tested with an experimental Rheinmetall turret armed with the Rheinmetall 105 mm Rh 105-11 super low recoil gun which fires all standard NATO tank ammunition, including the APFSDS-T.
The chassis has been designed to be easily adapted for a wide range of roles including anti-aircraft (eg fitted with the same turret as the Wildcat twin 30 mm SPAAG or the new Swiss ADATS missile system), anti-tank (including missile), fire support, reconnaissance and rocket launcher. Late in 1983 one of the three Shark prototypes was fitted with the one-man turret of the Wildcat twin 30 mm SPAAG system and this was tested in Canada early in 1984.
Wherever possible proven assemblies, such as engine and transmission, have been used in the design of the vehicle to simplify both training and logistics.

Description
The hull of the MOWAG Shark is of all-welded steel construction which provides complete protection up to and including the Soviet 14.5 mm KPV armour piercing round. A 155 mm HE projectile landing ten metres away from the vehicle will cause no damage according to the manufacturer.
The driver is seated at the front of the hull on the left side and has a single-piece hatch cover that opens to the left. Forward of this are three periscopes, the centre one of which can be replaced by an image intensification periscope for driving at night. A second crew member can be seated to the right of the driver or this space can be used for special equipment such as an NBC pack or for additional ammu¬nition stowage.
The fighting compartment is in the centre of the vehicle and a wide range of armament installations can be fitted up to and including an FL-12 turret with a 105 mm gun. Full details of the FL-12 turret are given in the entry for the Austrian Steyr-Daimler-Puck Jagdpanzer SK 105 light tank/tank destroyer.
The engine, transmission and fuel tanks are at the rear of the hull and engine access panels are provided in the top of the engine compartment. The air inlet louvres are in the top of the hull, one either side, while the air outlets at the hull rear.
Steering is power assisted on the front and rear axles and vertical suspension travel is 420 mm.
A wide range of optional equipment can be fitted to the Shark including various types of NBC system, passive night vision equipment and fire-extinguishing systems.

SPECIFICATIONS

CREW 3 or 4
CONFIGURATION 8 × 8
WEIGHT (loaded) 21 000 kg* (empty) 16 000 kg*
POWER-TO-WEIGHT RATIO 25.2 hp/tonne
LENGTH 7.52 m
WIDTH 3 m
HEIGHT (hull) 1.9 m
AXIS OF FIRE (105 mm gun) 2 16 m
GROUND CLEARANCE 0.46 m
TRACK 2.62 m
WHEELBASE 1.51 m + 1.4 m + 1 49 m
ANGLE OF APPROACH/DEPARTURE 40°/45°
MAX ROAD SPEED 100 km/h
FUEL CAPACITY 400 litres
RANGE (road) 500 km
FORDING 1.3 m
GRADIENT 60%
SIDE SLOPE 35%
VERTICAL OBSTACLE 0.46 m
TRENCH 2.3 m
TURNING CIRCLE 12.5 m
ENGINE Detroit Diesel 8V-71T turbo-charged diesel developing 530 hp at 2500 rpm
TRANSMISSION Allison HT 750 ORD automatic with 5 forward and 1 reverse gears
TYRES 13.00 x 20 run-flat (insert)
SUSPENSION (1st and 4th axles) coil springs with wishbone (2nd and 3rd axles) torsion bars (all wheels have hydraulic shock absorbers)
BRAKES (main) dual circuit, hydraulic, air assisted (parking) spring loaded brake cylinder (engine) Jacobs brake system
ELECTRICAL SYSTEM 24 V
* depends on armament installation

Status: Trials.

Manufacturer: Mi Motorwagenfabrik AG, 8280 Kreuzlingen, Switzerland.

http://i76.photobucket.com/albums/j35/abegubler/shark01.jpg

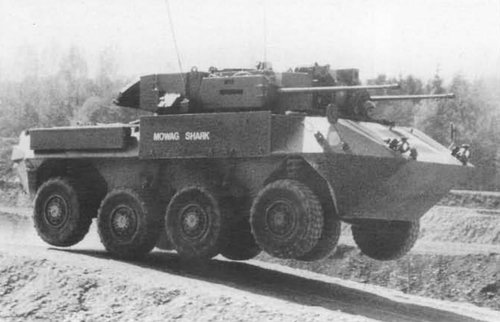

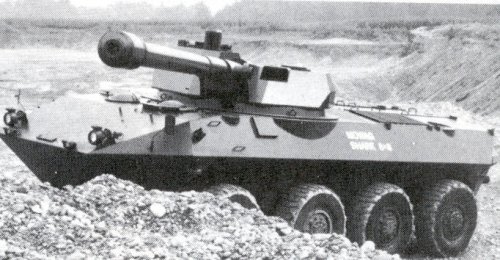

MOWAG (8 × 8) Shark weapons carrier fitted with Fives-Cail Babcock FL-12 turret armed with 105 mm gun, with turret traversed to rear

http://i76.photobucket.com/albums/j35/abegubler/shark02.jpg

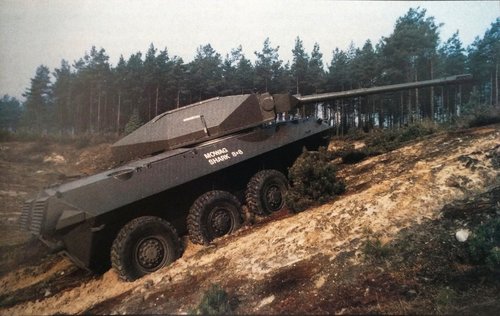

MOWAG (8 × 8) Shark weapons carrier fitted with Fives-Cail Babcock FL-12 turret armed with 105 mm gun, with empty cartridge case being ejected out of trap door in turret bustle

http://i76.photobucket.com/albums/j35/abegubler/shark03.jpg
MOWAG (8 × 8) Shark weapons carrier fitted with Fives-Gail Babcock FL-12 turret armed with 105 mm gun, coaxial 7.62 mm MG and electrically operated smoke dischargers

http://i76.photobucket.com/albums/j35/abegubler/shark04.jpg
MOWAG (8 × 8) Shark weapons carrier fitted with trials turret armed with Rheinmetall Rh 105-11 super low recoil gun fitted with muzzle brake


xiaofan

ACCESS: Confidential
Joined
Jun 25, 2010
Messages
109
Reaction score
38
Sorry for dig up another old topic. I just found this no long ago.

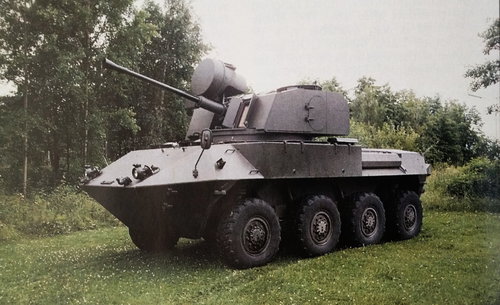

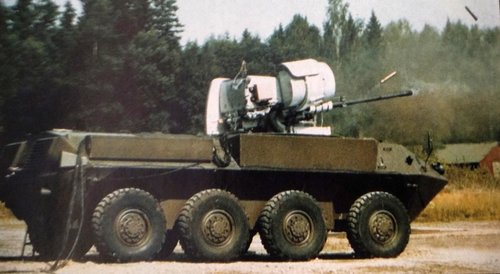

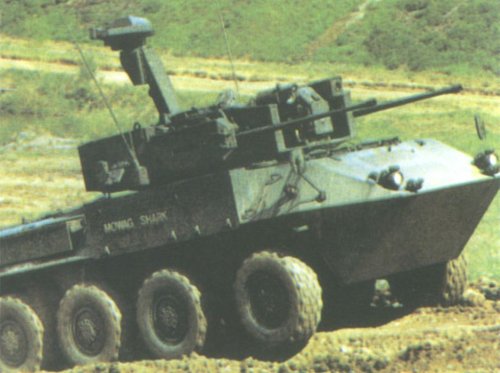

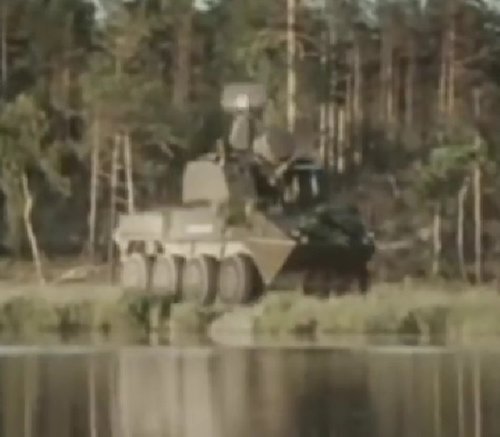

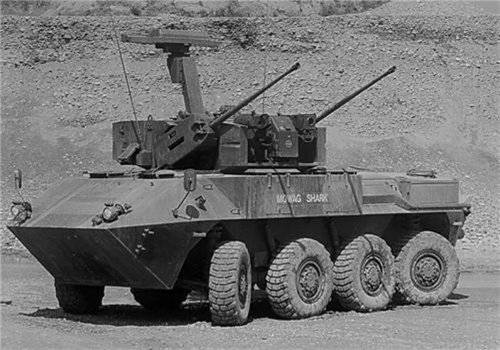

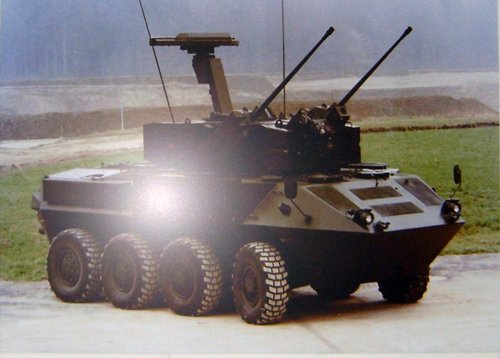

MOWAG Shark with the Wildcat one-man twin 30 mm AAA turret.


Attachments

  • Wildcat 8X8 30mm Anti Aircraft Gun (1).jpg
    Wildcat 8X8 30mm Anti Aircraft Gun (1).jpg
    117 KB · Views: 344
  • Wildcat 8X8 30mm Anti Aircraft Gun (2).jpg
    Wildcat 8X8 30mm Anti Aircraft Gun (2).jpg
    122.2 KB · Views: 336

skylancer-3441

I really would not change much my personal text
Joined
Jan 17, 2015
Messages
86
Reaction score
206

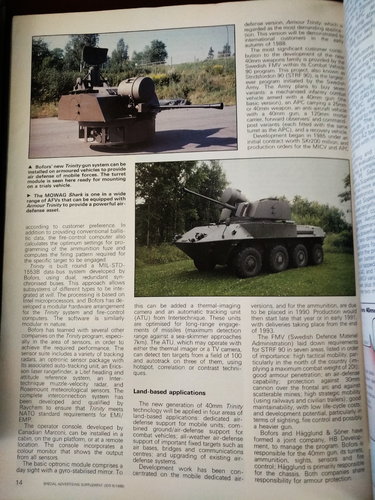

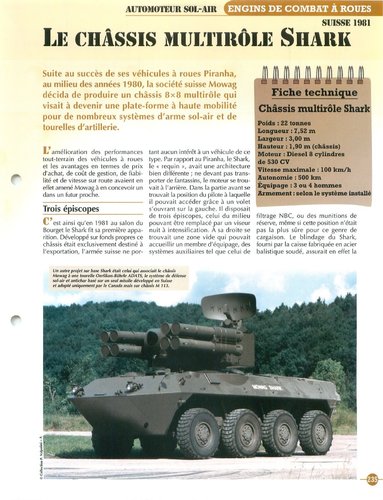

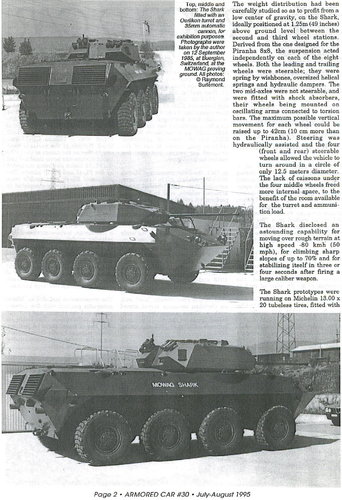

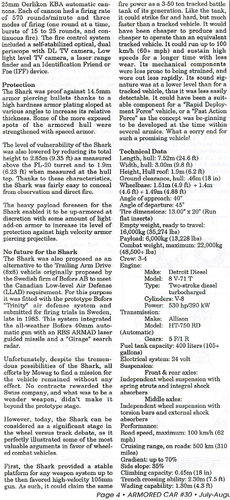

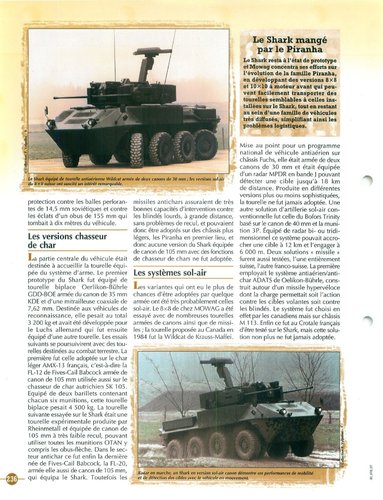

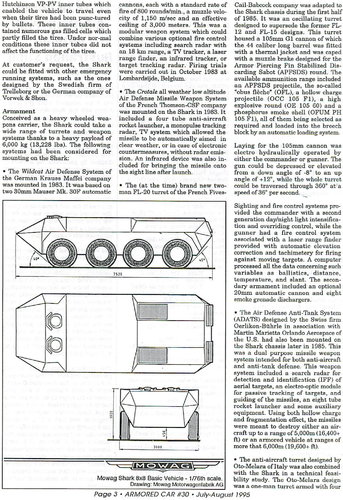

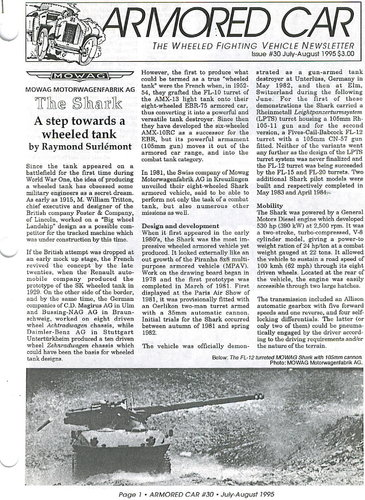

Armored Car journal had an article on this vehicle
And also some french series on armored vvehicles had a two-page article with some photos of Mowag Shark w/ ADATS and Wildcat turrets
and also pic from book

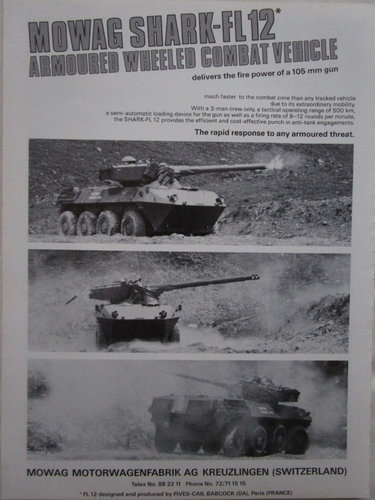

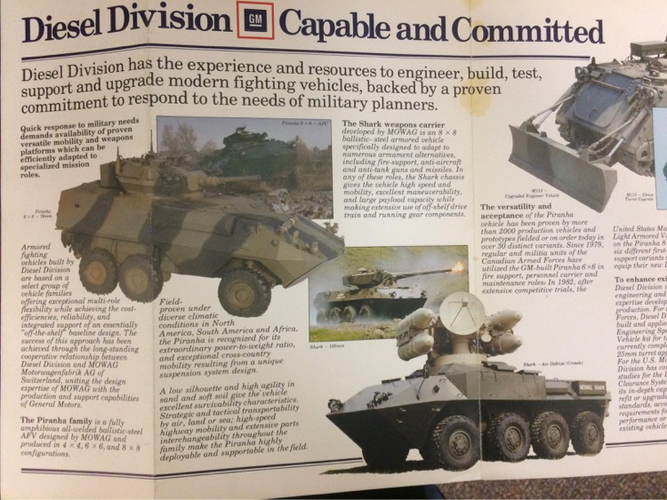

and advert from Ebay


Attachments

  • ACJfinal30 p.1.jpg
    ACJfinal30 p.1.jpg
    1.3 MB · Views: 152
  • ACJfinal30 p.2.jpg
    ACJfinal30 p.2.jpg
    1 MB · Views: 145
  • ACJfinal30 p.3.jpg
    ACJfinal30 p.3.jpg
    1.1 MB · Views: 132
  • ACJfinal30 p.4_cr.jpg
    ACJfinal30 p.4_cr.jpg
    882.6 KB · Views: 133
  • s-l1600 (88).jpg
    s-l1600 (88).jpg
    344.3 KB · Views: 143
  • s-l1600 (89).jpg
    s-l1600 (89).jpg
    417.2 KB · Views: 141
  • Shark Tanks (1984) p.28_cr.jpg
    Shark Tanks (1984) p.28_cr.jpg
    609.3 KB · Views: 135
  • $_57 1983 may 1.JPG
    $_57 1983 may 1.JPG
    305.4 KB · Views: 127
Last edited:

skylancer-3441

I really would not change much my personal text
Joined
Jan 17, 2015
Messages
86
Reaction score
206

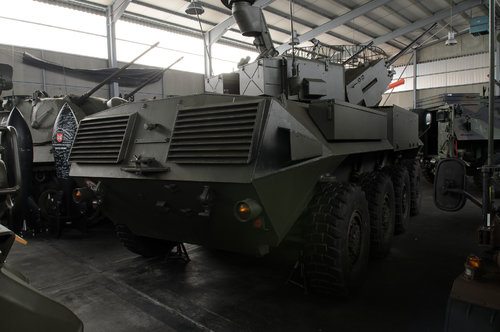

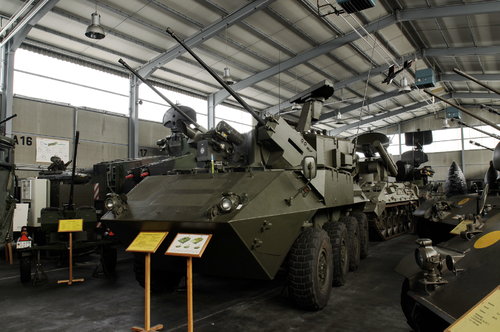

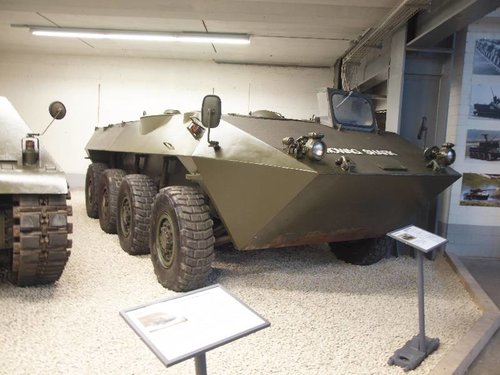

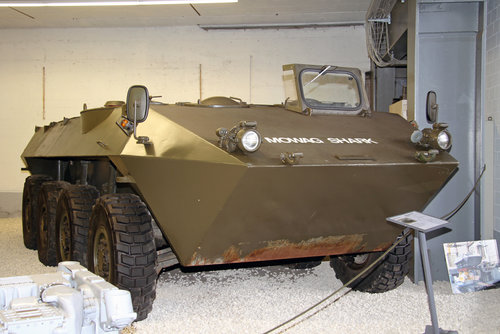

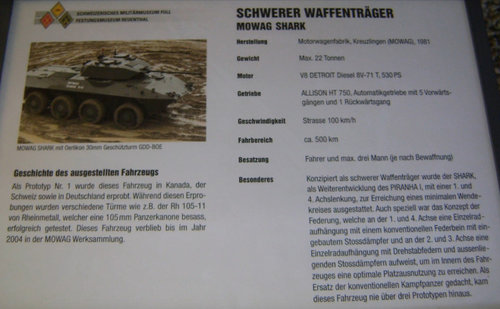

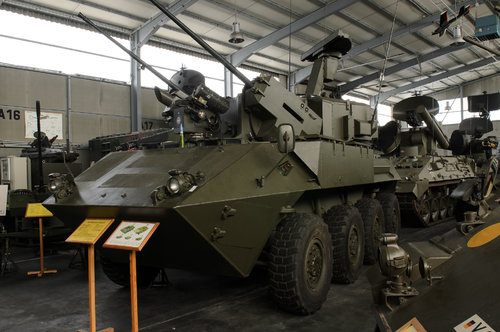

apparently at least two vehicles have survived in different museums
and two more pics of Wildcat version


Attachments

  • Mowag_Shark_Schwerer_Waffenträger 21297137163_c8f2d34baa_o.jpg
    Mowag_Shark_Schwerer_Waffenträger 21297137163_c8f2d34baa_o.jpg
    747.9 KB · Views: 107
  • full_40g.jpg
    59.3 KB · Views: 89
  • 2017-01-04_024220.jpg
    226.8 KB · Views: 99
  • 22200914329_c8acc49f28_o.jpg
    800.8 KB · Views: 100
  • 22200926979_2c1ee6049b_o.jpg
    1.5 MB · Views: 113
  • 22387820235_a4536013cb_o.jpg
    1.2 MB · Views: 100
  • Wildcat 2017-02-23_224631.jpg
    Wildcat 2017-02-23_224631.jpg
    137.1 KB · Views: 101
  • Wildcat 2017-01-04_024403a.jpg
    Wildcat 2017-01-04_024403a.jpg
    267.5 KB · Views: 121

skylancer-3441

I really would not change much my personal text
Joined
Jan 17, 2015
Messages
86
Reaction score
206

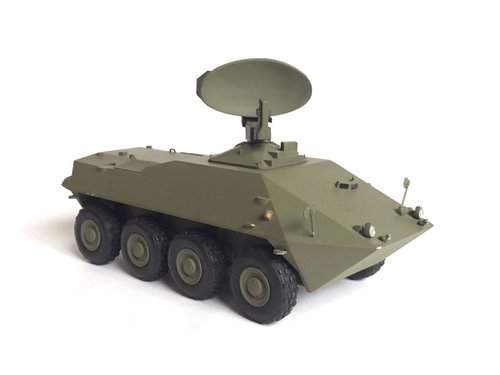

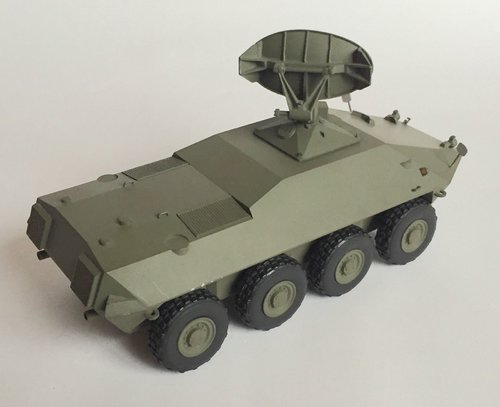

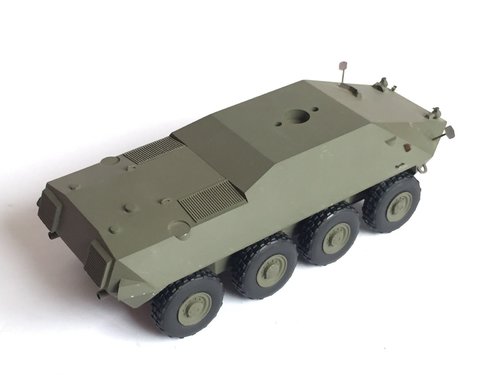

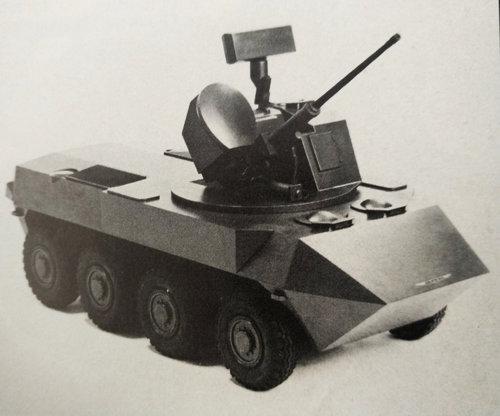

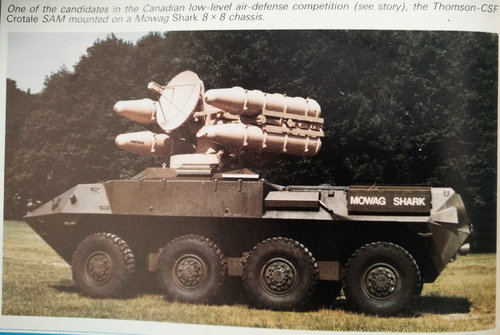

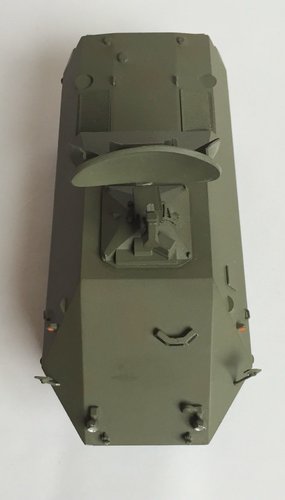

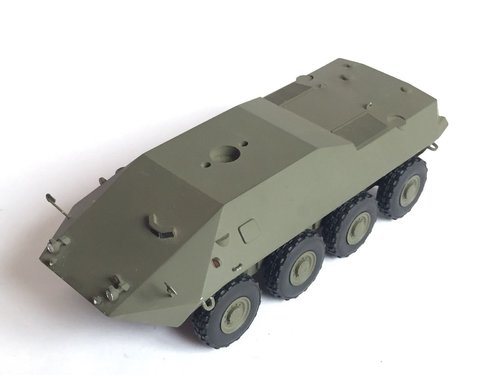

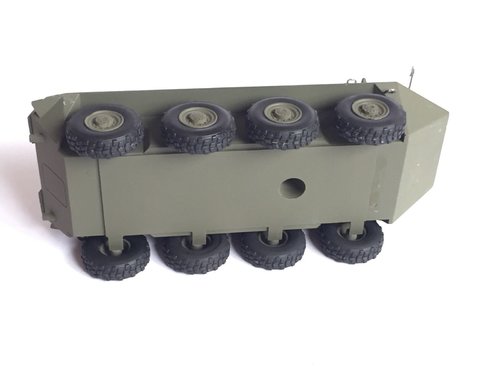

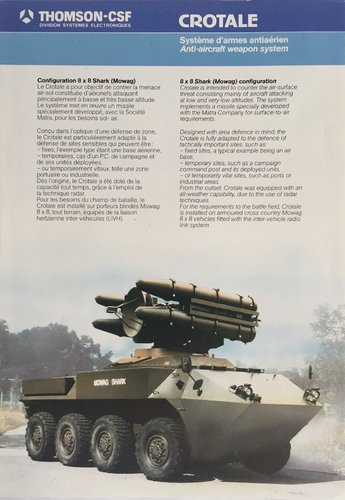

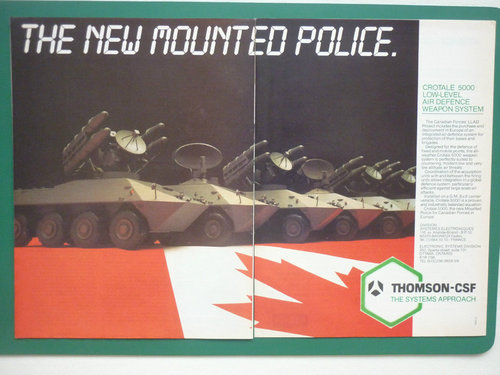

Crotale version - advert and photos of scalemodel from Ebay


Attachments

  • s-l1600 (5)_11.jpg
    s-l1600 (5)_11.jpg
    250.1 KB · Views: 120
  • s-l1600 (2)_12.jpg
    s-l1600 (2)_12.jpg
    66.3 KB · Views: 95
  • s-l1600_13.jpg
    76.5 KB · Views: 69
  • s-l1600 (1)_12.jpg
    s-l1600 (1)_12.jpg
    135.2 KB · Views: 65
  • s-l1600 (4)_12.jpg
    s-l1600 (4)_12.jpg
    84.4 KB · Views: 68
  • s-l1600 (12)_7.jpg
    s-l1600 (12)_7.jpg
    80.2 KB · Views: 67
  • s-l1600 (13)_7.jpg
    s-l1600 (13)_7.jpg
    82.7 KB · Views: 67
  • s-l1600 (14)_7.jpg
    s-l1600 (14)_7.jpg
    78.6 KB · Views: 74

skylancer-3441

I really would not change much my personal text
Joined
Jan 17, 2015
Messages
86
Reaction score
206

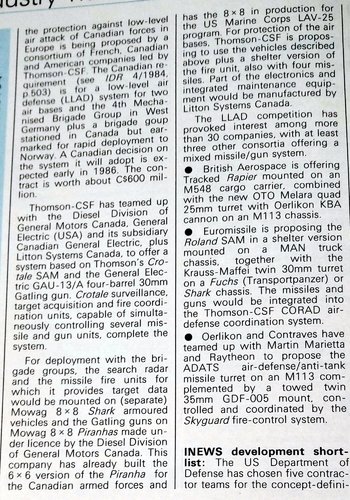

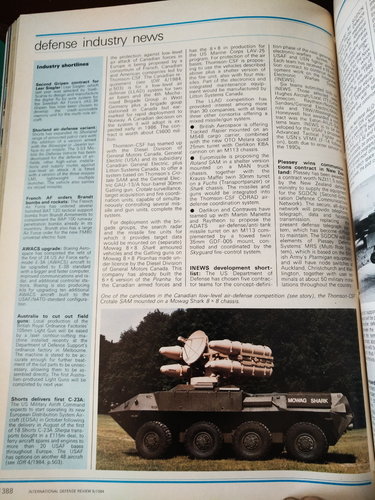

text and picture from IDR 1984-09, and also another advert from Ebay, - both of which mention Canadian LLAD competition


Attachments

  • IDR 1984-09 p.388.jpg
    IDR 1984-09 p.388.jpg
    2.2 MB · Views: 87
  • IDR 1984-09 p.388_cr.jpg
    IDR 1984-09 p.388_cr.jpg
    740.4 KB · Views: 86
  • IDR 1984-09 p.388_cr1_cr.jpg
    IDR 1984-09 p.388_cr1_cr.jpg
    1.6 MB · Views: 103
  • $T2eC16F,!)UE9s3wBm(PBSEkmWJvuQ--60_57.JPG
    280.1 KB · Views: 108

Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,094
Reaction score
227
Wasn't there also a version with a 105mm gun? I'm sure I remember a Swiss 10x10 vehicle with a leopard like turret...

Ah, my error, it was 8x8, not 10x10 and it was German, not Swiss. It was the Radpanzer 90 :


Last edited by a moderator:

skylancer-3441

I really would not change much my personal text
Joined
Jan 17, 2015
Messages
86
Reaction score
206

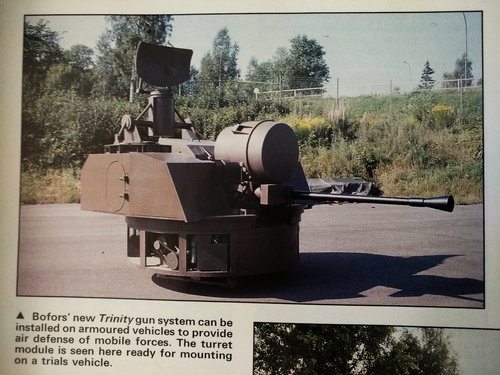

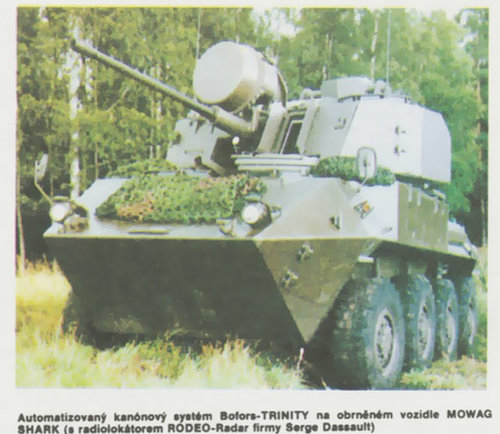

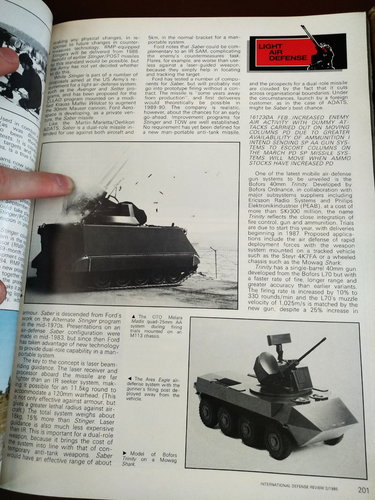

Mowag Shark w/Bofors Trinity AA turret


Attachments

  • IDR 1985-02 p.201.jpg
    IDR 1985-02 p.201.jpg
    1.8 MB · Views: 116
  • IDR 1985-02 p.201_cr2.jpg
    IDR 1985-02 p.201_cr2.jpg
    1.1 MB · Views: 116
  • IDR 1988-04 p.403_cr2.jpg
    IDR 1988-04 p.403_cr2.jpg
    945.1 KB · Views: 121
  • IDR 1988-06 suppl p.14.jpg
    IDR 1988-06 suppl p.14.jpg
    2.1 MB · Views: 114
  • IDR 1988-06 suppl p.14_cr2.jpg
    IDR 1988-06 suppl p.14_cr2.jpg
    2 MB · Views: 129
  • IDR 1988-06 suppl p.14_cr3.jpg
    IDR 1988-06 suppl p.14_cr3.jpg
    1.7 MB · Views: 128
  • Atom 1989-07 p.023_cr.jpg
    Atom 1989-07 p.023_cr.jpg
    86.5 KB · Views: 111

skylancer-3441

I really would not change much my personal text
Joined
Jan 17, 2015
Messages
86
Reaction score
206

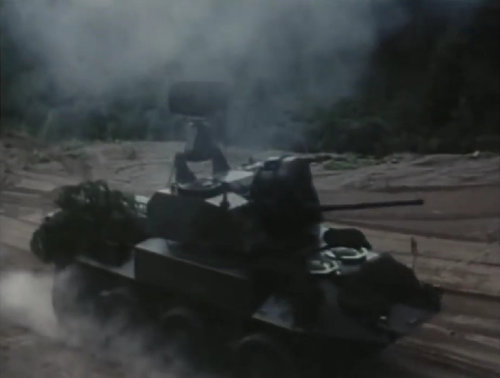

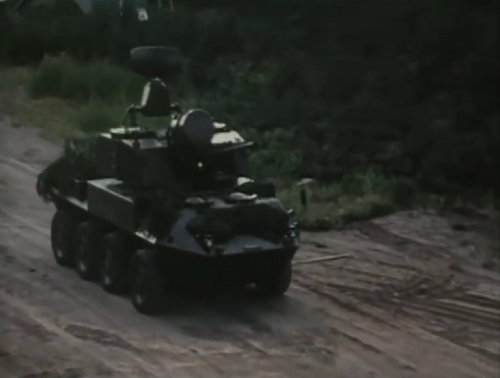

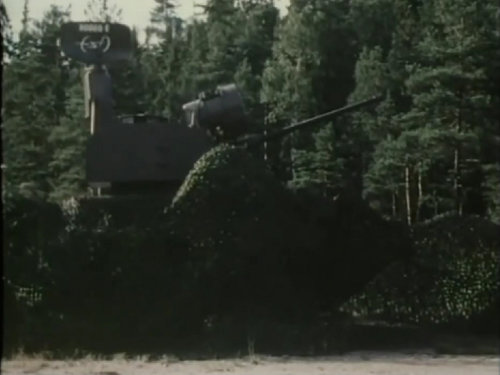

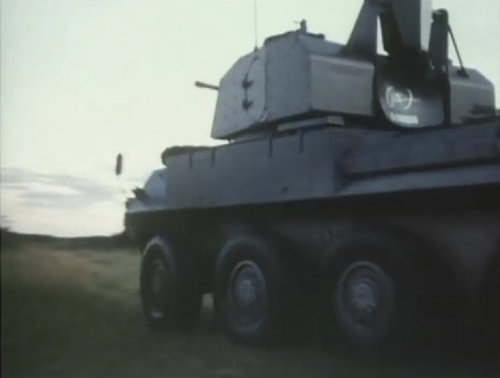

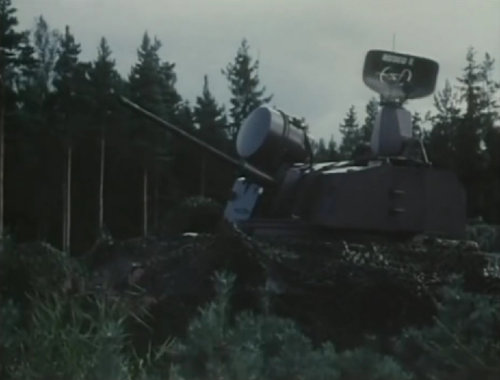

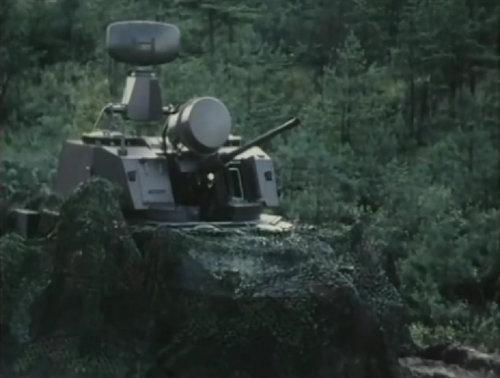

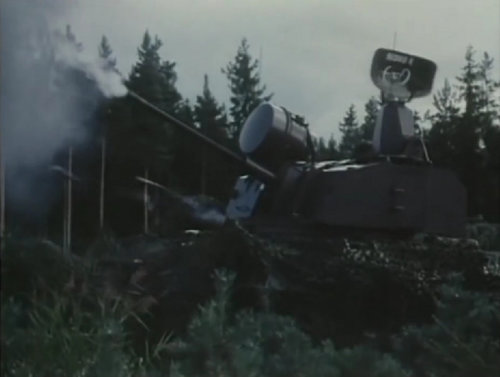

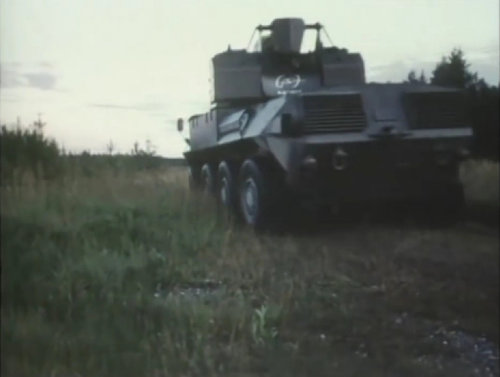

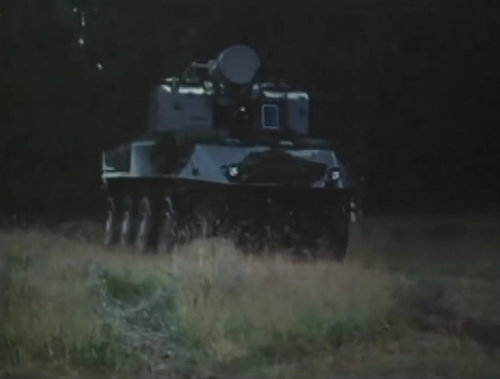

(IIRC) upscaled screens from video


Attachments

  • 2017-10-07_173528.jpg
    42.5 KB · Views: 90
  • 2017-10-07_173730a.jpg
    130.6 KB · Views: 72
  • 2017-10-07_173758a.jpg
    117.1 KB · Views: 67
  • 2017-10-07_173824a.jpg
    183.7 KB · Views: 65
  • 2017-10-07_173852a.jpg
    174.2 KB · Views: 61
  • 2017-10-07_174031a.jpg
    107.6 KB · Views: 58
  • 2017-10-07_174056a.jpg
    128 KB · Views: 59
  • 2017-10-07_174134a.jpg
    106.4 KB · Views: 61
  • 2017-10-07_174206a.jpg
    141.2 KB · Views: 62
  • 2017-10-07_174235a.jpg
    137.4 KB · Views: 95

skylancer-3441

I really would not change much my personal text
Joined
Jan 17, 2015
Messages
86
Reaction score
206

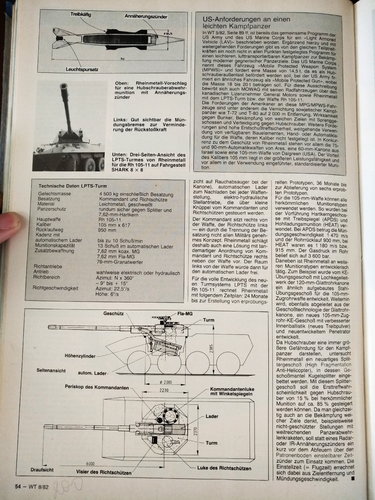

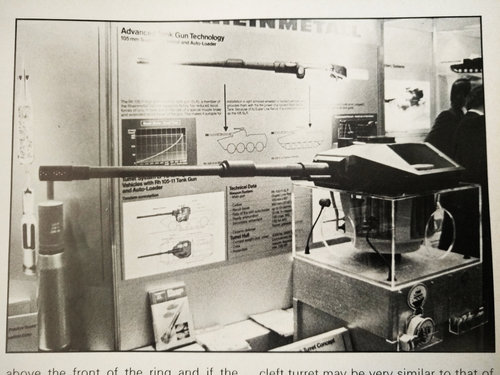

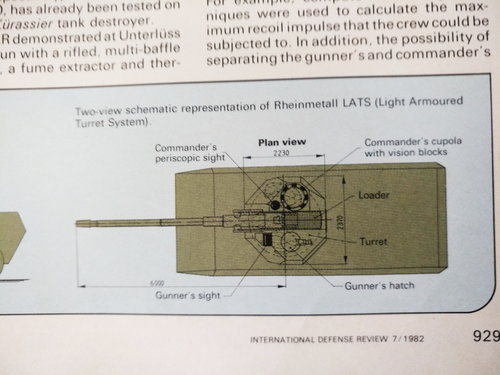

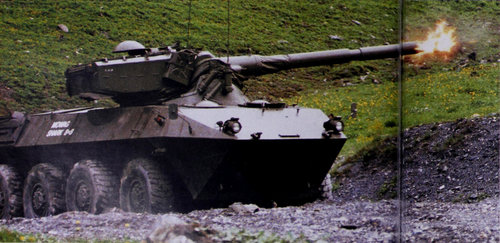

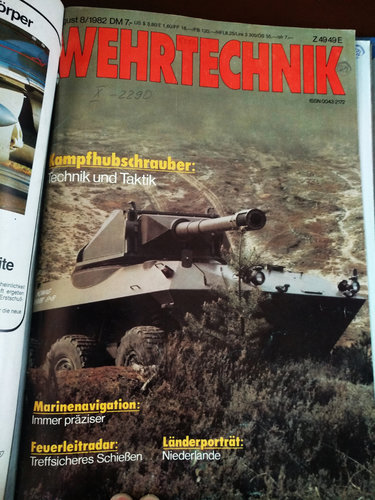

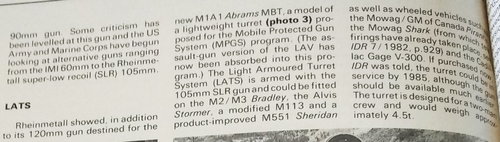

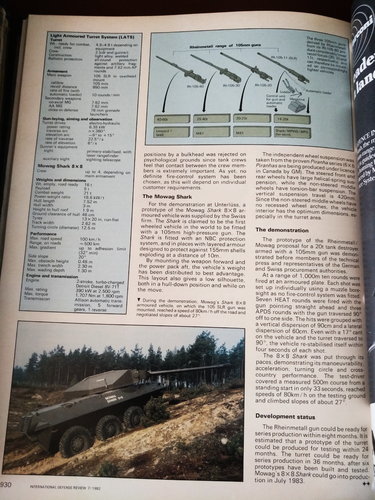

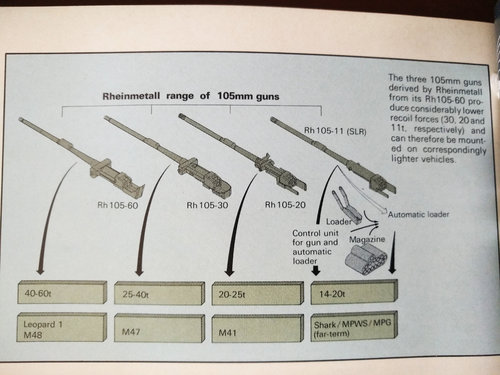

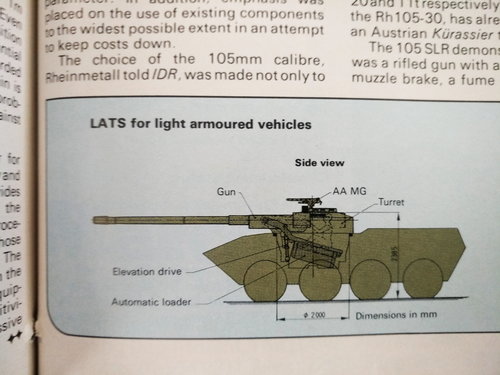

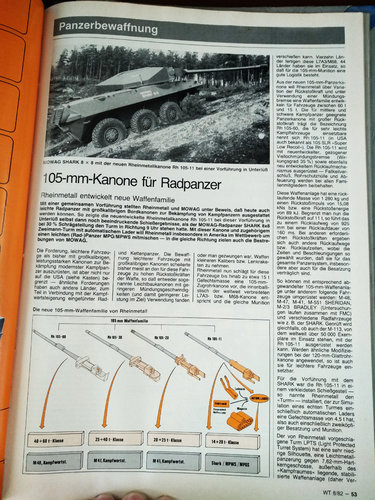

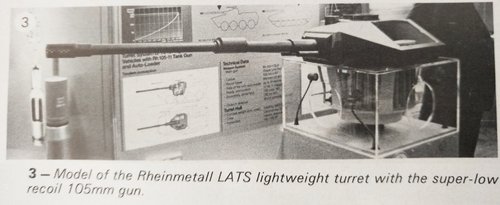

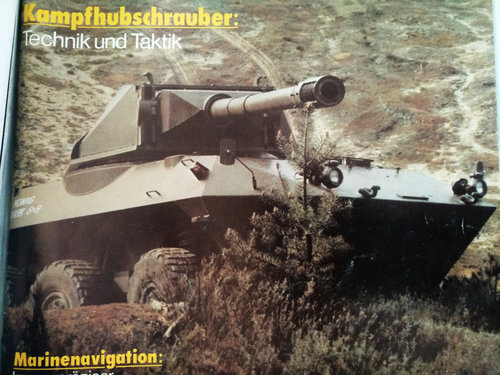

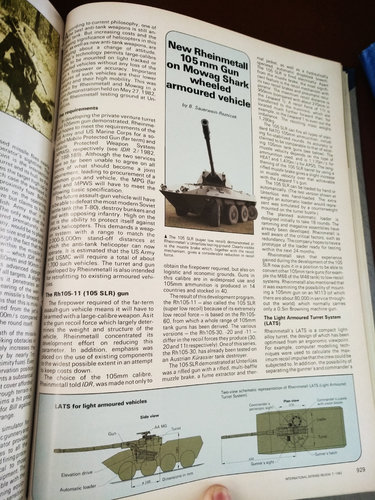

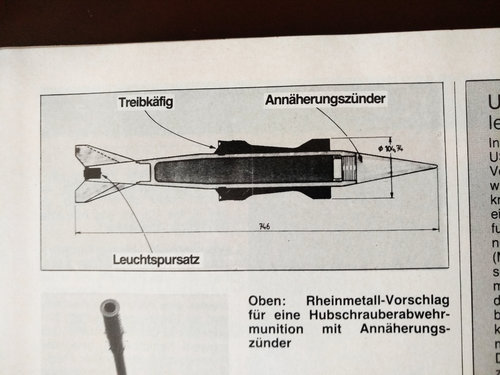

Mowag Shark w/ prototype LATS turret from Rheinmetall, armed with 105mm gun
