Morphing Rotorcraft - Darpa Program

bobbymike

CLEARANCE: Above Top Secret
Joined
Apr 21, 2009
Messages
8,743
Reaction score
131
Darpa Sets Goals For Morphing-Rotor Demo - Jun 9, 2010

By Graham Warwick
Washington

After years of neglect, U.S. rotorcraft technology is to get a boost from a Pentagon research program that aims to fly a shape-changing rotor offering substantially more payload and range with significantly less noise and vibration.

Three teams have been awarded contracts for the initial phase of the Defense Advanced Research Projects Agency’s Mission Adaptive Rotor (MAR). Program managers plan to fly an adaptive rotor by 2018 to ready the technology for the next U.S. military rotorcraft program.

Boeing, Sikorsky and the Bell Boeing tiltrotor team have received 16-month Phase 1 contracts to assess a wide range of adaptive rotor technologies and develop designs for both a clean-sheet “objective” rotor system and a demonstrator rotor that can fly on an existing aircraft.

“Adaptation of all blade attributes are on the table: twist, airfoil, chord, stiffness, rpm., etc.,” says Daniel Newman, Darpa’s MAR program manager. “There are many technologies available. It’s not just any one, it’s about developing multiple adaptive technologies that complement each other.”

Newman says rotor design has remained largely unchanged since the current generation of U.S. military helicopters was introduced in the 1960s and 1970s. While it has invested heavily in advancing fighter technology to today’s fifth-generation F-22 and F-35, “the Defense Department has historically underinvested in rotorcraft, which are still at the equivalent of the F-4 Phantom,” he says.

“The challenge has been developing new rotor technology, because most rotors since then have been modifications, and the few all-new designs have been risk-averse. MAR is an all-new, clean-sheet rotor that will be much less constrained.”

The wings of fixed-wing aircraft are far from fixed, with movable flaps and variable camber that enable lift and drag characteristics to be changed in flight. Wings have been built that can vary in area, chord, span or sweep. In contrast, the aerodynamic and geometric characteristics of a rotor blade are fixed during design, and never change.

The goal of MAR is a rotor that can change its configuration before a mission and in flight, between mission segments and with every revolution. “Adaptation for rotorcraft is a huge opportunity because the blades see a wide range of flight conditions,” says Newman. “They can adapt between mission segments and also around the rotor azimuth.”

The blades on an adaptive rotor could change their length, sweep, chord, camber, tip shape, twist, stiffness, rotational speed or other attributes. Newman says adaptive technology will be “available for any rotor,” including tiltrotors, tail rotors, propellers and “rotating turbomachinery.”

Industry teams are keeping their MAR cards close to their chests, but Sikorsky talks illustratively about iPhone-like “apps” that would allow the pilot to select low noise, high agility, smooth flight or other modes at the touch of an icon on a cockpit display.

http://www.aviationweek.com/aw/generic/story_generic.jsp?channel=defense&id=news/awst/2010/06/07/AW_06_07_2010_p24-231440.xml&headline=Darpa%20Sets%20Goals%20For%20Morphing-Rotor%20Demo

S

sublight

Guest
The Comanche and V-22 Osprey were years of neglect? More like years of incredible money pits.

The V-22 program was 27 billion dollars.

The Comanche was a veritable bargain at only 7 billion dollars.

“the Defense Department has historically under-invested in rotor-craft, which are still at the equivalent of the F-4 Phantom”

34 billion dollars seems like a hell of an investment to me..... :p


yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
1,972
Reaction score
71
sublight said:
The Comanche and V-22 Osprey were years of neglect? More like years of incredible money pits.

The V-22 program was 27 billion dollars.

The Comanche was a veritable bargain at only 7 billion dollars.

“the Defense Department has historically under-invested in rotor-craft, which are still at the equivalent of the F-4 Phantom”

34 billion dollars seems like a hell of an investment to me..... :p
Not when you compare it to the money spent on fixed wing. There are already considering replacement for F-22 and 35 and yet rotorcraft are unchanged for 30 years. When you consider the number of sortie conducted for military and humanitarian efforts between fixed and rotary wing aircraft you will see that rotorcraft do far more sortie daily than fixed wing, yet tech development remains very fixed wing centric. 27 billion for V-22. How many $B were spent on F-22 and B-2? How often do we use them on a regular basis? What do they do to support EVERY mission set?


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,779
Reaction score
200
one of forum members is one of the MAR project top staff at DARPA, BTW


Mr London 24/7

CLEARANCE: Secret
Senior Member
Joined
Apr 27, 2008
Messages
373
Reaction score
3
Mission Adaptive Rotor Program Industry Day - Program Overview:

http://www.darpa.mil/tto/solicitations/MAR_Briefs/MARProgramOverview.pdf


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
179
Website
deeptowild.blogspot.com

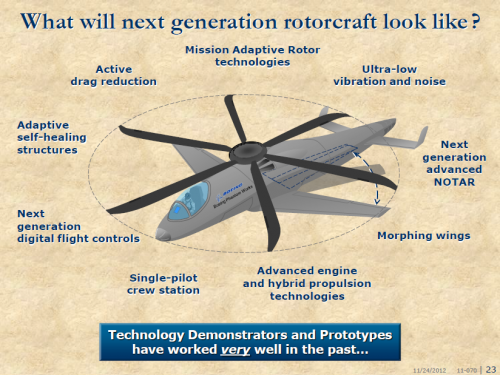

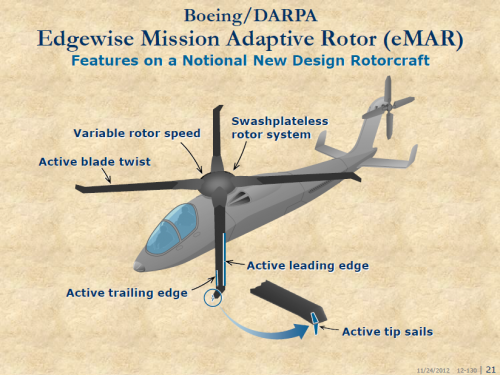

Artist's impressions of Boeing/DARPA Edgewise Mission Adaptive Rotor (eMAR) and Boeing Phantom Works next generation rotorcraft.

Source:
http://www.aofs.org/wp-content/uploads/2012/11/121122.18-Rotorcraft-Back-to-Future-Davis.pdf


Attachments

pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
264
Reaction score
10
Nice findings, thanks a lot for sharing.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,779
Reaction score
200
Mr London 24/7 said:
Mission Adaptive Rotor Program Industry Day - Program Overview:

http://www.darpa.mil/tto/solicitations/MAR_Briefs/MARProgramOverview.pdf
Guys - anyone still have this pdf grabbed oh disk?
