hesham said:
Mizuno Shinryu type 1 suicide attack rocket glider.
Mizuno Sinryu type 2 rocket intercopter aircraft.
Just found the last mentioned aircraft on
http://www.strange-mecha.com/aircraft/Ente/ente.htm:


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,268
Reaction score
72
Hi,

The Mizuno MXZ1 was twin engined military trainer aircraft project.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,583
Reaction score
20
A first half of 1945, the IJN submitted the required specification for special attack rocket propulsion-type antitank glider to the Yokosho.
This glider was planned to discharge from a coastal base or cave, and to carry out the direct attack to the LCA (landing craft) of the Allies, or the M4 Sherman tank after landing, etc.
Mizuno was selected to design and development this glider, the first prototype of this glider named “Shinryu(
神龍, the god dragon)” was completed in May, 1945.
Almost all the parts of the Shinryu were wooden, carry a 100-kg bomb, and had three small sets of rokets which discharged the Shinryu. The first test flight was performed in July, 1945.
Although the performance of a prototype was unstable, production was started and five-sets prototypes were under manufacture at the time of the end of the war in August, 1945.

By losing "Shinryu" confidential documents, the use of this glider became uncertain.

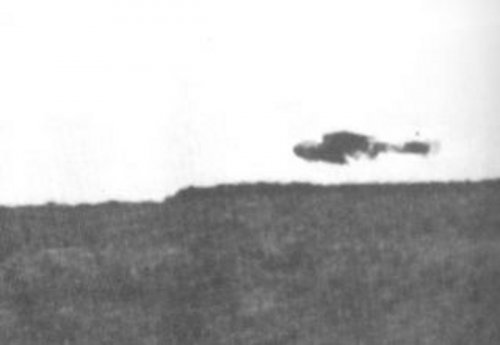

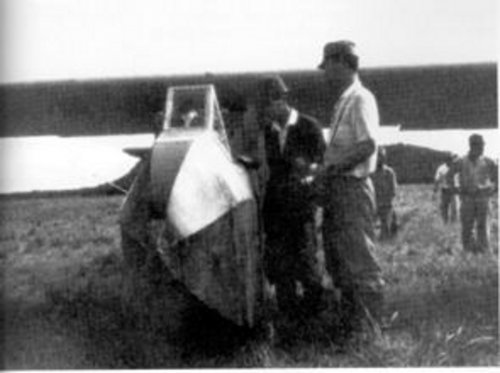

But, several photographs of a prototype were exhibited by the Yokaren (予科練,
the Japanese Naval Aviation Preparatory School) student pilot of those days who survived, That whole aspect became clear.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,955
Reaction score
14
Thanks blackkite !
This looks like the type of aircraft, that can be expected as the desperate
last-ditch weapon, it actually was.
There are a lot of other drawings around, some designated as "Mizuno Shinryu II",
but many just as "Mizuno Shinryu", showing a canard type. Is this really a further
development, or just a wrong drawing ?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,583
Reaction score
20
Jemiba said:
Thanks blackkite !
This looks like the type of aircraft, that can be expected as the desperate
last-ditch weapon, it actually was.
There are a lot of other drawings around, some designated as "Mizuno Shinryu II",
but many just as "Mizuno Shinryu", showing a canard type. Is this really a further
development, or just a wrong drawing ?
Hi Jens!
I can find Shinryu Ⅱ or Ⅲvacuum model pictures in Japanese sources, too. Those models are canard rocket glider as you know.
But it's difficult to find reliable information or evidence for existence of Shinryu Ⅱor Ⅲ still now. :-[


hatsudoki

CLEARANCE: Restricted
Joined
May 15, 2007
Messages
9
Reaction score
0
Thank you blackkite,
Does anyone have a reference that quotes dimensions for the Shinryu? The ones that I have seen seem unrealistically small.
Cheers,
Mike


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,780
Reaction score
1
Some dimensions for the Kokukyoku Jinryu. (glider as shown in the drawings)
Construction of a prototype was contracted to Mizuno.

wingspan 7.0 m
length 8.22 "
height 1.8 "

wing area 11.0 m2
empty weight 220kg
armament 100kg explosive

max speed 275 km/h
ceiling 400m
normal range 4km

source :Japanese Special Attack Aircraft & Flying bombs.
Ryusuke Ishiguro and Tadeus Januszewski.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,583
Reaction score
20
Thanks lark. :D
From Japanese Wikipedia,
Although the Shinryu or Jinryu typeⅡ was developed as a rocket fighter attacker which had a delta canard wing , it finished only the plan.
The solid rocket engine was equipped and the cruising time for about 120 seconds was expected. This cruising time was comparable as Ba 349.


hatsudoki

CLEARANCE: Restricted
Joined
May 15, 2007
Messages
9
Reaction score
0
Thank you lark,
The only other dimensions I have seen were from an old article in Asahi Journal. If I remember correctly, this quoted a span of 5.00m, which seemed rather small.
Cheers,
Mike


windswords

CLEARANCE: Secret
Joined
May 20, 2009
Messages
288
Reaction score
0
According to Edwin Dyer's (Hikoki) great book Japanese Secret Projects the glider was call Jinryu and the later rocket plane was called Shinryu. As was said before the rocket plane (Shinryu II) was a plan only with no prototype being built.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,583
Reaction score
20
Three rocket boosters which Jinryu held were used one by one continually.When Jinryu reached 200m altitude after used left and right rocket boosters, ignited middle rocket booster and attack the tank. Total thrust of three rocket boosters was 400kg. Burn time was 10 seconds. You can see three rocket boosters in bottom picture of attached book cover of this book.
Source : Japanese Special Attack Aircraft & Flying Bombs.
Japanese edition, ISBN978-4-499-23048-3
It's a amazing book indeed. :eek: Thanks lark.

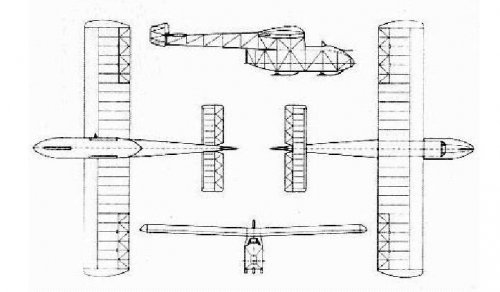

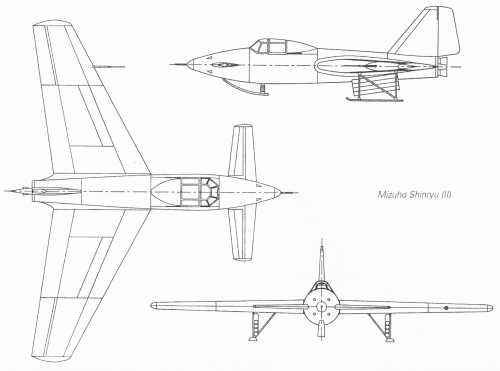

You can see very precise 3-side view drawing and very rare side picture of Jinryu, etc. There are no Jinryu or Shinryu Ⅱ/Ⅲ drawings in this book.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,955
Reaction score
14

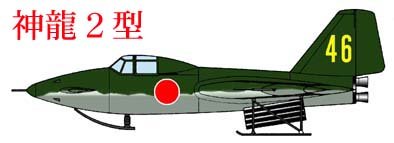

Indeed, that's the one, which is called "Mizuno Shinryu" on some sites.
What makes me wonder are the skids. Wouldn't it have been launched
from a ramp, too ?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,583
Reaction score
20
Jemiba said:
Indeed, that's the one, which is called "Mizuno Shinryu" on some sites.
What makes me wonder are the skids. Wouldn't it have been launched
from a ramp, too ?
Perhaps oily skid. ;D
I want to know the source of this Jinryu Ⅱ 3 side view drawing. Someone please show us.


windswords

CLEARANCE: Secret
Joined
May 20, 2009
Messages
288
Reaction score
0
The skids can only be for landing, leading some to speculate that this was not a shimpu aircraft like the Jinryu.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,583
Reaction score
20
windswords said:
The skids can only be for landing, leading some to speculate that this was not a shimpu aircraft like the Jinryu.
Do you know how to take off?

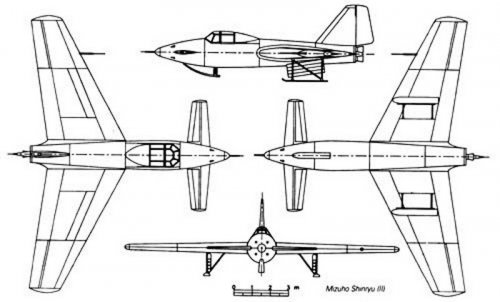

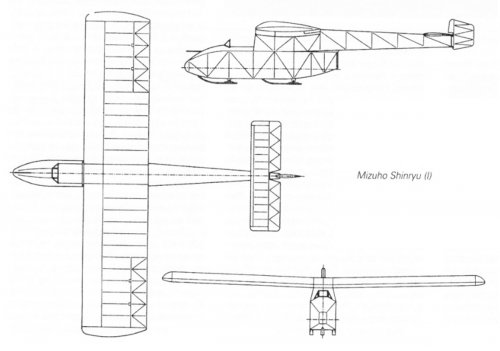

This 3 side view drawing's title is Three view of the Mizuno Shinryu II. From J.S.M.
What is J.S.M?

And another drawing. Almost same? ;D
http://www.airwar.ru/enc/glider/shinryu.html


Attachments

chuck4

CLEARANCE: Top Secret
Joined
Jan 17, 2011
Messages
803
Reaction score
0
How far away from the site of the attack were these gliders intended to be launched?

Are the expected to ram their targets, or do they have some function after the initial attack?


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,955
Reaction score
14
Those objects in the nose could be 4 gun apertures, So, maybe it was intended
for strafing the beach and then return ?


lark

CLEARANCE: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,780
Reaction score
1
"Shinryu" is not named in the chapter about the Jinryu.
But at the end of it ,the author Mr.Ishiguro writes this:

"... Major Suganami and his team started work on a new aeroplane,which was more
of an interceptor/attack fighter than a suicide aeroplane.There is information of an other
anti-tank rocket glider project designed "MX75". It was developed from 1941 to 1942,but
no detailed information is available...."


Pelzig

CLEARANCE: Secret
Joined
Oct 24, 2008
Messages
441
Reaction score
0
From what I understand, the kanji for Jinryu and Shinryu is the same. There is no evidence to suggest that the Shinryu II ever used that name. It has just been accepted in contemporary sources.


As for how the Shinryu II launched, it was similar to the Mitsubishi J8M, ergo, using a dolly that was jettisoned upon attaining flight. What other means were considered aren't known but could have included being towed into the air (and thus saving fuel) or even air-dropped like the Ohka.


For weapons, it was strictly rockets. This isn't too uncommon as the Germans used R4M rockets on the Me 262 and trailed with the Me 163, the rockets being used as a "shotgun" blast against one target. With fast approach speeds, you didn't need accuracy with rockets and typically, one rocket hit was enough to cripple a bomber or put it out of action.


Authors have come up with various roles for the Shinryu II. One of the ideas was that it was designed as a suicide aircraft against ground targets like tanks. The pilot would use up the rockets then use the explosive warhead in the nose to take out some other target. This, however, makes almost no sense. The Japanese had more than adequate means to combat things like tanks, such as lunge mines, IEDs, anti-tank guns, etc. and they were working on their own version of the panzerfaust and bazooka. So, the idea of expending something as complex as the Shinryu II against tanks isn't too logical. As a "standard" suicide plane, it was more advanced and therefore more complex when compared to the Showa Toka (Ki-115 in IJN service) and the Ohka. So, in that light, it makes little sense to waste resources to build something more difficult when there were easier means to produce a workable suicide plane. This, then, makes the Shinryu II as a rocket powered, recoverable point defense interceptor. That makes more sense than a dedicated suicide role.


That the Shinryu II was even discussed as a suicide aircraft may have been precedent in that all of the IJN's suicide planes had no designations. So, perhaps this assumption carried over to the Shinryu II and therefore it had to be a suicide craft.


chuck4

CLEARANCE: Top Secret
Joined
Jan 17, 2011
Messages
803
Reaction score
0
It seems to me that once this aircraft were to descend to a reasonale altitude for ground straifing or rocket attack, say 1000 feet, it could hardly glide more than 2-3 miles after that, unless it were to have some form of sustainer propulsion. It seems implausible that any airfield can operate within 2 miles of the enermy front line.

So there seems to be no way this plane could be retreived for reuse, unless it has some sustainer propulsion. Otherwise it has to be a suicide aircraft.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,583
Reaction score
20
What was the maximum speed of Sinryu Ⅱ?


Pelzig

CLEARANCE: Secret
Joined
Oct 24, 2008
Messages
441
Reaction score
0
I already outlined why the Shinryu II wasn't designed for ground attack and what you have to say only adds further credence to that.


But, I do not agree that the Shinryu II was an expendable, dedicated suicide airplane. Lets look at some of the last ditch suicide aircraft both the IJA and the IJN came up with:


Nakajima Ki-115 (Showa Toka)/Ki-230: A cheap, easily built suicide aircraft
Kokusai Ta-Go: Another easily constructed and designed suicide plane
Kawanishi Baika: Fiesler Fi 103R based pulse-jet powered suicide plane
Kugisho MXY7/Ohka: Basically a simple piloted bomb; later versions were more complex when thermo and turbojets were added (Model 22;Model 33;Model 43;Model 53)
Jinryu: Easy to build bomb-carrying suicide glider
Nakajima Kitsuka (Kikka): Initial design meant for suicide attacks
Kugisho D5Y: dedicated suicide version of the D3Y Myojo


The common denominator is that, for the most part, the Japanese were interested in quick to build, simple designed, suicide aircraft. They needed quantity, not quality and their design philosophy for such planes is pretty evident.


Lets take a look at the complexity of the Shinryu II. It used a cropped delta planeform using automatic spoilers, was equipped with a water/alcohol rocket motor cooling system, and was meant to take a pressurized cockpit or if that couldn't be installed, the pilot would wear a pressure suit. All of these are not found in these other suicide aircraft. If a pressurized cockpit/pressure suit was a requirement, that means the Shinryu II was meant to fly at altitude and combat bombers.


The Shinryu II was to be fitted with four Toko-Ro Type 2 rockets for a combined thrust of 600kg (1,322lb) with a burn time of 30 seconds. Endurance was 1.3 minutes. Keep in mind that the combat endurance of the Messerschmitt Me 163B was 2.5 minutes. The Bachem Ba 349A was only 2.2 minutes of endurance. So, the Shinryu II isn't completely out of the ballpark of point interceptors.


The methodology of launch was to get airborne on two rockets and use the remaining two to continue powered flight. Just like the J8M (the Japanese Me 163B), the Shinryu II would launch, conduct a least one attack, then return to base for recovery, rearming, and relaunching. And for that, it needed an acceptable glider shape.

To add, why rockets? Simple. Assurance of a hit. The Me 163B, with its cannon armament, gave the pilot about 3 seconds to line up the target, fire, and bank away to avoid collision. This was due to the high closure speed of the Komet versus the slower bomber. This meant the pilot needed nerves of steel, superb piloting, and excellent marksmanship. This was something the Luftwaffe didn't have much of by 1944 and why the Me 163 had such a poor kill ratio. So, the Me 163A was tested with R4M rocket racks and the Me 262 saw action using them. Same applied to the Bachem Natter. Launch a spread of rockets at the target and you really don't need tremendous accuracy and any one hit could prove fatal. The U.S., post-war, feared Russian bomber streams and you had a slew of fighters equipped with rockets such as the F-86D, F-89, and F-94.


chuck4 said:
It seems to me that once this aircraft were to descend to a reasonale altitude for ground straifing or rocket attack, say 1000 feet, it could hardly glide more than 2-3 miles after that, unless it were to have some form of sustainer propulsion. It seems implausible that any airfield can operate within 2 miles of the enermy front line.

So there seems to be no way this plane could be retreived for reuse, unless it has some sustainer propulsion. Otherwise it has to be a suicide aircraft.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,583
Reaction score
20
Hi Ed!
Do you have a original drawing of SinryuⅡ?
According to your book, maximum soeed of ShinryuⅡ was 300km/h, Range was 4km., Ceiling was 400m.
I think these values are too small for ShinryuⅡ, if ShinryuⅡwas a point interceptor.


windswords

CLEARANCE: Secret
Joined
May 20, 2009
Messages
288
Reaction score
0
I saw those figures too. Perhaps it is a misprint and the figures should be for the Jinryu (aka Shinryu I) and not the Shinryu II.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,955
Reaction score
14
Missed that point on the Shinryu (or Jinryu) II : There are, what seem to be booster rockets attached
directly to the wing skids, so (if we accept this configuration as authentic) it took off on the skids.
Maybe only the wing skids would have been jettisoned and the nose skid only would have been used for
landing. Thought about those rocket packs as armament, but as they aren't lined up with the longitudinal
axis, to my opinion this wouldn't make too much sense, not to mention the darg of the skids in flight.


Pelzig

CLEARANCE: Secret
Joined
Oct 24, 2008
Messages
441
Reaction score
0
The formatting makes it a bit confusing but you are correct that the figures are for the Jinryu while those in parenthesis pertain to the Shinryu II.

windswords said:
I saw those figures too. Perhaps it is a misprint and the figures should be for the Jinryu (aka Shinryu I) and not the Shinryu II.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,583
Reaction score
20
The following information is included in this book. (Super Zero Reppu, Maru magazine, ISBN978-4-7698-1490-0)

"The information the basis of whose is unknown is going out of control about ShinryuⅡ rocket fighter. "
I think that Shinryu Ⅱ is a fake.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,268
Reaction score
72

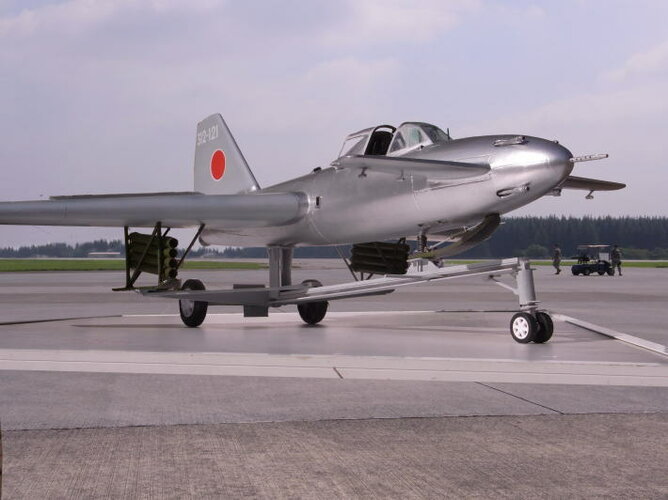

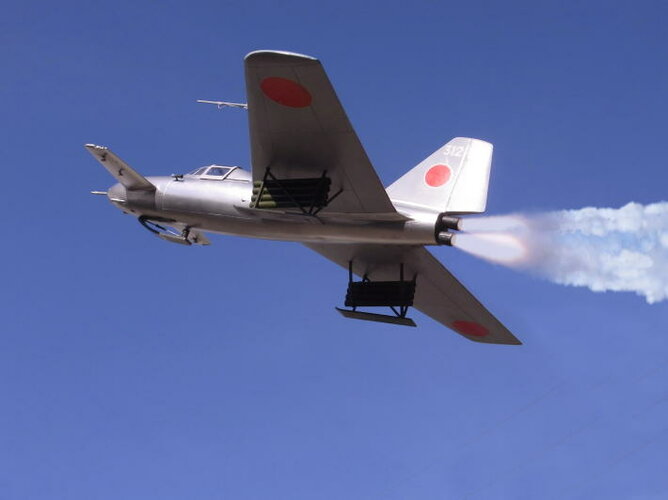

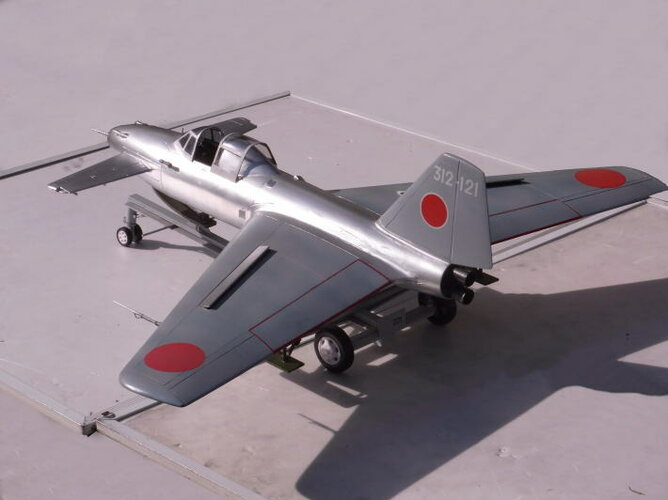

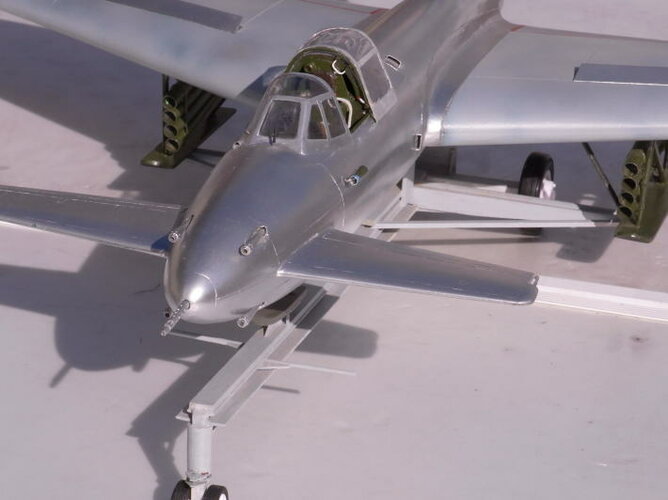

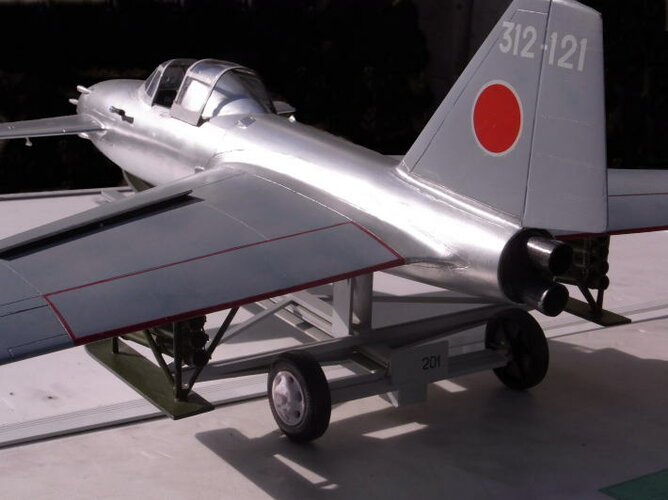

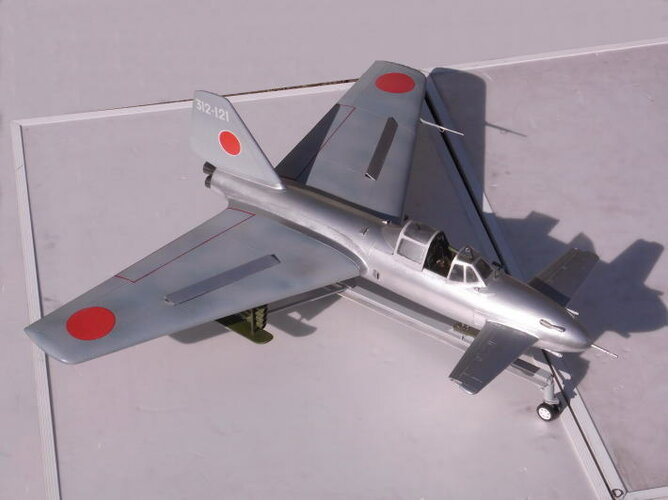

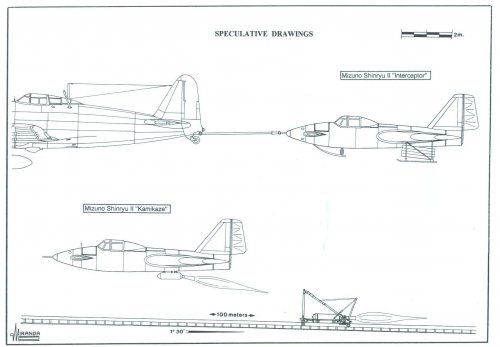

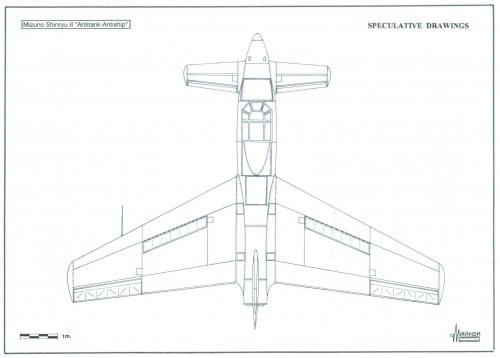

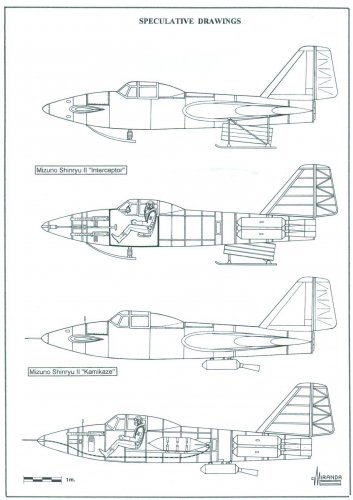

Amazing drawings my dear Justo.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,583
Reaction score
20
Excellent drawing, but Justo do you have a original drawing of ShinryuⅡ?


Justo Miranda

CLEARANCE: Top Secret
Joined
Dec 2, 2007
Messages
3,415
Reaction score
7
I am afraid I have to say no, Blackite san.

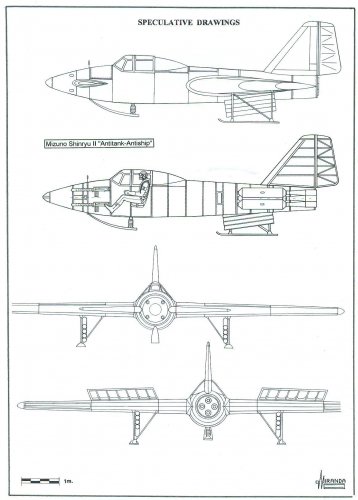

I have same information as everyone else. My drawings are just speculative and my objective when exposing them here, to the opinion of experts, is looking for a reasonable explanation to the still unresolved mysteries of aviation.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
5,583
Reaction score
20
Many thanks brilliant Justo san! :)


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
390
Reaction score
2
any drawing or picture of what type of rocket this aircraft would use?
