Mitsubishi 1MT1 - help request

[redstar72]

Hi all!

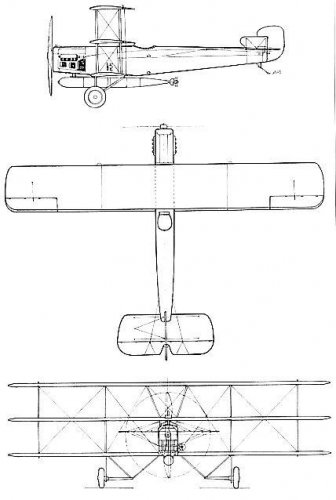

Maybe somebody can help with better, or at least bigger, drawing of this triplane monster? The only one which I could find is this (see attachment). I found it here: http://www.straggleresearch.com/2010/10/navy-type-10-carrier-torpedo-aircraft.html.



[Stargazer]

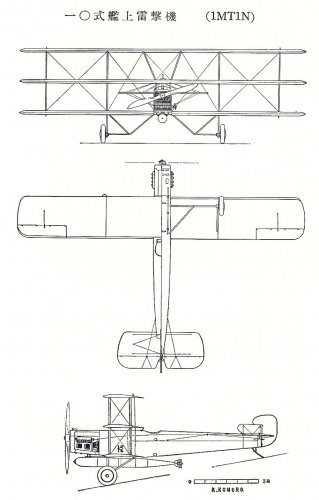

Here goes:



[blackkite]

Hi! Only picture.

http://www.mhi.co.jp/aero/introduction/photo/presea/10raigeki.html



[airman]

technical data can be find here :
http://en.valka.cz/viewtopic.php/t/34010



[redstar72]

Many thanks to all, and to Stargazer especially!



[Data Merchant]

Im having hard time at finding more information about this Triplane torpedo bomber. I checked wikipedia in all languages and some web sites. All I need are;

- Picture of the cockpit
- Spesifications and more technical information about 12-cylinder water cooled 450 hp W12 Napier Lion engine
- information about scructure of the aircraft
- placement of fuel tank
- More informations about the 457 mm, 800 kg torpedo that carried by the triplane.

(Any anatomical information will be helpfull)

thanks for caring and sorry if I done a mistake, Im new to the forum

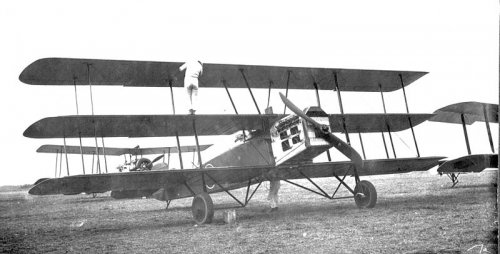

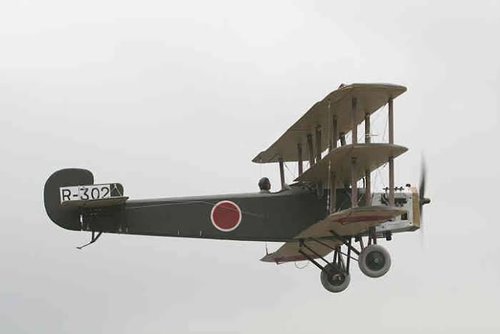

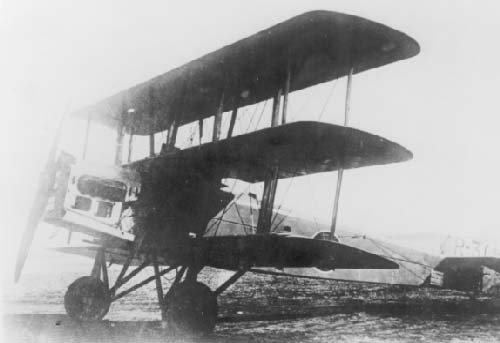

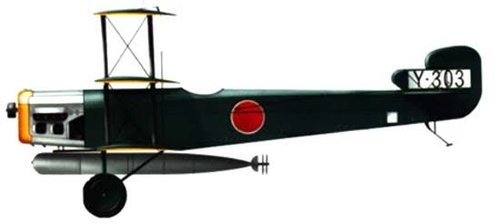

here are some pictures:



[Silencer1]

Welcome aboard, Data Merchant!

This forum have extensive search feature. Try to use query "Mitsubishi torpedo" and you'll find some info about this triplane.

For example this

Good luck!
