blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280

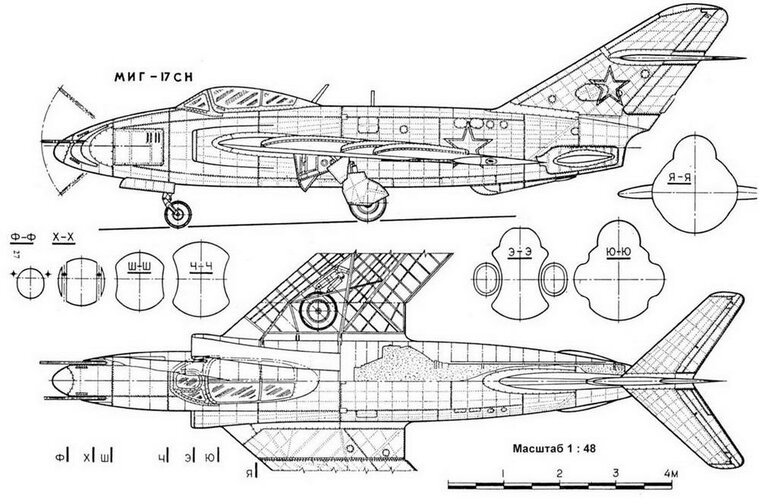

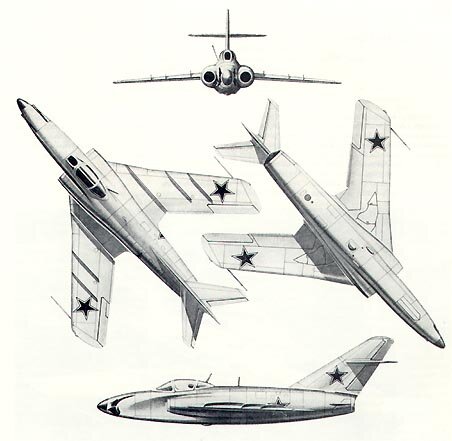

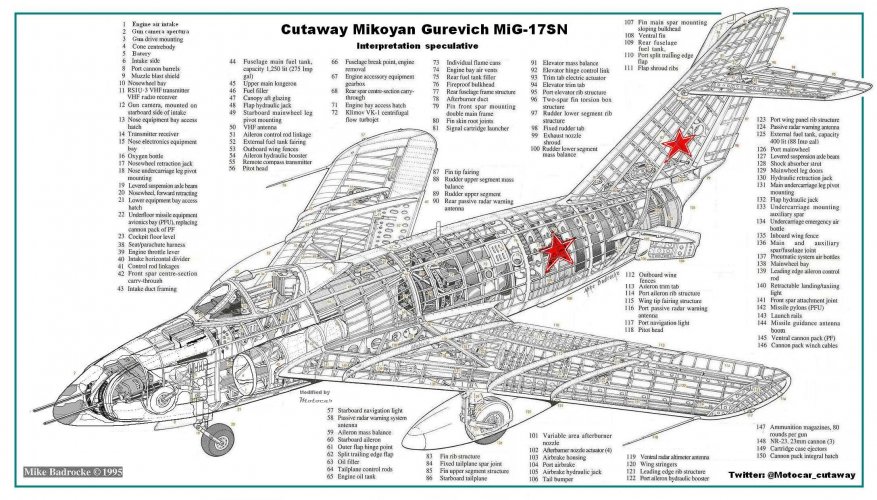

Hi! MiG-17SN.
http://ourairports.biz/?p=942
https://forum.warthunder.com/index.php?/topic/311375-mig-17-sn-experimental/

"When the guns were fired, other unpleasant surprises occurred. For example, firing in gusts with the three weapons rotated upward or downward altered the aircraft’s flight path in the opposite direction. It was impossible to fire the cannons at all when the weapons’ slew angle exceeded 10 degrees upward unless special equipment was used to balance the angular momentum of their recoil. The setbacks suffered while experimenting with rotating weaponry on both the MiG-15 and the MiG-17 convinced the OKB once and for all that any such system would be useless if installed too far from the center of gravity in singleseat fighters. All research work in that direction was subsequently abandoned."


Attachments

  • image174.jpg
    48.5 KB · Views: 131
  • MIG-17%20SN%204.jpg
    134.9 KB · Views: 109

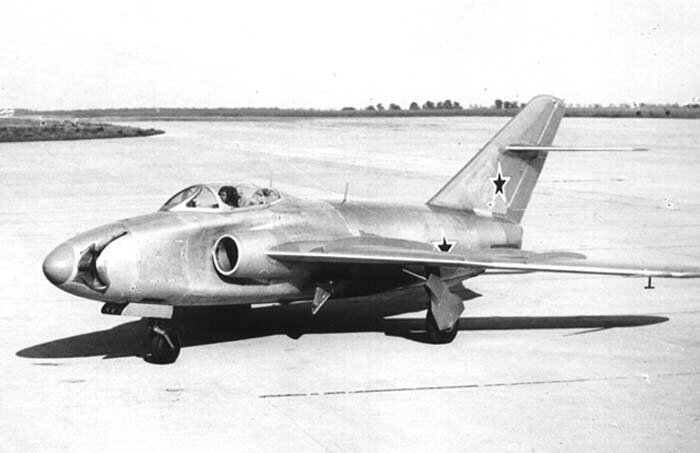

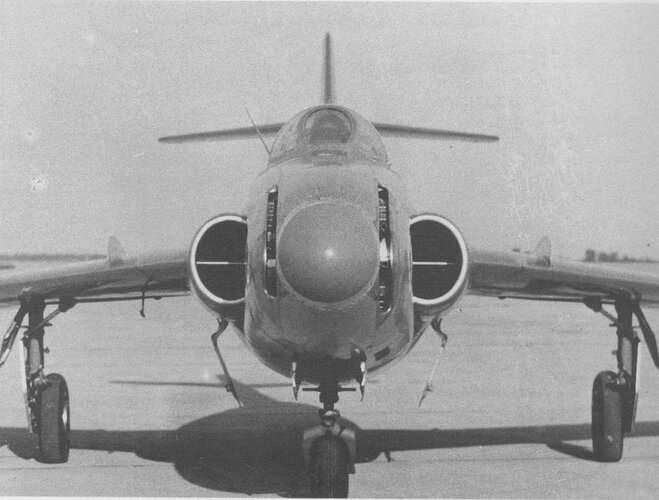

  • MiG-17SN prototype fitted with side intakes to accomodate nose-mounted basculating cannons.jpg
    MiG-17SN prototype fitted with side intakes to accomodate nose-mounted basculating cannons.jpg
    72.6 KB · Views: 111
  • mig-17snz.jpg
    37.1 KB · Views: 117
  • pic_65.jpg
    113.8 KB · Views: 115
  • pZ46jLK.jpg
    26.1 KB · Views: 109
  • R66hlYN.jpg
    163.5 KB · Views: 111
  • sM4EfuE.jpg
    27.8 KB · Views: 123
Last edited:

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
998
Reaction score
585
firing in gusts with the three weapons rotated upward or downward altered the aircraft’s flight path in the opposite direction.
It is interesting that nobody had enough forethought to anticipate that before wasting resources on building it.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
647
Reaction score
404
Obviously a rotating 'turret' in the nose was nonsense. If my memory serves me well the Americans also tried similar solutions with quite similar results (F-87, F-89, F9F).
I'm curious why the Soviets didn't use the solid nose with side intakes for a photo-reconnaissance or ground attack variants of the MiG-17 (as the Chinese did with the MiG-19/J-6 to make the Q-5). Polish designers of the Lim-5M/Lim-6 (ground attack variants of the licence-built MiG-17F) did consider such an arrangement, but they concluded that it would require a major redesign of the fuselage, which would be more costly and would make a rebuilt of existing fighters into ground attack planes impossible. Therefore the idea was dropped (unfortunately in my opinion).
Piotr


visvirtusvoluntas

Never Enough
Joined
Aug 29, 2012
Messages
111
Reaction score
34
Obviously a rotating 'turret' in the nose was nonsense. If my memory serves me well the Americans also tried similar solutions with quite similar results (F-87, F-89, F9F).
I'm curious why the Soviets didn't use the solid nose with side intakes for a photo-reconnaissance or ground attack variants of the MiG-17 (as the Chinese did with the MiG-19/J-6 to make the Q-5). Polish designers of the Lim-5M/Lim-6 (ground attack variants of the licence-built MiG-17F) did consider such an arrangement, but they concluded that it would require a major redesign of the fuselage, which would be more costly and would make a rebuilt of existing fighters into ground attack planes impossible. Therefore the idea was dropped (unfortunately in my opinion).
Piotr
The two air intakes didn't fit well with the engine layout and caused many flame outs.


kocovgoce

ACCESS: Confidential
Joined
Oct 23, 2020
Messages
159
Reaction score
128
Тhe problem was the large firing forces оf the gun and and poor precision perhaps reccoilless gun maybe be a better solution ?



Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,353
Reaction score
4,734
Website
www.amazon.com
The angled sideways cannon idea was adopted by Grumman to improve the dogfight performances of their F9F naval fighter.

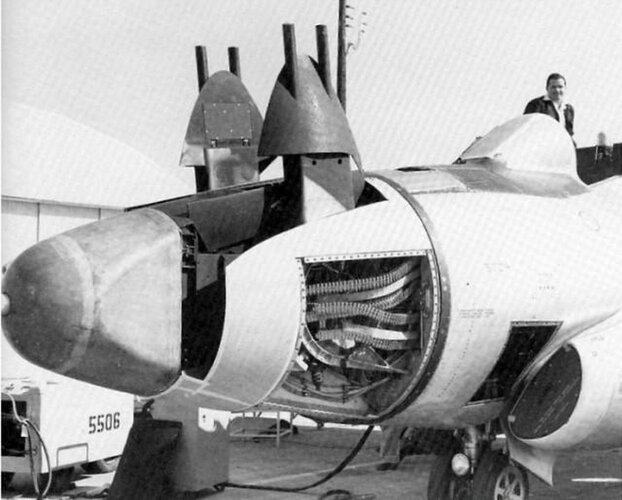

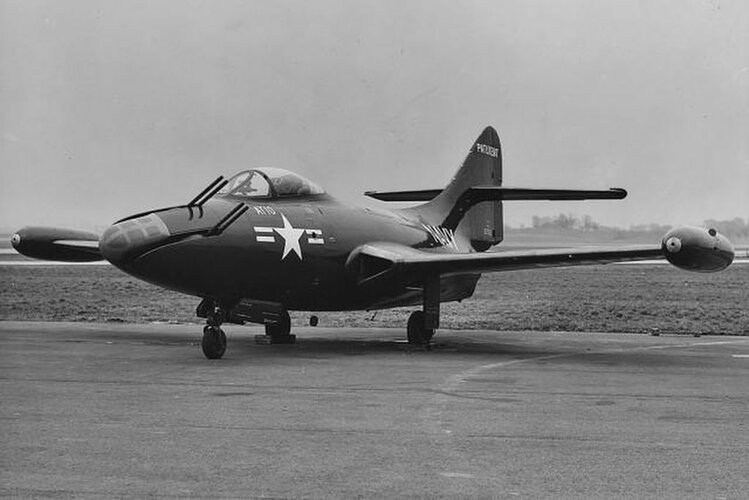

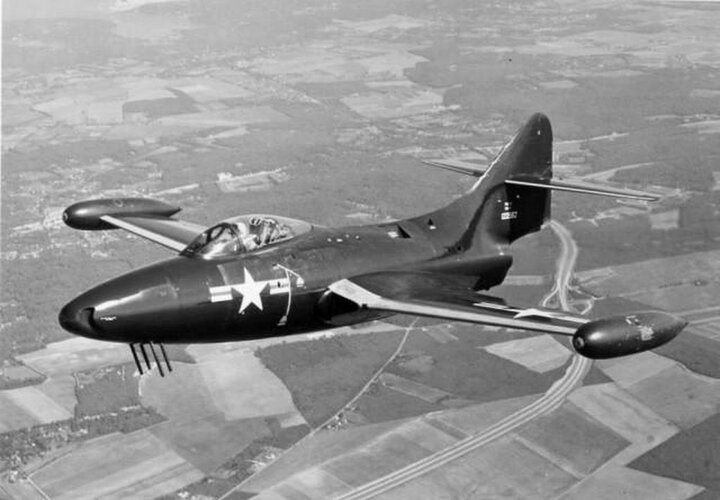

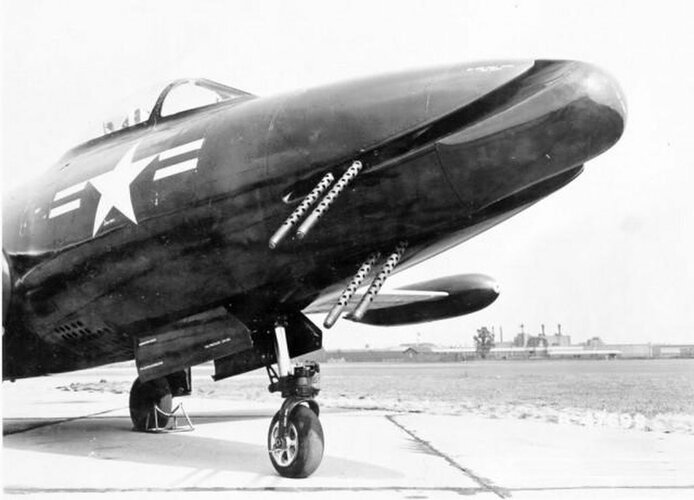

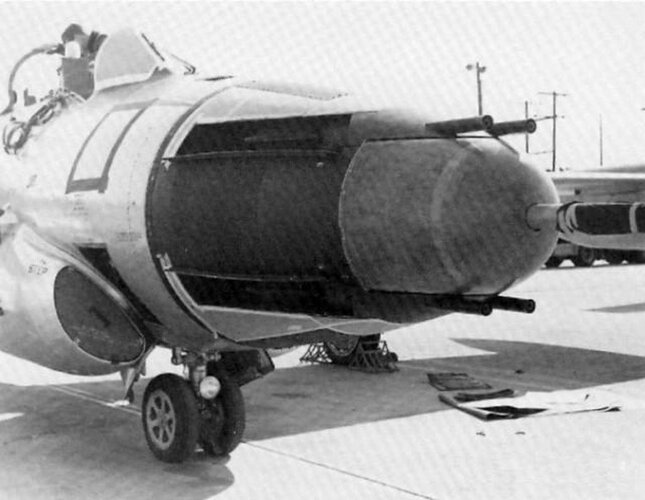

At the end of 1949 one Emerson Aero X17A rotating turret, with four 0.50-inch machine guns, was mounted in the nose of the F9F-3 Bu No 122562.

The nose rotated 360-degree on the plane’s longitudinal axis and the machine guns pivoted within the nose and could be pointed just about anywhere.

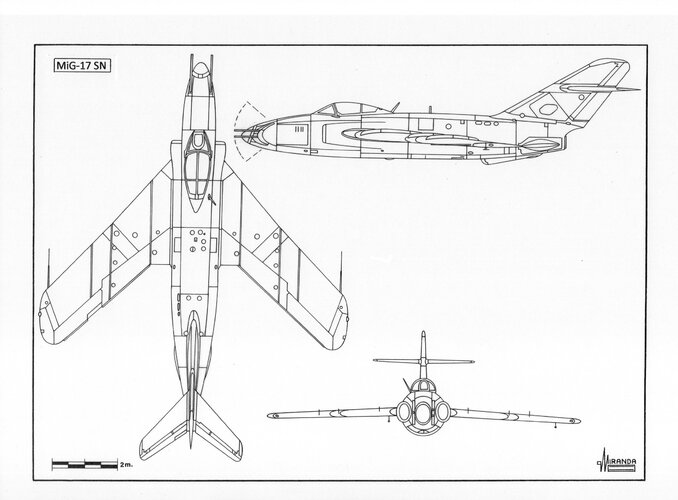

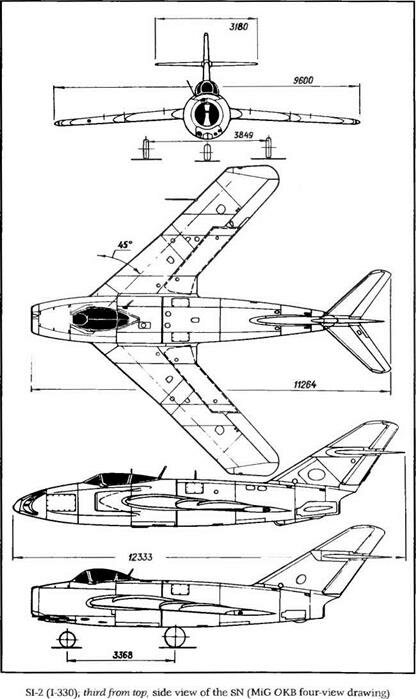

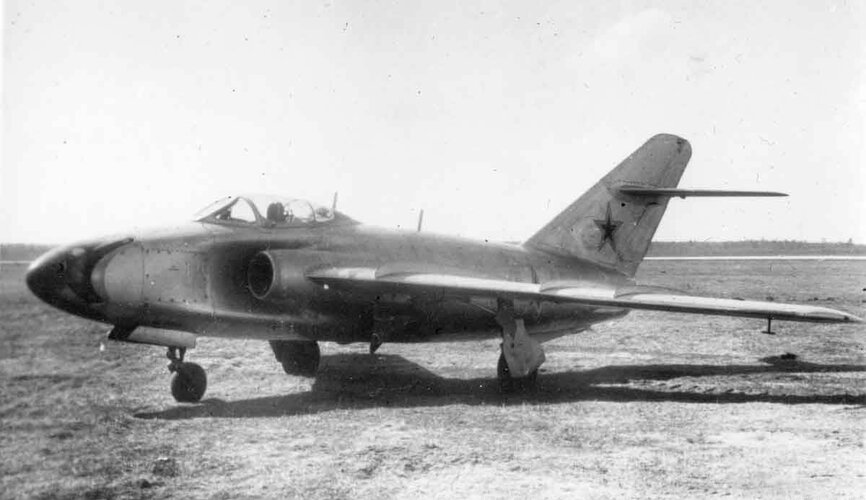

In 1953 one MiG-17 was extensively modified, as MiG-17 SN, with lateral air intakes and a new nose-mounted Makarov weapons turret. The 469 kg device containing three TBK-495 23-mm cannon able to rotate vertically through an arc of +27-degree and -9-degree.

The State test trials conducted in February 1954 revealed serious aiming difficulties when the large recoil forces altered the aircraft’s flight path in the opposite direction.

The setbacks suffered while experimenting and the 60 km/h drag produced by the turret convinced the OKB that such system would be useless and the Project SN was abandoned.


Attachments

  • 742.jpg
    660.8 KB · Views: 108

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
998
Reaction score
585
serious aiming difficulties when the large recoil forces altered the aircraft’s flight path in the opposite direction.
And just like the US with the F9F, th USSR goverment couldn't possibly anticipate it, and had to spend wads of taxpayer's money before they canned the idea.


iverson

ACCESS: Top Secret
Joined
Sep 24, 2009
Messages
551
Reaction score
466
On the other hand, flexible downward-firing cannon and machine guns have been used successfully in the Soviet Union/Russia from WW2 to the present, both mounted internally (A-20, Pe-2) and in external pods.
