The Meteor was originally laid down as a gunboat, an improved version of the Iltis class. Any technical drawings of this would be much appreciated. The link below contains some specs

METEOR gunboat (1924)



[Jemiba]

Thank you for making me to have a look at Erich Gröners "Die deutschen Kriegsschiffe 1815 - 1945", vol.1 again !

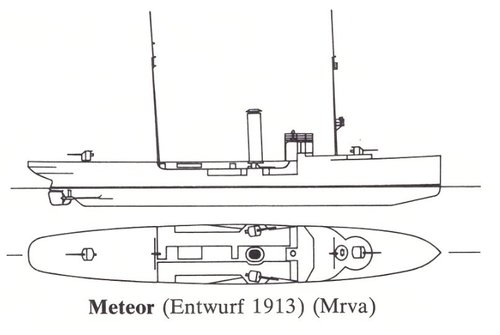

Didn't realise before, that there actually is a drawing and description of the Meteor, as originally designed.
Bigger than the Iltis class, armament would have been 4 10,5/L45 guns, positioned in a rhombus pattern.



[World B4]

Erich Gröners "Die deutschen Kriegsschiffe 1815 - 1945"

Much appreciated! I'll have to try and get that book sometime
