Hi,

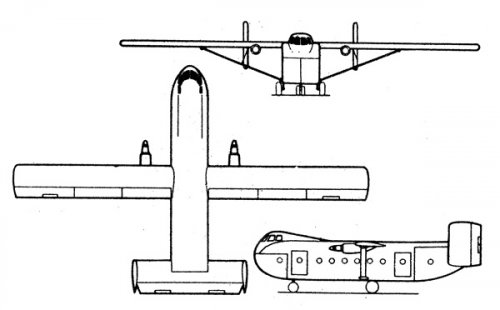

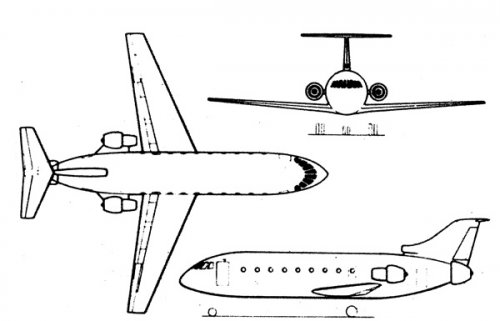

the Messerschmitt P.141 was twin engined transport aircraft project,
powered by two 100 hp Turbomeca Bastan and the P.160 was three
engined airliner and powered by three 4,200 1b GE CF700-2B turbo-
fans.
http://www.flightglobal.com/PDFArchive/View/1963/1963%20-%200938.html


Attachments

  • P.141.JPG
    14.9 KB · Views: 1,082
  • P.160.JPG
    13.6 KB · Views: 982

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,581
Reaction score
7,551

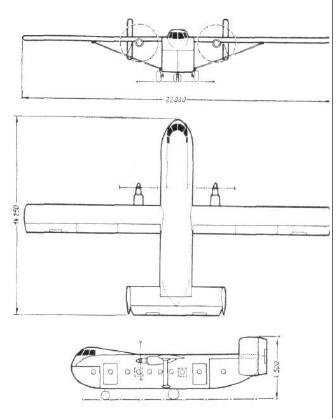

Better 3 views

Source: Flying Review International, Vol 18, No. 11


Attachments

  • P141.jpg
    39 KB · Views: 961
  • P160.jpg
    40.4 KB · Views: 924

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,542

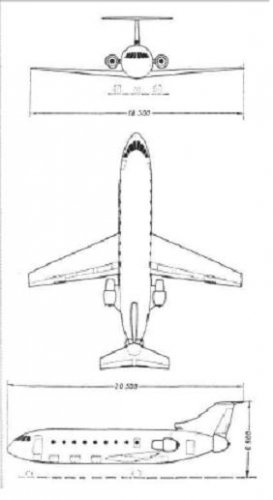

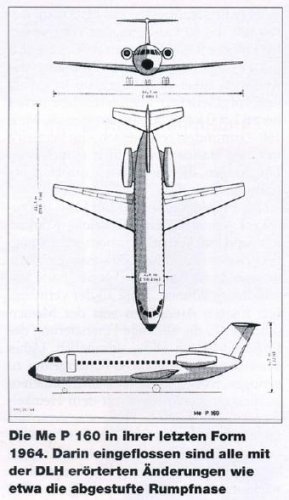

Some new material for an old thread. The german "Fliegerkalender 2010" has the story of the
Me P.160. It wasn't only designed as a 3-engined aircraft, but later as a twin engined version,
too, partially in collaboration with with the carrier DLH (Deutsche Lufthansa). Other changes were the
stepped cockpit and the position of the engines, which were set higher on the tail. The last iteration
was the P.260, again a 3-engined aircraft for 60 pax, but with two engines slung under the wings.


Attachments

  • Me_P-160_01.jpg
    12 KB · Views: 860
  • Me_P-260_01.jpg
    9.1 KB · Views: 83

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
248

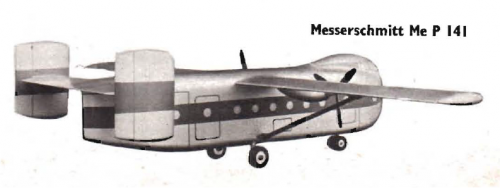

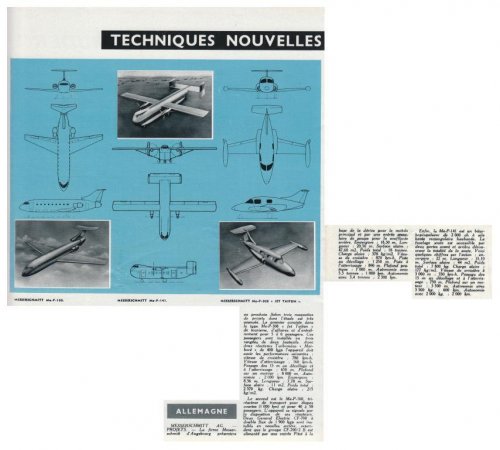

Dear Boys and Girls, here is an article in French announcing three Messerschmitt "projects"......

The article comes from the 15th May 1963 issue of Aviation Magazine......

Terry (Caravellarella)


Attachments

  • Messerschmitt projects - Aviation Magazine - Numéro 371 - 15 Mai 1963 .......jpg
    Messerschmitt projects - Aviation Magazine - Numéro 371 - 15 Mai 1963 .......jpg
    81.5 KB · Views: 130

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
602
Reaction score
316
Yet more notes for an old thread.

I recently had access to and read a piece of Messerschmitt publicity materiel about the P.141 transport aircraft from the early 1960’s. Here are the main points specified. The document was in English so all measurements are imperial units:

Messerschmitt Me P.141 Configuration and Performance Study

The Me P 141, a rugged economical cargo or passenger aircraft for countries with underdeveloped highway and railroad networks.

The experience gathered in building and flying World War II’s Me 323 transporter, noted for its extreme simple-design features, has gone into designing the Me P 141.

This makes the Me P 141 a highly advantageous offer, both with regard to sales price and maintenance and operational costs.

Maintenance and repair may be accomplished with the simplest of means by personnel without special training.

No special equipment is required for fast loading and unloading directly from ground or truck.

On account of these features the Me P 141 is ideally suited for countries with underdeveloped highway and railroad networks, where ruggedness and uncomplicated construction is more valuable than speed.

Description

The Me P 141 is a braced high-wing monoplane. Light-metal is used for stressed members and glass-fiber reinforced plastics for secondary components.

The aircraft is designed to be equipped with two turboprop engines of approximately 1,000 hp each, e.g. Turbomeca Bastan, General Electric T 58 or Daimler-Benz PTL 6.

The fuselage has a rounded-off rectangular cross section and offers an uninterrupted cargo compartment with flat floor from forward to aft.
In view of the aircraft’s operational altitude a pressurized fuselage is not required.

Forward and rear clam-shell doors provide for simultaneous loading and unloading at both ends. The cargo compartment has the same cross section over its entire length. The hold floor is at truck level.

The elevated cockpit accommodates four persons and offers excellent vision.

Some especially notable features of simplified design:
Fixed nose and main landing gear.
All flight controls mechanically operated; no hydraulic system.
Same airfoil section and chord of wing and empennage.
Fuel in wings; external tanks for extended range.
Simple-design wing flaps.

Configuration capabilities

Passenger aircraft capacity up to 35 passenger (depending on range).
Combination passenger and cargo aircraft.
Cargo aircraft, capacity up to 7,750 lbs (depending on range).

Technical Data
Span: 72 ft
Length: 46 ft 9 in
Height: 14 ft 9 in
Wing Area: 473 sq ft
Wing Loading: 36.2 lbs/sq ft
Power Loading: 8.73 lbs/HP

Maximum cruising speed at sea level: 205 knots
Maximum cruising speed at 10,000 ft: 211 knots
Maximum cruising speed at 20,000 ft: 208 knots
Rate of climb at sea level (2 engines): 1,910 ft/min
Rate of climb at sea level (1 engine): 550 ft/min
Service ceiling (2 engines): 30,000 ft
Service ceiling (1 engine): 11,500 ft
Take-off run on grass strip: 1,575 ft
Take-off distance to clear 50 ft: 2,360 ft
Landing run: 1,080 ft
Landing distance from 50 ft: 2,430 ft

Weights: Cargo Configuration / Passenger Configuration
Crew and passengers: 2:0 / 2:33
Airframe: 4,700 lbs / 4,700 lbs
Powerplant: 1,945 lbs / 1,945 lbs
Equipment: 783 lbs / 1,945 lbs
Empty weight: 7,420 lbs / 8,580 lbs
Crew: 364 lbs / 364 lbs
Payload plus fuel: 9,420 lbs / 17,200 lbs
Take-off weight (normal): 17,200 lbs / 17,200 lbs


Source: Messerschmitt Me P.141 Configuration and Performance Study (Messerschmitt Doc Ref 141/63/1)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,102

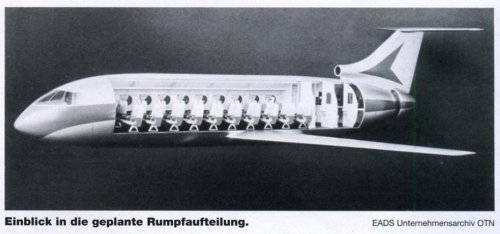

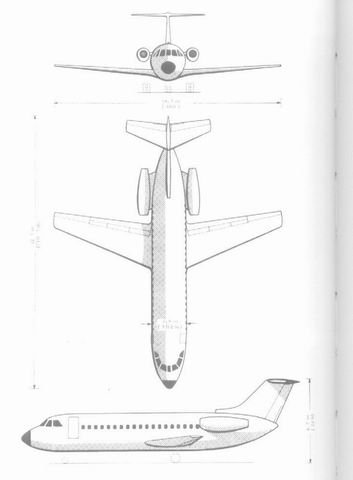

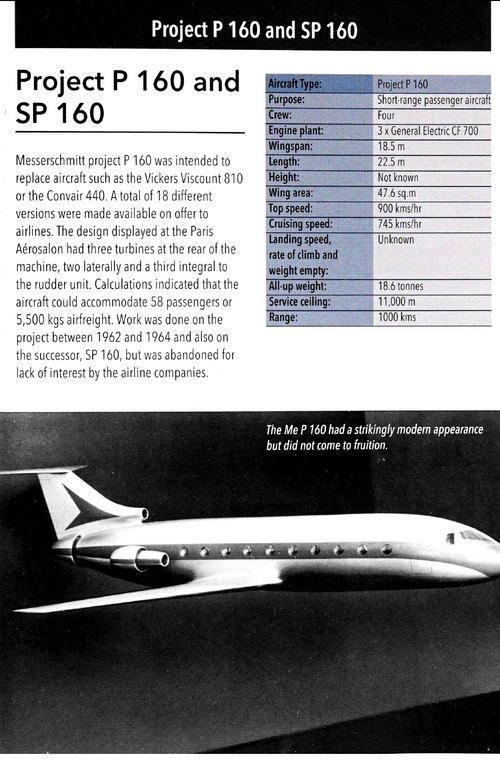

And a Messerschmitt P.160,from Flugzeug Classic 11/2003.


Attachments

  • P.160   2.JPG
    P.160 2.JPG
    32.5 KB · Views: 71
  • P.160   1.JPG
    P.160 1.JPG
    49.7 KB · Views: 69
  • P.160.JPG
    47.8 KB · Views: 61

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,102

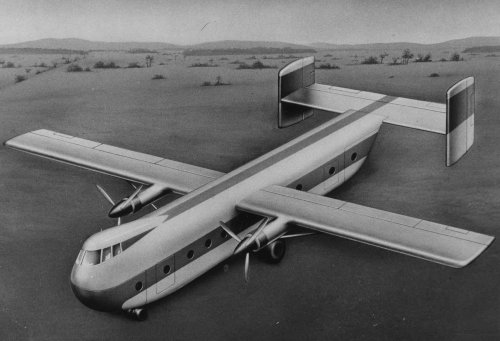

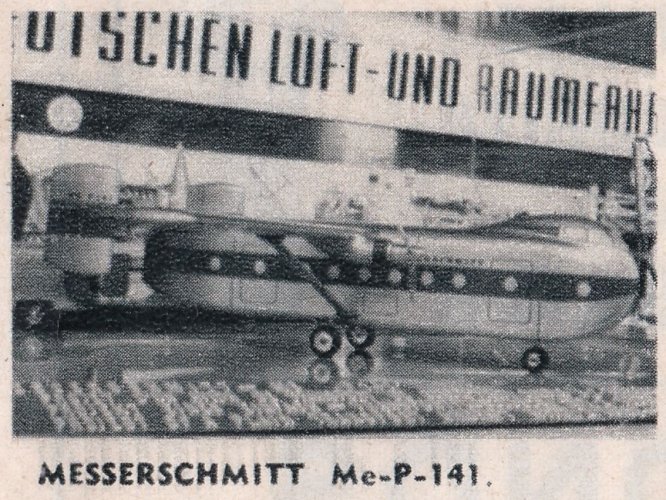

From FR 9/1963,


here is a Model For Messerschmitt P.141 Project.


Attachments

  • 141.png
    209.4 KB · Views: 67

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,593
Reaction score
914

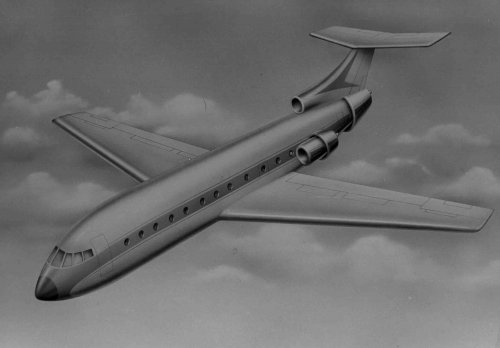

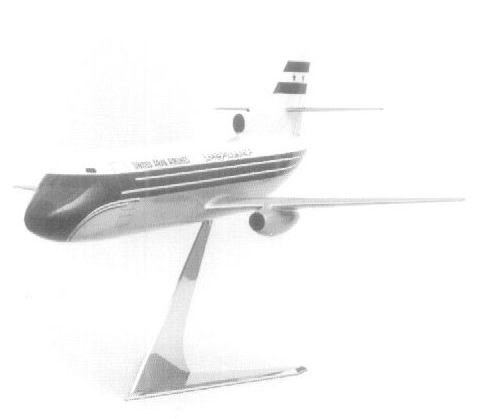

P160

This and the previous two are official Messerschmitt photos


Attachments

  • P160.jpg
    75.3 KB · Views: 443

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,013
Website
deeptowild.blogspot.com

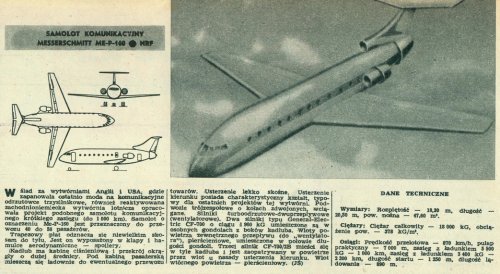

Messerschmitt Me-P-160 from Skrzydlata Polska nr 35/1963.

Source:
http://lotnictwo.net.pl/3-tematy_ogolne/13-lotnictwo_cywilne/67925-futurystyczne_projekty_samolotow_pasazerskich-5.html


Attachments

  • Messerschmitt Me-P-160_SP_35-1963.jpg
    Messerschmitt Me-P-160_SP_35-1963.jpg
    617.3 KB · Views: 45

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,013
Website
deeptowild.blogspot.com
Model of Messerschmitt Me-P-141

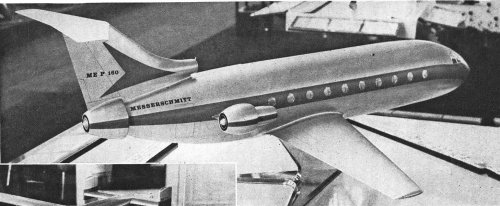

Model of Messerschmitt Me-P-160

Aviation Week & Space Technology June 24, 1963


Attachments

  • 1963062474_3.jpg
    208 KB · Views: 39
  • 1963062474_2.jpg
    273.4 KB · Views: 43
