October 23, 1958 the Langley procurement office mailed preliminary specifications for capsule and subsystems to more than 40 prospective companies. Thirty-eight of these companies sent representatives to a bidder’s conference at Langley Field on November 7.

December 1958 true early January 1959, NASA look true contractor proposals for Mercury program

December 11 deadline eleven companies had submitted bids. They represented virtually all major American aerospace companies: Avco, Convair/Astronautics, Lockheed, McDonnell, Martin, North American, Northrop, Republic, Douglas, Grumman, and Chance-Vought.

the Space Task Group led by Max Faget and Caldwell Johnson start to eliminated
proposals how not fit the demands of Task Group

Avco capsule was too wide at the base.
Martin capsule featured a combined escape/retro-rocket package that fired along the side of the vehicle

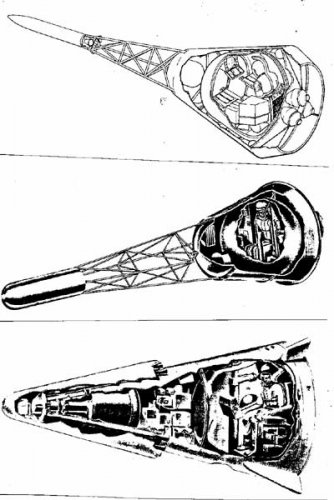

one show: Douglas, Avco, Martin proposals

two show: Douglas proposals in detail.

source:
http://www.thespacereview.com/article/586/1


Attachments

  • 586b.jpg
    39.9 KB · Views: 1,163
  • 586a.jpg
    21.7 KB · Views: 1,162

OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
12
Website
www.io.com
Re: Mercury capsul contractor proposals

...Did anyone ever dig up a list of the 39-40 contractor agencies initially contacted?


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,644
Reaction score
651
Re: Mercury capsul contractor proposals

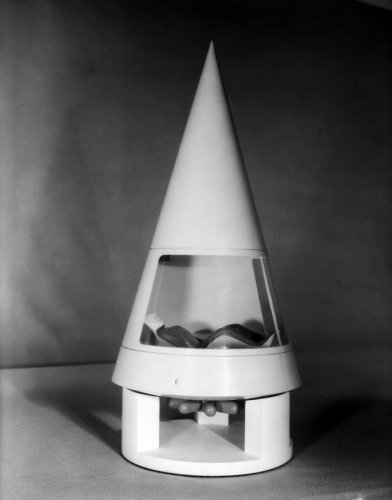

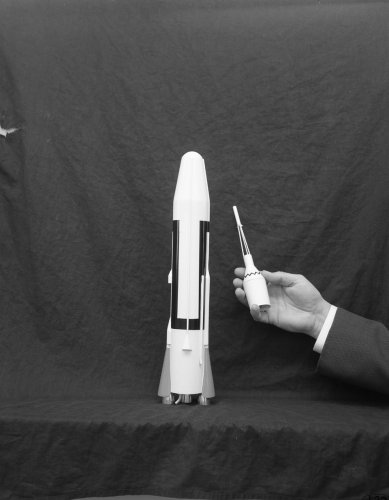

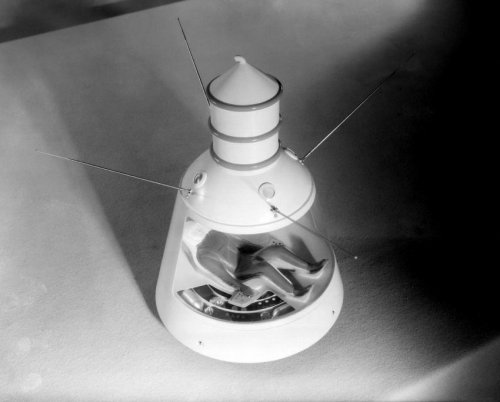

First Picture "Shape A"
second Picture "Shape B"


source:
http://einestages.spiegel.de/external/ShowTopicAlbumBackgroundXXL/a24073/l7/l0/F.html#featuredEntry
http://einestages.spiegel.de/external/ShowTopicAlbumBackgroundXXL/a24073/l8/l0/F.html#featuredEntry


Attachments

  • b7fe1d6232033f161c2abd8e977557ca_image_document_xxl.jpg
    36.9 KB · Views: 886
  • 8fa0df0cf950759e8edf9c8e884f4bfd_image_document_xxl.jpg
    50.3 KB · Views: 874

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,644
Reaction score
651
Re: Mercury capsul contractor proposals

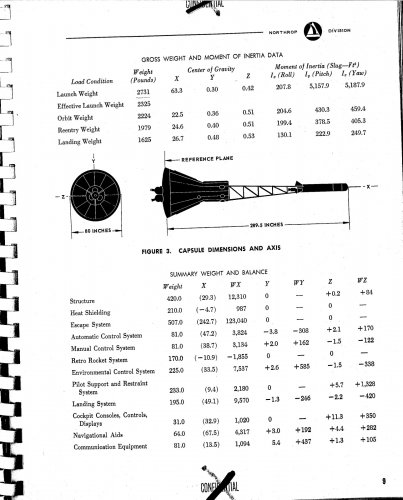

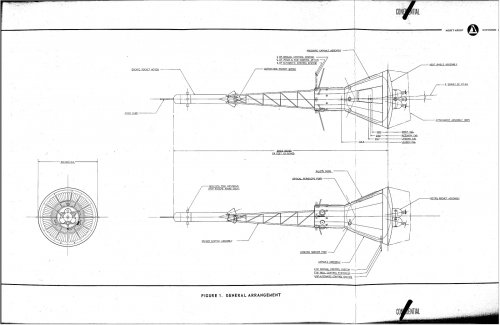

The Northrop N-227 Mercury capsul

source
http://ghostmodeler.blogspot.de/2012/10/chasing-mercury-northrop-n-227.html


Attachments

  • 158207.jpg
    414.6 KB · Views: 29
  • 158206.jpg
    416.6 KB · Views: 25
  • 158208.jpg
    418.3 KB · Views: 30
  • 158209.jpg
    429.9 KB · Views: 50
  • img066.jpg
    492 KB · Views: 51
  • N-227 stats.jpg
    N-227 stats.jpg
    283.2 KB · Views: 60
  • N-227 3-view.jpg
    N-227 3-view.jpg
    211.2 KB · Views: 575

blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,778
Reaction score
156
That reminds me that he was looking for info on the Grumman proposal and I'm pretty sure I've got some material I can send him. I'll have to dig it out of my files.


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,644
Reaction score
651
Re: Mercury capsul contractor proposals

blackstar said:
That reminds me that he was looking for info on the Grumman proposal and I'm pretty sure I've got some material I can send him. I'll have to dig it out of my files.


he has posted so info with picture on Grumman G-214 capsule
http://ghostmodeler.blogspot.de/2012/10/the-might-have-been-mercury-grumman-g.html


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,778
Reaction score
156

OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
12
Website
www.io.com

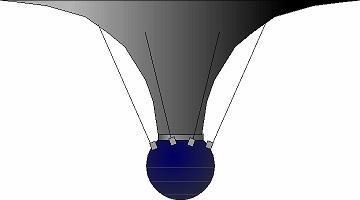

...Speaking of Merc proposals, wasn't AVRO the one that submitted what was basically a Vostok sphere with a wire mesh conical as an airbrake during reentry? Or was "Avco" a separate company altogether?



http://www.astronautix.com/graphics/0/7969avco.jpg
Source: Our good friend, only derided by quacks, trolls and nincompoops, Mark Wade



...On a side note "The Arrow" is now on YouTube. I recommend downloading it before some catamite pulls a DMCA flag and the film disappears once again. :(


http://www.youtube.com/watch?v=-vFTHPHTLRc


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,644
Reaction score
651
OM said:
...Speaking of Merc proposals, wasn't AVRO the one that submitted what was basically a Vostok sphere with a wire mesh conical as an airbrake during reentry? Or was "Avco" a separate company altogether?



http://www.astronautix.com/graphics/0/7969avco.jpg
Source: Our good friend, only derided by quacks, trolls and nincompoops, Mark Wade
sadly not, AVCO stands for the Air Research and Development Command, a separate research and development command in 1950 for ICBM re-entry vehicles, inside the USAF.
and this was Avco Project 7969 for USAF Man-In-Space-Soonest program abandon, in favor of NASA Mercury program.


GeorgeA

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
791
Reaction score
121
Avco (The Aviation Corporation) was one of the 1930s aviation holding companies that was broken up by the Roosevelt administration. It once owned American Airlines and a controlling interest in Consolidated-Vultee. It remained in business for many years and in the late 1950s pioneered work on reentry vehicles, along with GE. Today, a lot of their RV and thermal protection heritage is owned by Textron (e.g. the Orion heat shield). They also owned stuff like Avco Lycoming, Avco Records, and Avco Embassy Pictures.


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
12
Website
www.io.com
George Allegrezza said:
They also owned stuff like Avco Lycoming, Avco Records, and Avco Embassy Pictures.


...Ah! So that's who Avco was. They also owned Avco (Embassy) Television, which owned at least one station in all of the top 25 US markets up until the late 70s. I had a tangential encounter with them in the summer of '79, during my first internship at the local See-BS affiliate. Avco was trying to get Lady Byrd and Times Mirror to sell the station to them, and I had some Avco suit show up one afternoon and quiz me on what my duties were, and why they needed an intern to do them. My response was first to ask him if he was now my boss, and when he answered "no, not yet.", I casually told him to come back when he'd achieved that position, and in the meantime if he wanted to get his hands dirty lifting those heavy 2" Ampex tape reels, he'd probably get his answers a lot quicker through experience.


Needless to say, the suit declined my offer. Never did see him after that, as Mrs. Johnson reportedly put her foot down and refused to sell. Lovely woman, she was :) :)

:OM:


blackstar

ACCESS: Top Secret
Senior Member
Joined
Sep 26, 2008
Messages
1,778
Reaction score
156
blackstar said:
Michel Van said:
blackstar said:
That reminds me that he was looking for info on the Grumman proposal and I'm pretty sure I've got some material I can send him. I'll have to dig it out of my files.


he has posted so info with picture on Grumman G-214 capsule
http://ghostmodeler.blogspot.de/2012/10/the-might-have-been-mercury-grumman-g.html

Yeah, I know. I have more than that. I just need to look for it.

I stumbled across my Grumman file while doing general cleaning. I'll have to scan the document and send to him.


Byeman

ACCESS: Top Secret
Joined
Jan 8, 2010
Messages
794
Reaction score
19
Michel Van said:
sadly not, AVCO stands for the Air Research and Development Command, a separate research and development command in 1950 for ICBM re-entry vehicles, inside the USAF.

that was ARDC.


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,644
Reaction score
651
Byeman said:
Michel Van said:
sadly not, AVCO stands for the Air Research and Development Command, a separate research and development command in 1950 for ICBM re-entry vehicles, inside the USAF.

that was ARDC.


Dam...


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
12
Website
www.io.com
Michel Van said:
Byeman said:
Michel Van said:
sadly not, AVCO stands for the Air Research and Development Command, a separate research and development command in 1950 for ICBM re-entry vehicles, inside the USAF.

that was ARDC.


Dam...


...He's excused. He was trying to transliterate the acronym from an obscure Romanian dialect. :p


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,644
Reaction score
651
OM said:
...He's excused. He was trying to transliterate the acronym from an obscure Romanian dialect. :p


Me, German, looking for thinks...*
got my info from Encyclopedia Astronautica

after look in my books, i found one AVCO aka Avco Manufacturing Corporation, is that the one ?




total off topic
*=


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,644
Reaction score
651

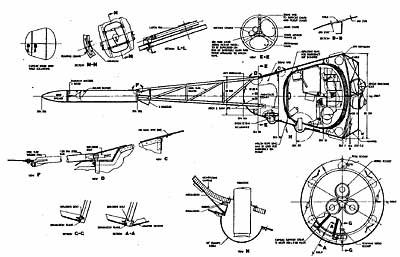

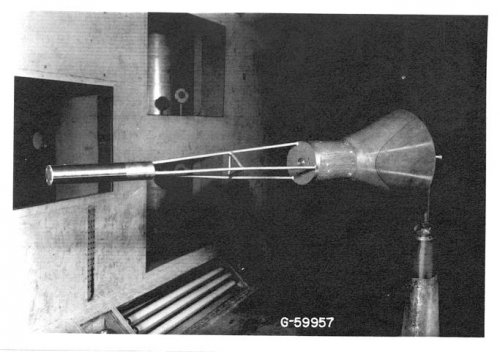

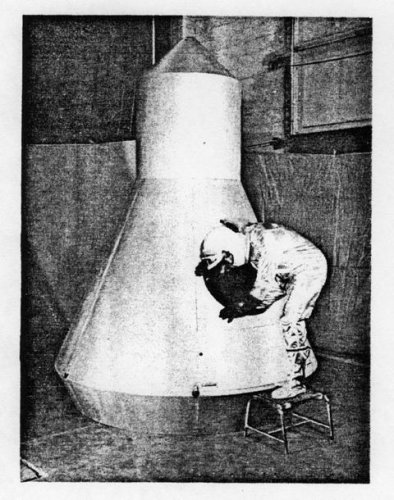

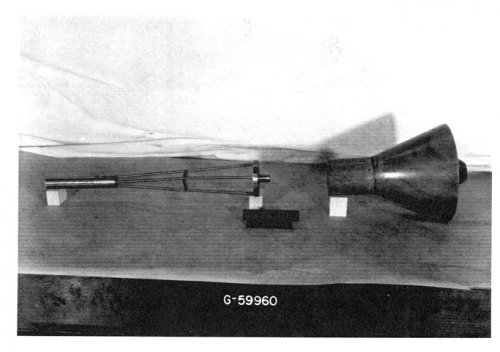

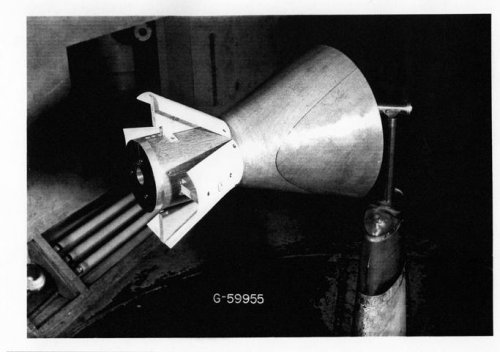

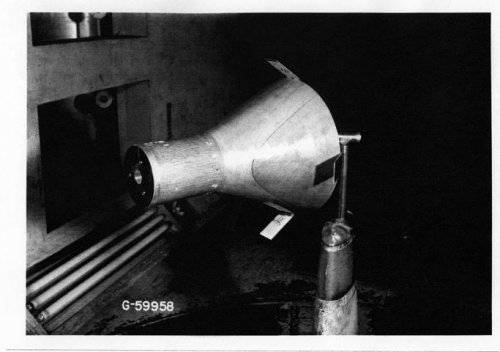

The Grumman G-214 proposal
interesting is the Flaps especially, the one on the capsule base near heat-shield.

McDonnell proposed a similar system for advance mercury mission. but that became Mercury Mark II => Gemini program

Note: i photoshop the source picture for better viewing.

http://ghostmodeler.blogspot.de/2012/10/the-might-have-been-mercury-grumman-g.html
Source:


Attachments

  • img702w.jpg
    39.9 KB · Views: 20
  • img701w.jpg
    37.8 KB · Views: 14
  • img700w.jpg
    41.3 KB · Views: 12
  • img699w.jpg
    40.3 KB · Views: 14
  • img698w.jpg
    35.5 KB · Views: 286
  • img697w.jpg
    50.5 KB · Views: 297
  • img696w.jpg
    54.9 KB · Views: 303
  • img695w.jpg
    67.9 KB · Views: 313

OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
12
Website
www.io.com
Michel Van said:
Note: i photoshop the source picture for better viewing.


...I assume that meant contrast tweaking? If so, damn fair job, sir. If only more people did this - and especially adding 10% to the chroma levels on color images - there'd be a lot less eyestrain on the internet these days. Again, my thanks! B)


Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
311
Reaction score
127

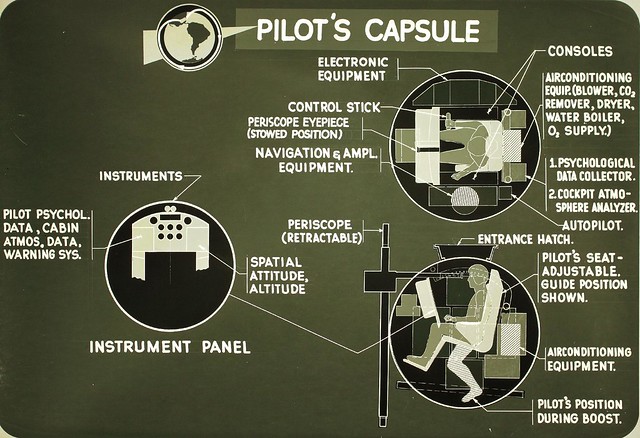

Cruising through the San Diego Air & Space Museum (SDASM) Archives photostream on Flickr and came across the diagram below. It's labeled as part of the Convair Little Joe collection, however, given the illustration and description at the Encyclopedia Astronautica (link), this would appear to be the Convair 7969 (Convair Project 7969) proposal.
http://www.flickr.com/photos/sdasmarchives/8126309021/in/photostream
