Meindl-van Nes M.15/A.XV from Austria

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,715
Hi,

there is unknown aircraft I found it,it was from Austria,
any informations.


Attachments

  • 26.jpg
    10.5 KB · Views: 1,044

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,977
Reaction score
331
Hi,

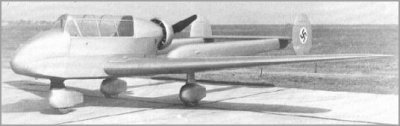

you see the Meindl-van Nes M.15/A.XV. First flight 23.09.1940, D-ECAB ( later became W.N.F. Wn.16 ). Power plant Salmson AD9 45PS.


Servus Maveric


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,715
Thank you Maveric,

And do you have a picture to M.7/A.VII three seat sporting aircraft.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,715
Hi,

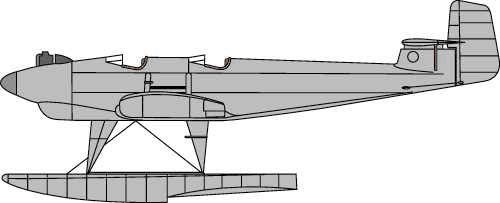

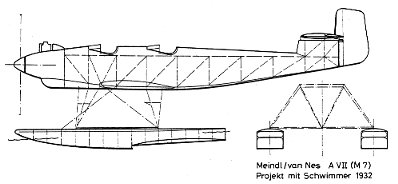

here is the Meindl/van Nes A-VII (M7),the floatplane version,this
was never built.

http://www.insigniamag.com/meind.html


Attachments

  • Floatplane.jpg
    13.4 KB · Views: 764

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,635
Reaction score
952
For more on Meindl van Nes:
http://www.luftfahrt-archiv.at/Info4-84/Meindl-AVII.html


Attachments

  • AVII-Schwimmer.jpg
    30.4 KB · Views: 737

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,715
Apophenia said:
For more on Meindl van Nes:
http://www.luftfahrt-archiv.at/Info4-84/Meindl-AVII.html

Thank you my dear Apophenia,

and from the site you mentioned;

A VIII was a project,developed from A VII and powered by 40 hp Salmson
engine,and had estimated speed of 144 km/h.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,635
Reaction score
952
Thanks Hesham, I'd meant to mention the A.VIII. The engine reference is obviously to the Salmson 9AD but the "29,4 kW (40 PS)" rating is odd. The 3 Litre 9AD is usually rated at 45 hp @ 2000 rpm.

BTW: Wilhelm van Nes went to work for Arado before being picked up as part of 'Project Paperclip'. Ob.-Ing. Erich Meindl went to WNF. Another view of the M-15 is attached.


Attachments

  • m15.jpg
    21.5 KB · Views: 723

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
Meindl M 150 « Schulmeister » twin-boom light aircraft

The Meindl M 150 Schulmeister ("school teacher") prototype of 1956 was a German development by Burgfalke-Segelflugzeugbau Burglengenfeld/Bayern of the earlier Meindl M 15.

Any additional information on this little-known type would be appreciated!


Attachments

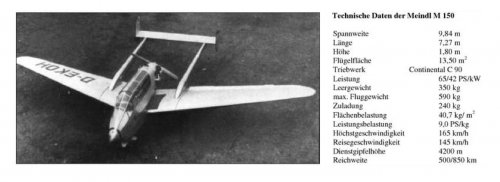

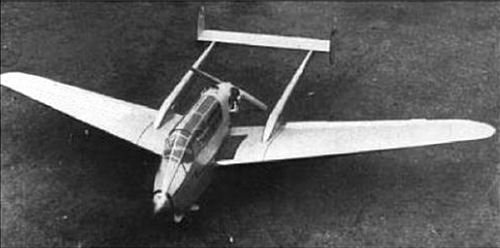

  • Meindl M 150 Schulmeister.jpg
    Meindl M 150 Schulmeister.jpg
    202.8 KB · Views: 557

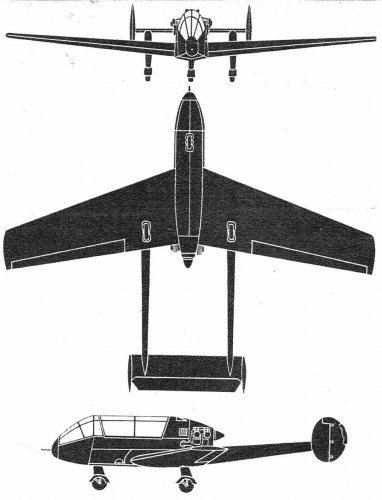

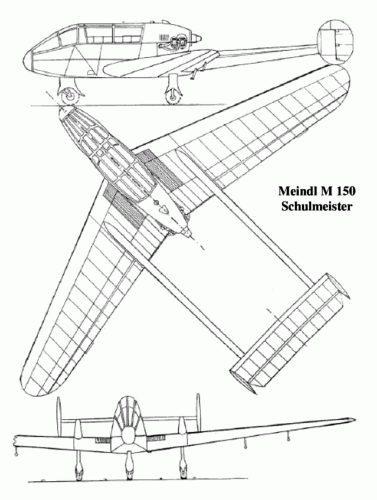

  • Meindl M 150 Schulmeister (3-view).gif
    Meindl M 150 Schulmeister (3-view).gif
    97.2 KB · Views: 107

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
565
Reaction score
178
The Meindl-van Nes A XV (M15)

The Project originated in cooperation Meindl and van Nes during 1937-38.

After the construction of the joint factory in in Wiener Neustadt. Construction started in January 1939. Meindl, was project manager of the ongoing construction. Maiden flight was on 23 September 1940, registration D-ECAB, by pilot Sylvester Wanneck.

This aeroplane type was the first front wheel machine in Germany (post-Anschluss, previously Austria).

Wiener Neustadt WNF Wn 16

Formerly called the Meindl-van Nes A XV, the design was designated the Wiener Neustadt WNF Wn 16 by the Germans in 1942.

It was built by hand and tested by the Flugprobung and joined some other new designs created with the then new nosewheel (eg Me 262, Ar234, He219) for evaluation.

Designers:

Ob-Ing. Erich Meindl born 22 December 1906 in Klagenfurt, died 29 February 1980 in Bochum.

Dipl-Eng Wilhelm van Nes born 26 September 1900 in Freiburg im Breisgau, died 13 May 1979 in Waldkirch (Freiburg im Breisgau)


Source:


Luftfahrzeugbau in Osterreich (Keimel) Aviatic Verlag, 2003 ISBN 3925505784


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
Thanks Cy-27! But it doesn't shed any light on how the project ended up in the form of the twin-boom M 150 prototype built in Germany...


Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
565
Reaction score
178
...further development of the Meindl van Nes after the war at Burgfalke-Flugzeugbau in Burglengenfeld bei Regensburg in Bavaria. This was the M.150. First flight 14 September 1957 with the registration D-EKOH. Intended as a training aircraft, with the nose wheel had the same characteristics as the contemporary larger commercial airliners. A second machine was to be built in Vienna in order of Dr Josef Lenz (under construction - not completed?).

No indication in the text of how the WNF Wn 16 ended up as the M.150.

Source:

Luftfahrzeugbau in Osterreich (Keimel) Aviatic Verlag, 2003 ISBN 3925505784


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38
A little pictorial history :

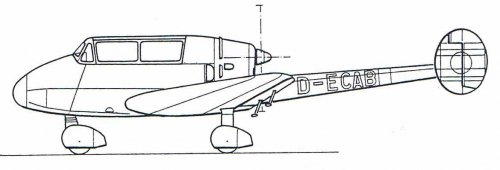

1- 1940 : A XV / M 15 . 45 hp Salmson radial
2- 1942 : Wn 16 . 60 hp Walter Micron inline

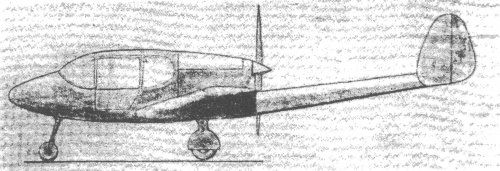

3- 1948 : R-101 "Mehgbir" (project only) for the indian Meghdoot Aircraft Corp. in Calcutta . 130 hp Gipsy

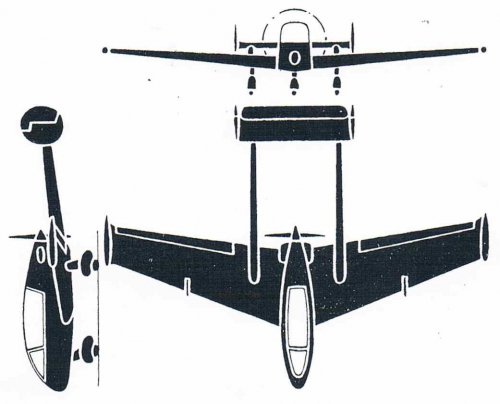

4- 1956 : Burgfalke M-150 first project . 65 hp Continental or 75 hp Porsche
5- 1957 : Burgfalke M-150 "Schulmeister" 65 hp Continental


Sources : Reinhard Keimel "Luftfahrzeugbau in Österreich" (a must !!!);Der Flieger;Aviation Magazine.


Attachments

  • M 150.jpg
    M 150.jpg
    75.7 KB · Views: 56
  • M-150.jpg
    44.4 KB · Views: 64
  • R-101.jpg
    309.7 KB · Views: 79
  • Wn 16.jpg
    Wn 16.jpg
    29.8 KB · Views: 72
  • A XV:M 15.jpg
    A XV:M 15.jpg
    14.1 KB · Views: 42

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,715
Thank you my dears Richard and Cy-27 very much,


and for Wiener-Neustadt Wn-11 amphibian aircraft,it was developed from
Hopfner HA 11/33.


Attachments

  • Wn-11.jpg
    53.8 KB · Views: 54

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,715
Hi,

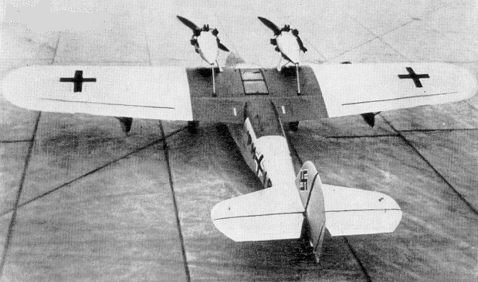

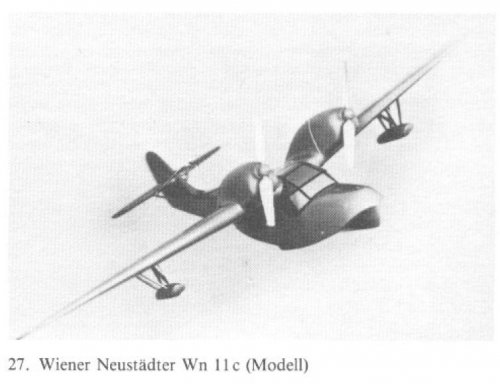

here is the Wn.11C twin engined amphibian aircraft project,which developed from
Wn.11,but fitted with two 240 hp Hirth HM 508 D engine.


Die Deutsche Luftruestung part 4.


Attachments

  • Wn.11C.JPG
    46.9 KB · Views: 542

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,715
My dear Richard,


do you have any info or drawings about Meindl-van M.100 and M.110 ?.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,977
Reaction score
331
Meindl R.100...


Attachments

  • Meghdoot R-100 Meghdoot-1.jpg
    Meghdoot R-100 Meghdoot-1.jpg
    736.8 KB · Views: 435
  • Meghdoot R-100 Meghdoot-1-.jpg
    Meghdoot R-100 Meghdoot-1-.jpg
    425.6 KB · Views: 386

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,977
Reaction score
331

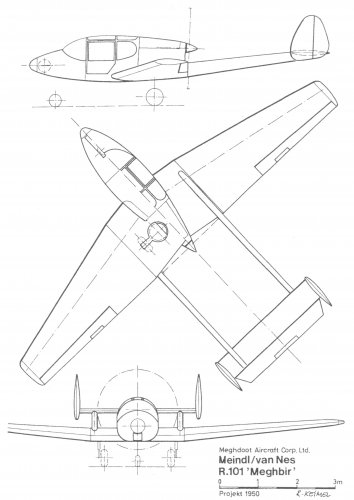

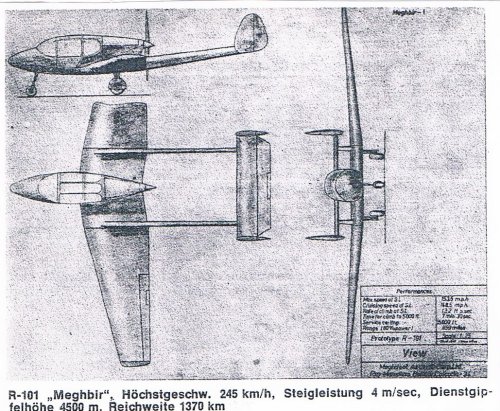

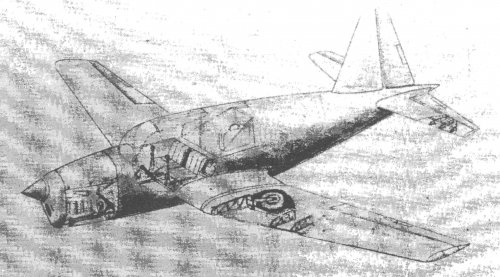

Meindl R.101...


Attachments

  • Meghdoot R-101 Meghbir-1.jpg
    Meghdoot R-101 Meghbir-1.jpg
    495.6 KB · Views: 339
  • Meghdoot R-101 Meghbir-1-.jpg
    Meghdoot R-101 Meghbir-1-.jpg
    440.2 KB · Views: 309

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,977
Reaction score
331
... ;)


Attachments

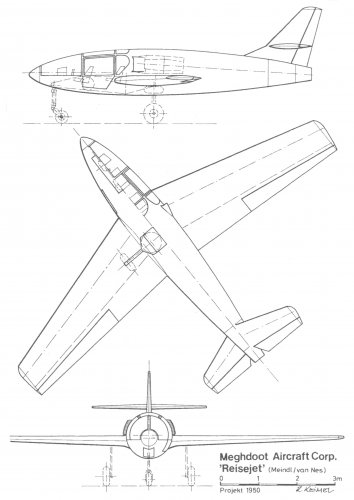

  • Meghdoot Reisejet-.jpg
    Meghdoot Reisejet-.jpg
    446.9 KB · Views: 99

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,715
Excellent my dear Maveric,


many thanks,and do you know any thing about M.110,I heard that it was
the basis for M.211,is that right ?.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38
You are right: R-110 was the designation for Wimmer (Germany) , and M 211 for Meindl (Austria)

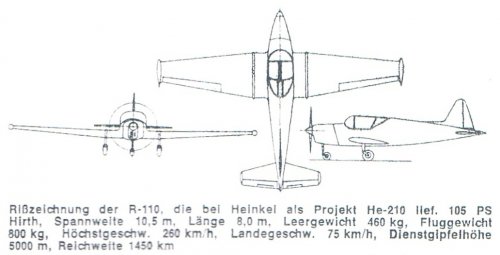

Here , the R-100 and the R-110 :


Attachments

  • R 110;He 210 ..jpg
    R 110;He 210 ..jpg
    66.1 KB · Views: 102
  • R-100.jpg
    577.1 KB · Views: 50

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,715
Oh my God,

many many thanks to you my dear Richard,and it is the first time to hear

about Heinkel 210.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,715
My dear Richard,


but why the wrote it in a book about light aircraft, with "M" instead off "R",please see
this paragraph.


Attachments

  • M.15.JPG
    117.3 KB · Views: 46

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38
This text seems to have been inspired by an article in "Der Flieger" of the seventies ,where the designation actually was R-100 and R-110 …In the recent book by Keimel about Meindl , the designation is R- too.


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
26
richard said:
In the recent book by Keimel about Meindl , the designation is R- too.
Hi Richard,
I'm curious, what book is that? Is it Luftfahrzeugbau in Österreich or another book specifically about Meindl?
Adrien


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,715
My dear Jemiba,


the source for Meindl aircraft and project is here,in reply # 27,please merge this topic
with anther one,and also please change the title here.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38

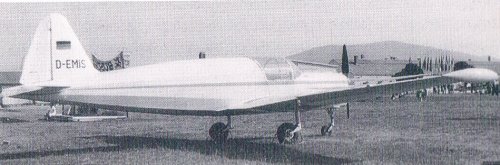

Here the D-EMIS :


Attachments

  • Numériser 34.jpeg
    Numériser 34.jpeg
    119.3 KB · Views: 219
  • Numériser 33.jpeg
    Numériser 33.jpeg
    229.8 KB · Views: 220

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,715
Hi,

I want to ask if Guritzer-Van-Nes A.I,A.II & A.III related to this company,I found
a drawing to Guritzer early aircraft,but I can't ID it ?.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201927%2009.pdf

http://www.letletlet-warplanes.com/2010/12/04/aircraft-production-in-austria/


Attachments

  • 1.png
    321.4 KB · Views: 138

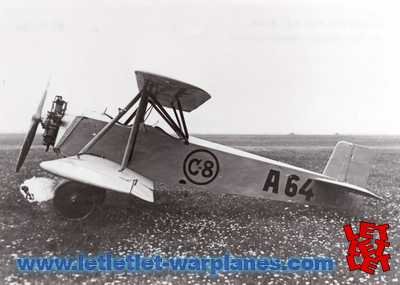

  • guritzer-van-ness-a3-a-64.jpg
    13.9 KB · Views: 124

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,715
hesham said:
I want to ask if Guritzer-Van-Nes A.I,A.II & A.III related to this company,I found
a drawing to Guritzer early aircraft,but I can't ID it ?.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201927%2009.pdf

http://www.letletlet-warplanes.com/2010/12/04/aircraft-production-in-austria/

If there was an earlier series,from A.I to A.VI,does anyone know it ?.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38

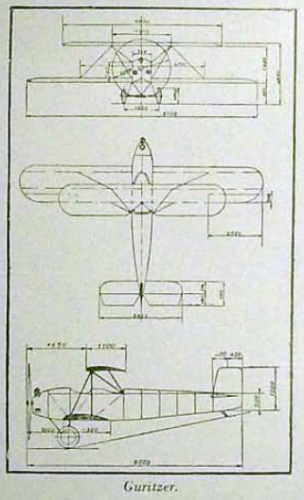

The 3-views looks much like the Guritzer-van Nes A II (registration A30).
Guritzer crashed to death piloting it on the 28.9.1932 .
van Nes worked later with Meindl


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,020
Reaction score
3,715
hesham said:
If there was an earlier series,from A.I to A.VI,does anyone know it ?.

Thank you my dear Richard,but what about the other designs,A.I,A.IV,A.V and A.VI ?.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
38
A III was the Meindl-van Nes M3 , A VII : the M7 & M12 , A VIII : the M8 and A XV : the M15 .

http://www.secretprojects.co.uk/forum/index.php/topic,24167.msg246467.html#msg246467
