McKellar M-1 Tailless Fighter of 1940

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622
Hi,

http://www.aerofiles.com/_ma.html

http://books.google.com.eg/books?id=iicDAAAAMBAJ&pg=PA73&dq=tailless+airplane+popular&lr=&cd=2#v=onepage&q&f=true


Attachments

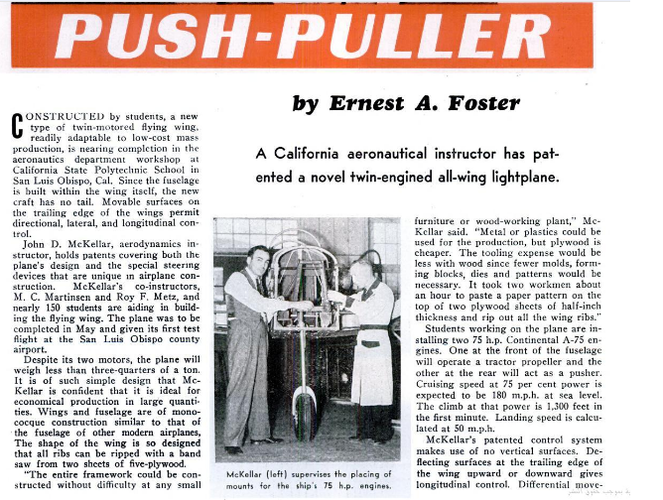

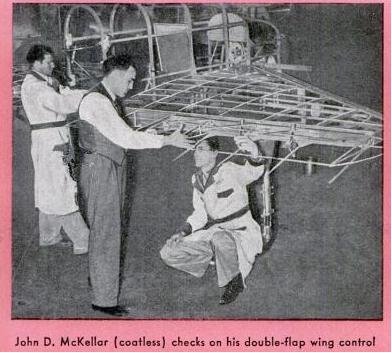

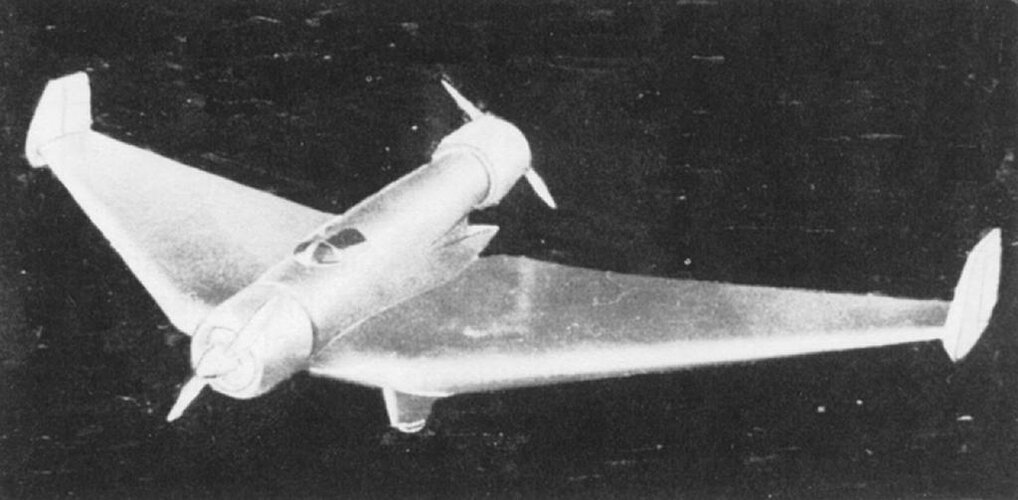

  • M-1  (1).JPG
    M-1 (1).JPG
    52.5 KB · Views: 992
  • M-1  (2).JPG
    M-1 (2).JPG
    31.1 KB · Views: 832

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
603
Reaction score
132
I am wondering how the rear gunner can fire through the rear propeller disc :mad:


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,284
Reaction score
1,211
Retrofit said:
I am wondering how the rear gunner can fire through the rear propeller disc :mad:

Indeed, but interrupter gear was already used in other aircraft to prevent the
gunner from shooting his own aircraft. The drawing seems to show a kind of a turret,
so such a device could have been intended, I think.


Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
41
Website
cmeunier.chez-alice.fr
During WW2, there have been a few tail-less aircraft, a few push-pull aircraft, but isn't this one the only push-pull tail-less plane? (at least among fighters?) this would enrich very much the collection of shapes.


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
57

Attachments

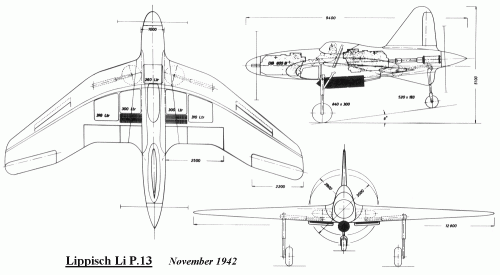

  • lip13a-1.gif
    72.6 KB · Views: 815

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622
Hi,

I tried hard to find a 3-view for it,but nothing on Internet.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
hesham said:
I tried hard to find a 3-view for it,but nothing on Internet.

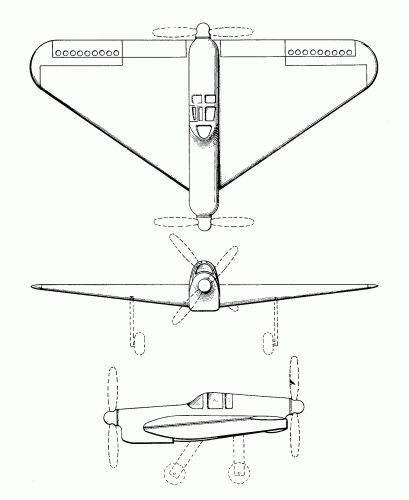

Of the McKellar M-1 you mean? I haven't found any either, BUT here's the three-view from McKellar design patent #116,206 granted in 1939.


Attachments

  • patent.gif
    37.8 KB · Views: 309

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622
Excellent my dear Skyblazer,many great thanks.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622
Hi,

https://books.google.com./books?id=pQ_qc0zDUQoC&pg=PA8&dq=McKellar+aircraft+patent&hl=ar&sa=X&redir_esc=y#v=onepage&q=McKellar%20aircraft%20patent&f=false


Attachments

  • McKellar.png
    125.2 KB · Views: 253

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
603
Reaction score
132
2 view drawing of NX19988.

Source: Popular Aviation June 1940


Attachments

  • Popular Aviation.jpg
    Popular Aviation.jpg
    44 KB · Views: 62

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622
Retrofit said:
2 view drawing of NX19988.

Source: Popular Aviation June 1940

Wow,many thanks to you my dear Retrofit.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,622

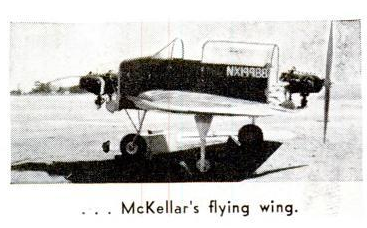

From Flying magazine 1940-6.


Attachments

  • 2-1940-6.png
    490.9 KB · Views: 43

Aubi

ACCESS: Secret
Joined
Aug 31, 2009
Messages
225
Reaction score
299
Website
www.armedconflicts.com
There was also pre-war Lippisch Delta IV aka Fieseler F3 Wespe, light monoplane with two Pobjoys. It was rebuilt several times with different canopies, wing sweep and usually one engine, it's last form being Delta IVc aka DFS 39, direct ancestor to the rocket fueled DFS 194 and Me 163. Lippisch also proposed a military one-seater derivative of the original Delta IV with two stronger radial engines. Only a model was built.


Attachments

  • lippisch_military_aircraft_1932.jpg
    50.4 KB · Views: 26
Last edited:
