The F-18 flaps and flaperons... I know the flaps and elevons both droop equally at least at high settings and they seem to have a slot. What I am curious about is what you call the part of the flap in front of the slot (it pivots/droops somewhat with the flap), does anybody know what you call that?

Also, I've heard the F-18's flaps use boundary-layer control...
- Does it cover the only the trailing edge (like the F-104) or does it cover both the leading and trailing edges (like the F-4)?
- Does this work only at high flap-deflections only?


KJ Lesnick


KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,045
Reaction score
47
CammNut,

No boundary-layer control on the F-18. sorry

Oh I thought it did. Never mind


KJ Lesnick
BTW: Out of curiousity, why didn't any other airplane incorporate such a variable-camber flap set-up?


CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
297
Reaction score
19
The F-18 needs high-lift devices to operate from an aircraft carrier, hence the single-slotted Fowler flaps. The F-16 does not, so has simple leading- and trailing-edge flaps to vary camber.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,406
Reaction score
459
KJ_Lesnick said:
What I am curious about is what you call the part of the flap in front of the slot (it pivots/droops somewhat with the flap), does anybody know what you call that?

I don't remember the flap geometry in question, but what you describe is usually referred to as a vane.


B.J.

ACCESS: Restricted
Joined
Apr 2, 2008
Messages
1
Reaction score
0
I don't know what they call them in the fleet, but on the actual engineering they're called flap shrouds and aileron shrouds.


KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,045
Reaction score
47
B.J.

I don't know what they call them in the fleet, but on the actual engineering they're called flap shrouds and aileron shrouds.

Thanks -- it's nice to actually have a technical-term for them.


KJ Lesnick


CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
297
Reaction score
19
AeroFranz said:
I don't remember the flap geometry in question, but what you describe is usually referred to as a vane.

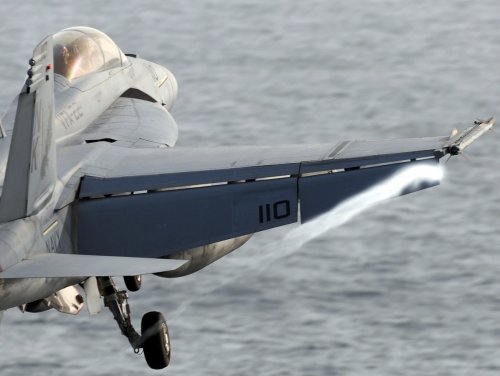

AeroFranz is correct, in a conventional double-slotted flap the small aerodynamic surface between the wing and the flap is called a vane. But on the F-18, the main flap (and deploys backwards and downwards, in a Fowler motion, opening a slot between the flap and a smaller surface attached to the rear edge of the wing that also deflects, but without opening a second slot. That may indeed qualify as being a shroud. The aileron has one as well.


Attachments

  • F-18E flaps.jpg
    F-18E flaps.jpg
    253.5 KB · Views: 71

KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,045
Reaction score
47
Also, I forgot to ask, but out of curiousity, are the flaps ever operated manually by the pilot, or are they completely automatic like the F-16's?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,111
Website
deeptowild.blogspot.com
Published on Jan 10, 2014

Naval aviation was changed forever 35 years ago when the F/A-18 Hornet completed its first flight Nov. 18, 1978. On Dec. 9, 2013, the Navy honored the F/A-18 and EA-18G for a job well done.

http://youtu.be/aAjlr9fIvio


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,981
Reaction score
1,806
I remember when YF17 lost to YF16, and a very young Yasotay wondered if we saw the last of the Northrop aircraft. Well done Navy! Future aviation aficicianados will wake and wane on this site of the Hellcat of the late twentith, and twenty first century.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,111
Website
deeptowild.blogspot.com
Video of Boeing F-18 carrier qualifications aboard FS Charles de Gaulle.

Published on Mar 12, 2015

March 10, 2015, in the Persian Gulf, Some U.S. Navy F18 Hornet fighters perform a series of "touch and go" landings and catapult-launchings on board the aircraft carrier Charles de Gaulle for qualification.
Credits: French Navy

https://youtu.be/qOIhKtvWQYU


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,111
Website
deeptowild.blogspot.com
C-2A Greyhound COD FS Charles de Gaulle Trap and Catapult Shot VRC-30 Providers

Published on Mar 9, 2015

This video shows the break, approach, arrested landing, and catapult shot of a US Navy C-2A Greyhound from VRC-30 DET 1 onboard the French aircraft carrier Charles de Gaulle (R91). It is a rare opportunity/occurrence for US and French Naval Aviators to operate off the decks of their counterpart aircraft carriers. VRC-30 utilizes the C-2A Greyhound to provide logistical support to aircraft carriers at sea (including the French from time to time).

https://youtu.be/0ORDe_5I-JE


seruriermarshal

ACCESS: Top Secret
Joined
May 4, 2008
Messages
1,116
Reaction score
367
A New Angle On This Shadowy Stealth F/A-18 Hornet Concept Is Intriguing

http://foxtrotalpha.jalopnik.com/a-new-angle-on-this-shadowy-stealth-f-a-18-hornet-conce-1727910676


Attachments

  • Stealth FA-18 Hornet Concept.jpg
    Stealth FA-18 Hornet Concept.jpg
    135.6 KB · Views: 794

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,714
Reaction score
1,111
Website
deeptowild.blogspot.com


quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,240
Reaction score
386

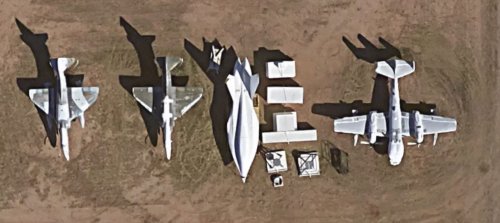

For those who are interested, it's at:


32.151215, -110.843388


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,266
Reaction score
80
Two Skyhawks, a Mohawk and the YF-24? That's a weird family gathering in that portrait. -SP


quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,240
Reaction score
386
Steve Pace said:
Two Skyhawks, a Mohawk and the YF-24? That's a weird family gathering in that portrait. -SP


You should have seen it when it was with the MiGs. Talk about awkward!


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,266
Reaction score
80
MiGs didn't stand a chance when it came to agility and maneuverability. -SP


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,876
Reaction score
8,844
Perhaps relevant (via Joe Cherrie).


Attachments

  • 11995427_10204941598281189_443796397_n.jpg
    22.4 KB · Views: 639

CiTrus90

Credibility is down! Kill ratio is up!
Senior Member
Joined
Jan 16, 2015
Messages
481
Reaction score
984
Steve Pace said:
Two Skyhawks, a Mohawk and the YF-24? That's a weird family gathering in that portrait. -SP

Ok, as no one has asked it yet, i'll be the one to bite...

Are you calling it YF-24 with sarcasm or is there a deeper meaning to it...?

Regards.


CiTrus90

Credibility is down! Kill ratio is up!
Senior Member
Joined
Jan 16, 2015
Messages
481
Reaction score
984
PaulMM (Overscan) said:
Perhaps relevant (via Joe Cherrie).

Seems to be just fanart though:



Regards.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,555
Reaction score
1,290
Here the AW&ST article posted in an older topic.
Link:
http://www.secretprojects.co.uk/forum/index.php/topic,20938.msg209035.html#msg209035


But I don't see the necessity to merged these two topics. :)


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,239
Reaction score
297
I await promised further images with bated breath. (Not "baited" since I have not been eating minnows.)


It's been moved since 2014 and it looks as if it's been shrink-wrapped. But it still looks like a Super that's missing everything forward of the aft cockpit bulkhead. Google Earth sez it's about 46 feet long.


starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,332
Reaction score
521
Jemiba said:
As Tritons superposition shows to my opinion (thanks for that effort !), it's just a derelict
F-18, with nose, wings and tailplanes removed.


Or perhaps a perfectly good mainbody of an F-18 awaiting the time when it may be needed.


I guess the cones at the back are plugs to ensure the nozzle petals are not overstressed by the cocoon.


crusader97

ACCESS: Restricted
Joined
Apr 23, 2007
Messages
10
Reaction score
0
Any possibility it's the remains of a program whose goal was to provide a semi-stealthy UCAV with high commonality with the existing fleet? Or maybe an unmanned version of the Growler?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,353
Reaction score
2,071

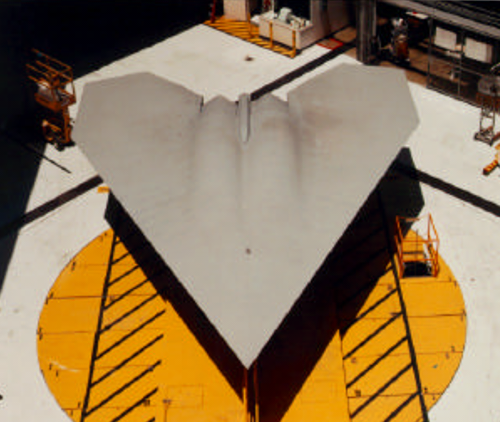

I wonder how much BS can be sucked off the partial elements RCS test model and what weird conclusions Foxtrot can extract say from this F-22 horizontals/exhaust model.

Incompetence and unwillingness to make a bit of hard research seems to be a hymn of current aerospace journalism.


Attachments

  • Screenshot_2015-09-05-17-54-00-2.png
    1.1 MB · Views: 648

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,976
Reaction score
588
IIRC, the cones at the back are there for part of the LO tests. As was stated in the original AW&ST article, the F/A-18 could be made to be a lot stealthier and the center fuselage is already constructed as such. It's just a freaking LO model.


From an aerodynamic and stability and control stand point, you can't just chop the entire forward fuselage off of an aircraft and make it fly. Not to mention, the forward fuselage is where a lot of the computers are that make it fly. How the hell do you chop the entire forward fuselage off and have room to put all of the computers you need to make a UCAV? If anything, you would just change the windscreen and canopy to allow room for the satellite uplink where the cockpit was located. Apparently, they don't realize the fuselage isn't there just to look pretty, but the designers actually put "stuff" in it.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,976
Reaction score
588
quellish said:
Steve Pace said:
Two Skyhawks, a Mohawk and the YF-24? That's a weird family gathering in that portrait. -SP
You should have seen it when it was with the MiGs. Talk about awkward!


I'm almost positive that's what's left of Aurora in the crates next to it.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,266
Reaction score
80
CiTrus90 said:
Steve Pace said:
Two Skyhawks, a Mohawk and the YF-24? That's a weird family gathering in that portrait. -SP

Ok, as no one has asked it yet, i'll be the one to bite...

Are you calling it YF-24 with sarcasm or is there a deeper meaning to it...?

Regards.
I jest - wishful thinking rather than sarcasm on my part (note question mark after YF-24). Those appear to be agressor A-4s parked next to it though. -SP


compton_effect

ACCESS: Confidential
Joined
Jun 13, 2007
Messages
77
Reaction score
34
starviking said:
Jemiba said:
As Tritons superposition shows to my opinion (thanks for that effort !), it's just a derelict
F-18, with nose, wings and tailplanes removed.


Or perhaps a perfectly good mainbody of an F-18 awaiting the time when it may be needed.


I guess the cones at the back are plugs to ensure the nozzle petals are not overstressed by the cocoon.
The simplest explanations are usually the best.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,353
Reaction score
2,071
compton_effect said:
starviking said:
I guess the cones at the back are plugs to ensure the nozzle petals are not overstressed by the cocoon.
The simplest explanations are usually the best.

Not always


Attachments

  • rcs_2.jpg
    15.3 KB · Views: 477

LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,239
Reaction score
297
It seems to have a pointy nose to go with its pointy tailcones, but it still looks like a fixture/ground test article at best.
