McDonnell Douglas F101B Voodoo - carrying MIM-23 Hawk Missile

Jonathan338

ACCESS: Restricted
Joined
Oct 18, 2020
Messages
4
Reaction score
12

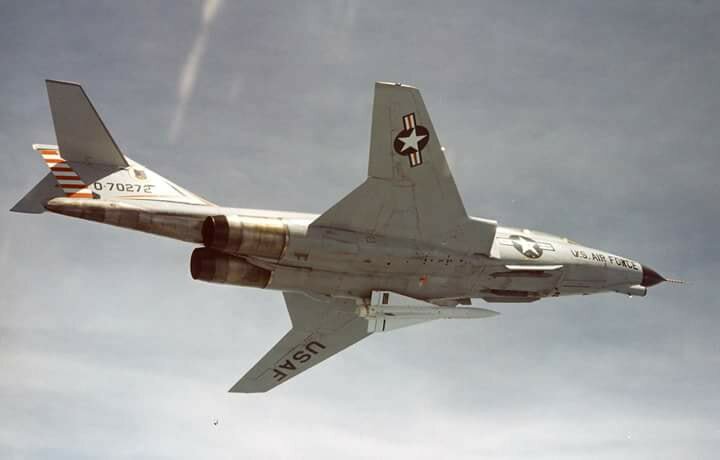

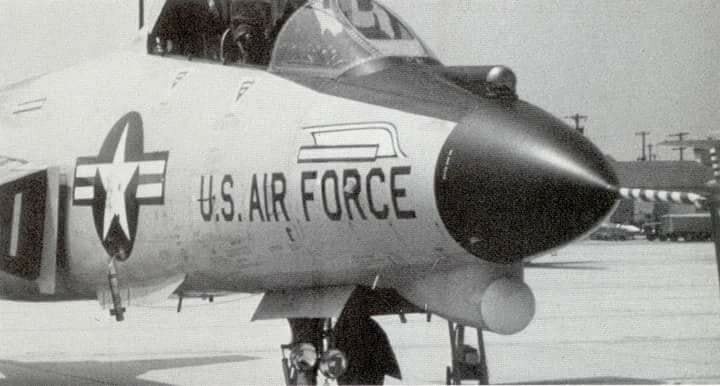

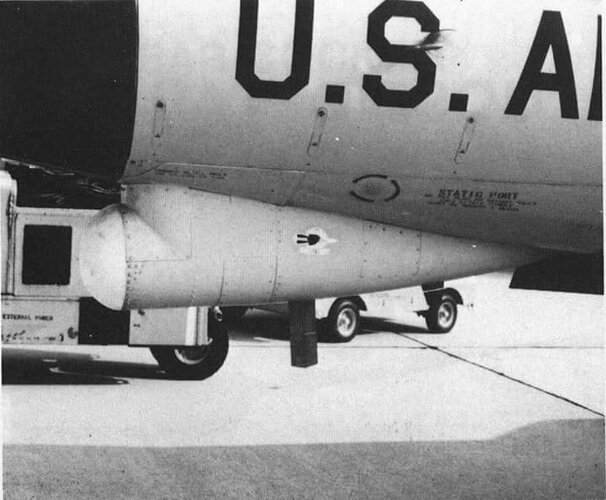

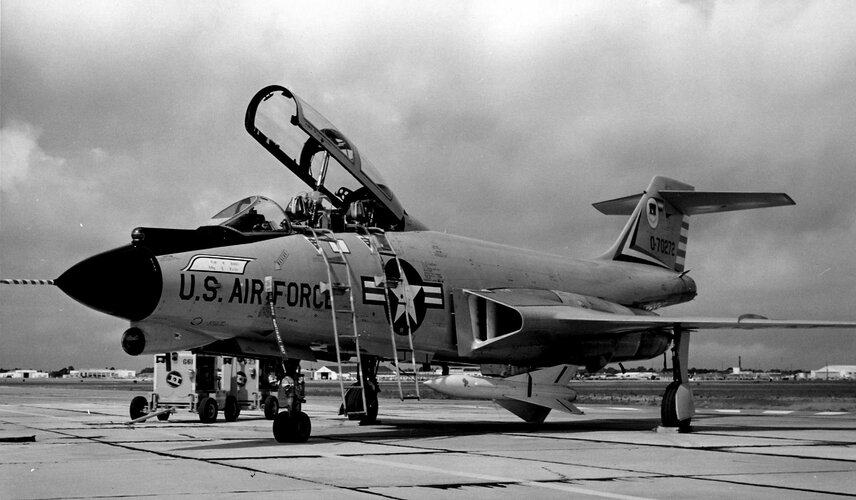

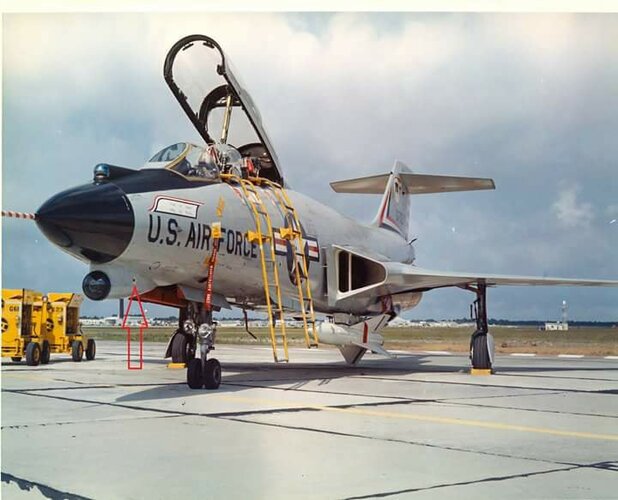

I have come across these pictures of McDonnell Douglas F-101B Voodoo Serial Number 57-0272 with a strange under nose sensor and carrying a MiM-23 Hawk missile.
It is late 60's or early 70's from my guess.

Does anyone have any more information on this project, its name and what was being tried?


Attachments

  • 26056052_10203972266782467_785256646369897892_n.jpg
    32.6 KB · Views: 86
  • 26168542_10203972268302505_6974554914853835820_n.jpg
    53.6 KB · Views: 94
  • 26168740_10203972267582487_3277480552349890012_n.jpg
    16.1 KB · Views: 94
  • 26195791_10203972267982497_6451054765107379783_n.jpg
    49.4 KB · Views: 92
  • 26196236_10203972267742491_7441553433607270925_n.jpg
    36.9 KB · Views: 83
  • 26198175_10214685608070977_2802385598234908594_o 1.jpg
    26198175_10214685608070977_2802385598234908594_o 1.jpg
    278 KB · Views: 83
  • 26230657_10203972267342481_5830368911855104985_n.jpg
    20.3 KB · Views: 91

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
17,221
Reaction score
6,859
Another member stumbled across one of those photos as well today, I'll add his post from another thread, as well as my potentially wide of the mark answer:

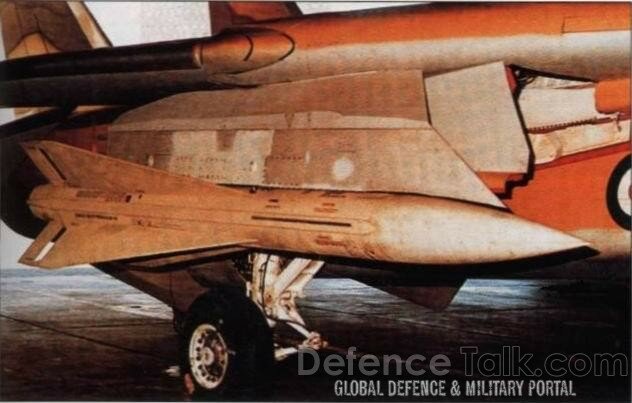

Stumbled across this interesting picture of a F-101 Voodoo equipped with what looks like additional optical sensors and armed with a MIM-23 HAWK SAM.
One assumes it's a trial configuration for the HAWK's performance....?
It would be interesting to know the timeframe, as the Iranian Air Force itself would later go on to operationally arm it's F-4 Phantom's and F-14 Tomcat's with a modified HAWK missiles.

Regards
Pioneer
mcdonnell-f-101-voodoo-with-additional-sensors-and-mim-23-hawk-missile-jpg.661160



Stumbled across this interesting picture of a F-101 Voodoo equipped with what looks like additional optical sensors and armed with a MIM-23 HAWK SAM.
One assumes it's a trial configuration for the HAWK's performance....?
Though I seem to have a vague memory of a air-launched HAWK variant as part of an USAF ASAT program? My brain is fried at the moment, so I could be wrong.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,607
Reaction score
6,788
What the frack was a F-101 doing with a Hawk, I have no idea... sounding rocket ? ABM target ?

There was an ASAT concept involving a F-106 that indirectly led to the well known F-15 one (that stared in Red Storm Rising).


Jonathan338

ACCESS: Restricted
Joined
Oct 18, 2020
Messages
4
Reaction score
12
Another more puzzling picture

On one of the facebook sites i posted this, a guy that knew about the Voodoo than pointed out that the MG-13 radar was a pulse radar and the MIM-23 Hawk was continuous wave guided.
Maybe the sensor under the nose was a radar of sorts to provide continuous wave guidance for the Hawk and the MG-13 was used to find the target.
What intrigues me is that the Voodoo also as an IR sensor .

Maybe it was some form of TISEO but that would make no sense with the Hawk


Attachments

  • 26230992_10203972267022473_643560477891735942_n.jpg
    18.8 KB · Views: 73
Last edited:

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,236
Reaction score
784
Another member stumbled across one of those photos as well today, I'll add his post from another thread, as well as my potentially wide of the mark answer:
Stumbled across this interesting picture of a F-101 Voodoo equipped with what looks like additional optical sensors and armed with a MIM-23 HAWK SAM.
One assumes it's a trial configuration for the HAWK's performance....?
It would be interesting to know the timeframe, as the Iranian Air Force itself would later go on to operationally arm it's F-4 Phantom's and F-14 Tomcat's with a modified HAWK missiles.

Regards
Pioneer
mcdonnell-f-101-voodoo-with-additional-sensors-and-mim-23-hawk-missile-jpg.661160



Stumbled across this interesting picture of a F-101 Voodoo equipped with what looks like additional optical sensors and armed with a MIM-23 HAWK SAM.
One assumes it's a trial configuration for the HAWK's performance....?
Though I seem to have a vague memory of a air-launched HAWK variant as part of an USAF ASAT program? My brain is fried at the moment, so I could be wrong.
"Part of an USAF ASAT program?"

Hmm, that and the additional sensors might make sense.

(Cheers Grey Havoc for editing and finding more appropriate thread)

Regards
Pioneer



iverson

ACCESS: Top Secret
Joined
Sep 24, 2009
Messages
581
Reaction score
505
Another more puzzling picture

On one of the facebook sites i posted this, a guy that knew about the Voodoo than pointed out that the MG-13 radar was a pulse radar and the MIM-23 Hawk was continuous wave guided.
Maybe the sensor under the nose was a radar of sorts to provide continuous wave guidance for the Hawk and the MG-13 was used to find the target.
What intrigues me is that the Voodoo also as an IR sensor .

Maybe it was some form of TISEO but that would make no sense with the Hawk
Isn't the red object just a DART-type towed target?
