McDonnell Douglas 1991 high-speed rotorwing/tiltwing projects

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,105
Reaction score
1,087

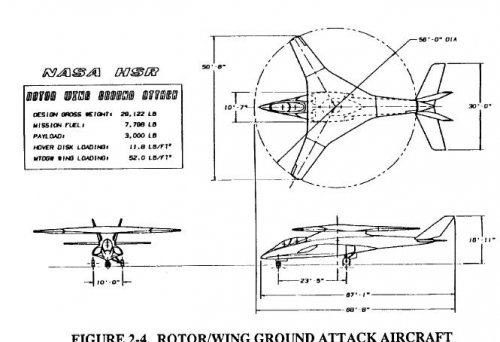

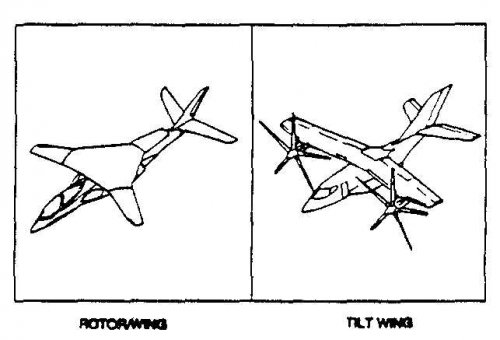

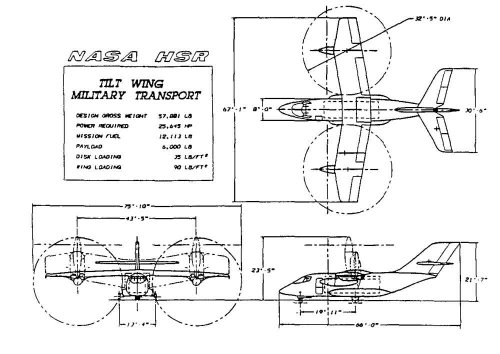

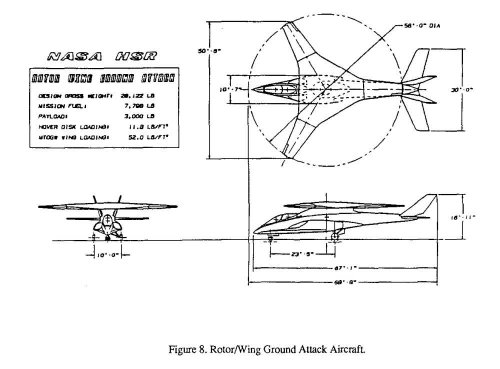

McDonnell Douglas 1991 high-speed rotorwing (Ground Attack Role) and tiltwing (Military Transport) projects


Attachments

  • mdc1991hsrotwing.jpg
    52.4 KB · Views: 784
  • mdc1991hstiltwing.jpg
    63.6 KB · Views: 678
  • mdc1991hs.jpg
    25.9 KB · Views: 631

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,310
Reaction score
4,086
Hi,

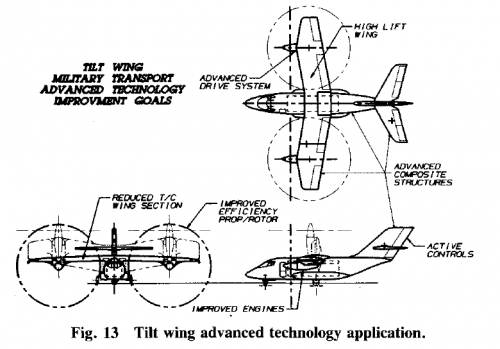

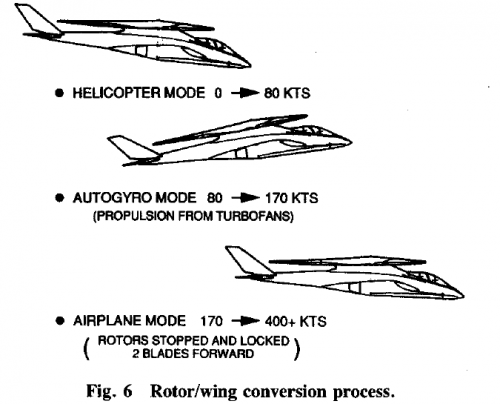

also from the same source;


http://arc.aiaa.org/doi/abs/10.2514/3.48272?journalCode=ja


Attachments

  • R-1.png
    23.4 KB · Views: 341
  • R-1-2.png
    30 KB · Views: 341
  • R-2.png
    36 KB · Views: 54

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
These seem to be labeled "NASA", not "McDonnell Douglas"...
The rotor wing was a Hughes design, so it is possible that these as MDD after all, but one is never careful enough with these reports, which often contain merely notional designs and not necessarily company projects, even if the report itself was commissioned from a certain company by NASA!


yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,478
Reaction score
689
Skyblazer said:
These seem to be labeled "NASA", not "McDonnell Douglas"...
The rotor wing was a Hughes design, so it is possible that these as MDD after all, but one is never careful enough with these reports, which often contain merely notional designs and not necessarily company projects, even if the report itself was commissioned from a certain company by NASA!
NASA commisoned McDonnell Douglas to do the study.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
yasotay said:
NASA commisoned McDonnell Douglas to do the study.

True, but as I said, sometimes the drawings in those commissioned reports do not necessarily depict company programs. They can be generic/notional designs, NASA-produced designs submitted as a template for manufacturers to follow, even designs by other manufacturers used as examples. That's why it's important to be careful and not just grab the pics but also browse the report a bit to see which is what.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540

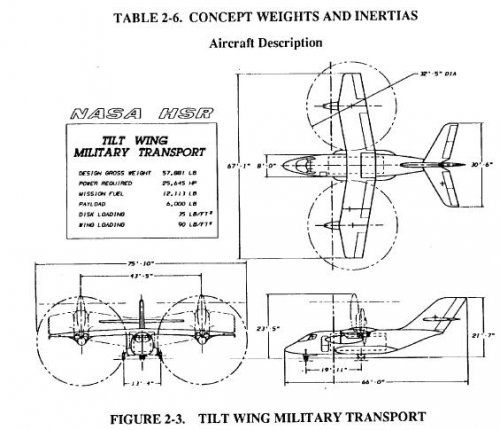

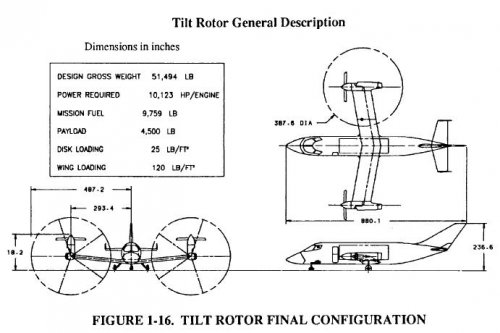

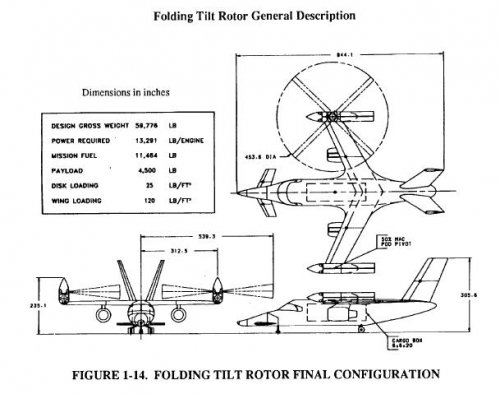

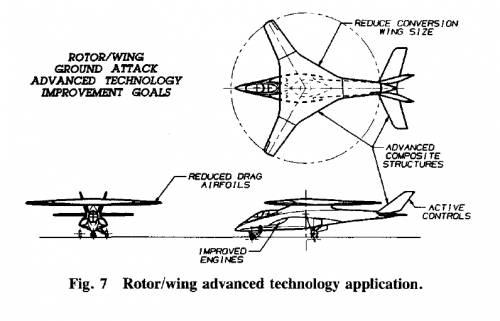

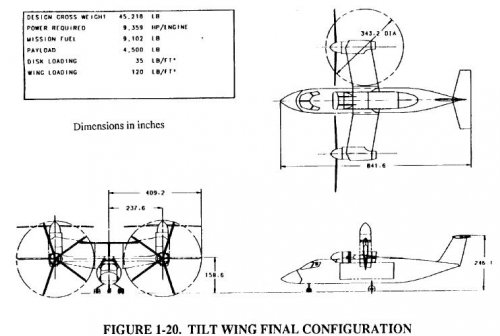

After going through the report in a little more detail, it appears that these were studied by McDonnell Douglas under contract from NASA:

In order to not restrict concept selection and creative thinking, NASA only specified the concepts to be of helicopter-like disk loading and capable of forward flight in the 450-kt range.

The report states clearly that this study (notably the rotor-wing configuration) rely heavily on research done by Hughes 25 years before:

Due to the amount of initial concept exploration in the mid-60s, including whirlstand, wind tunnel, dynamic model conversion, and transonic tests, much is known about this configuration. The XH-17 and XV-9A technology demonstrators incorporated reaction drive rotors in their designs. (...) Data from the 1960s wind-tunnel tests, completed by Hughes Tool Company, determined the lift and drag characteristics of various centerbody shapes.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,310
Reaction score
4,086
My dear Skyblazer is right,


this project was from NASA and co-operate with MD company,please see reply 45;


http://www.secretprojects.co.uk/forum/index.php/topic,5474.45.html
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19910013823.pdf


Attachments

  • 6-6.JPG
    46.3 KB · Views: 35
  • 5-5.JPG
    47.3 KB · Views: 37
  • 4-4.JPG
    43.7 KB · Views: 34
  • 3-3.JPG
    44.1 KB · Views: 35
  • 2-2.JPG
    43.7 KB · Views: 39
  • 1-1.JPG
    38.2 KB · Views: 32
  • 7-7.JPG
    44.6 KB · Views: 42
