MATRA missiles and projects

Kadija_Man

CLEARANCE: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
1,899
Reaction score
14
The Matra R530 Air-to-Air missile was fielded with interchangeable guidance heads - SARH and IR homing. Does anybody know when the IR guidance system was developed and fielded? Was it separate to the SARH guided version of the weapon?


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,178
Reaction score
102
It appears that the two seekers were developed and fielded on parallel, around 1962-3. There were a couple of different versions of the radar seeker for compatibility with various aircraft, including the Crusader.


cardonet

CLEARANCE: Confidential
Joined
Feb 23, 2009
Messages
72
Reaction score
3

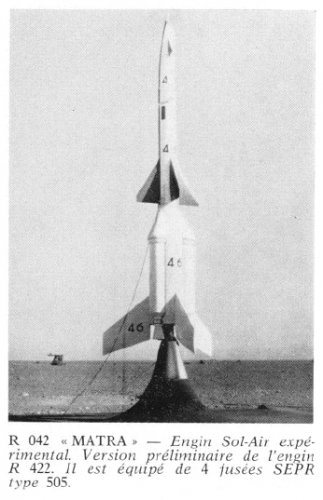

The third photo, supposed to show a R042, is actually a R422A. Its booster has 3 motors and not four as indicated.

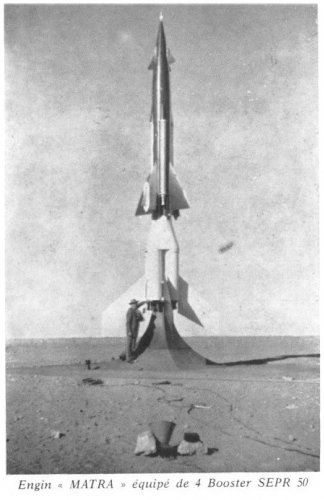

The last picture (Matra rocket) shows a R042. Note that its booster has four motors.

Note also the difference in diameter of the missiles: 60 cm for the R042 and 40 cm for the R422.

Note also that the R042's liquid engine was not ready, this experimental missile was powered by solid motors fixed all around.


Kadija_Man

CLEARANCE: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
1,899
Reaction score
14
TomS said:
It appears that the two seekers were developed and fielded on parallel, around 1962-3. There were a couple of different versions of the radar seeker for compatibility with various aircraft, including the Crusader.
Thanks. That is what I suspected.
