Hi,

the Italian company Magni was designed the RR,a rocket
plane of 1931,it was based on Dr Cattaneo G.P.1 glider aircraft,
it had cantilever wing as a monoplane,with an circular section
fuselage covered in wood,and a tail carrying two monoblock booms
fixed on wing.to these booms were attached,and in fact were
incoporated,two vertical tailplanes carring two coupled rudders.


Attachments

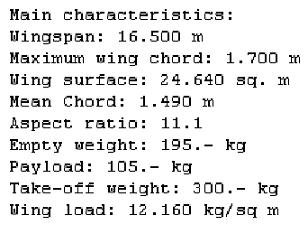

  • Magni RR data.JPG
    Magni RR data.JPG
    19.8 KB · Views: 386

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
Highly interesting Hesham. What are the sources of this ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
My dear lark,

please recieve my special message,and for Mangni RR,
it was the only rocket aircraft for Italy I know it,any
additions are welcome.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Well, Magni RR was in reality a project of Ettore Cattaneo, born in 1898 circa 10 km from my home... He was a physician and a pioneer of sailplanes. He made a type of powder rocket in the second half of the '20s and after the Von Opel experiments in Germany he worked with Magni Aviazione in Milan (Ing. Magni was very near to Caproni, and did several projects for them). They used the wing of a sailplane, the GP1, made by Magni and previously bought by Cattaneo himself. They did a new airframe with a rocket compartment housing rockets with a combined thrust of 300 KG and a double tauil. The wing was mounted high. Relevant data were: void weight 195 KG, maximum T/O weight 300 KG. Span 16,56 m, wing surface 26,64 sqm. RR stand for Radio Razzo (radio Rocket). The intended use of the plane was as a drone remotely piloted via radio. First flight was 28th June 1931. Ernst Udet was there as a correnspondent for Les Ailes.... The plane made six flights in all before being abandoned. Naturally I have a 3-view.... guess?


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
Hesham,

Sorry,but your link about Magni gives me a Russian translation site...


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126

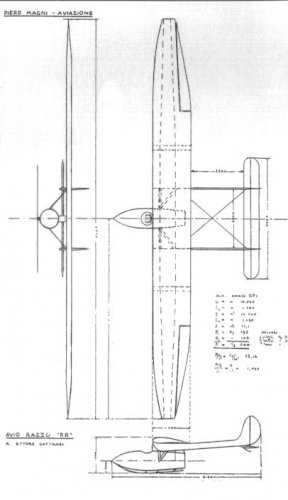

Back on duty.. :p


Attachments

  • Magni RR.jpg
    Magni RR.jpg
    51.5 KB · Views: 493

red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
616
Reaction score
74
The intended use of the plane was as a drone remotely piloted via radio.

Do you mean "drone" as in an aircraft drone for target practice, or a "drone" with which to attack various targets with radio guidance?

Any idea how succesful it was?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Do you mean "drone" as in an aircraft drone for target practice, or a "drone" with which to attack various targets with radio guidance?
The second you wrote. The intended role was both military and civilian. They thought of using it for photographic roles, for example. As to the success, after he flew six times it was discarded..


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Hi,


here is a small info about Magni RR aircraft.


Aeronautica Militare - La Propulsione a Reazione in Italia


Attachments

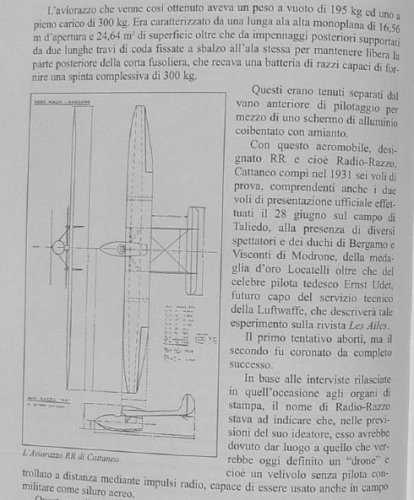

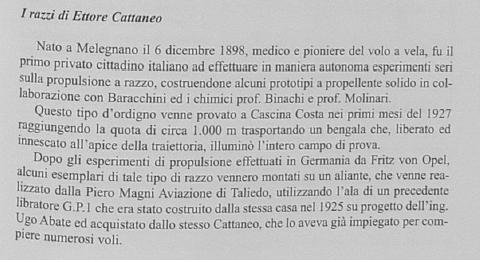

  • 1.JPG
    29.1 KB · Views: 212
  • 2.JPG
    54.7 KB · Views: 216
  • 3.JPG
    7.1 KB · Views: 205

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Also from;


http://www.avia-it.com/act/biblioteca/libri/PDF_Libri_By_AVIA/Annuario%20dell'Aeronautica%20italiana%201934.pdf


Attachments

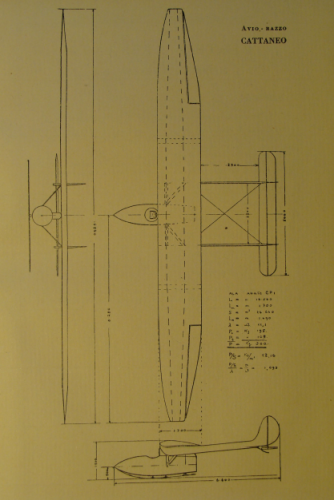

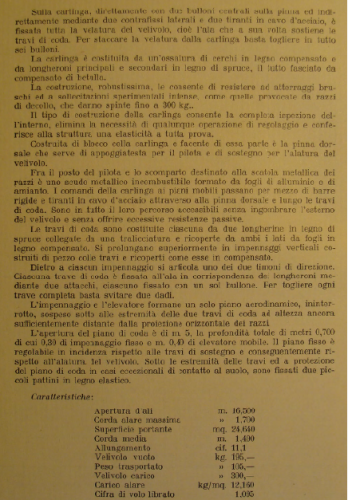

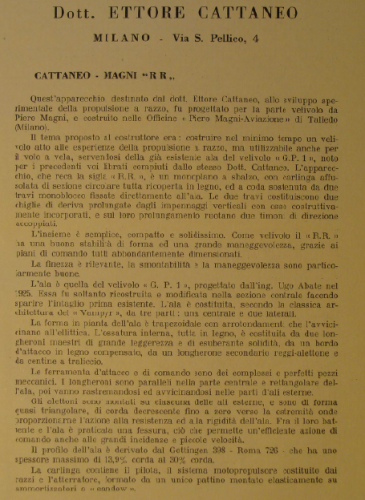

  • RR-1.png
    601.6 KB · Views: 13
  • RR-2.png
    592.9 KB · Views: 14
  • RR-3.png
    476.2 KB · Views: 28
