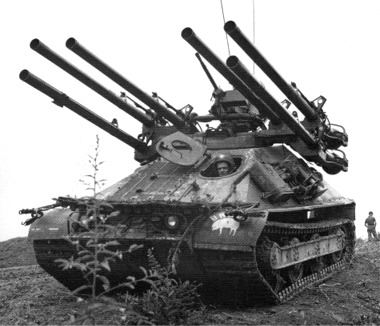

The M50 Ontos is an odd vehicle with an interesting story, a problem child that the U.S. Army ended up rejecting but the U.S. Marine Corps ended using to good effect, though in small numbers and for infantry support, not as a tank hunter. There are links to more resources in the Wikipedia article linked above, including quite a bit from those who crewed "The Pig."



I have read about proposed APC variants of the Ontos and one with an autoloading recoilless rifle in place of the six manually-loaded ones. Does anyone have pics, 3-views or more info about any Ontos variants, prototypes or concepts?


Ranger6

ACCESS: Restricted
Joined
Feb 27, 2007
Messages
44
Reaction score
5
Two quick notes:

First, the APC and other variants actually predated the RCL-armed version. ONTOS was based on an Alice Chalmers proposed Tracked Utility Vehicle (basically a tracked Jeep).

Second, R.P. Hunnicutt has very good coverage of the proposals and prototypes in his book on the Sheridan light tank.

Ta for now,

R6


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,412
Reaction score
173
Website
cluttonfred.info

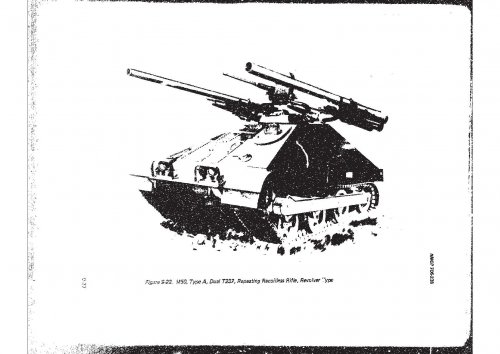

On a related note, I have read about but not yet seen a photo of the Ontos variant with two revolver-type multi-shot recoilless rifles instead of the six single-shot ones. Does anyone have any info on this or other multi-shot large-caliber recoilless rifles? Thanks!


Ashley

ACCESS: Restricted
Joined
Dec 9, 2008
Messages
4
Reaction score
0
There was a japanese Tank Type 60 with two 106mm recoilless rifles same as Ontos.



ontos0311

ACCESS: Restricted
Joined
May 2, 2009
Messages
5
Reaction score
0
Anybody wanting shots of Marine ONTOS in combat -
drop me a line and I will either post them here or make other arrangements

Semper Fi
ontos0311


ontos0311

ACCESS: Restricted
Joined
May 2, 2009
Messages
5
Reaction score
0
Okay let me sort them there are about 100 shots
some just of buddies and scenery


Tzoli

ACCESS: Top Secret
Senior Member
Joined
Feb 1, 2011
Messages
1,831
Reaction score
1,155
When I first seen this vehicle I thought it was a Self Propelled Artillery with multiple barrels for area saturation not a Tank Destroyer. Did the US army considered an artillery version of this vehicle or a similar multi barrelled SP Artillery vehicles?

C

CostasTT

Guest
cluttonfred said:
On a related note, I have read about but not yet seen a photo of the Ontos variant with two revolver-type multi-shot recoilless rifles instead of the six single-shot ones. Does anyone have any info on this or other multi-shot large-caliber recoilless rifles? Thanks!

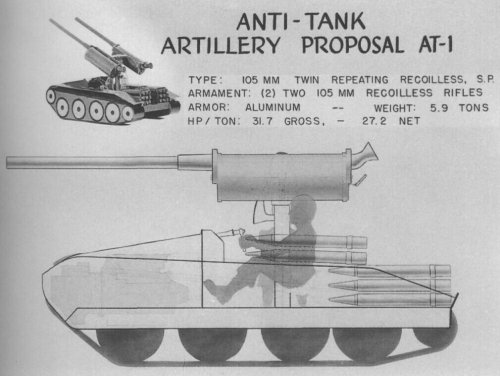

I think you are referring to the proposed AT-1.
Drawing found in Hunnicutt's Sheridan.


Attachments

  • AT-1.JPG
    86.4 KB · Views: 532
C

CostasTT

Guest
Ashley said:
There was a japanese Tank Type 60 with two 106mm recoilless rifles same as Ontos.

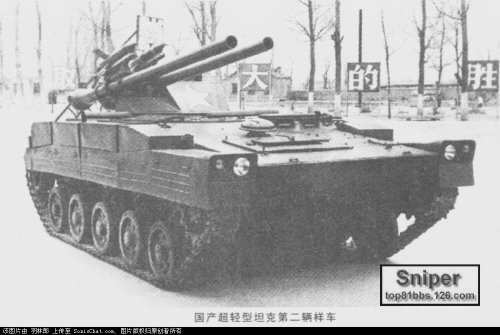

The Chinese also made a comparable vehicle, the WZ 141, produced in prototype form and armed with two recoilless rifles and two HJ-73 (Chinese Sagger) missiles.


Attachments

  • WZ141.jpg
    107.8 KB · Views: 507

tround

I really should change my personal text
Joined
Oct 28, 2012
Messages
149
Reaction score
22
On the effectiveness of the recoilless guns .


Attachments

  • recoilless rifle oro.pdf
    1.2 MB · Views: 102

Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,108
Reaction score
241
It also makes the point that the Back-Blast wasn't quite as big a deal as many claim. However, that was the 57mm and 75mm, 106mm and 120mm Rcls produce considerably more Back-Blast. It also depends on where they are being used. The drier the environment, the more dust which is picked up and blown around. Cold, snowy Korea is rather different to say, an Arid desert.


jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
3,767
Reaction score
1,438
Grey Havoc said:
H/t Triton for the image below:

index.php

Dear Grey Havoc,
the image doesn't seem to open. Any suggestions?


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
17,000
Reaction score
6,638
Woops! Here it is in an attachment:


Attachments

  • Heli-04.JPG
    296.3 KB · Views: 326

jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
3,767
Reaction score
1,438
Grey Havoc said:
Woops! Here it is in an attachment:

Thank you for posting.

maybe it shouldn't have been posted.. can't give these Marines any ideas. ;D


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
686
Reaction score
231
I'm trying to slightly remove perspective distortions and correct colors - and hope, that this picture became more useful.


By the way, with Ontos, rotated on 90 degrees (and with its crew on-board) this combination of helicopter and fighting vehicle could be a kind of gunship!
:cool:


Attachments

  • Heli-04_corr.jpg
    1.2 MB · Views: 259

jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
3,767
Reaction score
1,438
Thank you for the clearer pic. Dear Silencer1.
